Colder Products

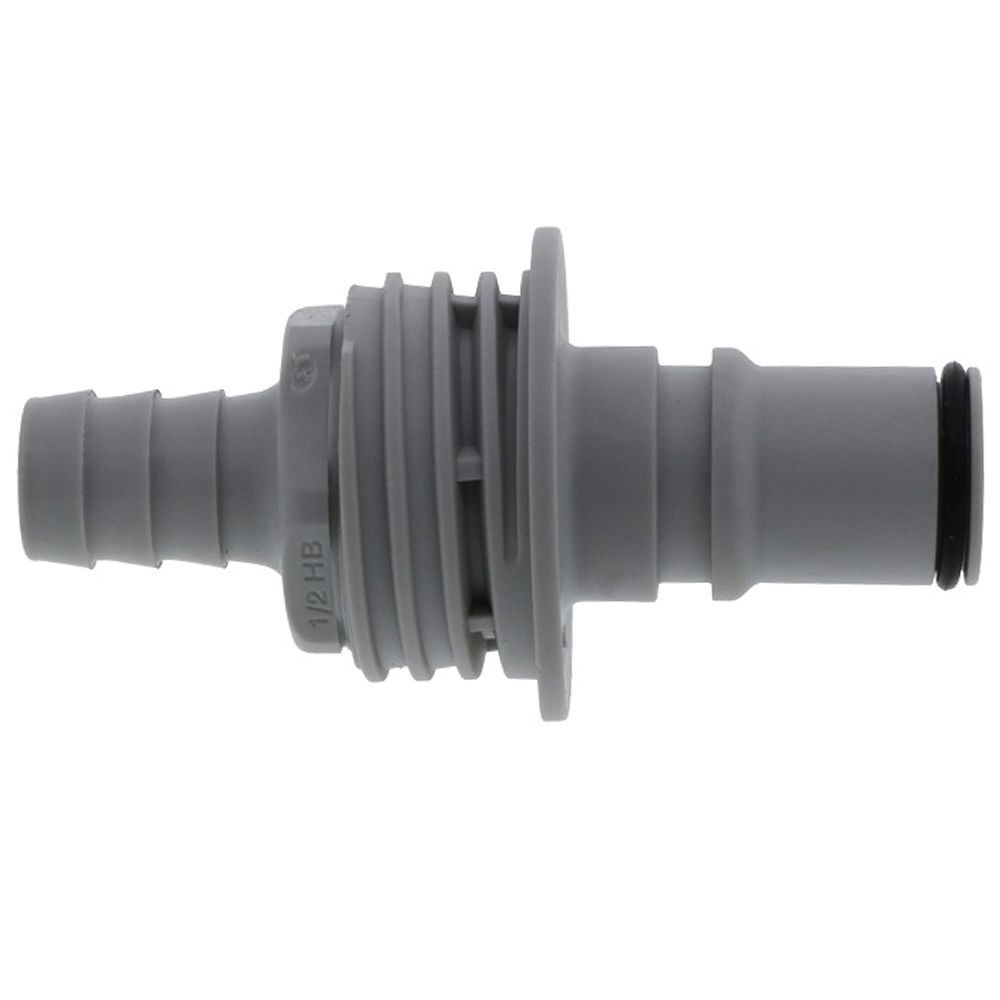

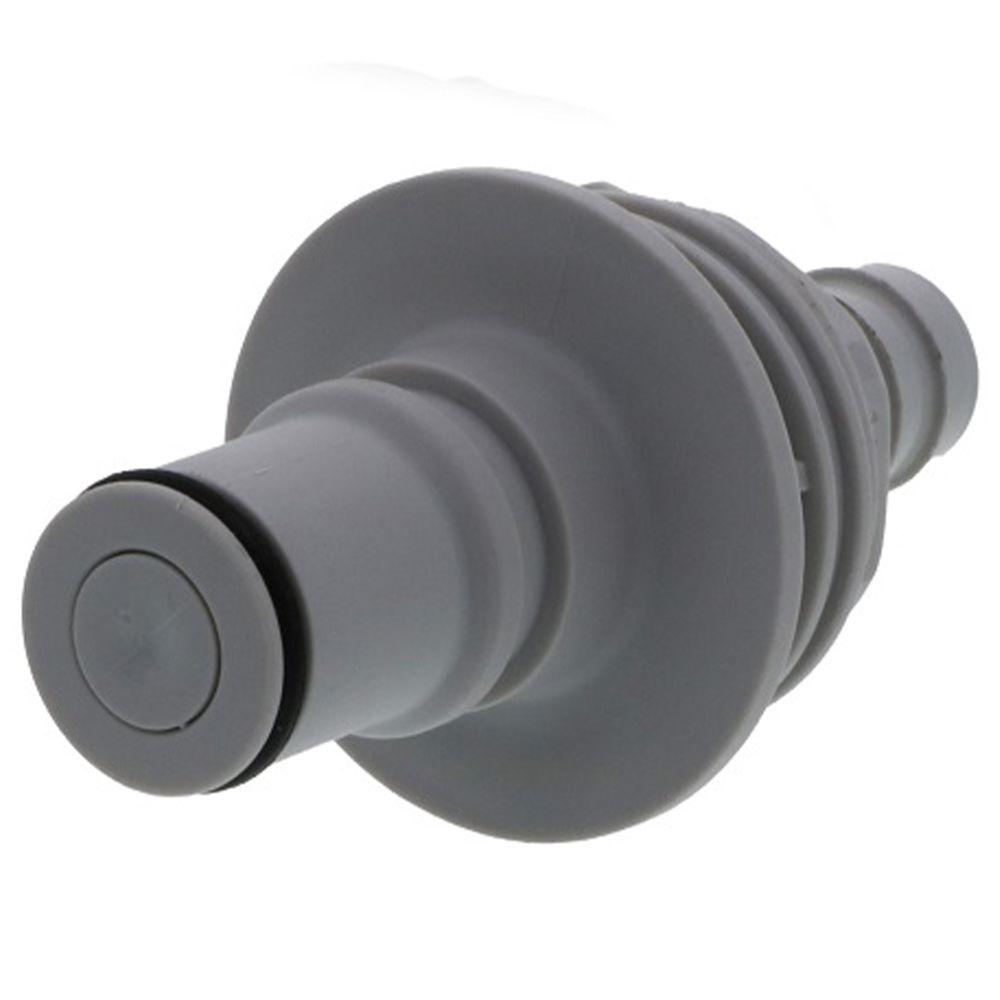

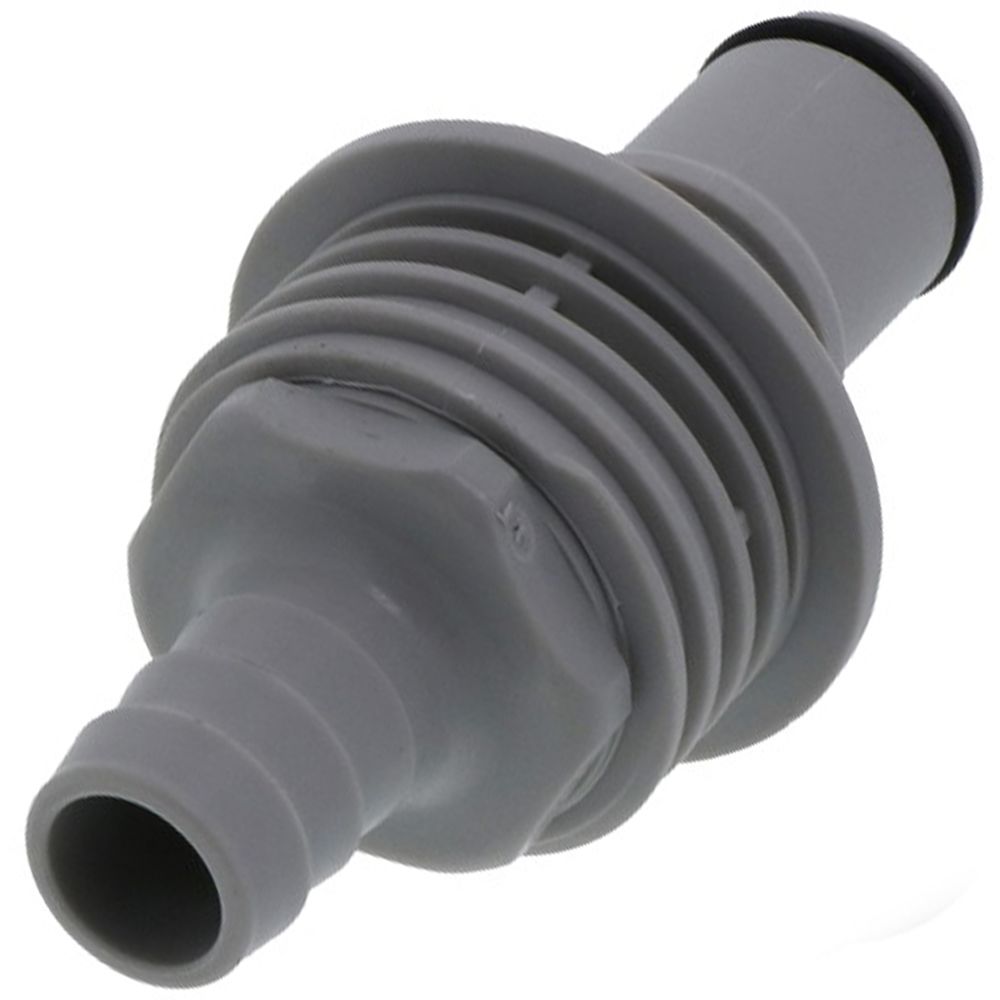

NS6D42008 Valved Panel Mount Hose Barb Coupling Insert 1/2 ID Barb

Part Number: NS6D42008

In Stock

out of stock

In Stock

$41.02

NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units




Weight & Dimensions

Bag Quantity

10

Box Quantity

10

Weight (lbs)

0.05

Details

Application

Water

Barb Size

1/2" ID

Body Material

Glass-Filled Polypropylene

External Springs And Pin

316 Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Panel Mount

Seal Material

EPDM

Series

NS6

Spring

316 Stainless Steel

Thumb Latch

Glass-filled polypropylene

Valve Type

Valved

Color / Finish

Gray

Origin

USA

Type

Coupling Insert


NS6D42008




NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units



Weight & Dimensions

Bag Quantity

10

Box Quantity

10

Weight (lbs)

0.05

Details

Application

Water

Barb Size

1/2" ID

Body Material

Glass-Filled Polypropylene

External Springs And Pin

316 Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Panel Mount

Seal Material

EPDM

Series

NS6

Spring

316 Stainless Steel

Thumb Latch

Glass-filled polypropylene

Valve Type

Valved

Color / Finish

Gray

Origin

USA

Type

Coupling Insert

Documentation
NS6D42008
