Colder Products

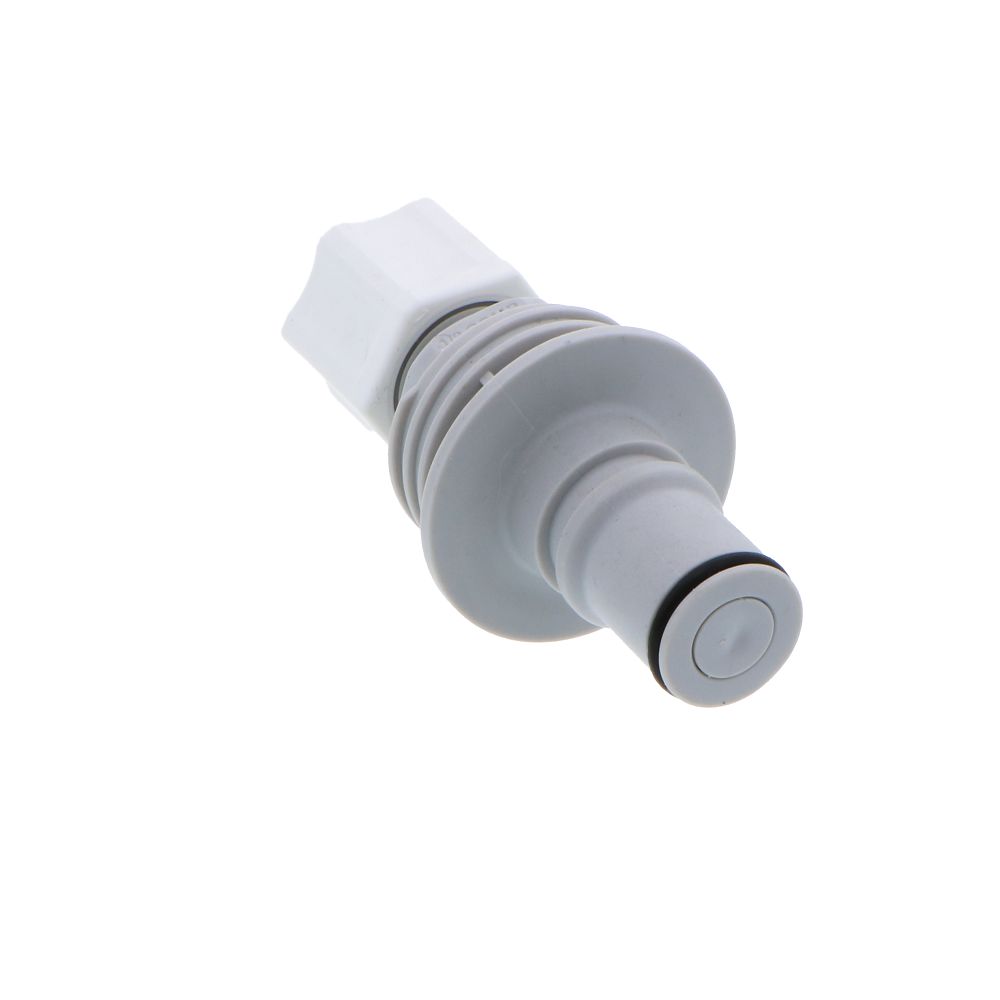

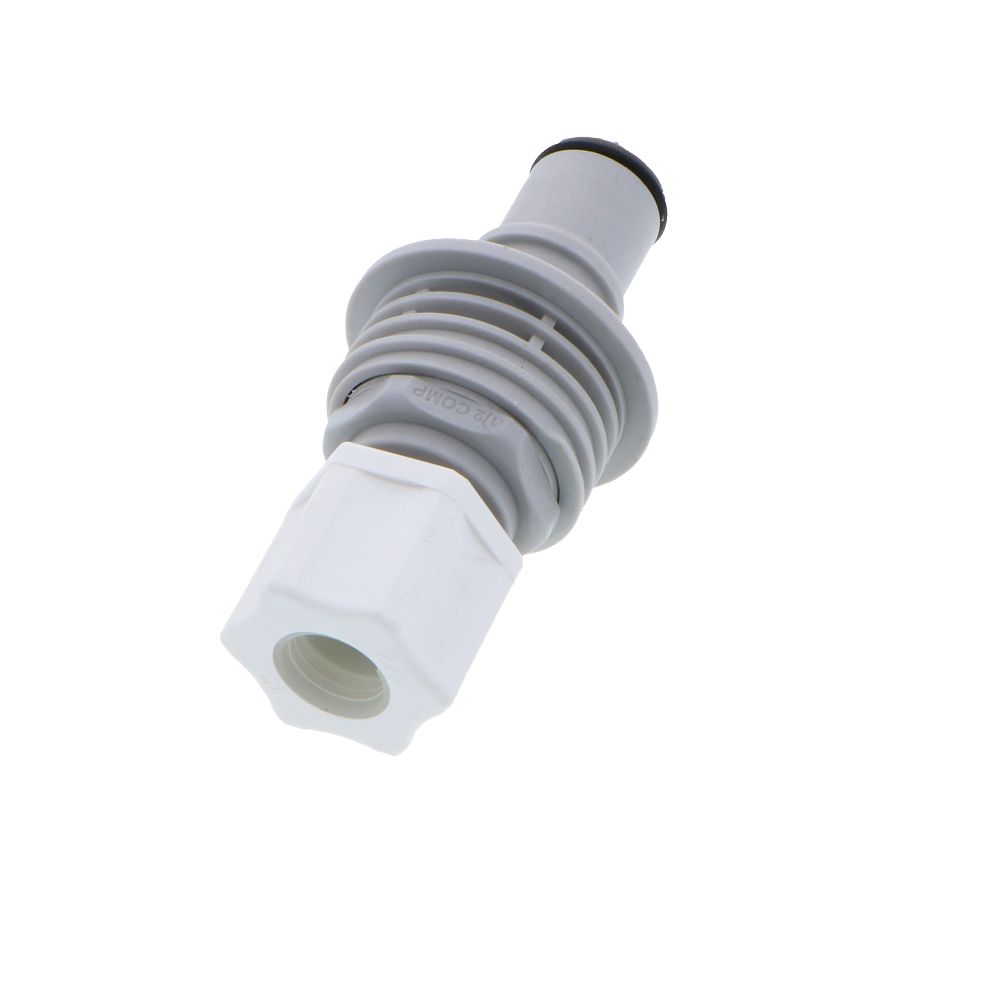

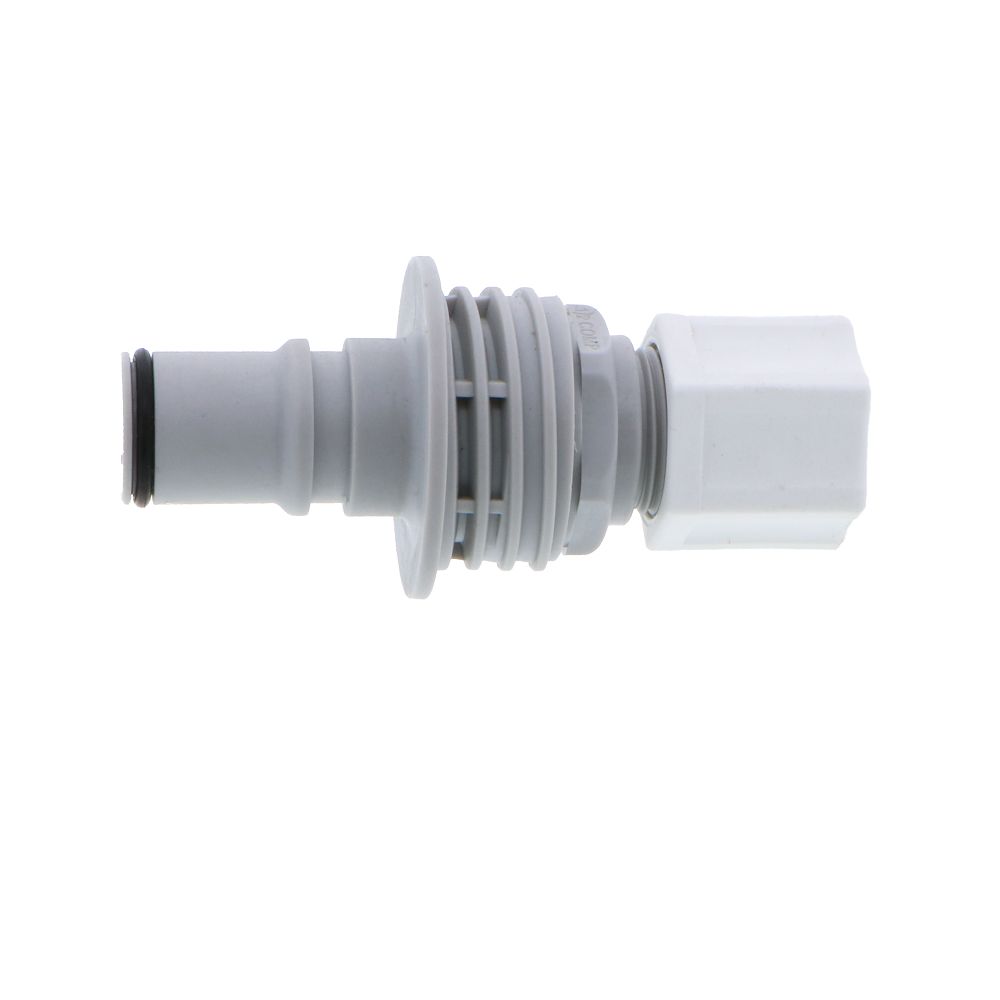

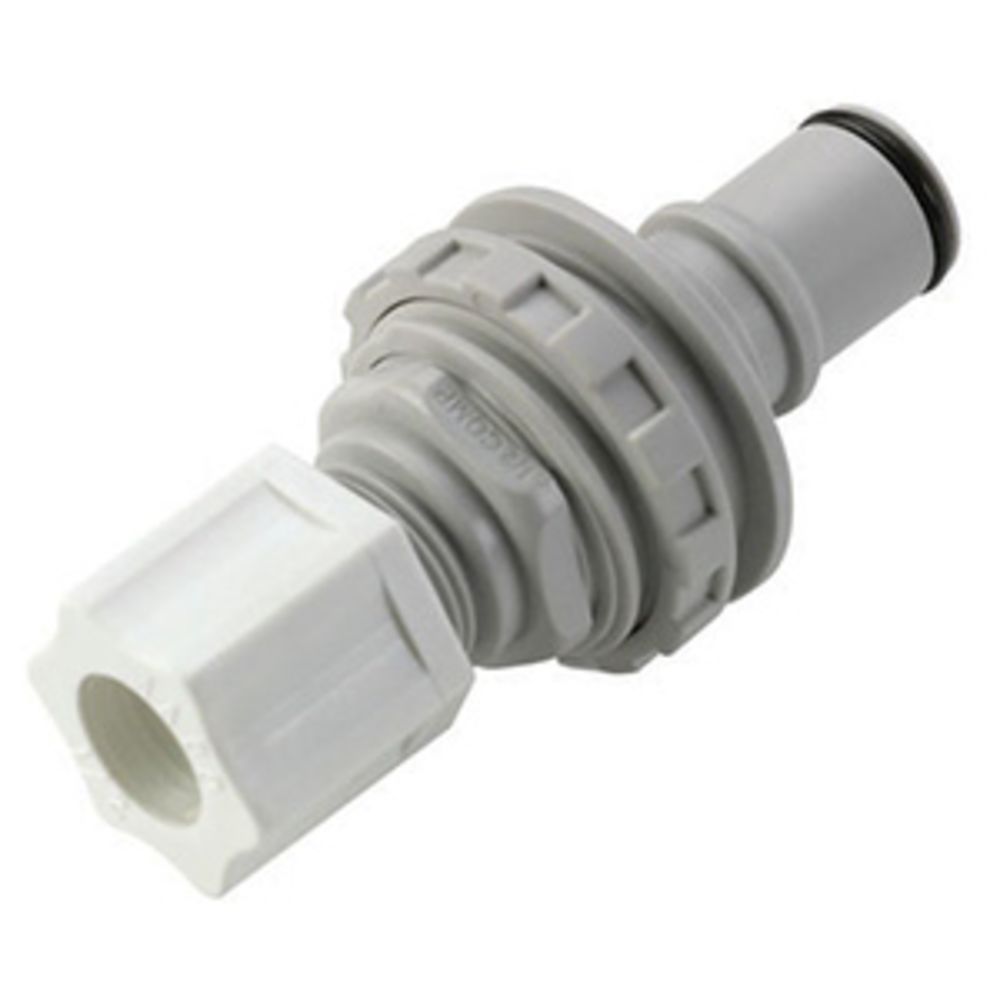

NS6D40008 Valved Panel Mount JACO Coupling Insert 1/2 JACO

Part Number: NS6D40008

In Stock

out of stock

In Stock

Closeout sale item with limited availability.

$17.61 Regular price $19.85 (11% Off)


NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.

 Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units


Details

Series

NS6

Push In Size

1/2" OD

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray with dark gray overmold, Molded Grey

Mounting Options

Panel Mount

O Rings

EPDM

Operating Pressure Range

120 PSI

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 stainless steel

Thumb Latch

Glass-filled polypropylene


NS6D40008





NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.

 Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units

NOTE: Closeout sale item with limited availability.

Details

Series

NS6

Push In Size

1/2" OD

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray with dark gray overmold, Molded Grey

Mounting Options

Panel Mount

O Rings

EPDM

Operating Pressure Range

120 PSI

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 stainless steel

Thumb Latch

Glass-filled polypropylene
