Home / Fittings / Quick-Disconnect Fittings / NS6D20008 Valved JACO Coupling Insert 1/2 JACO
Colder Products

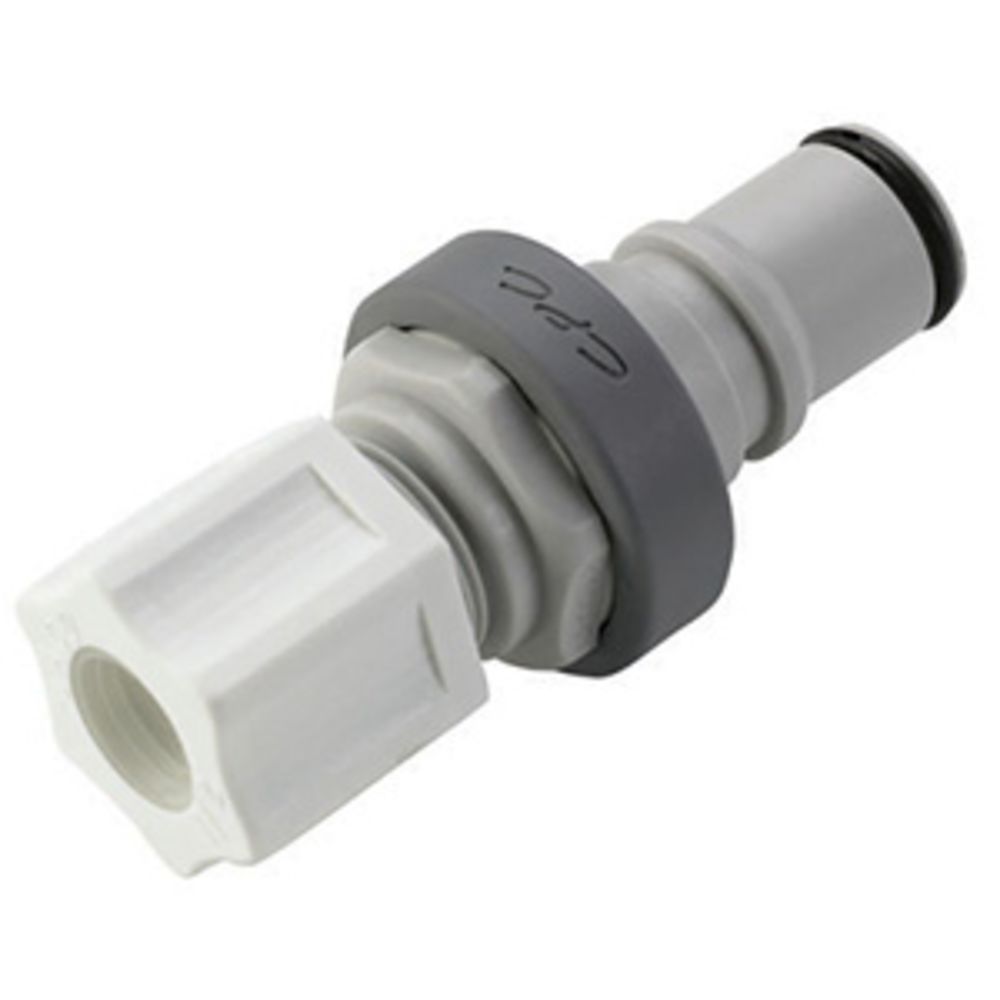

NS6D20008 Valved JACO Coupling Insert 1/2 JACO

Part Number: NS6D20008
Your price:
NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units
