Colder Products

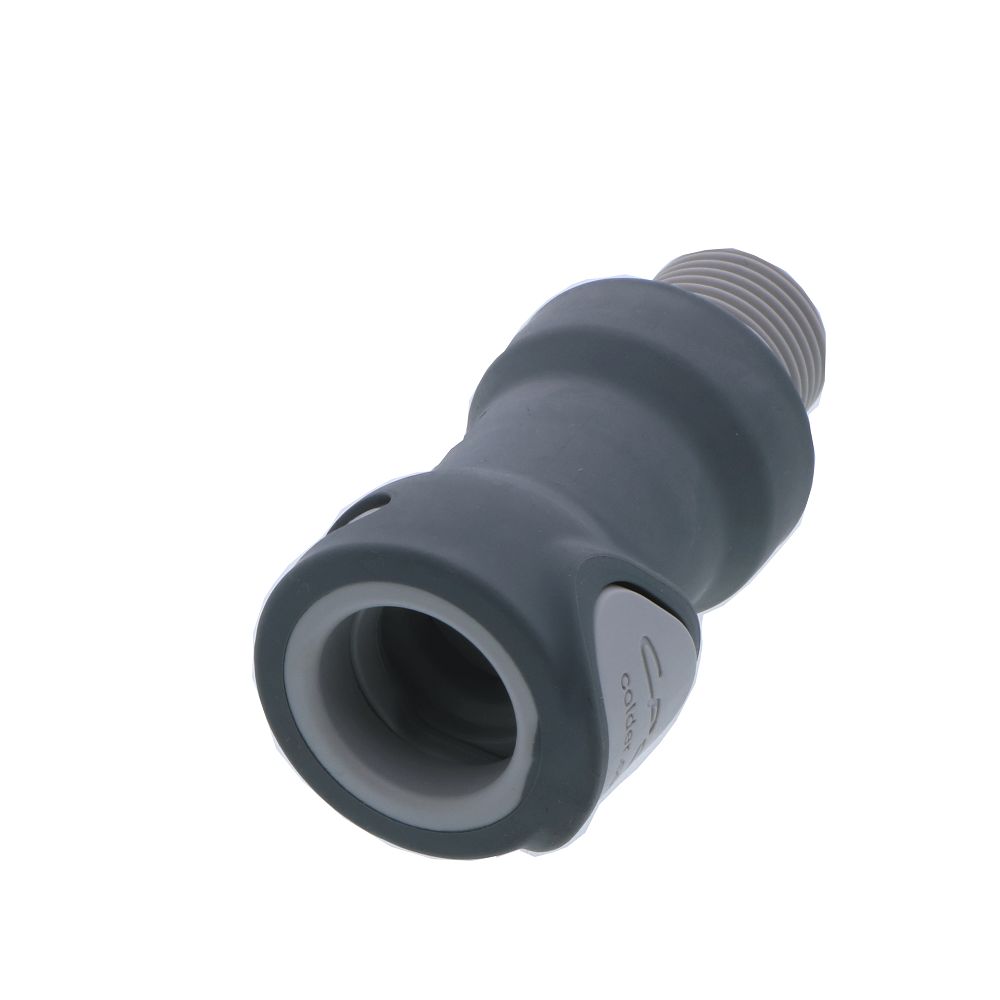

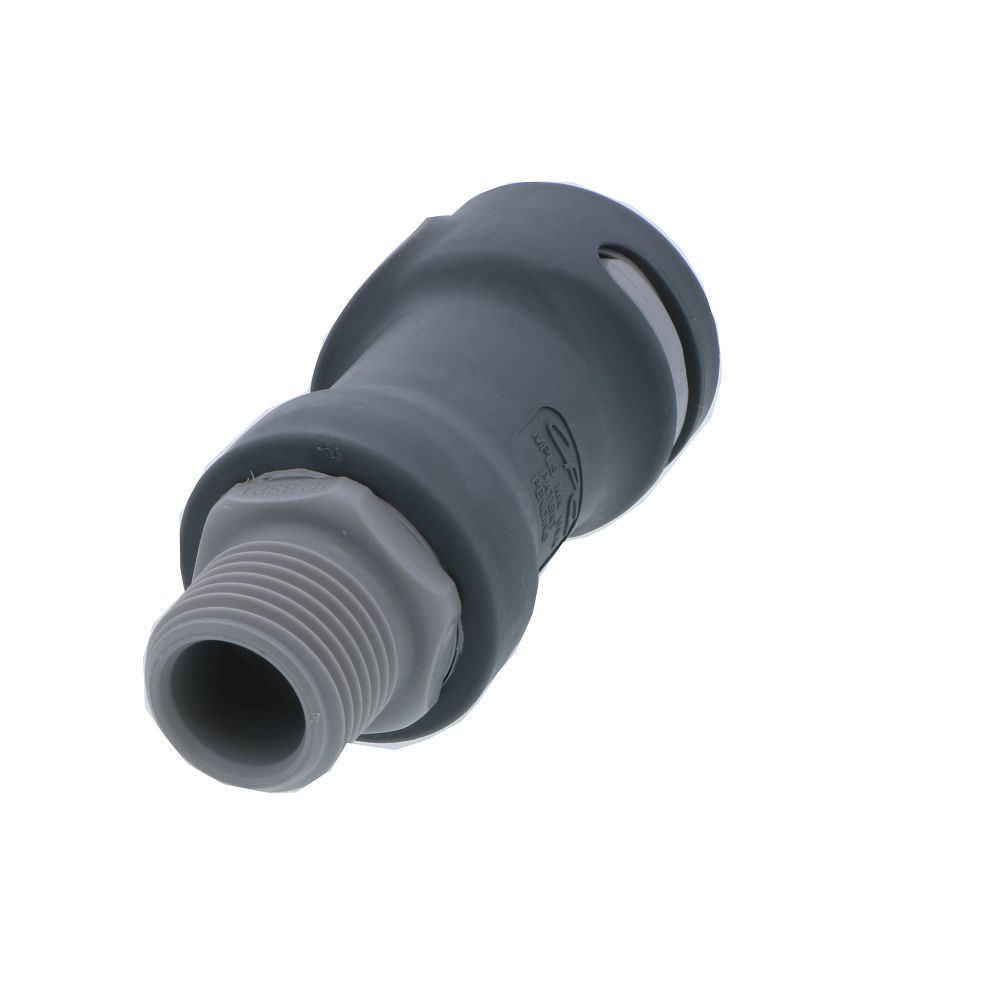

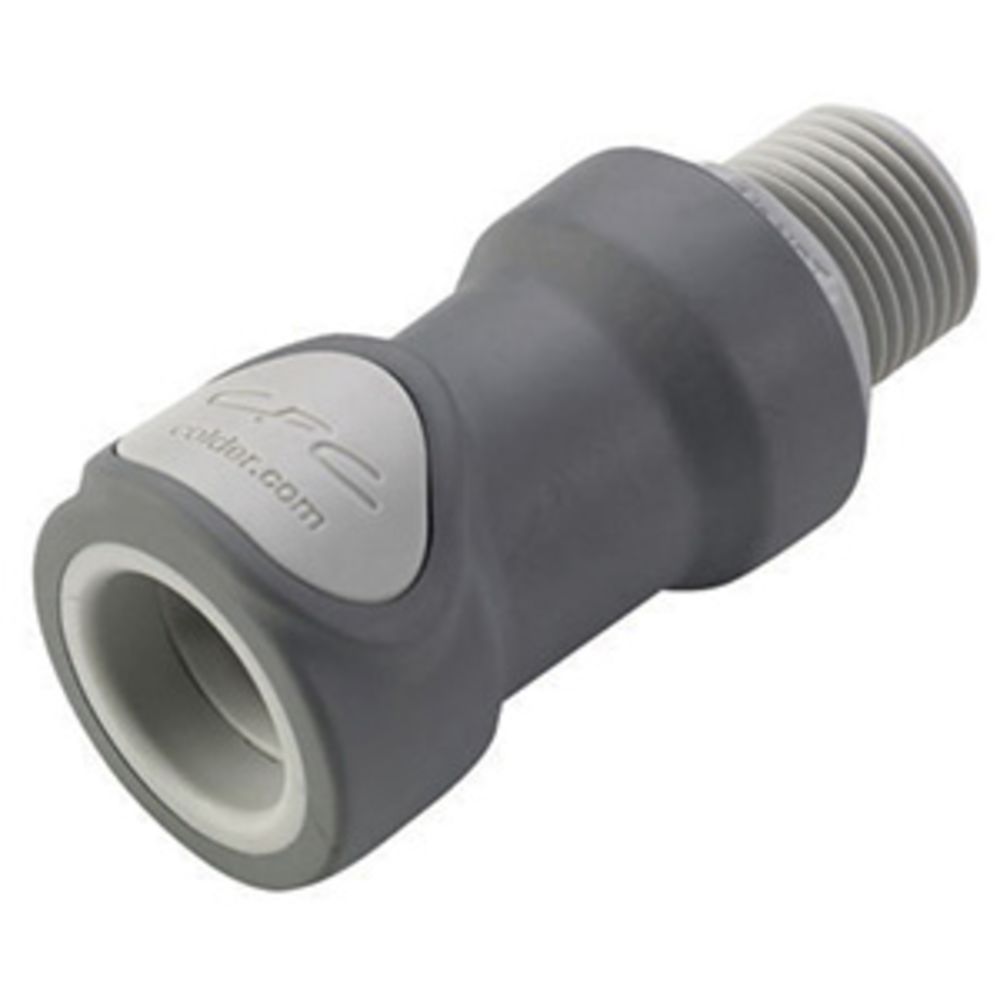

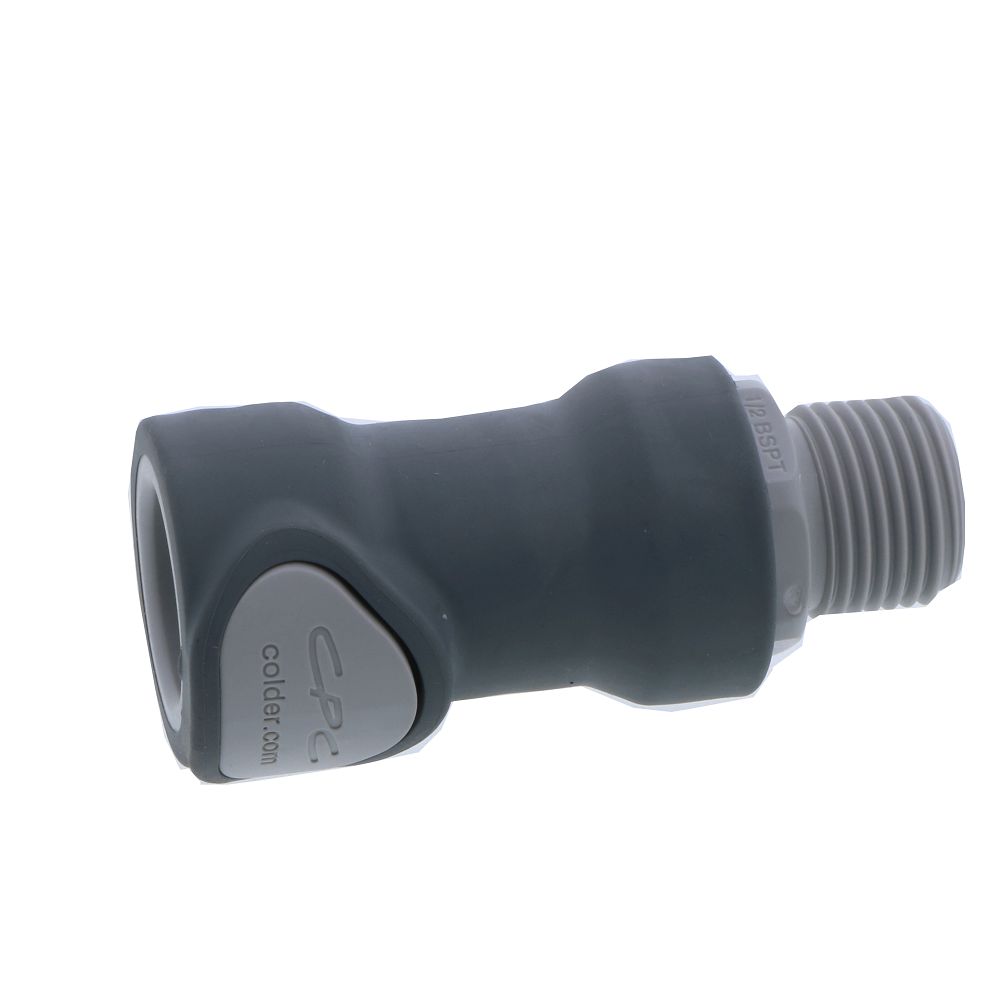

NS6D10008BSPT Valved Male Thread Coupling Body 1/2 BSPT

Part Number: NS6D10008BSPT

In Stock

out of stock

In Stock

$16.91


NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.\

 Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units


Details

Series

NS6

Body Material

Polypropylene

Color / Finish

Gray with dark gray overmold

Mounting Options

Thread

O Rings

EPDM

Operating Pressure Range

120 PSI

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Seal Material

EPDM

Size

1/2"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 stainless steel

Thumb Latch

Glass-filled polypropylene

Inlet/Outlet Connection

1/2" | BSP


NS6D10008BSPT





NS6 Series couplings were built on the Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS6 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS6 is also chemically resistant making it ideal for a diverse range of applications.\

 Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: ~0.03 cc per disconnect, 0.42 cc per connect
  • Available in Bags of 10 units

Details

Series

NS6

Body Material

Polypropylene

Color / Finish

Gray with dark gray overmold

Mounting Options

Thread

O Rings

EPDM

Operating Pressure Range

120 PSI

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Seal Material

EPDM

Size

1/2"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 stainless steel

Thumb Latch

Glass-filled polypropylene

Inlet/Outlet Connection

1/2" | BSP

Documentation
NS6D10008BSPT
