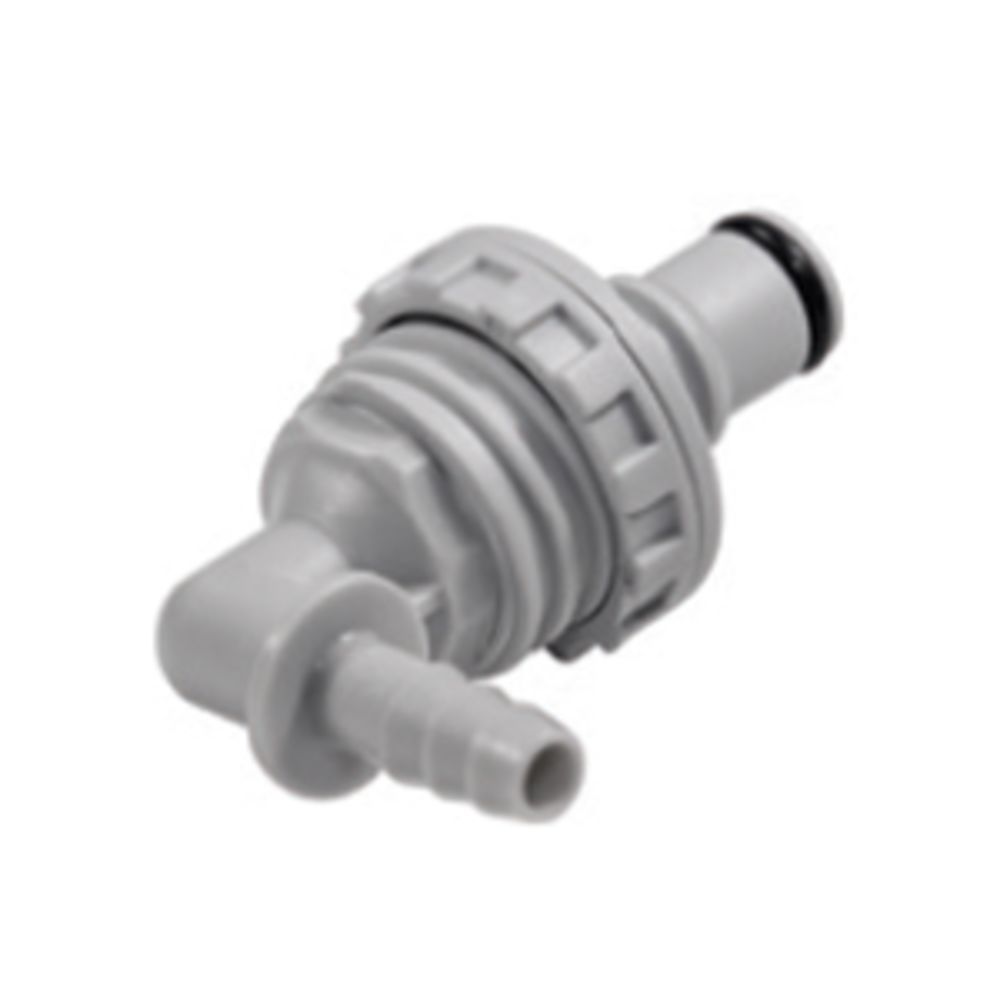

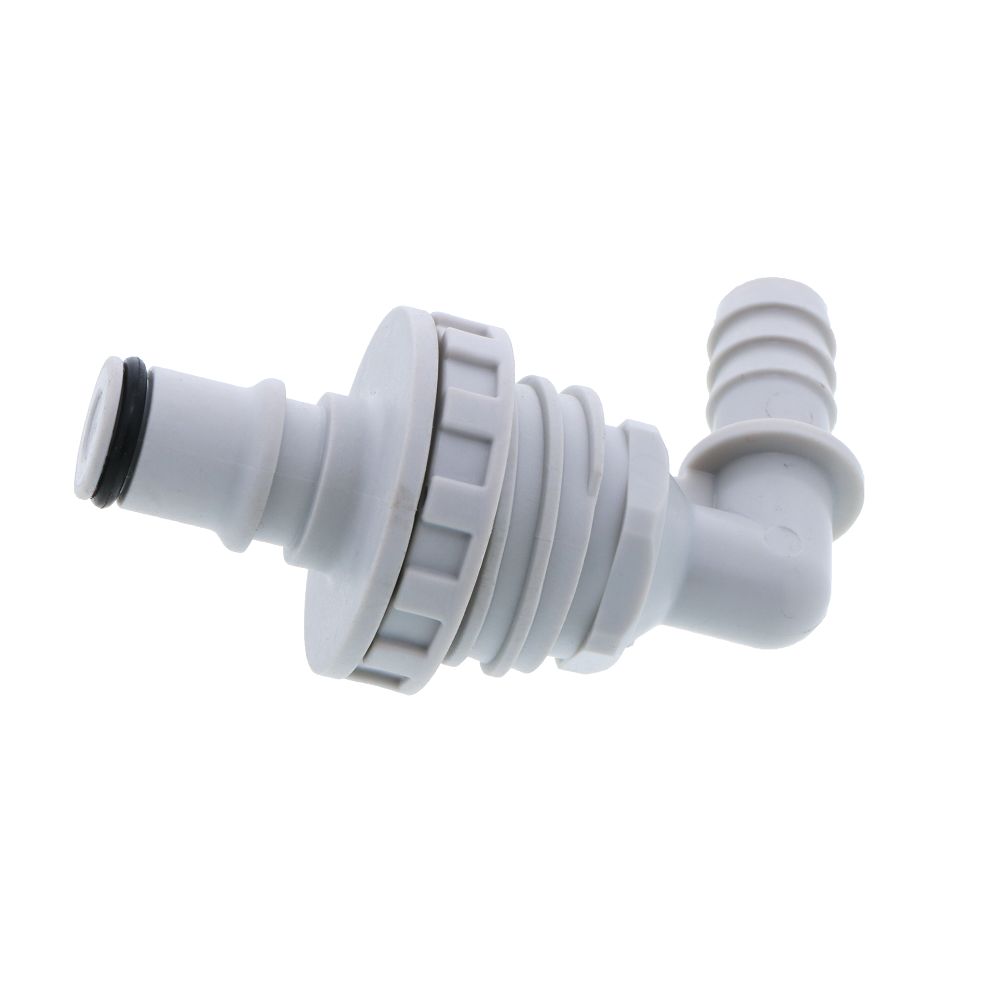

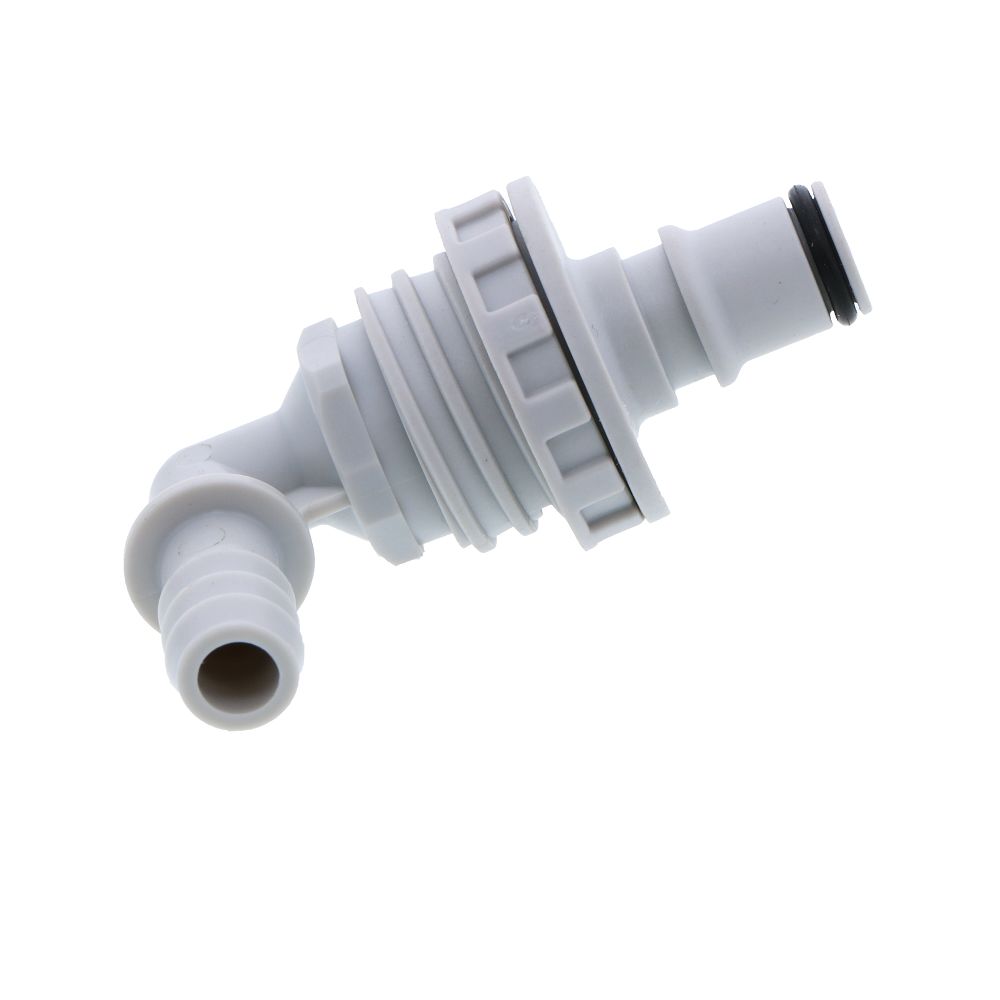

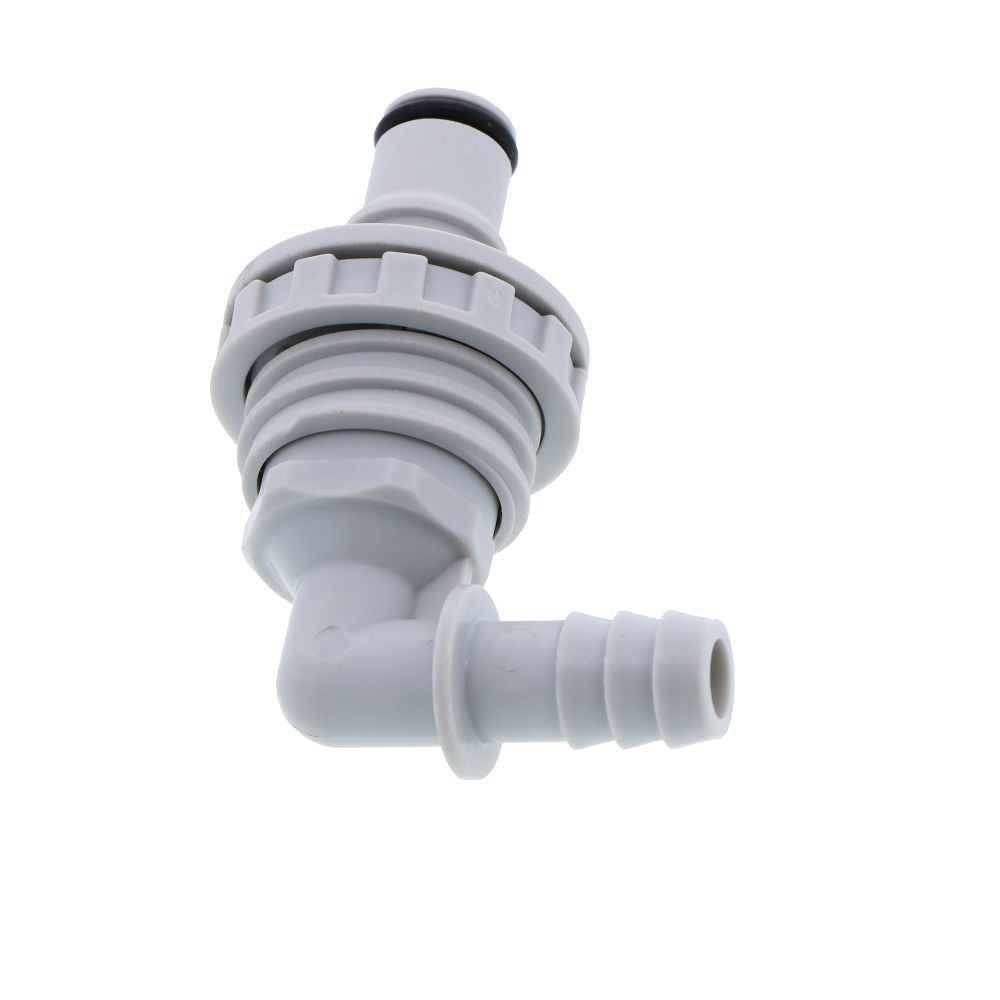

NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.
Specifications:
Specifications:
- Material: Polypropylene
- Color: Gray with dark gray overmold
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Panel Mount
- Tubing Size: 3/8" (9.5mm) ID
- Valve Option: Valved
- Temperature Range: 32ºF to 160ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: EPDM
- Spillage: <0.10 cc per disconnect, 0.10 cc per connect
- Available in Bags of 25 units
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Application | Water |
Barb Size | 3/8" ID |
Body Material | Glass-Filled Polypropylene |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Panel Mount |
Seal Material | EPDM |
Series | NS4 |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Type | Coupling Insert |
NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.
Specifications:
- Material: Polypropylene
- Color: Gray with dark gray overmold
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Panel Mount
- Tubing Size: 3/8" (9.5mm) ID
- Valve Option: Valved
- Temperature Range: 32ºF to 160ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: EPDM
- Spillage: <0.10 cc per disconnect, 0.10 cc per connect
- Available in Bags of 25 units
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Application | Water |
Barb Size | 3/8" ID |
Body Material | Glass-Filled Polypropylene |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Panel Mount |
Seal Material | EPDM |
Series | NS4 |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Type | Coupling Insert |
