Colder Products

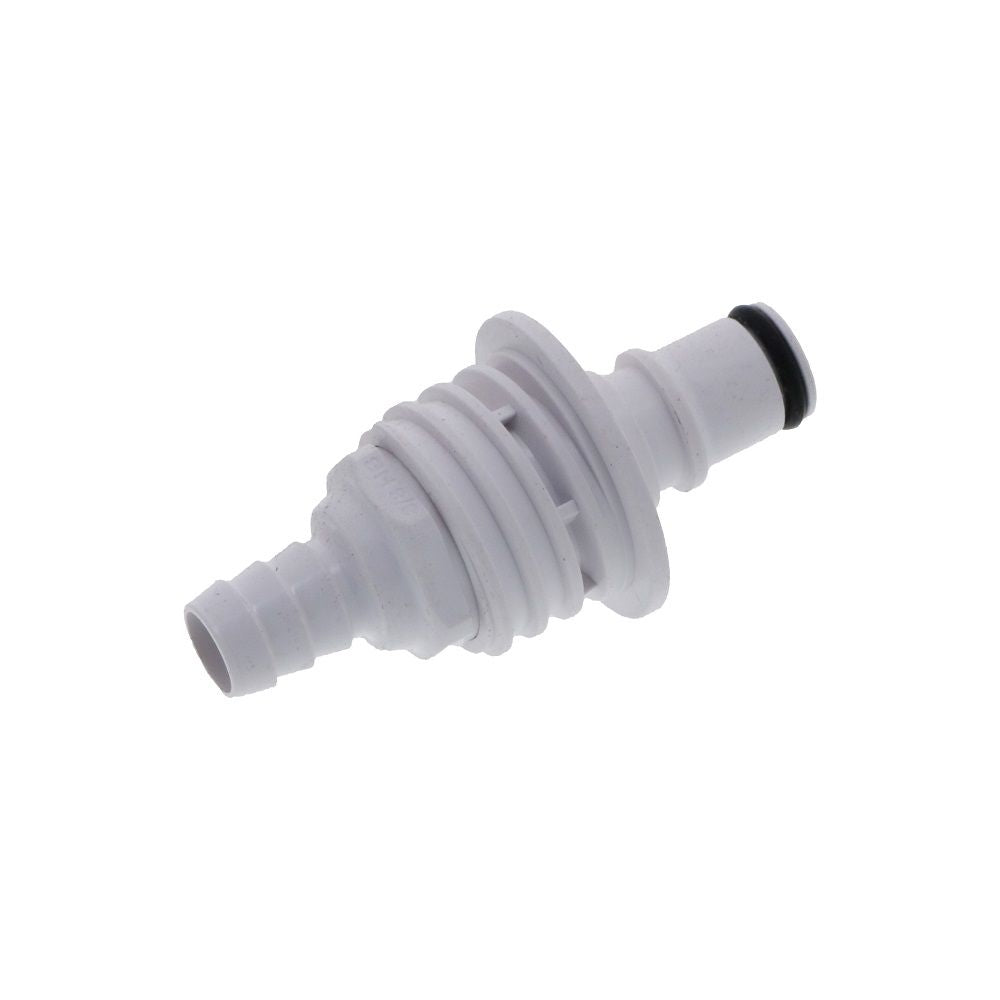

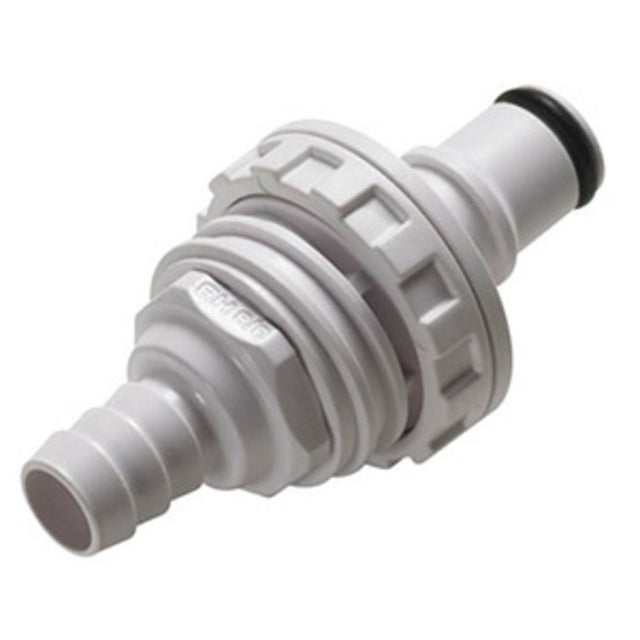

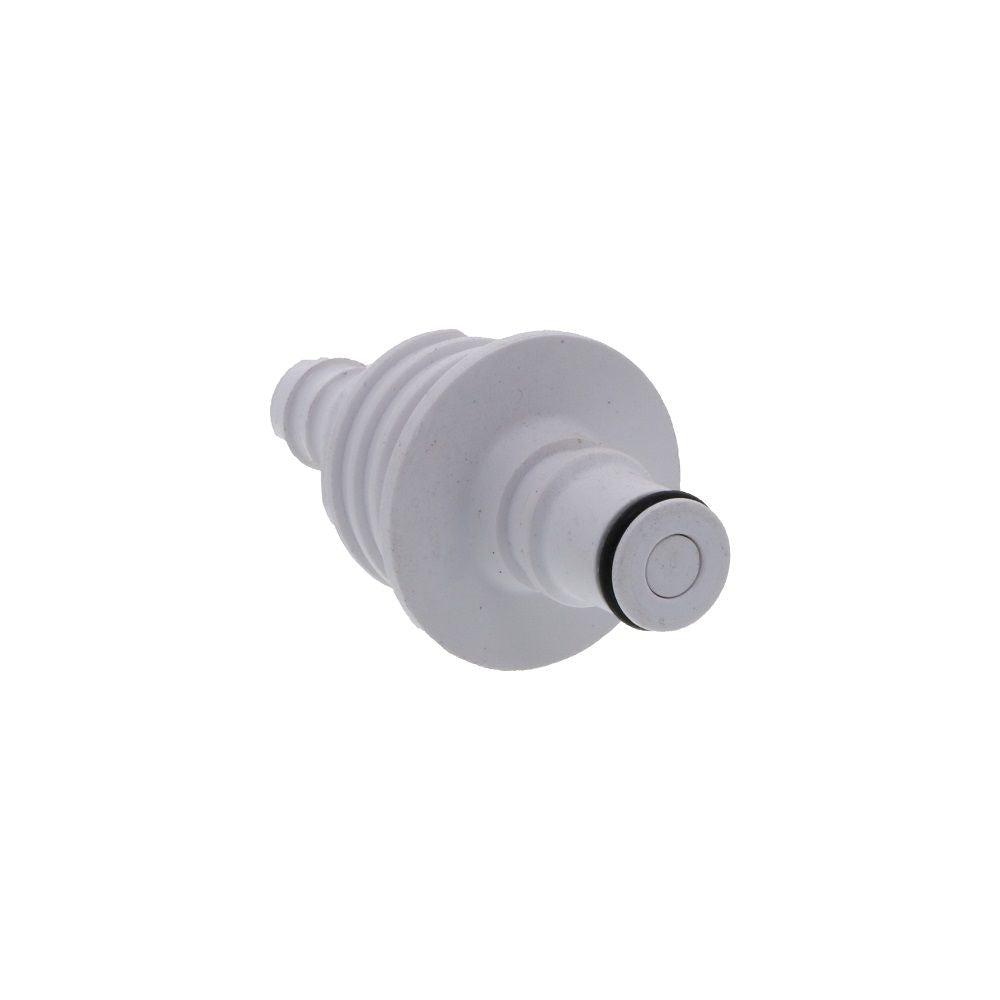

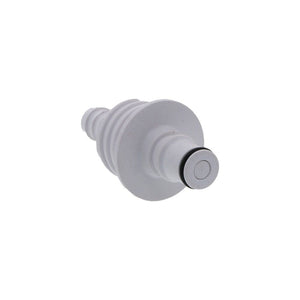

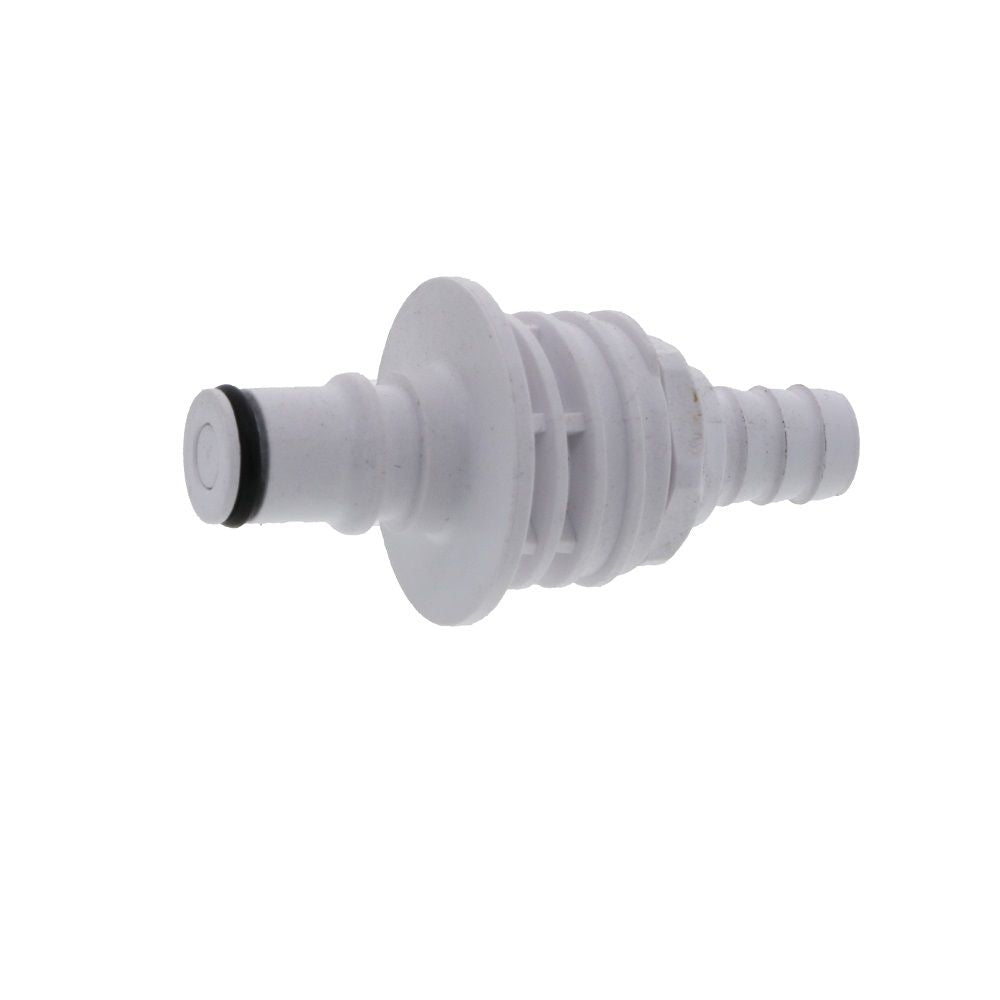

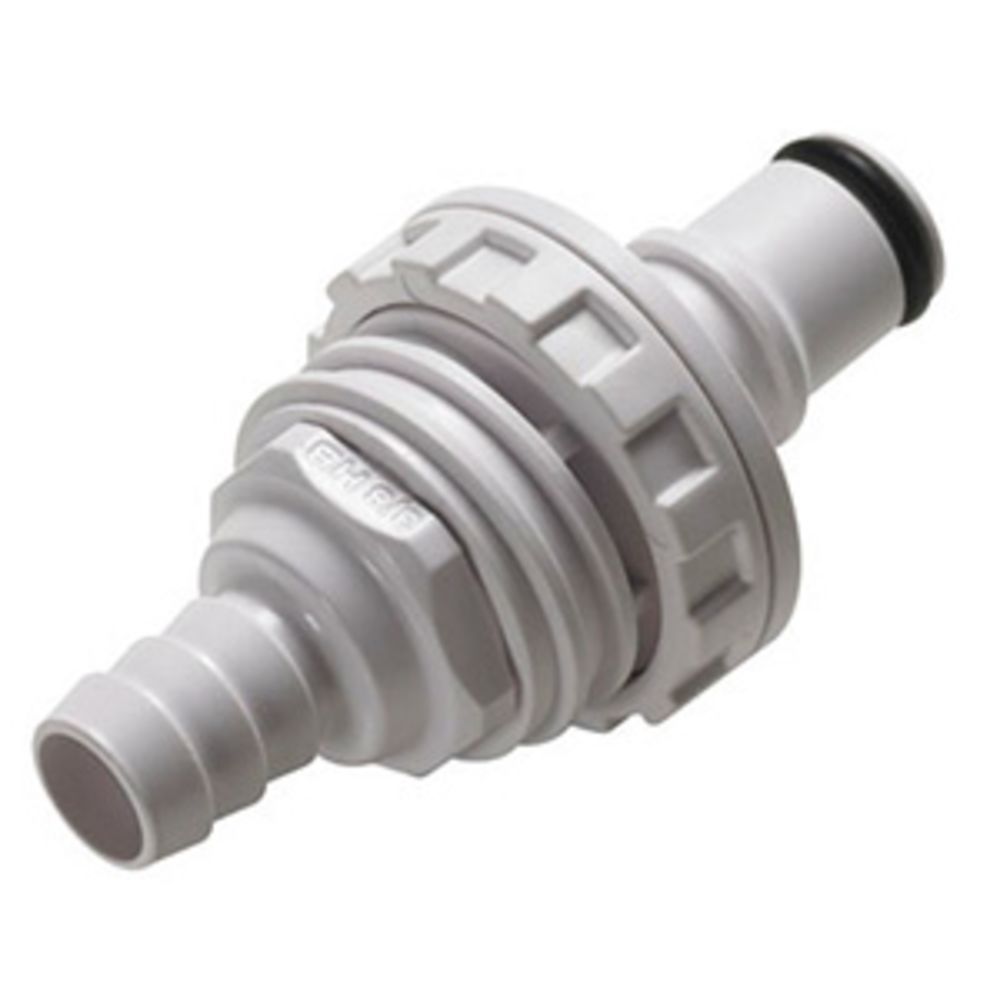

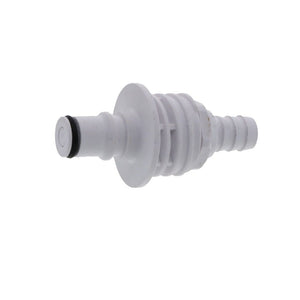

NS4D4200606 ABS Valved Panel Mount Hose Barb Coupling Insert 3/8 ID Barb

Part Number: NS4D4200606

In Stock

out of stock

In Stock

$12.07

NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: ABS
  • Color: White with teal overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units


Details

Series

NS4

Barb Size

3/8" ID

Bag Quantity

25

Body Material

ABS

Color / Finish

Molded White

Max Operating Pressure

Vacuum to 120 PSI, 8.3 bar

Mounting Options

Panel Mount

O Rings

EPDM

Operating Temperature Range

32-160 °F

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

Thumb Latch

Glass-filled polypropylene, ABS


NS4D4200606




NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: ABS
  • Color: White with teal overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units

Details

Series

NS4

Barb Size

3/8" ID

Bag Quantity

25

Body Material

ABS

Color / Finish

Molded White

Max Operating Pressure

Vacuum to 120 PSI, 8.3 bar

Mounting Options

Panel Mount

O Rings

EPDM

Operating Temperature Range

32-160 °F

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

Thumb Latch

Glass-filled polypropylene, ABS

Documentation
NS4D4200606
