Colder Products

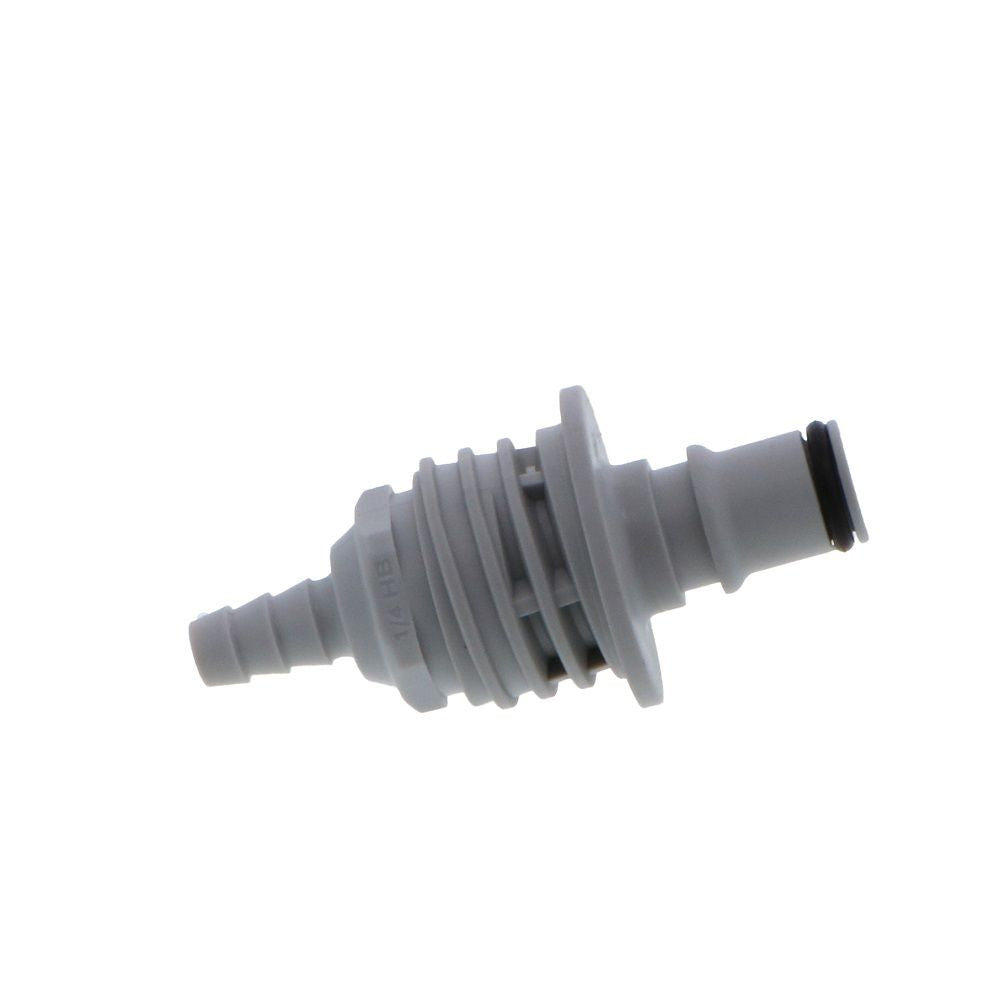

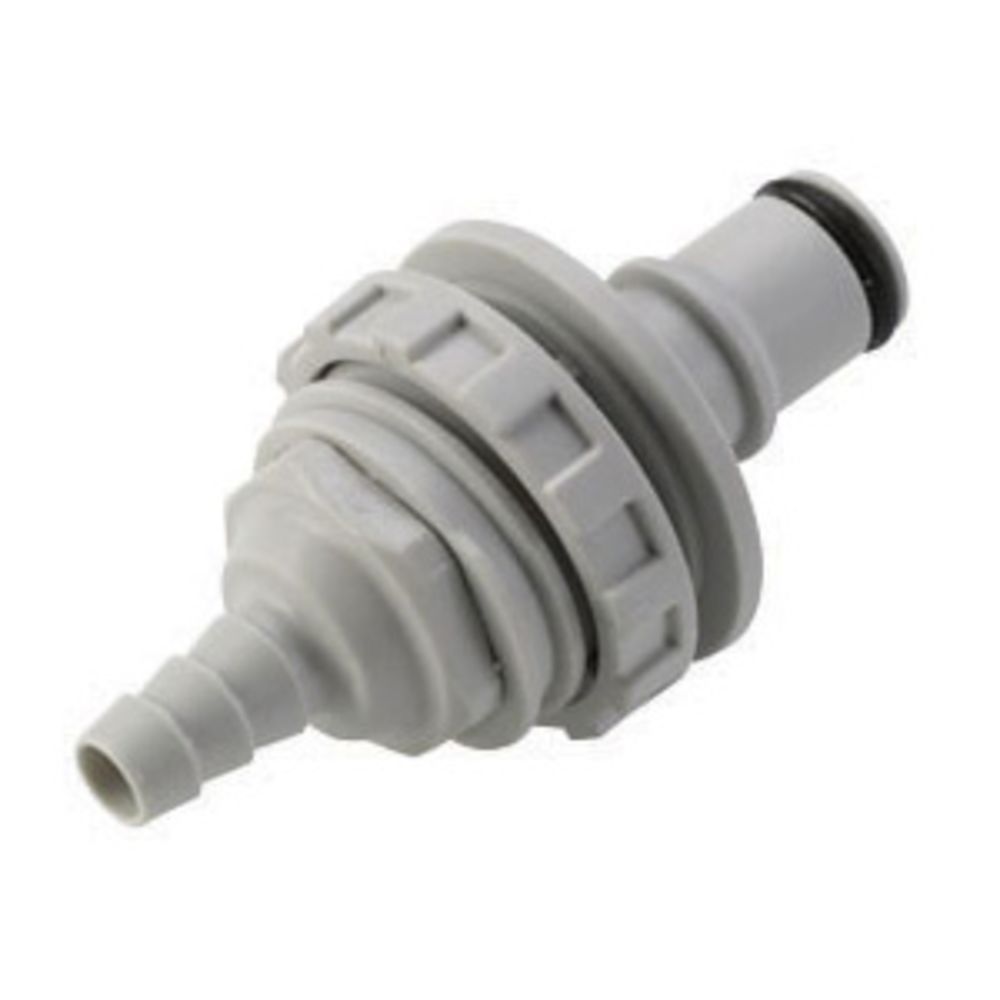

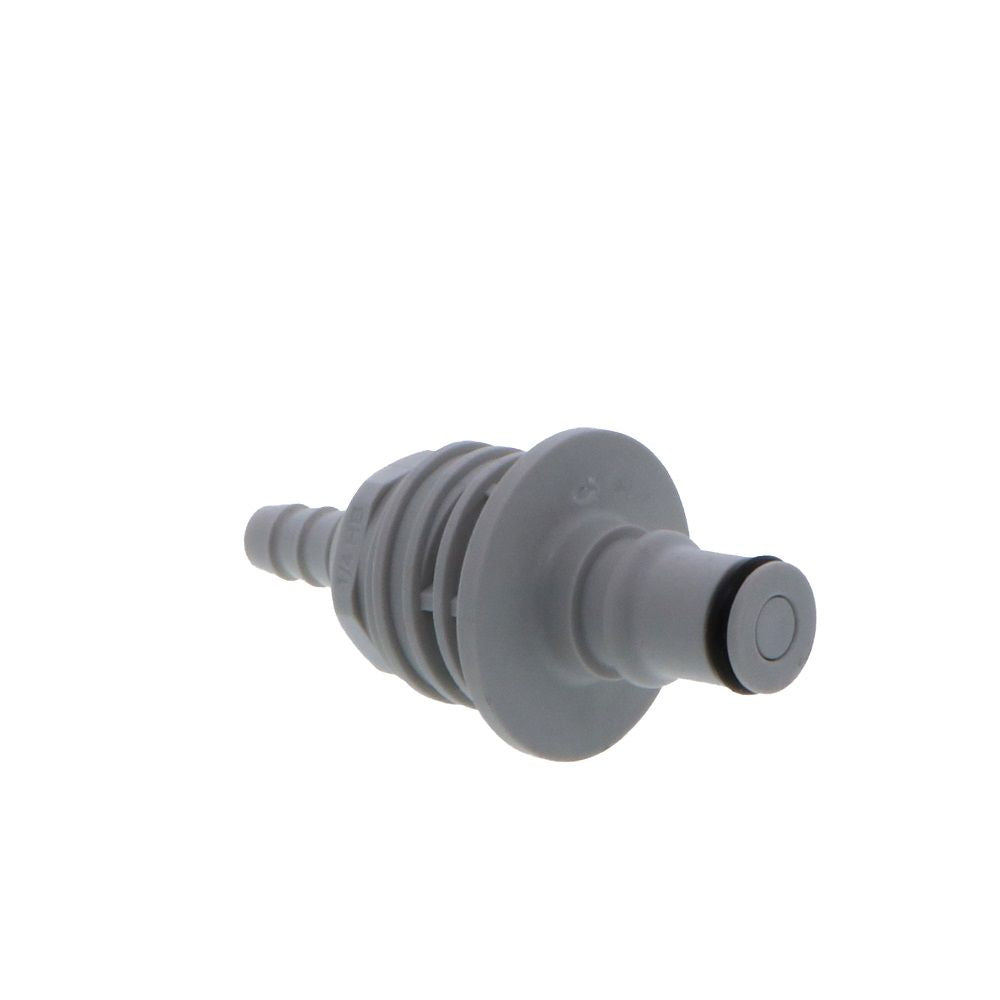

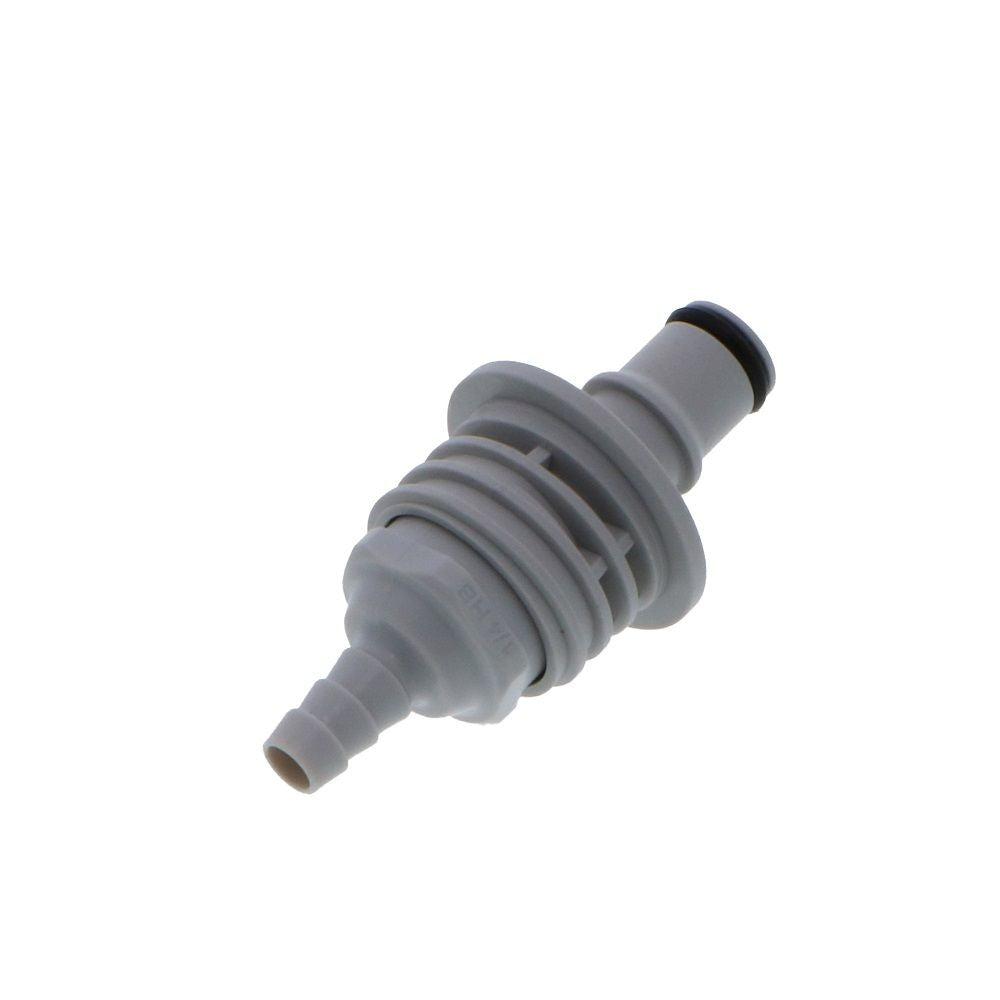

NS4D42004 Valved Panel Mount Hose Barb Coupling Insert 1/4 ID Barb

Part Number: NS4D42004

In Stock

out of stock

In Stock

$10.79


NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units


Weight & Dimensions

Height (inches)

1.25

Length (inches)

2.325

Width (inches)

1.25

Details

Application

Water

Bag Quantity

25

Barb Size

1/4" ID

Body Material

Glass-Filled Polypropylene

Color / Finish

Molded Grey

External Springs And Pin

316 Stainless Steel

Max Operating Pressure

120

Max Operating Temperature

160

Mounting Options

Panel Mount

Seal Material

EPDM

Series

NS4

Spring

316 Stainless Steel

Thumb Latch

Glass-filled polypropylene, ABS

Valve Type

Valved


NS4D42004





NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units

Weight & Dimensions

Height (inches)

1.25

Length (inches)

2.325

Width (inches)

1.25

Details

Application

Water

Bag Quantity

25

Barb Size

1/4" ID

Body Material

Glass-Filled Polypropylene

Color / Finish

Molded Grey

External Springs And Pin

316 Stainless Steel

Max Operating Pressure

120

Max Operating Temperature

160

Mounting Options

Panel Mount

Seal Material

EPDM

Series

NS4

Spring

316 Stainless Steel

Thumb Latch

Glass-filled polypropylene, ABS

Valve Type

Valved

Documentation
NS4D42004
