Colder Products

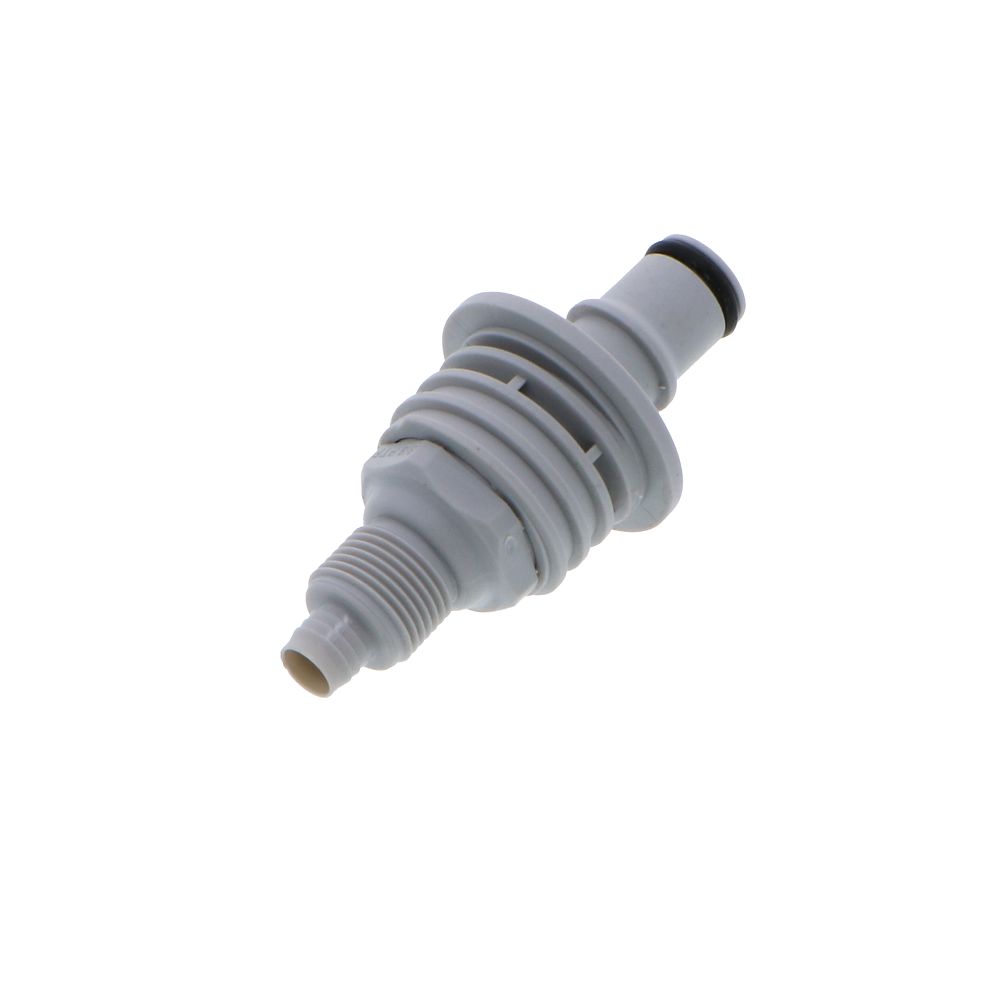

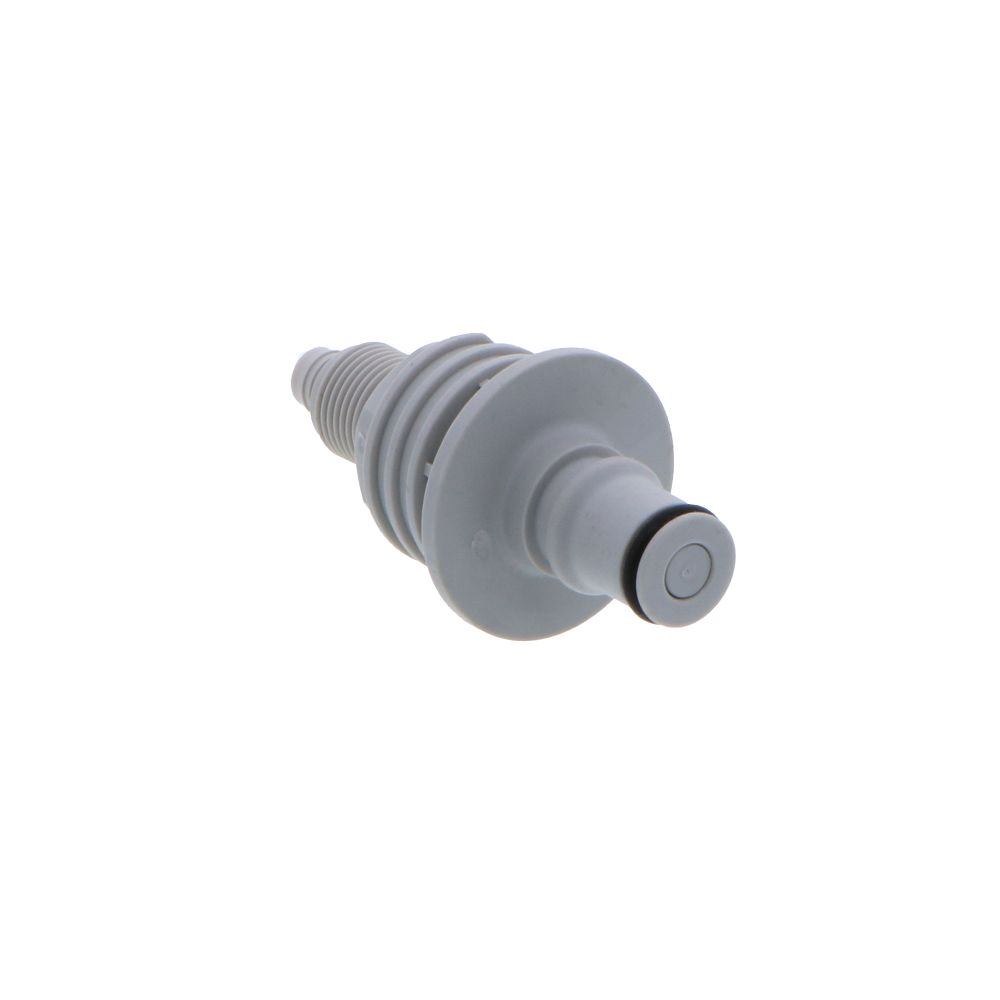

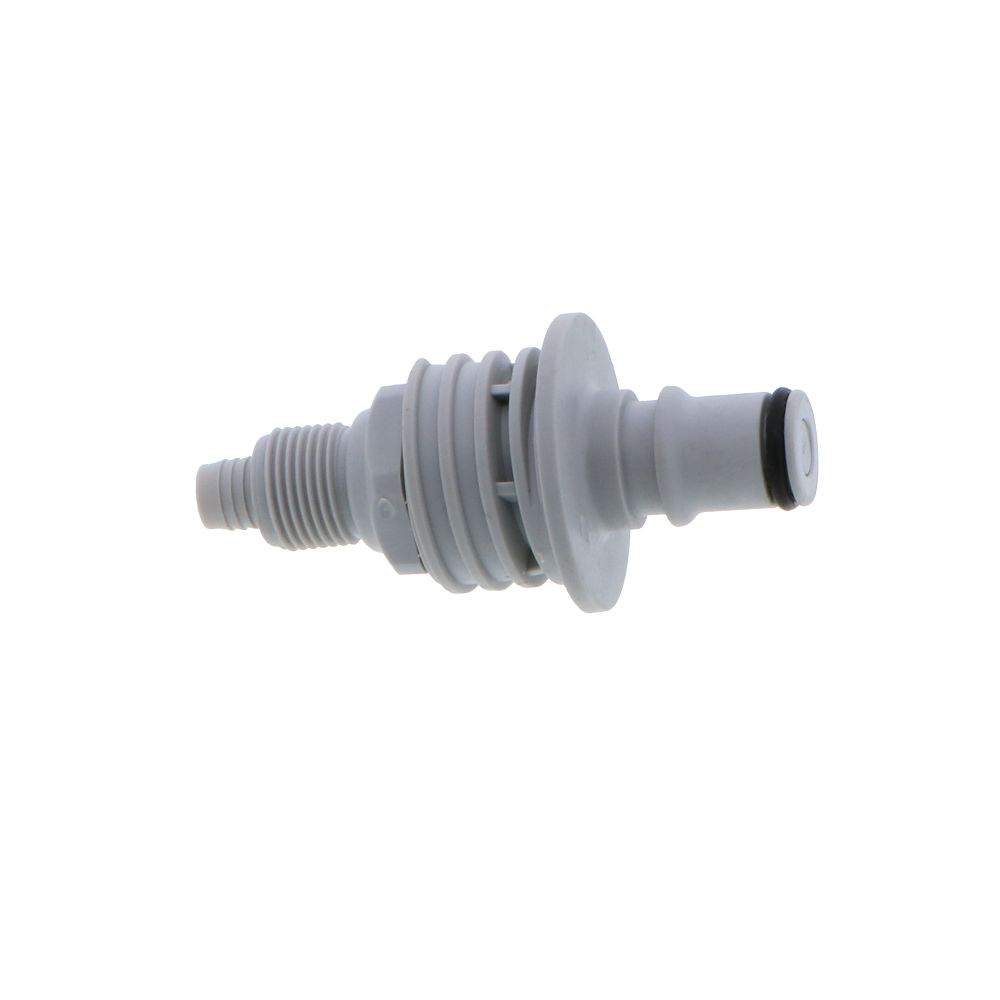

NS4D40006 Valved Panel Mount PTF Coupling Insert 3/8 PTF

Part Number: NS4D40006

In Stock

out of stock

In Stock

$13.00

NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Glass-Filled Polypropylene

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Panel Mount

Push-In Size

3/8" OD

Seal Material

EPDM

Series

NS4

Size

3/8"

Valve Type

Valved

Color / Finish

Gray

Connection Type

Female (FPT)

Origin

UK

Type

Coupling Insert


NS4D40006




NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units



Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Glass-Filled Polypropylene

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Panel Mount

Push-In Size

3/8" OD

Seal Material

EPDM

Series

NS4

Size

3/8"

Valve Type

Valved

Color / Finish

Gray

Connection Type

Female (FPT)

Origin

UK

Type

Coupling Insert

Documentation
NS4D40006
