Colder Products

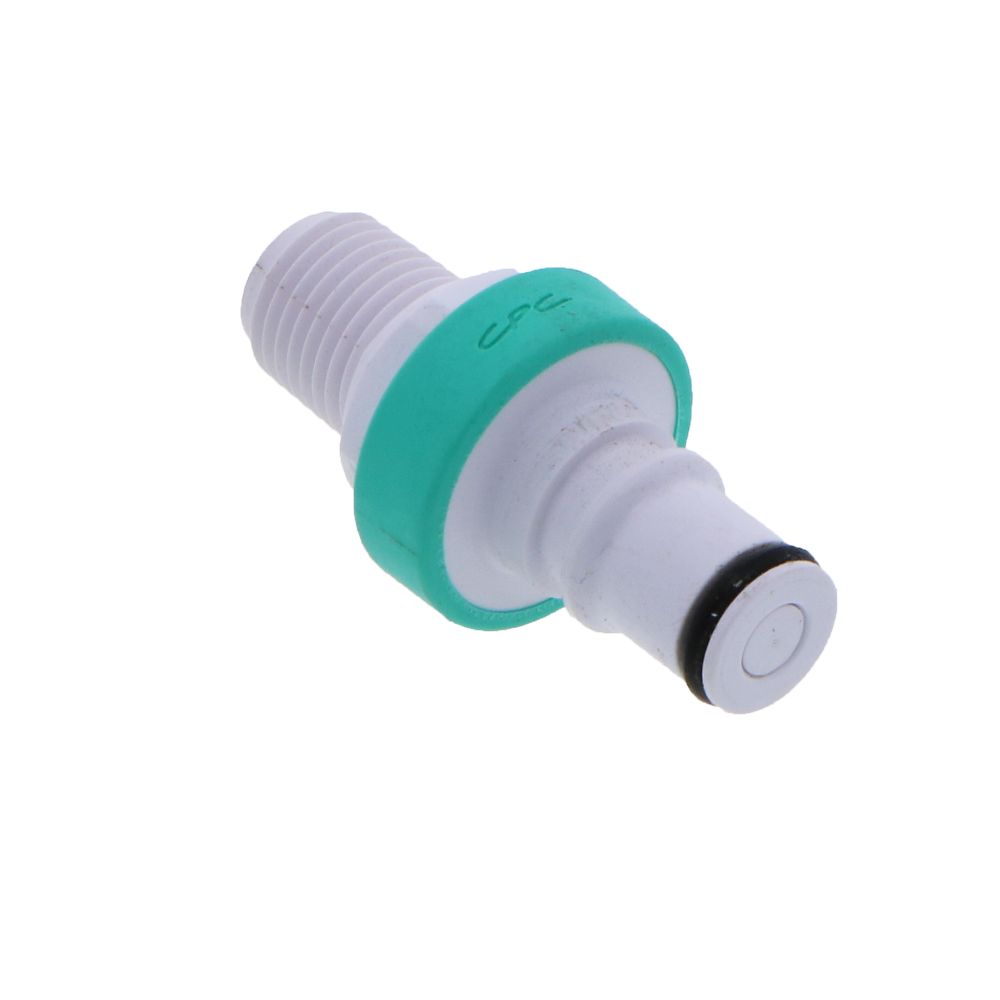

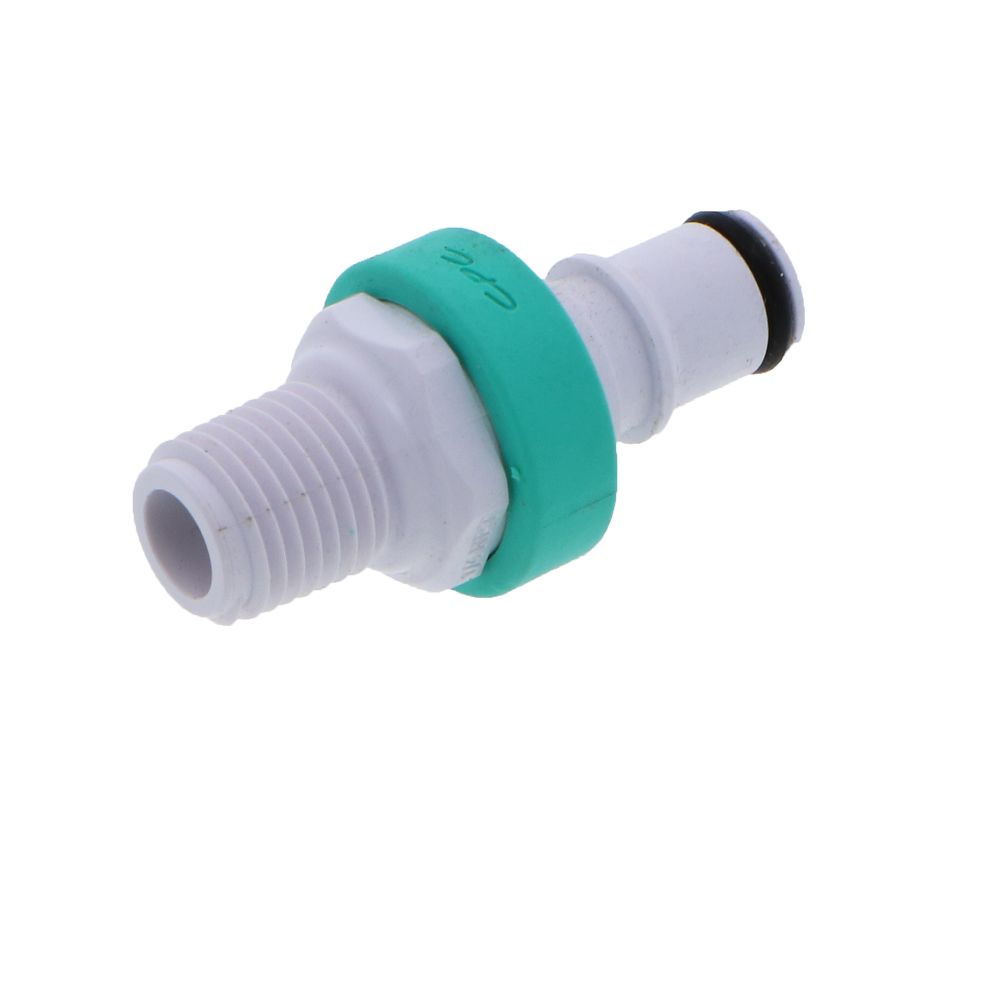

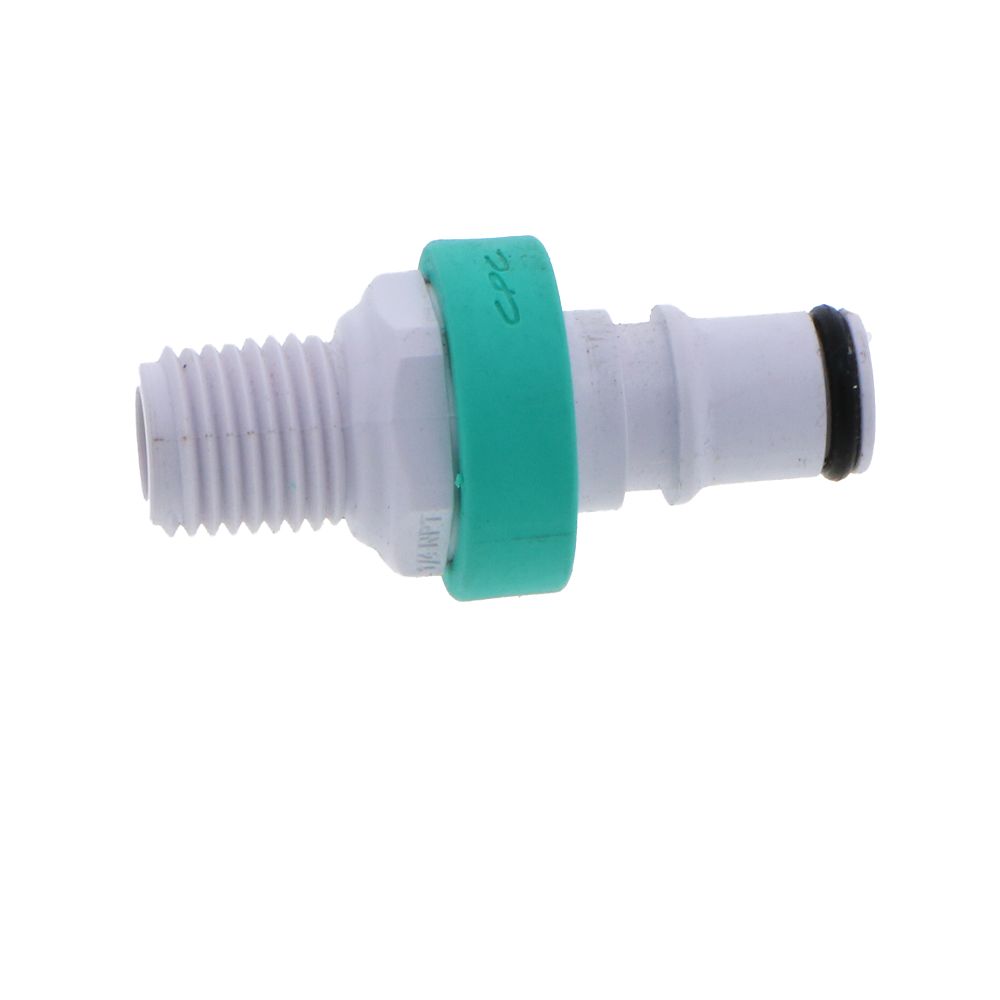

NS4D2400406 ABS Valved Male Thread Coupling Insert 1/4 NPT

Part Number: NS4D2400406

In Stock

out of stock

In Stock

$10.21

NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: ABS
  • Color: White with teal overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units




Details

Series

NS4

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

25

Body Material

ABS

Color / Finish

Teal

Mounting Options

Thread

Seal Material

EPDM

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Thumb Latch

Glass-filled polypropylene, ABS

Inlet/Outlet Connection

1/4" MPT


NS4D2400406




NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: ABS
  • Color: White with teal overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units



Details

Series

NS4

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

25

Body Material

ABS

Color / Finish

Teal

Mounting Options

Thread

Seal Material

EPDM

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Thumb Latch

Glass-filled polypropylene, ABS

Inlet/Outlet Connection

1/4" MPT

Documentation
NS4D2400406
