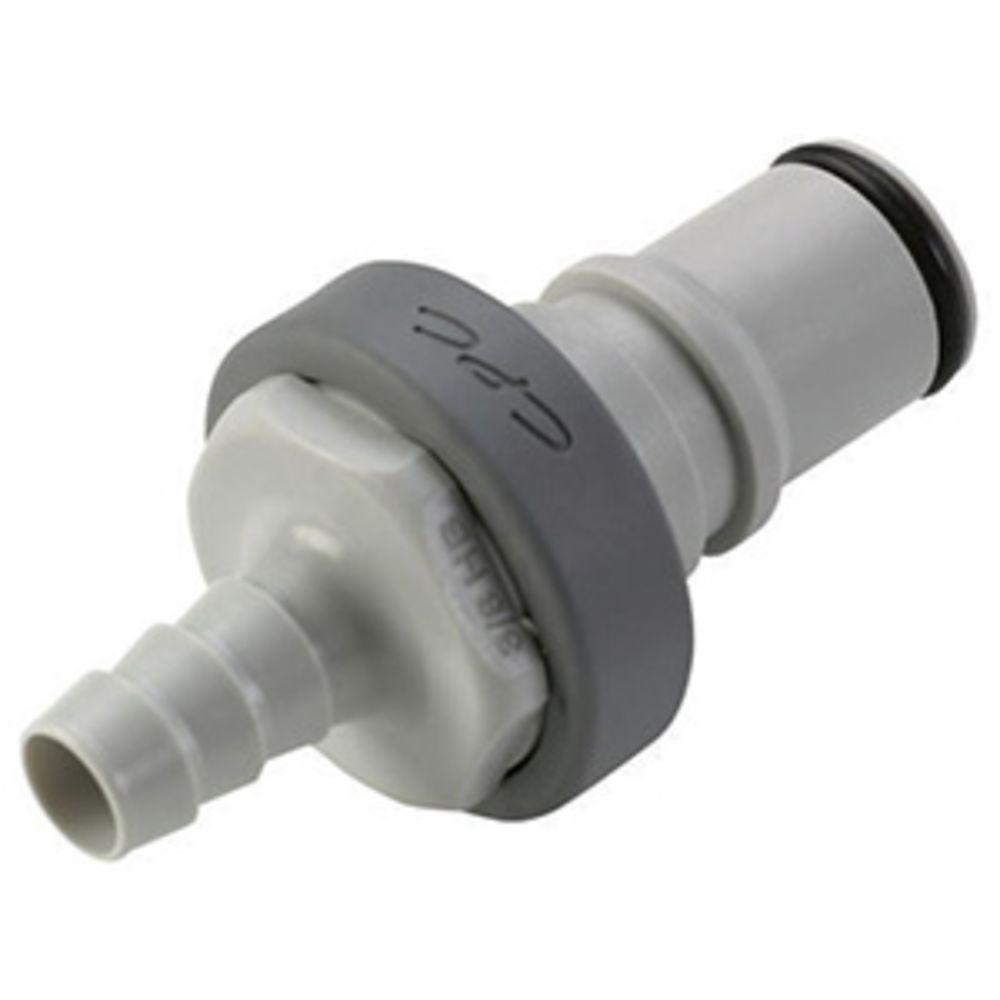

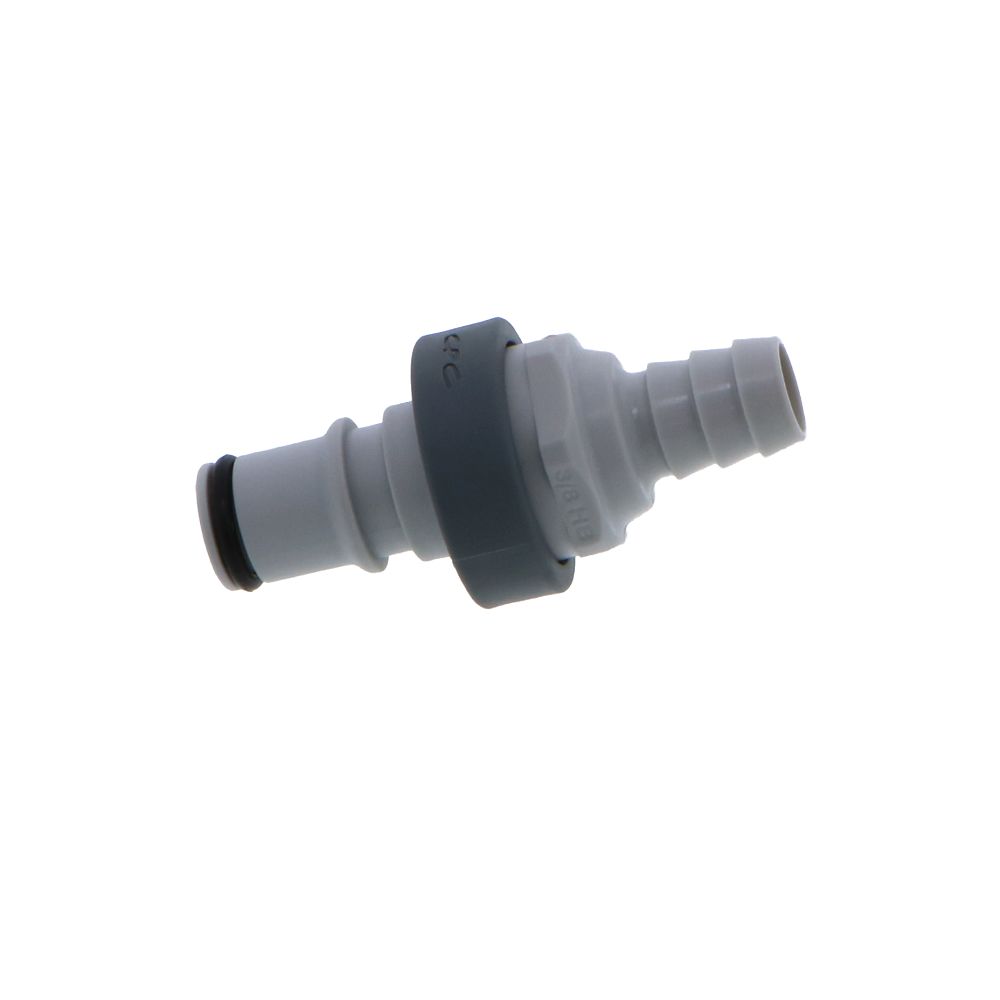

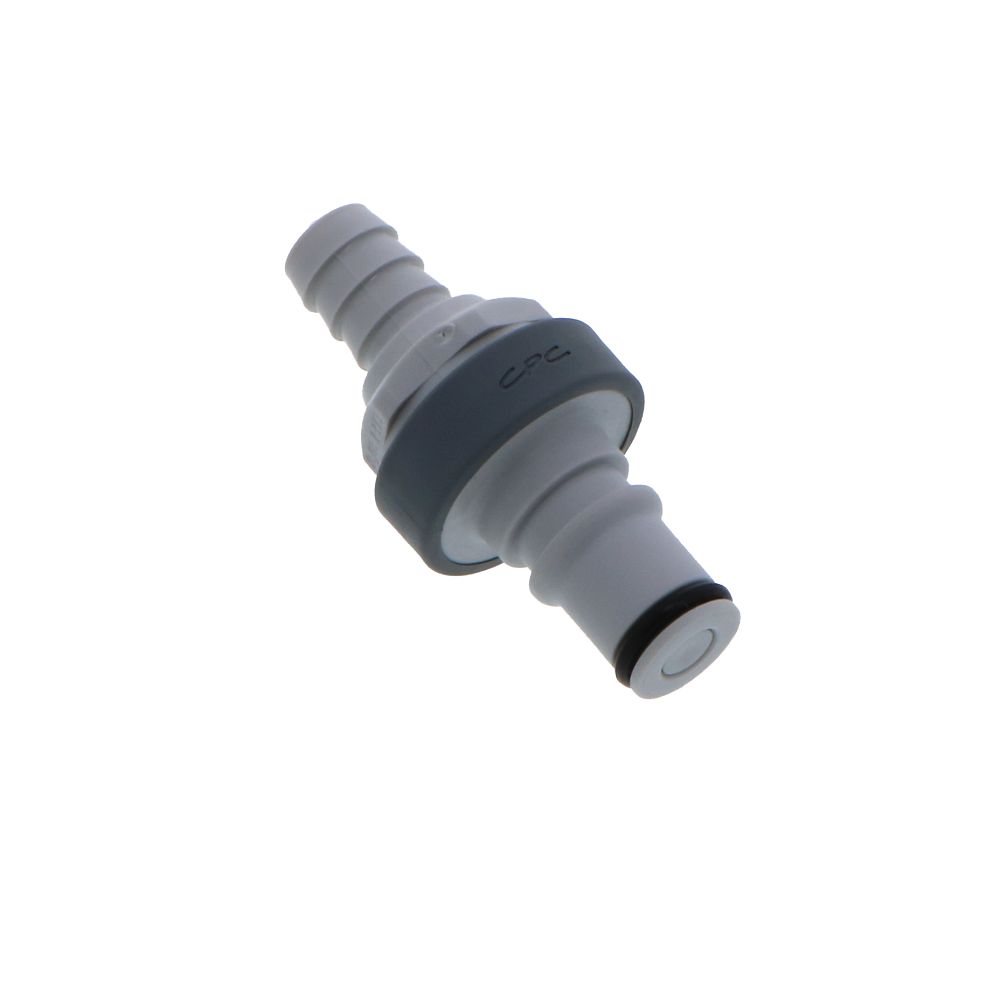

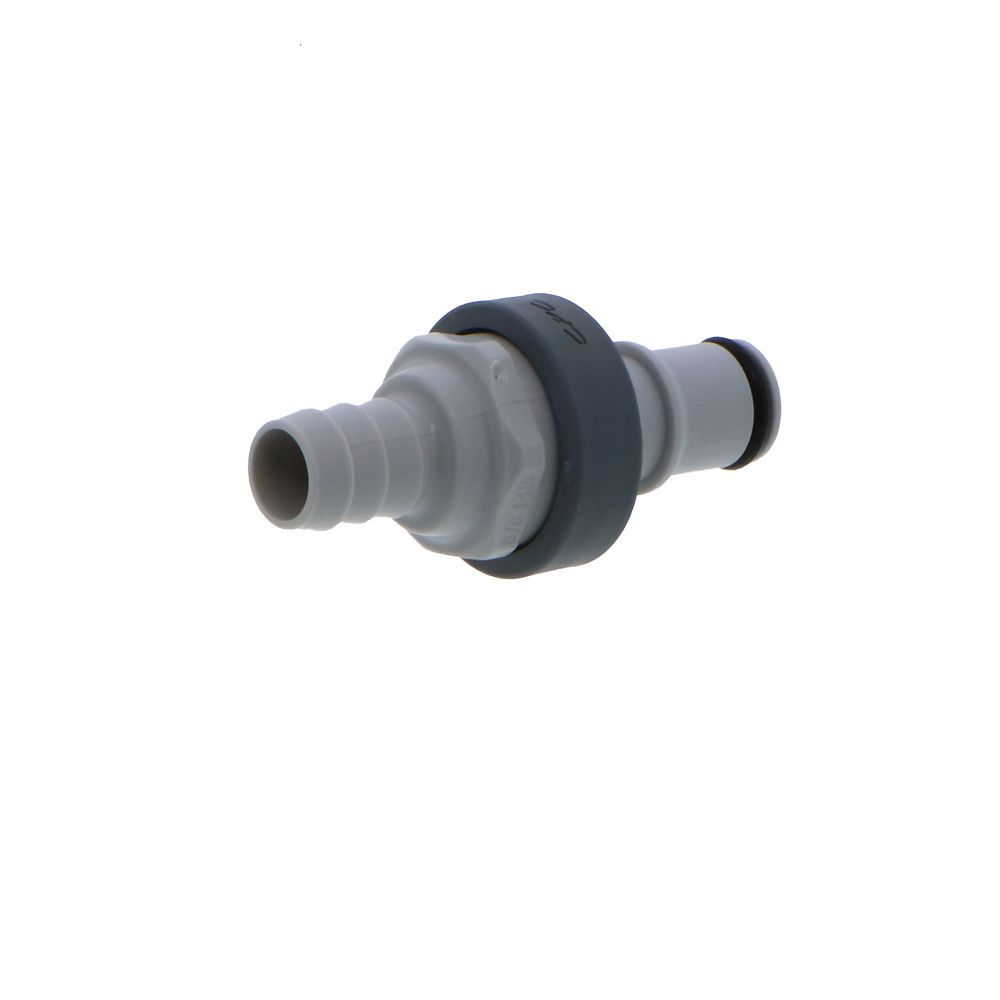

NS4D22006 Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb
Part Number: NS4D22006
Alt. Part Number: 55PPV-P75193
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Material: Polypropylene
- Color: Gray with dark gray overmold
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32ºF to 160ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: EPDM
- Spillage: <0.10 cc per disconnect, 0.10 cc per connect
- Available in Bags of 25 units
WARNING!
| Product Details | |
|---|---|
Application | Water |
Barb Size | 3/8" ID |
Body Material | Glass-Filled Polypropylene |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Seal Material | EPDM |
Series | NS4 |
Shape | Straight |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Type | Coupling Insert |
