Colder Products

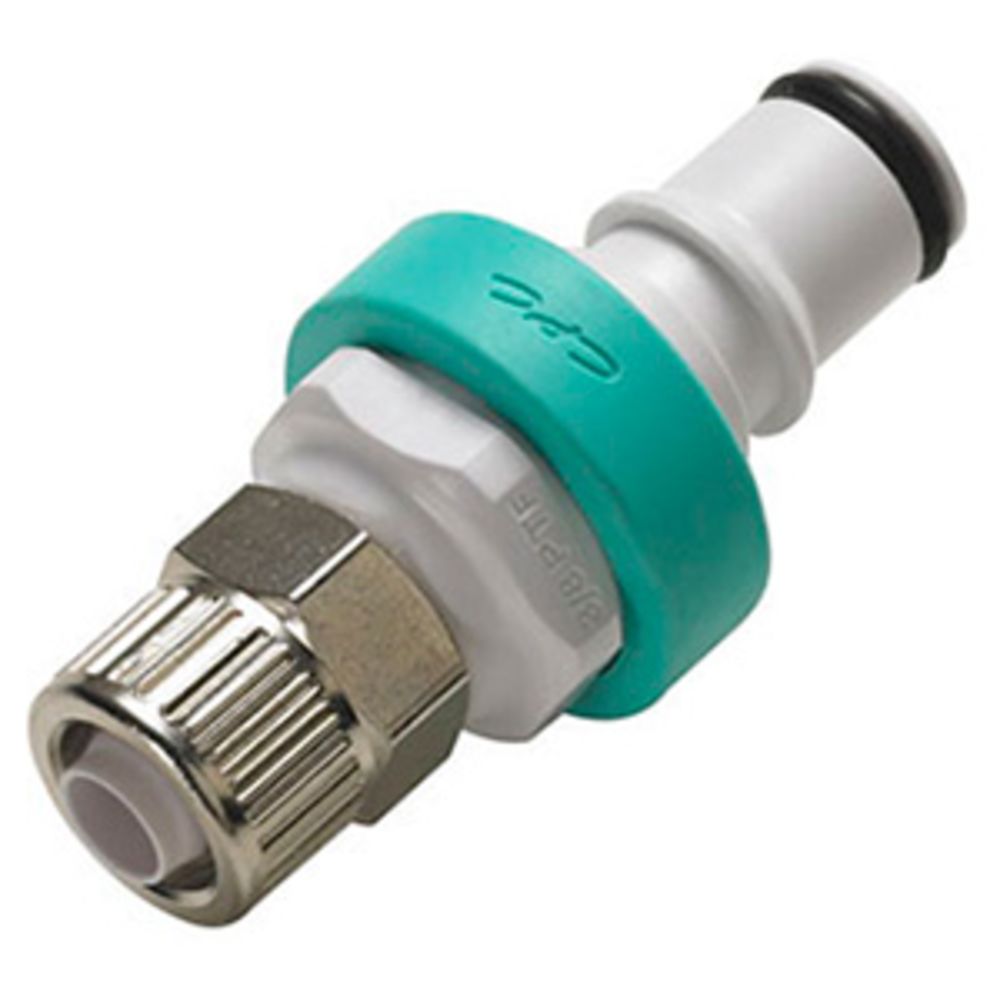

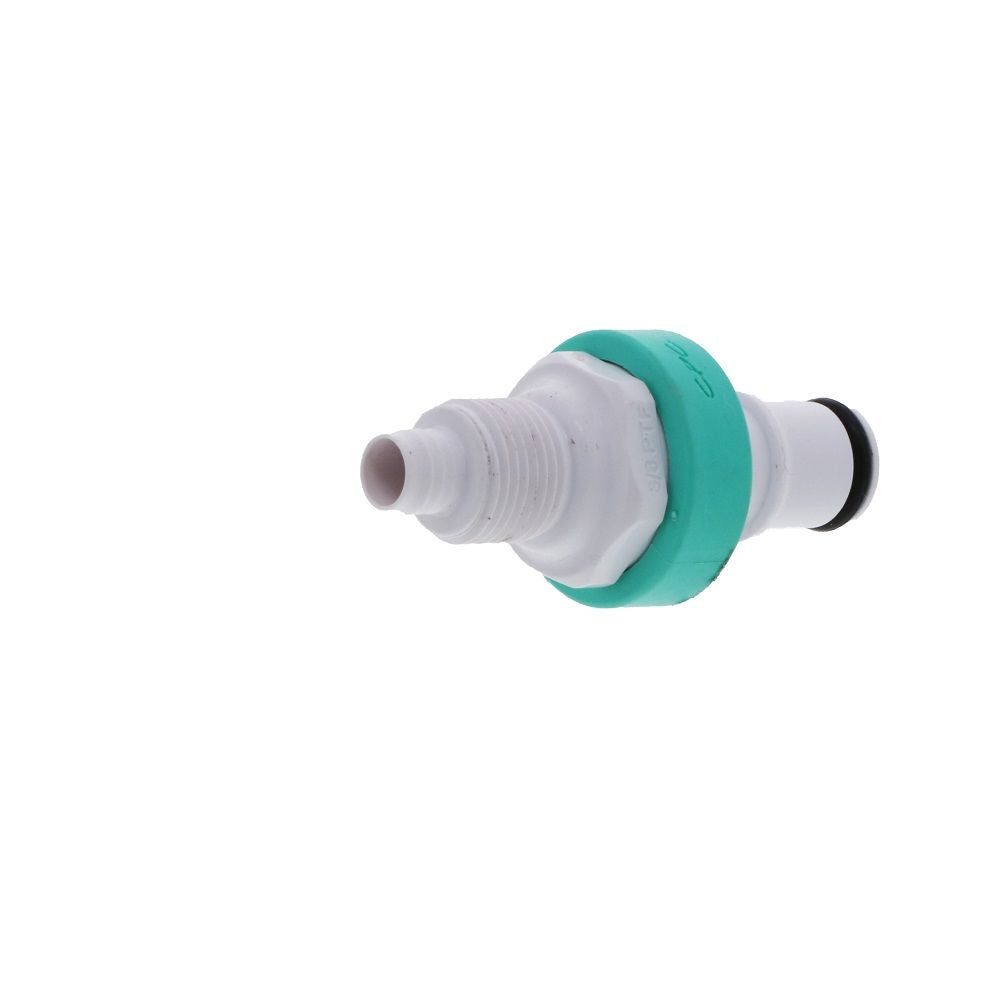

NS4D2000606 ABS Valved In-Line PTF Coupling Insert 3/8 PTF

Part Number: NS4D2000606

In Stock

out of stock

In Stock

$13.40

NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: ABS
  • Color: White with teal overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Tubing Size: .25" ID, 3/8" OD
  • Available in Bags of 25 units




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

ABS

External Springs And Pin

316 Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Push-In Size

3/8" OD

Seal Material

EPDM

Series

NS4

Size

3/8"

Spring

316 Stainless Steel

Thumb Latch

Glass-filled polypropylene, ABS

Valve Type

Valved

Color / Finish

Teal

Connection Type

Female (FPT)

Type

Coupling Insert
