Colder Products

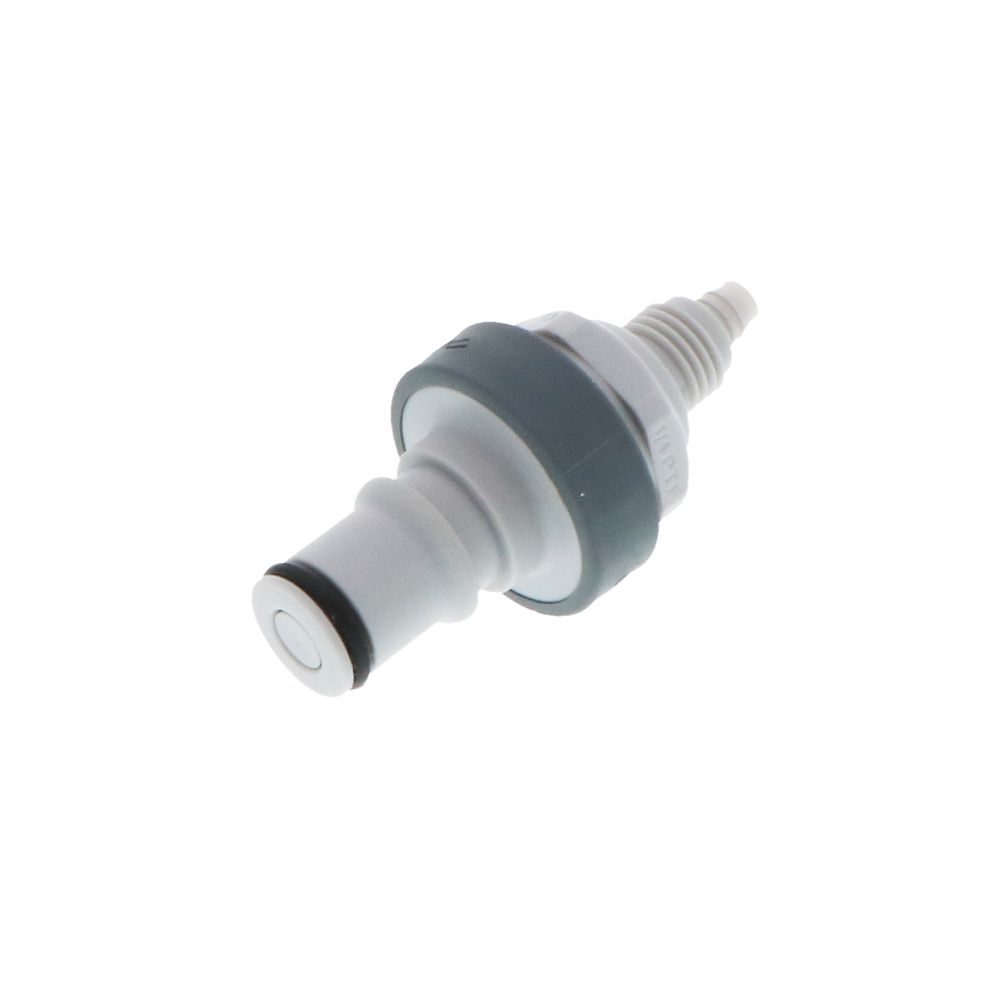

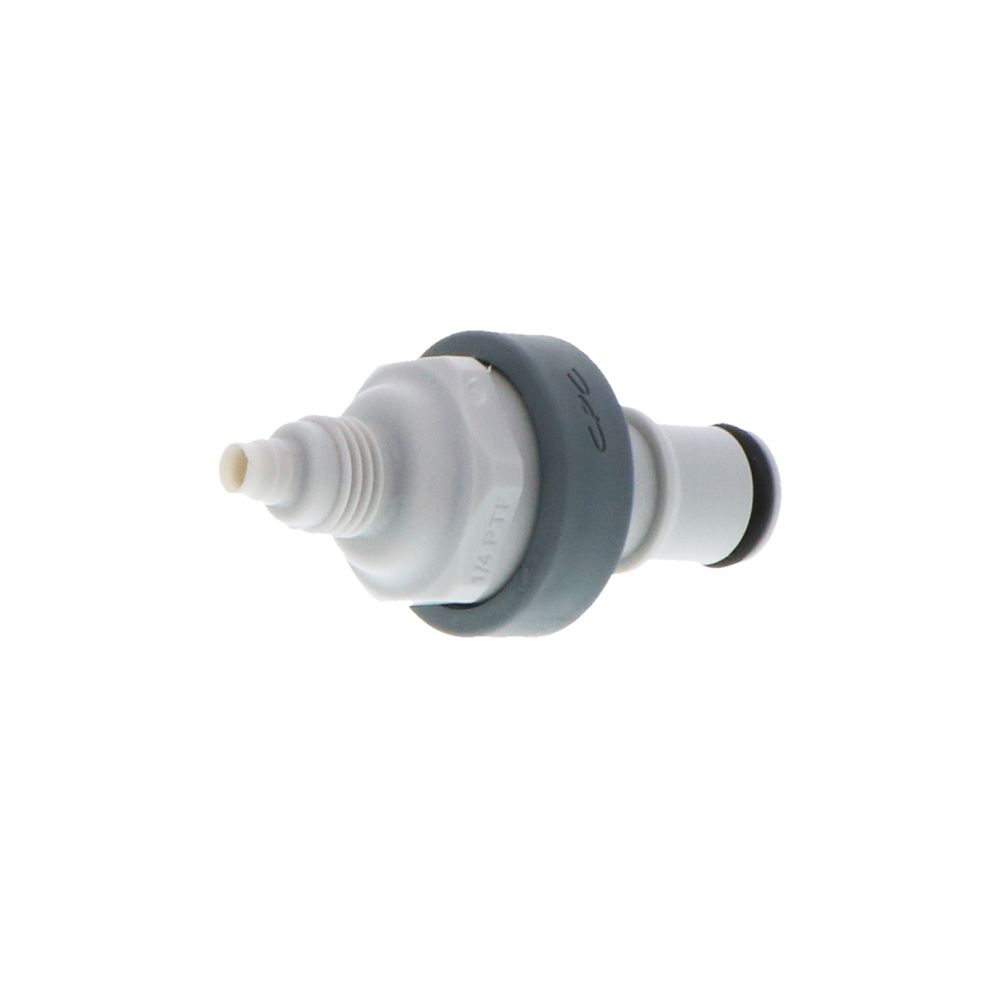

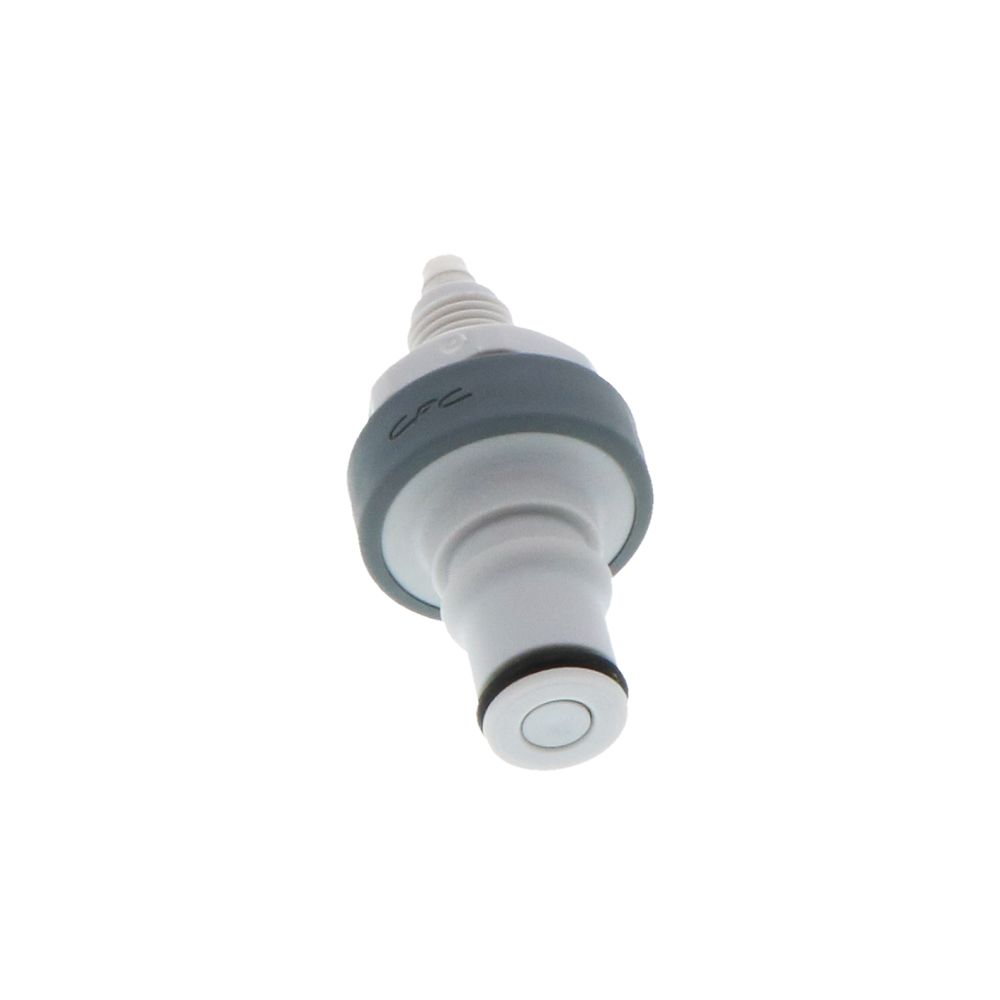

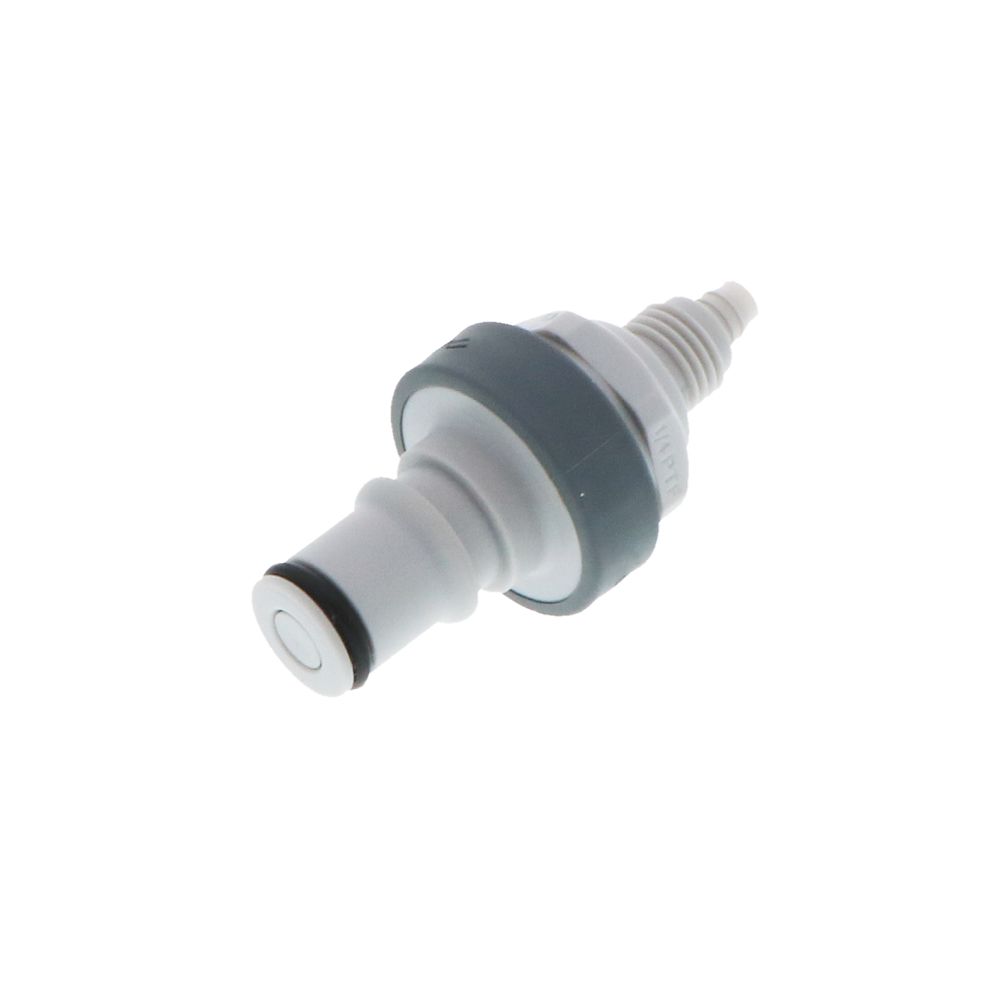

NS4D20004 ABS Valved In-Line PTF Coupling Insert 1/4 PTF

Part Number: NS4D20004

In Stock

out of stock

In Stock

$10.68


NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: ABS
  • Color: White with teal overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Tubing Size: .25" ID, 3/8" OD
  • Available in Bags of 25 units


Details

Series

NS4

Thread Connection

1/4" | NPT

Bag Quantity

25

Body Material

ABS

Color / Finish

White with teal overmold

Mounting Options

Thread

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 stainless steel

Thumb Latch

Glass-filled polypropylene, ABS


NS4D20004





NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: ABS
  • Color: White with teal overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Tubing Size: .25" ID, 3/8" OD
  • Available in Bags of 25 units

Details

Series

NS4

Thread Connection

1/4" | NPT

Bag Quantity

25

Body Material

ABS

Color / Finish

White with teal overmold

Mounting Options

Thread

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 stainless steel

Thumb Latch

Glass-filled polypropylene, ABS

Documentation
NS4D20004

Reviews
