Colder Products

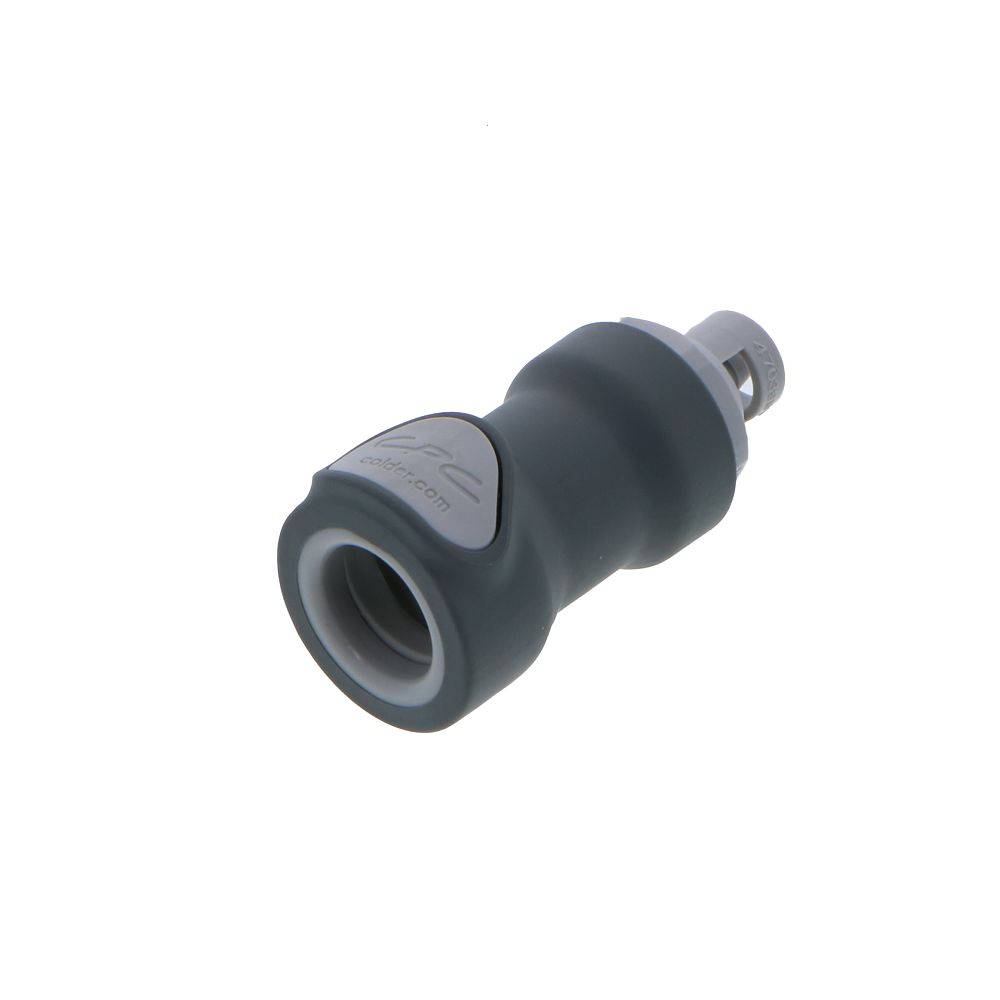

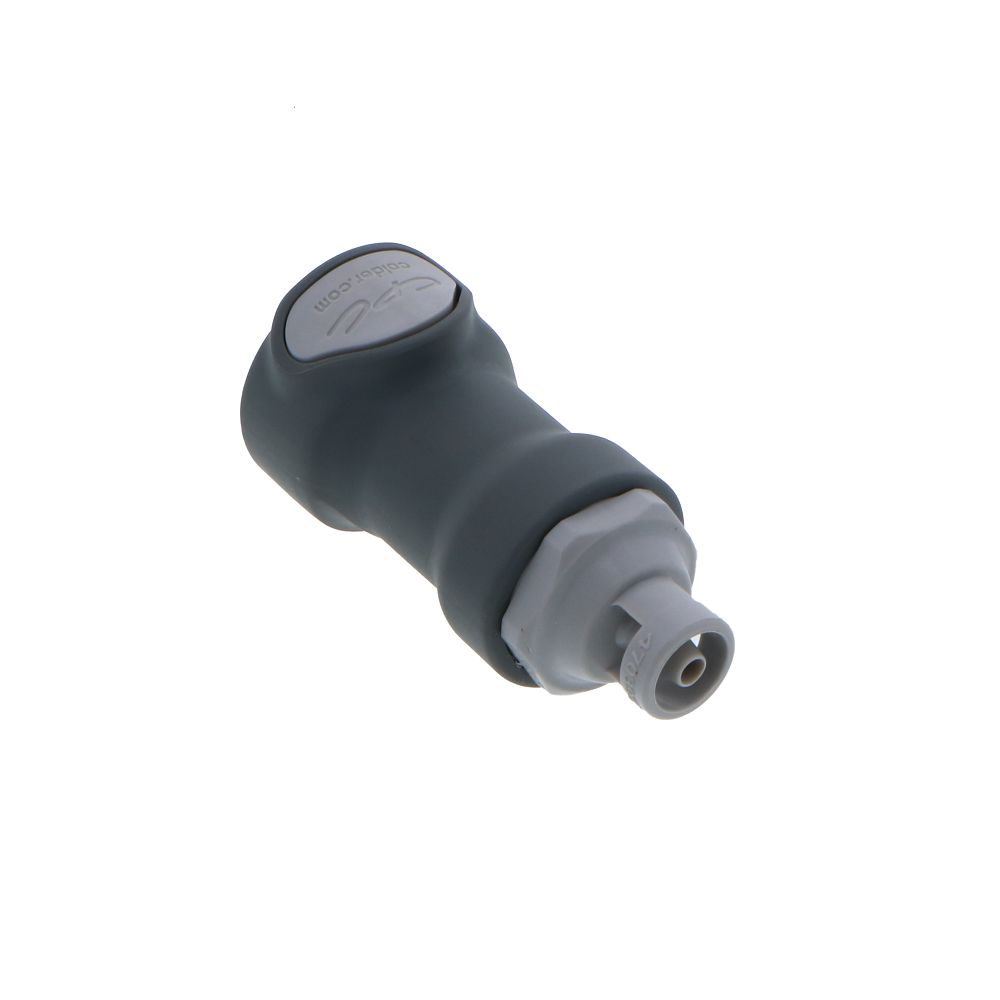

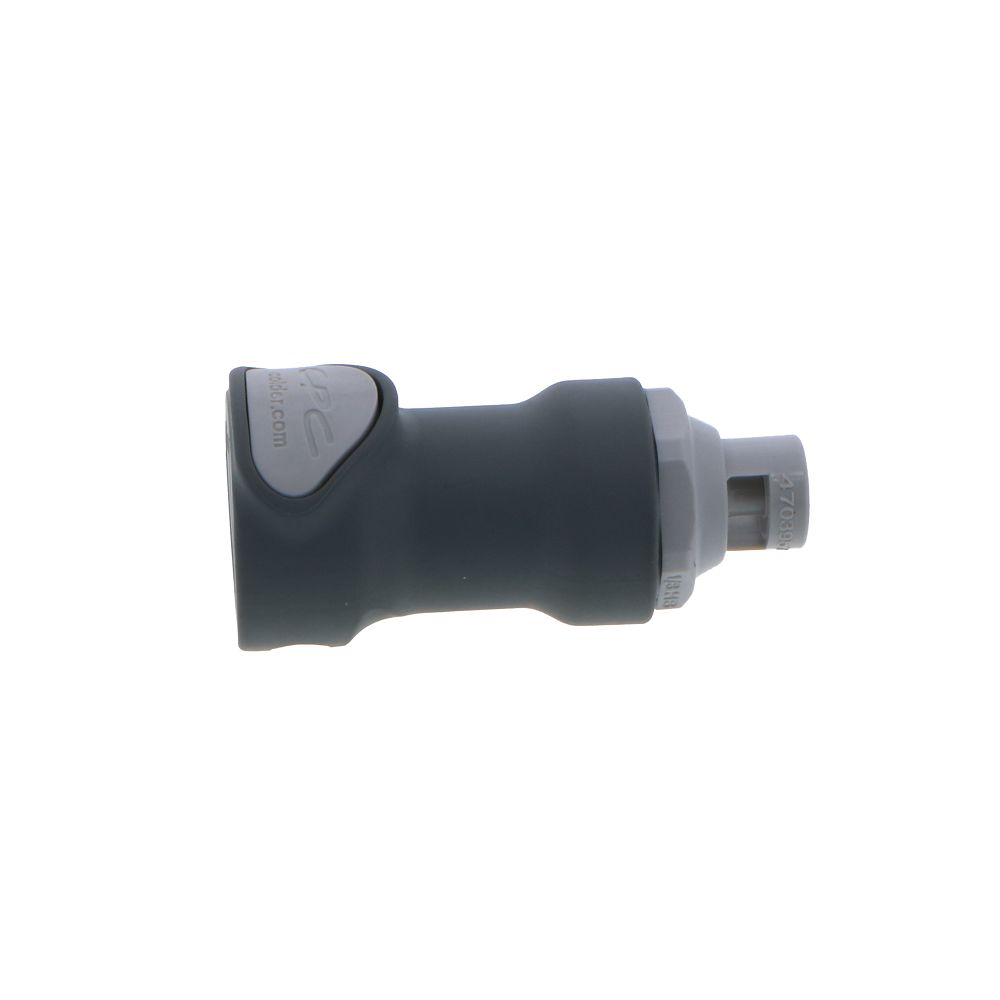

NS4D17002 Valved In-Line Hose Barb Coupling Body 1/8 ID Barb

Part Number: NS4D17002

In Stock

out of stock

In Stock

$12.13

NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units


Details

Series

NS4

Barb Size

1/8" ID

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Molded Grey

Max Operating Pressure

Vacuum to 120 PSI, 8.3 bar

Mounting Options

Free Floating

O Rings

EPDM

Operating Temperature Range

32-160 °F

Seal Material

EPDM

Valve Type

Valved


NS4D17002




NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units

Details

Series

NS4

Barb Size

1/8" ID

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Molded Grey

Max Operating Pressure

Vacuum to 120 PSI, 8.3 bar

Mounting Options

Free Floating

O Rings

EPDM

Operating Temperature Range

32-160 °F

Seal Material

EPDM

Valve Type

Valved

Documentation
NS4D17002
