Colder Products

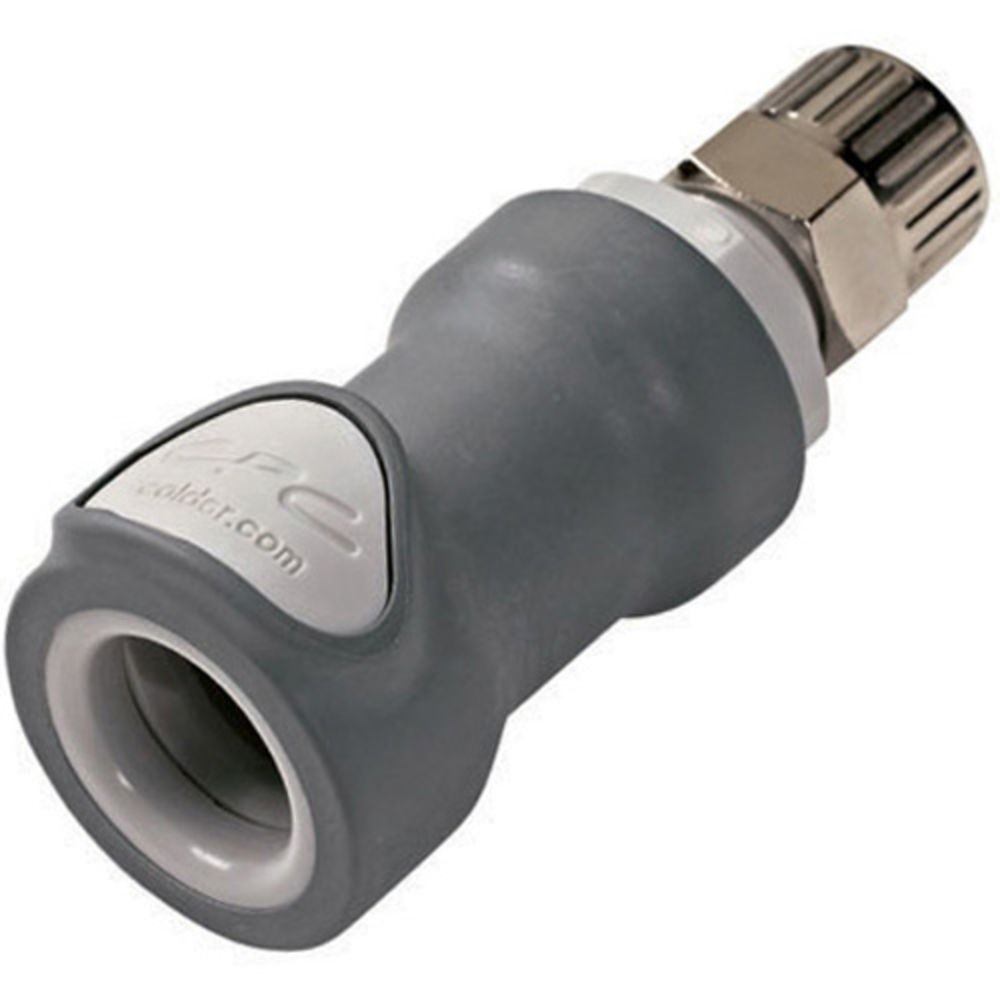

NS4D13006 Valved In-Line PTF Coupling Body 3/8 PTF

Part Number: NS4D13006

In Stock

out of stock

In Stock

$12.85

NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Connections: 3/8" PTF
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units


Details

Series

NS4

Thread Connection

3/8" | NPT

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Gray with dark gray overmold

Mounting Options

Thread

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Spring

316 Stainless Steel

Valve Type

Valved


NS4D13006




NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Connections: 3/8" PTF
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units

Details

Series

NS4

Thread Connection

3/8" | NPT

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Gray with dark gray overmold

Mounting Options

Thread

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Spring

316 Stainless Steel

Valve Type

Valved
