Colder Products

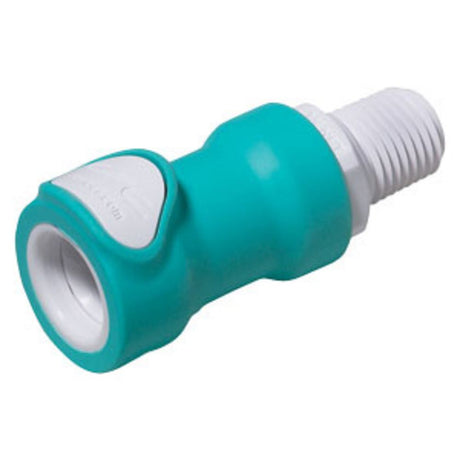

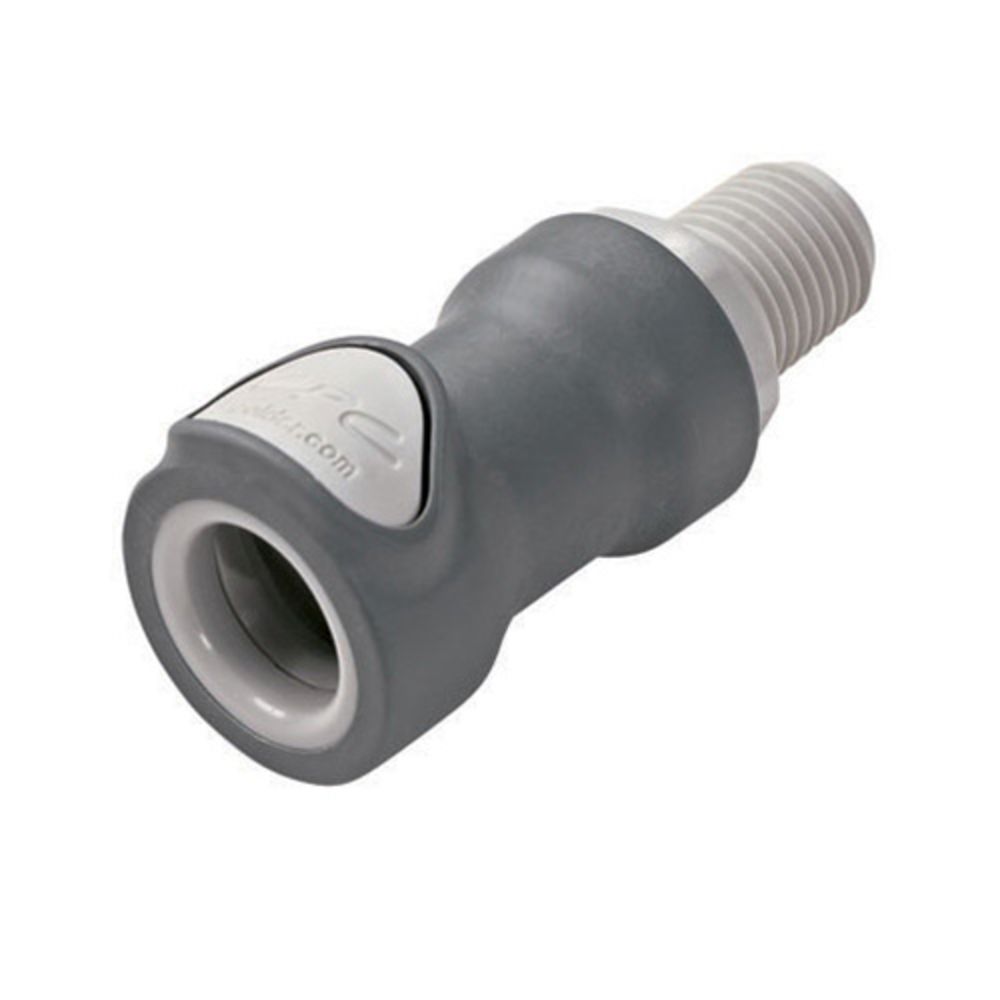

NS4D10004 Valved Male Thread Coupling Body 1/4 NPT

Part Number: NS4D10004

In Stock

out of stock

In Stock

$36.55

NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units




Weight & Dimensions

Height (inches)

1

Length (inches)

2.38

Weight (lbs)

0.026

Width (inches)

1

Details

Application

Water

Body Material

Glass-Filled Polypropylene

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

NS4

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Gray

Connection Type

Male (MPT)

Type

Coupling Body


NS4D10004




NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units



Weight & Dimensions

Height (inches)

1

Length (inches)

2.38

Weight (lbs)

0.026

Width (inches)

1

Details

Application

Water

Body Material

Glass-Filled Polypropylene

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

NS4

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Gray

Connection Type

Male (MPT)

Type

Coupling Body
