Colder Products

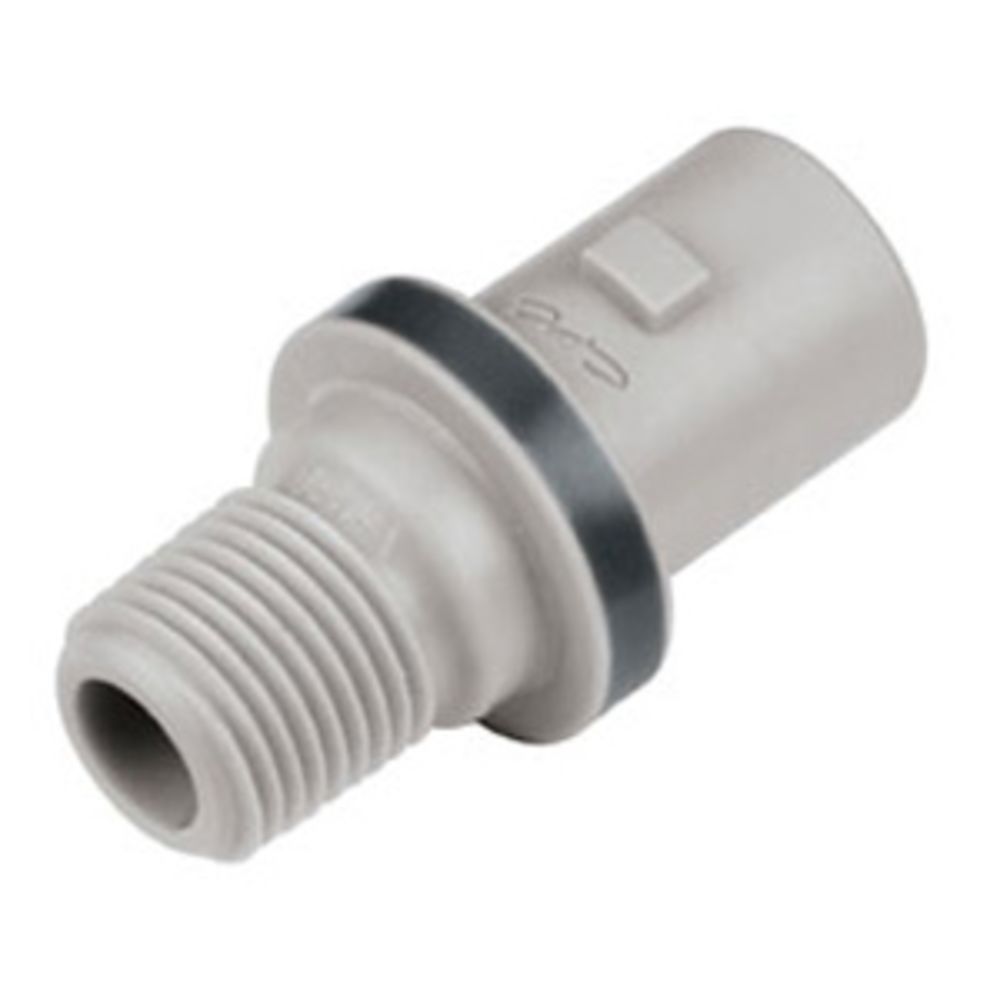

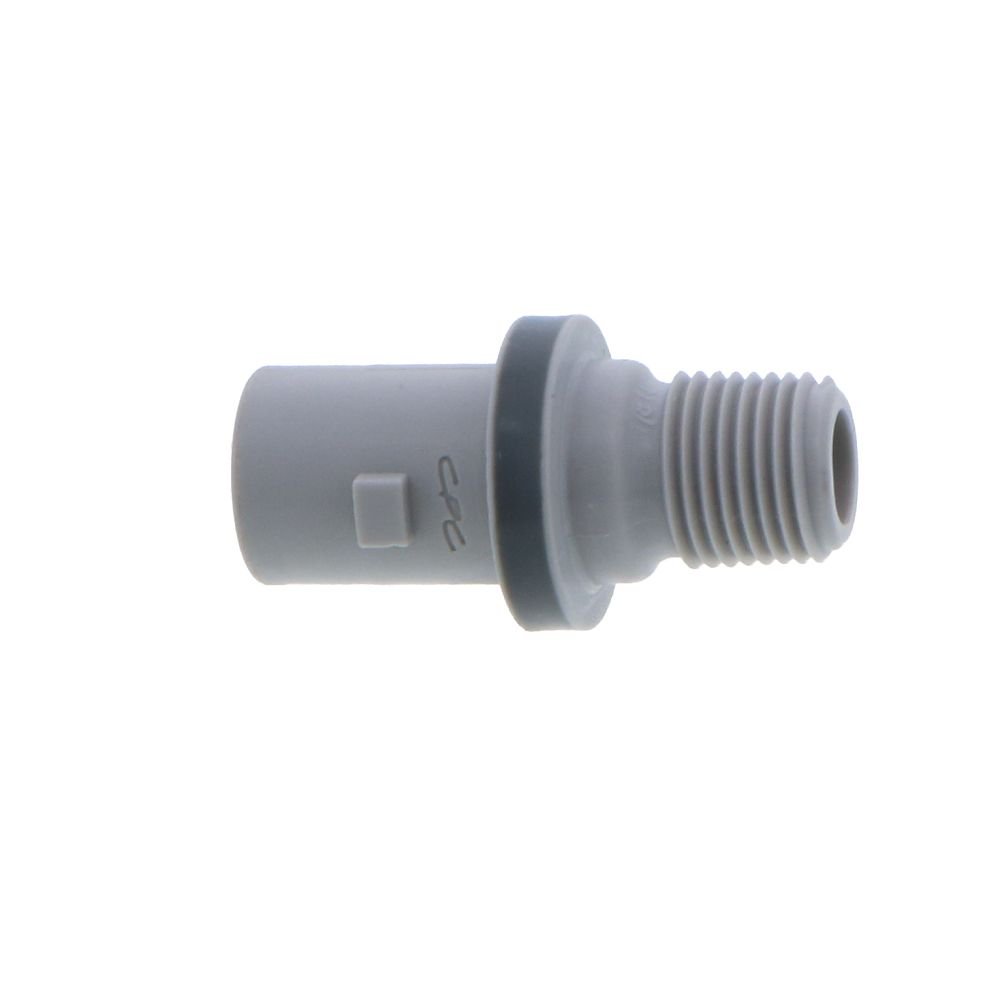

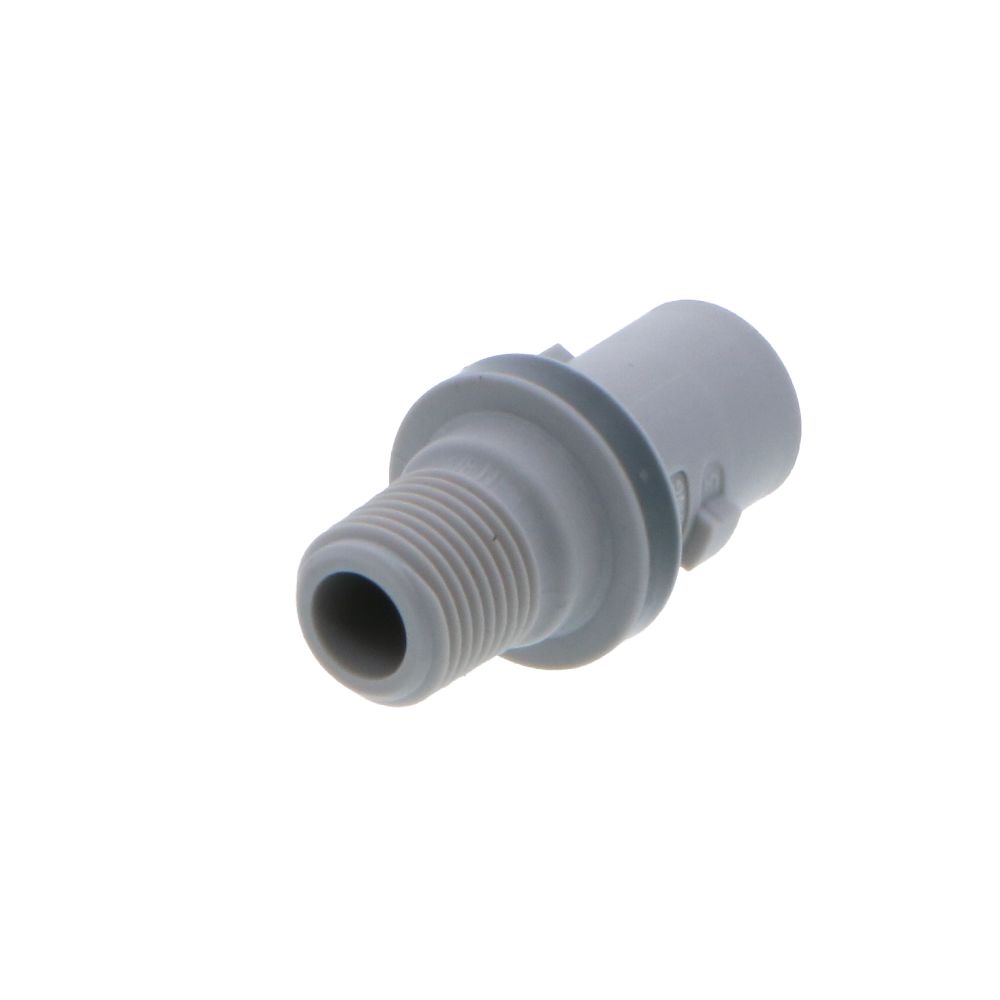

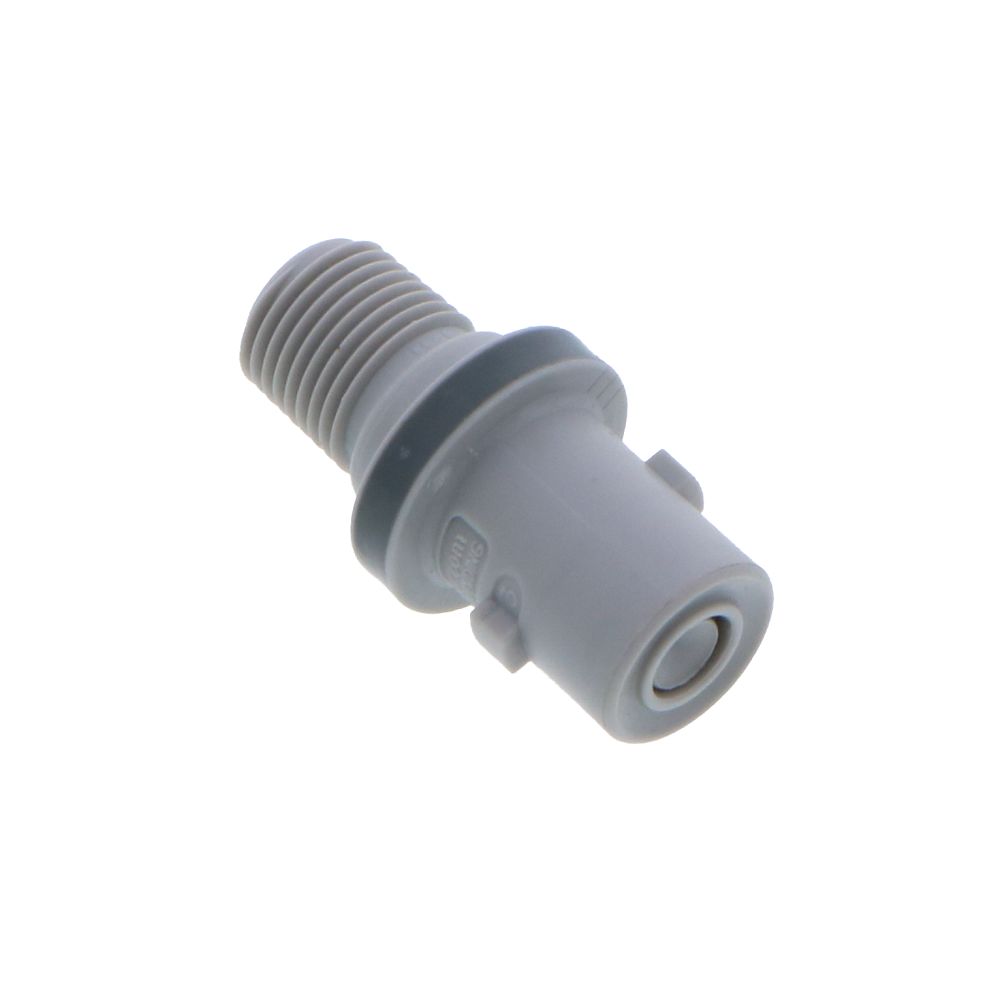

NS2D2402 Valved Male Thread Coupling Insert 1/8 NPT

Part Number: NS2D2402

In Stock

out of stock

In Stock

$5.88


NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: TPV (Thermoplastic Vulcinizate)
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Available in Bags of 25 units


Details

Series

NS2

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Molded Grey

Max Operating Pressure

Vacuum to 45 PSI, 3.1 bar

Mounting Options

Free Floating

O Rings

TPV

Operating Temperature Range

32-120 °F

Seal Material

TPV (Thermoplastic Vulcinizate)

Size

1/8"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

1/8" | MPT




NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: TPV (Thermoplastic Vulcinizate)
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Available in Bags of 25 units

Details

Series

NS2

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Molded Grey

Max Operating Pressure

Vacuum to 45 PSI, 3.1 bar

Mounting Options

Free Floating

O Rings

TPV

Operating Temperature Range

32-120 °F

Seal Material

TPV (Thermoplastic Vulcinizate)

Size

1/8"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

1/8" | MPT
