Colder Products

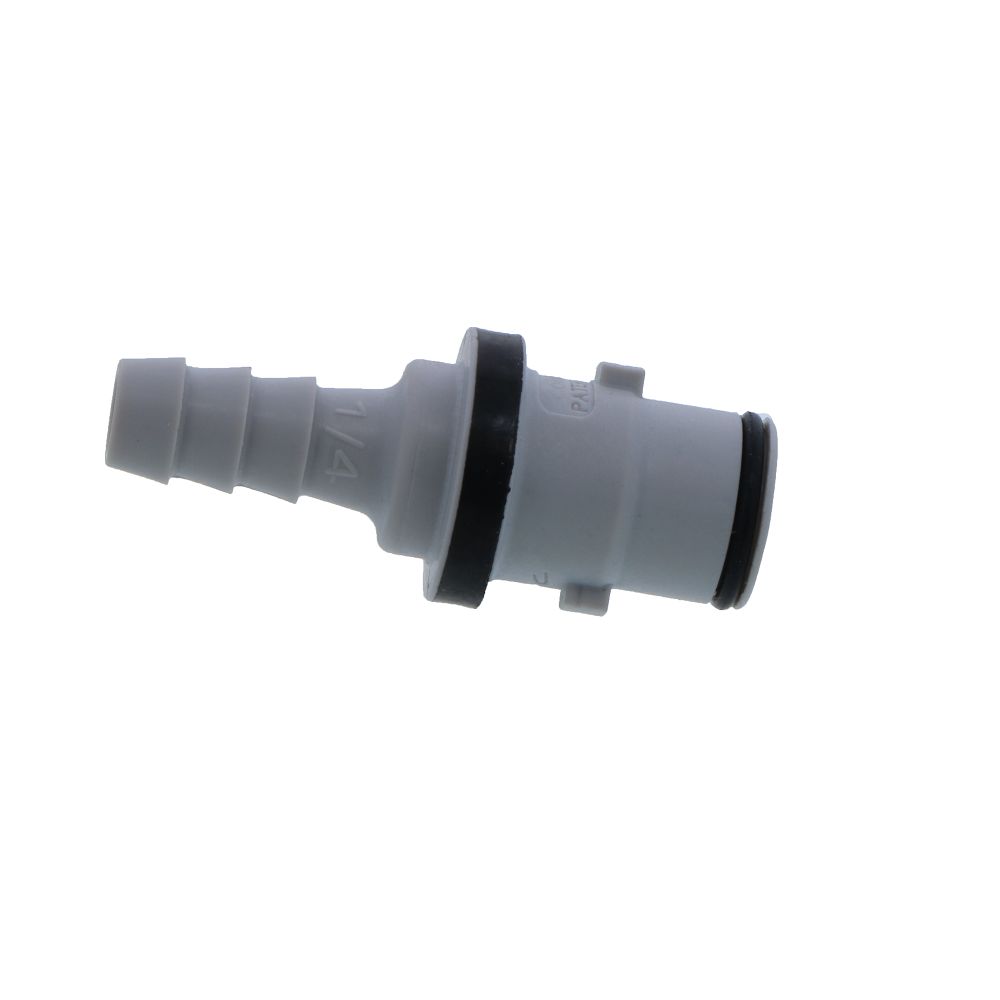

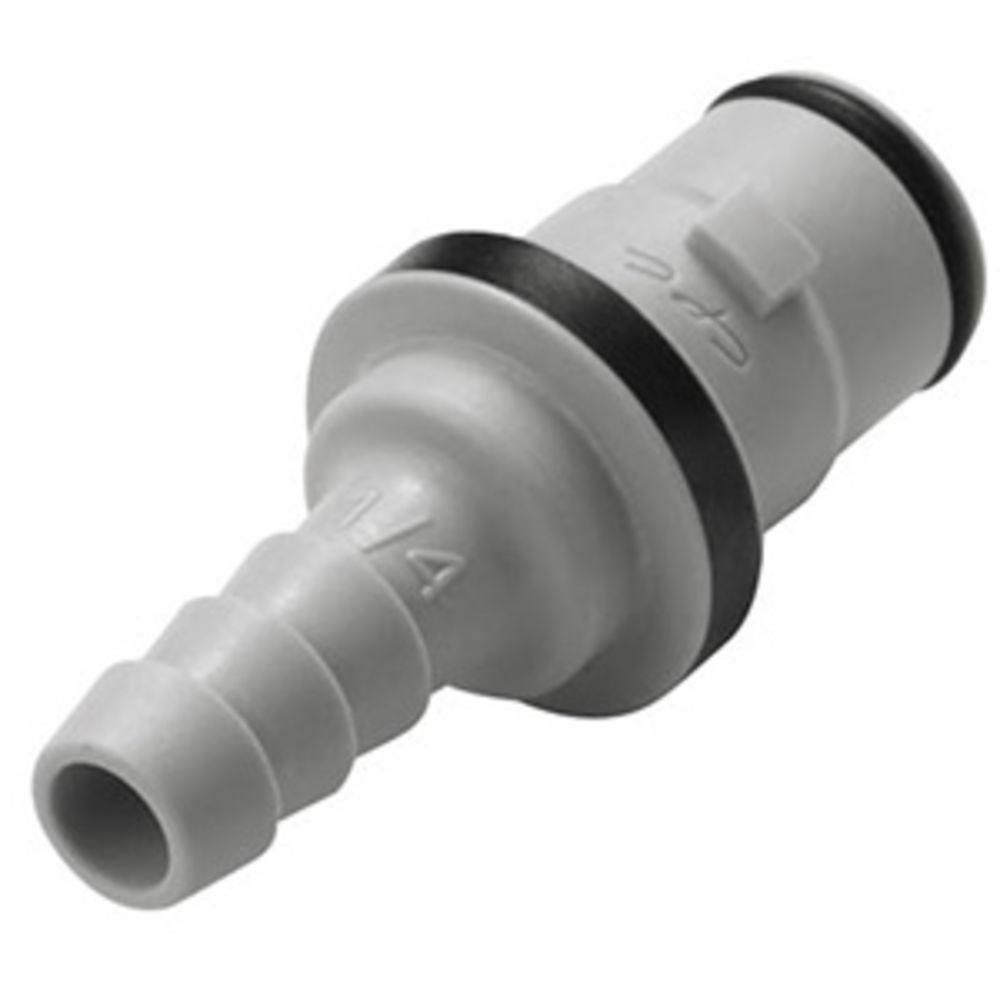

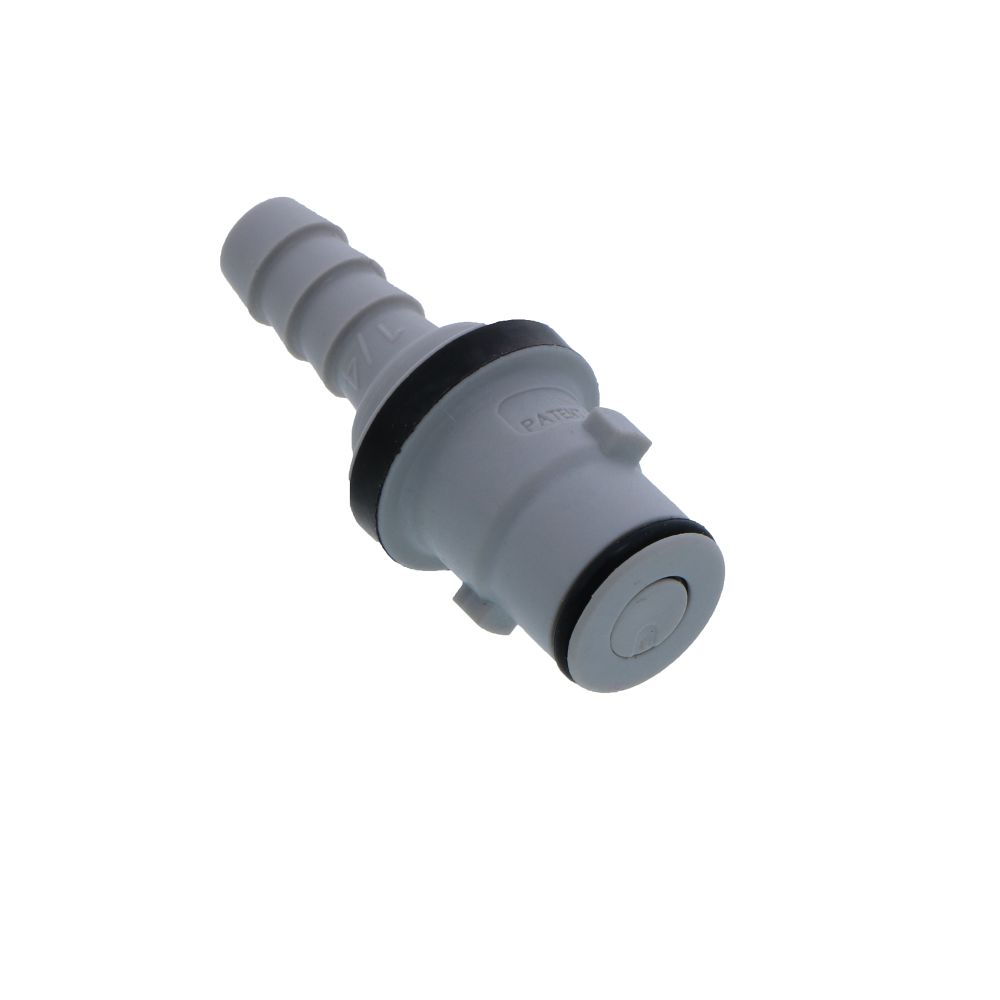

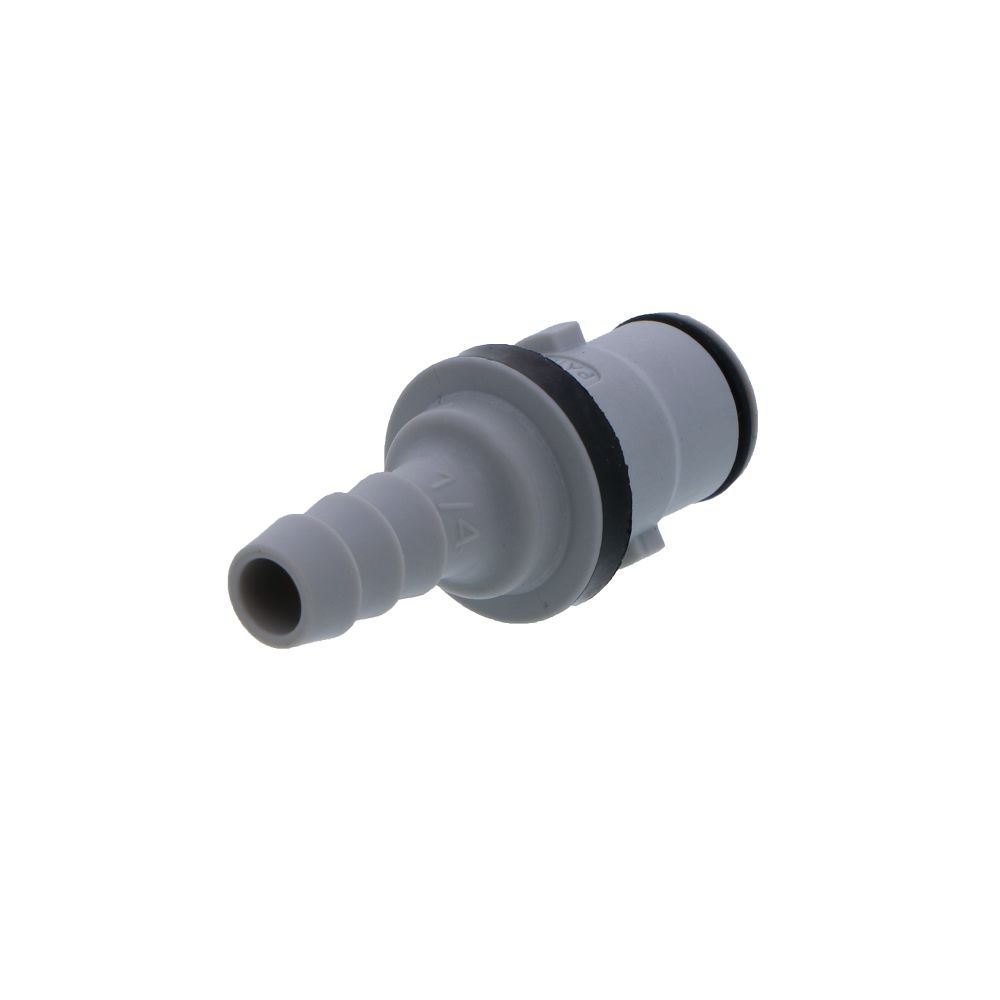

NS2D220412 Valved In-Line Hose Barb Coupling Insert 1/4 ID Barb

Part Number: NS2D220412

In Stock

out of stock

In Stock

$6.01

NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Available in Bags of 25 units




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Barb Size

1/4" ID

Body Material

Glass-Filled Polypropylene

Max Pressure (Psi)

45

Max Temp (°F)

120

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Seal Material

EPDM

Series

NS212

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Gray

Origin

USA

Type

Coupling Insert


NS2D220412




NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Available in Bags of 25 units



Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Barb Size

1/4" ID

Body Material

Glass-Filled Polypropylene

Max Pressure (Psi)

45

Max Temp (°F)

120

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Seal Material

EPDM

Series

NS212

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Gray

Origin

USA

Type

Coupling Insert
