Colder Products

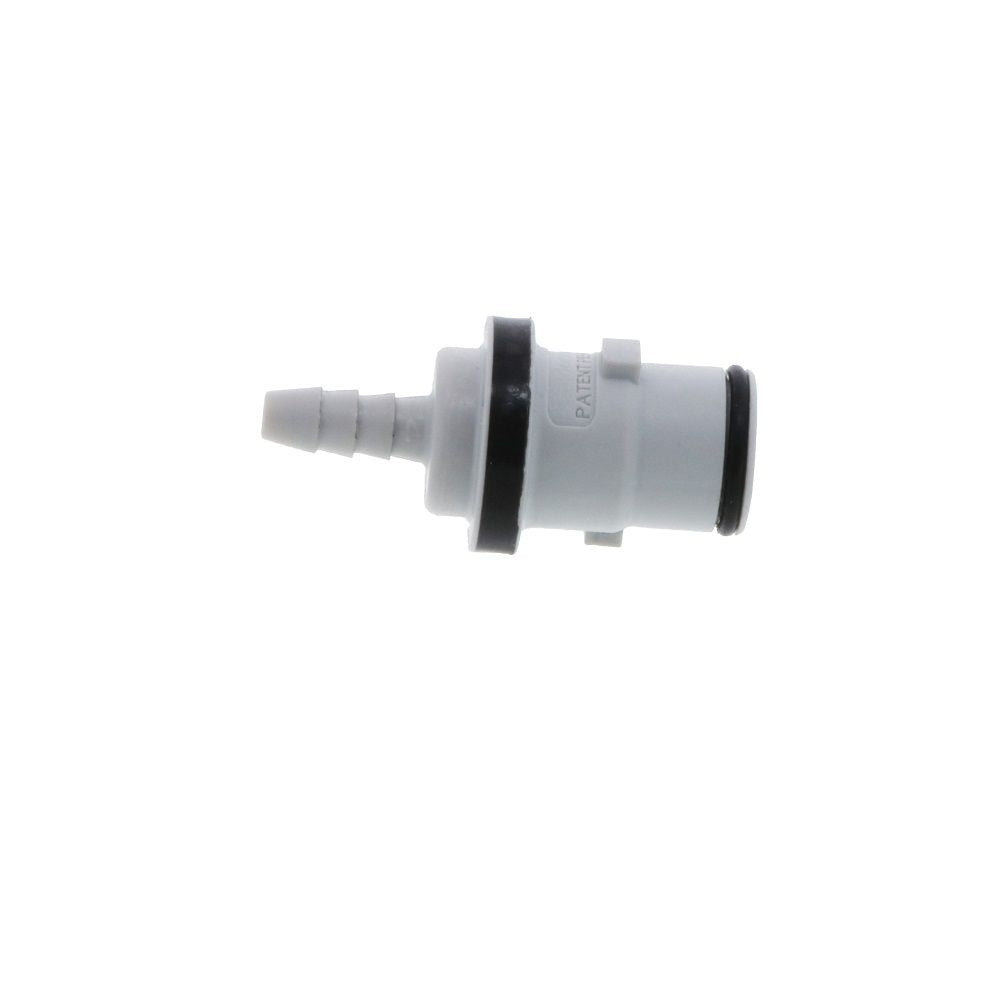

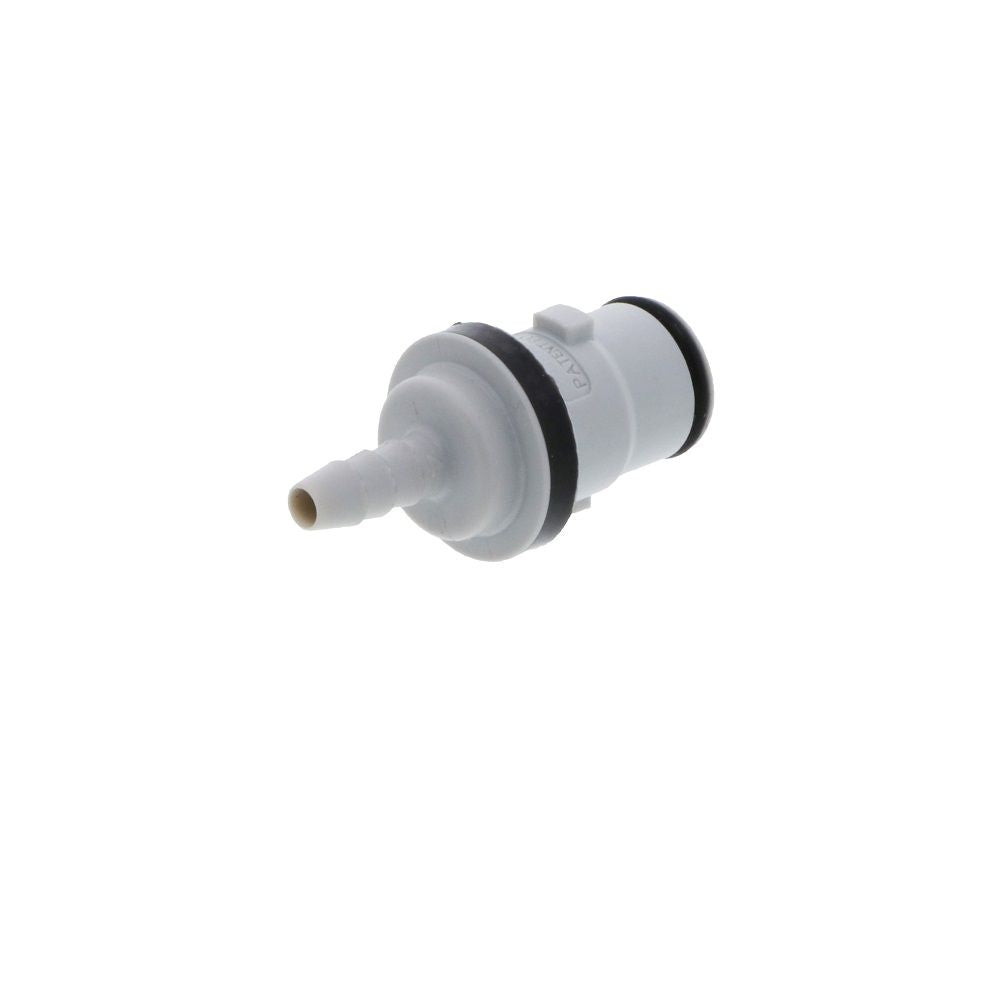

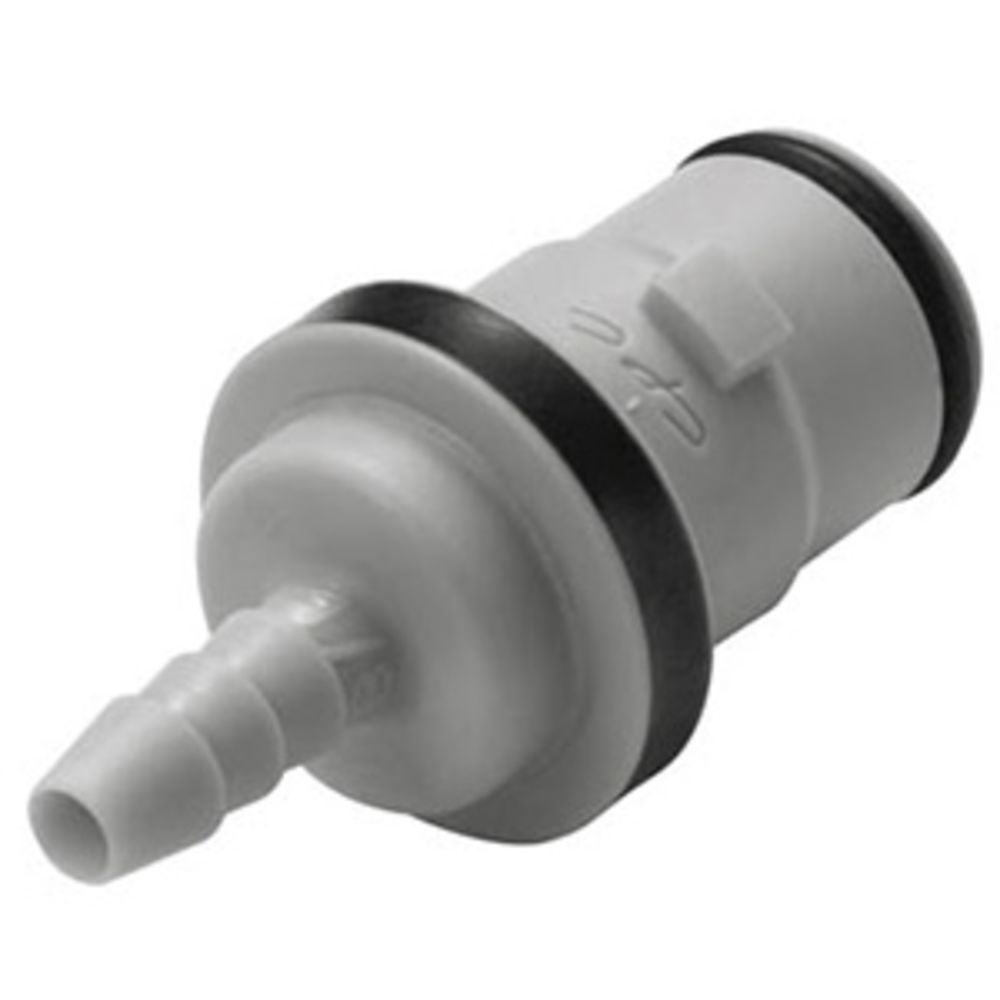

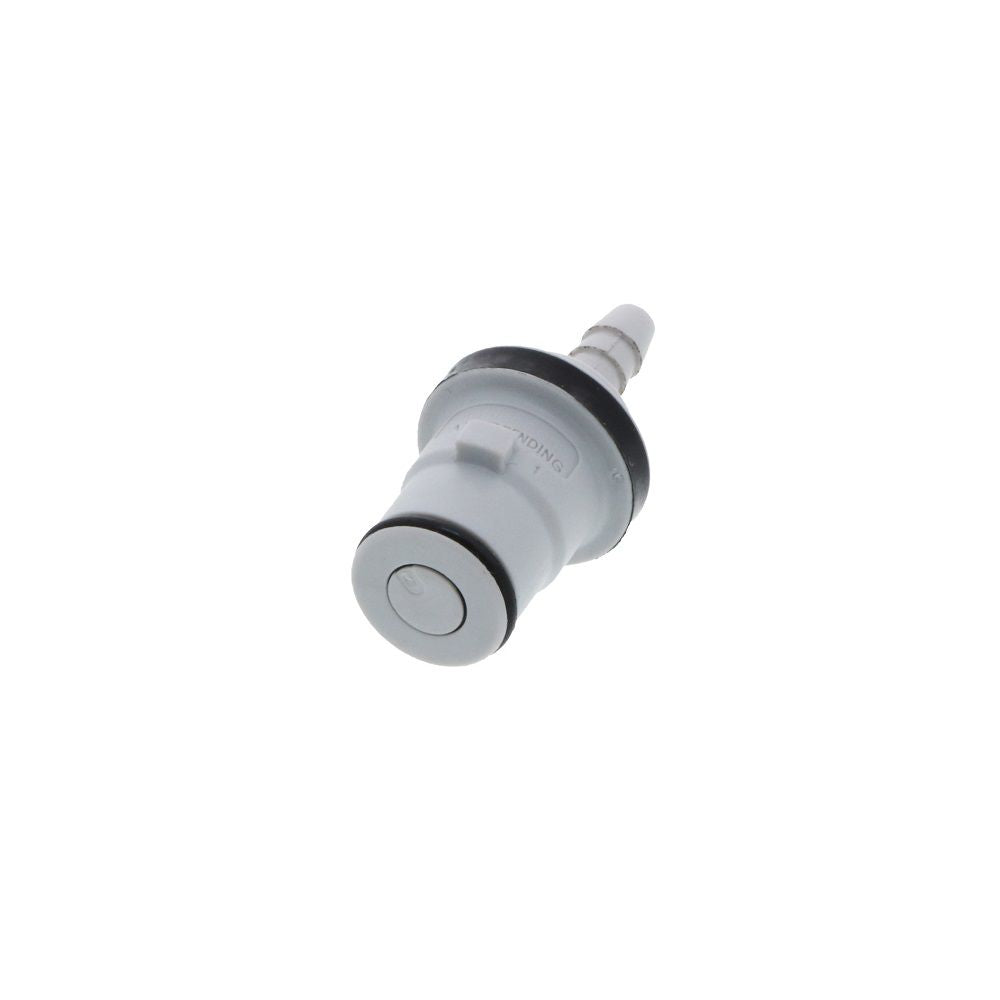

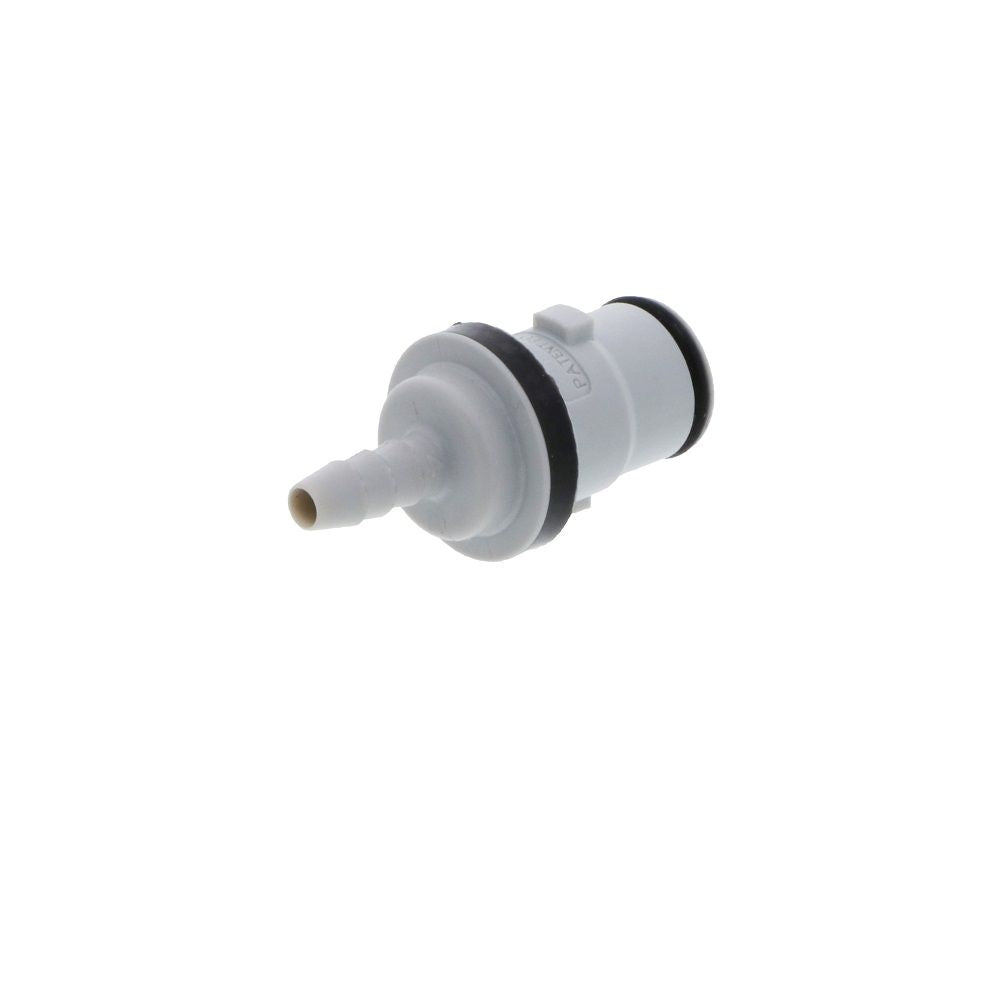

NS2D220212 Valved In-Line Hose Barb Coupling Insert 1/8 ID Barb

Part Number: NS2D220212

In Stock

out of stock

In Stock

$5.79


NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Available in Bags of 25 units


Details

Application

Water

Bag Quantity

25

Barb Size

1/8" ID

Body Material

Glass-Filled Polypropylene

Color / Finish

Molded Grey

Max Operating Pressure

45

Max Operating Temperature

120

Mounting Options

Free Floating

Origin

USA

Seal Material

EPDM

Series

NS212

Spring

316 Stainless Steel

Valve Type

Valved


NS2D220212





NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Available in Bags of 25 units

Details

Application

Water

Bag Quantity

25

Barb Size

1/8" ID

Body Material

Glass-Filled Polypropylene

Color / Finish

Molded Grey

Max Operating Pressure

45

Max Operating Temperature

120

Mounting Options

Free Floating

Origin

USA

Seal Material

EPDM

Series

NS212

Spring

316 Stainless Steel

Valve Type

Valved

Documentation
NS2D220212

Reviews
