Colder Products

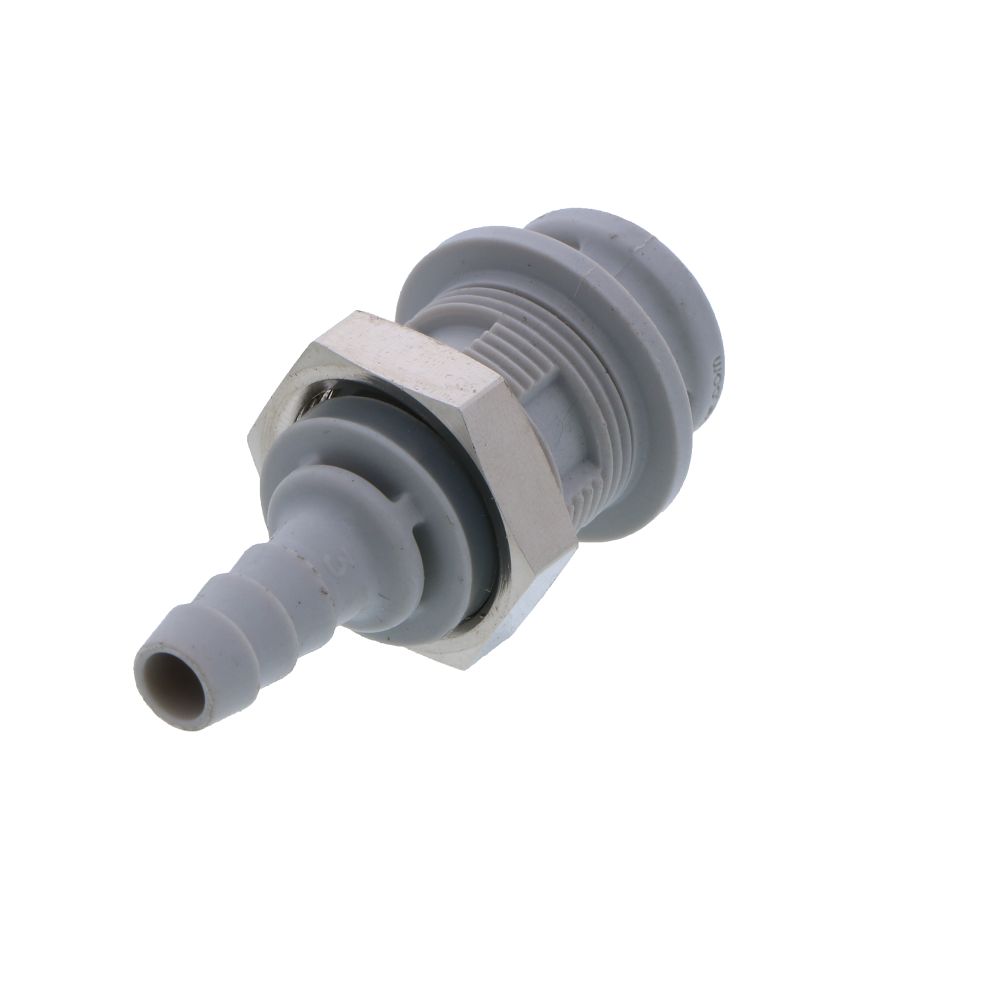

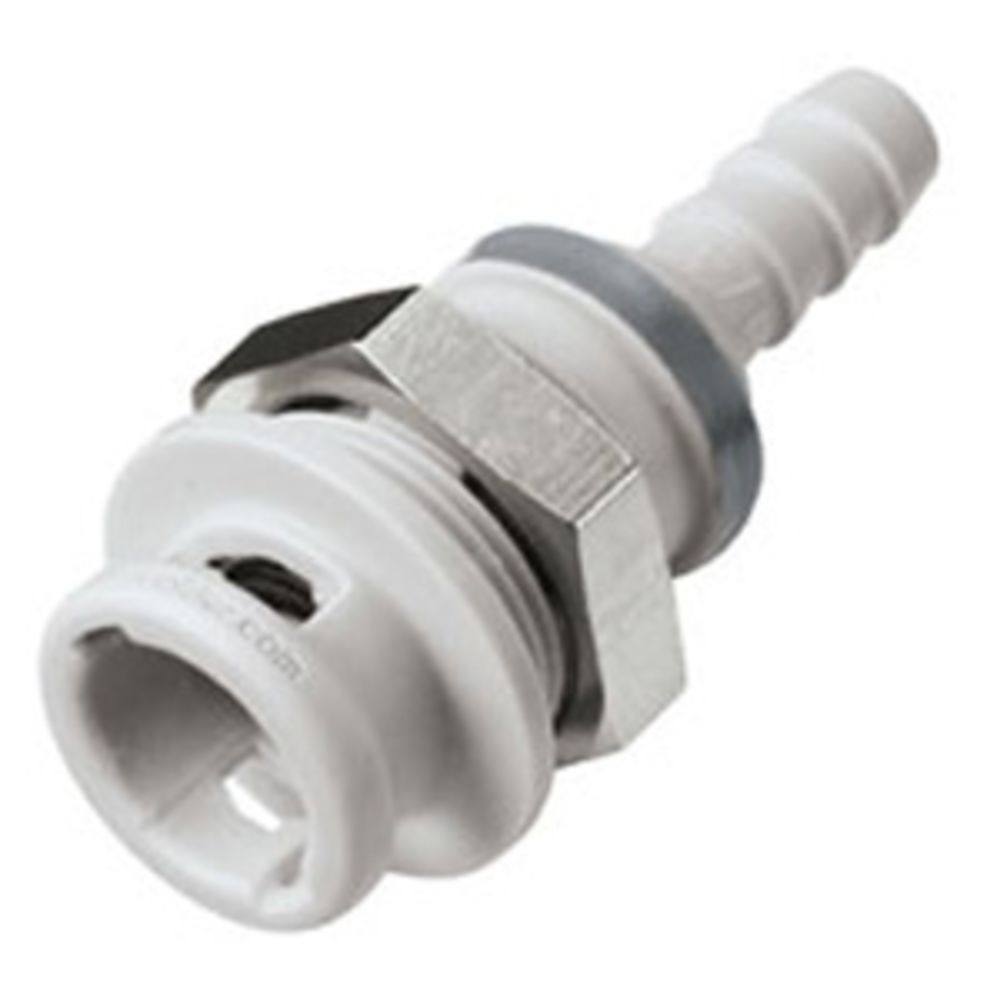

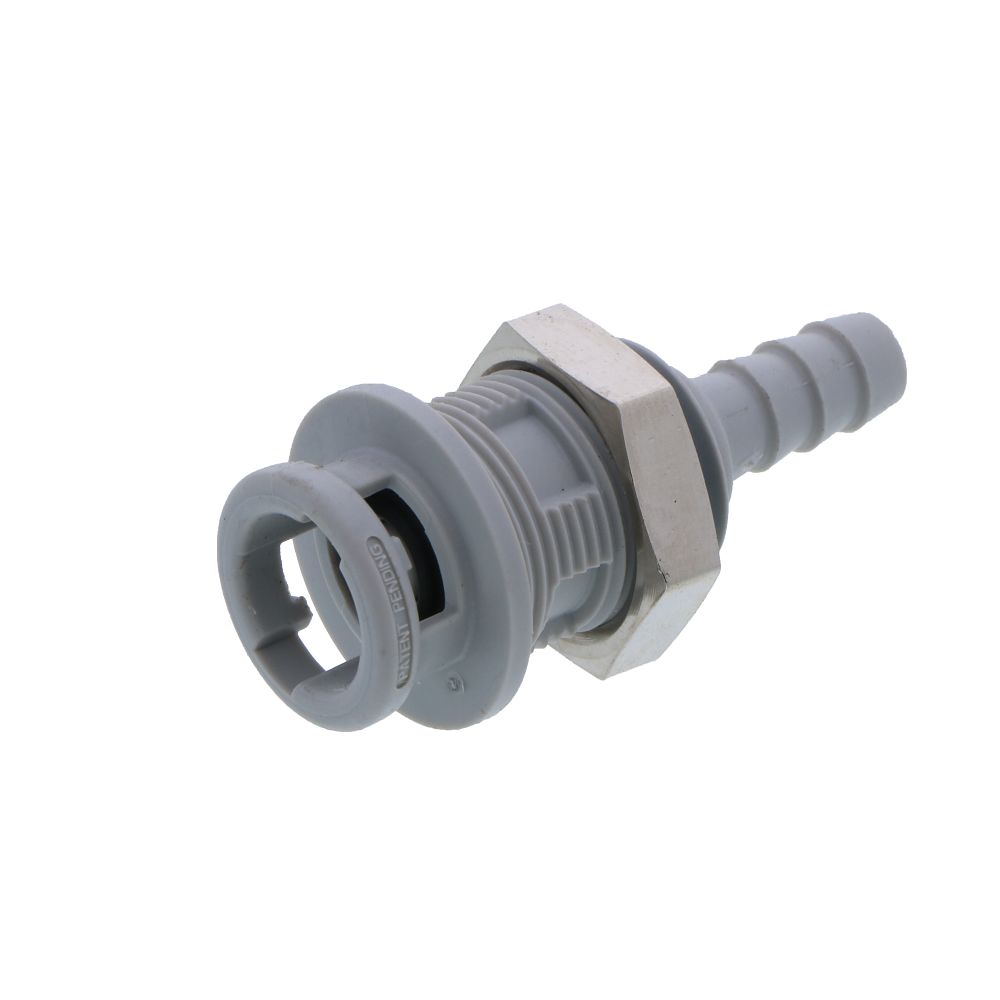

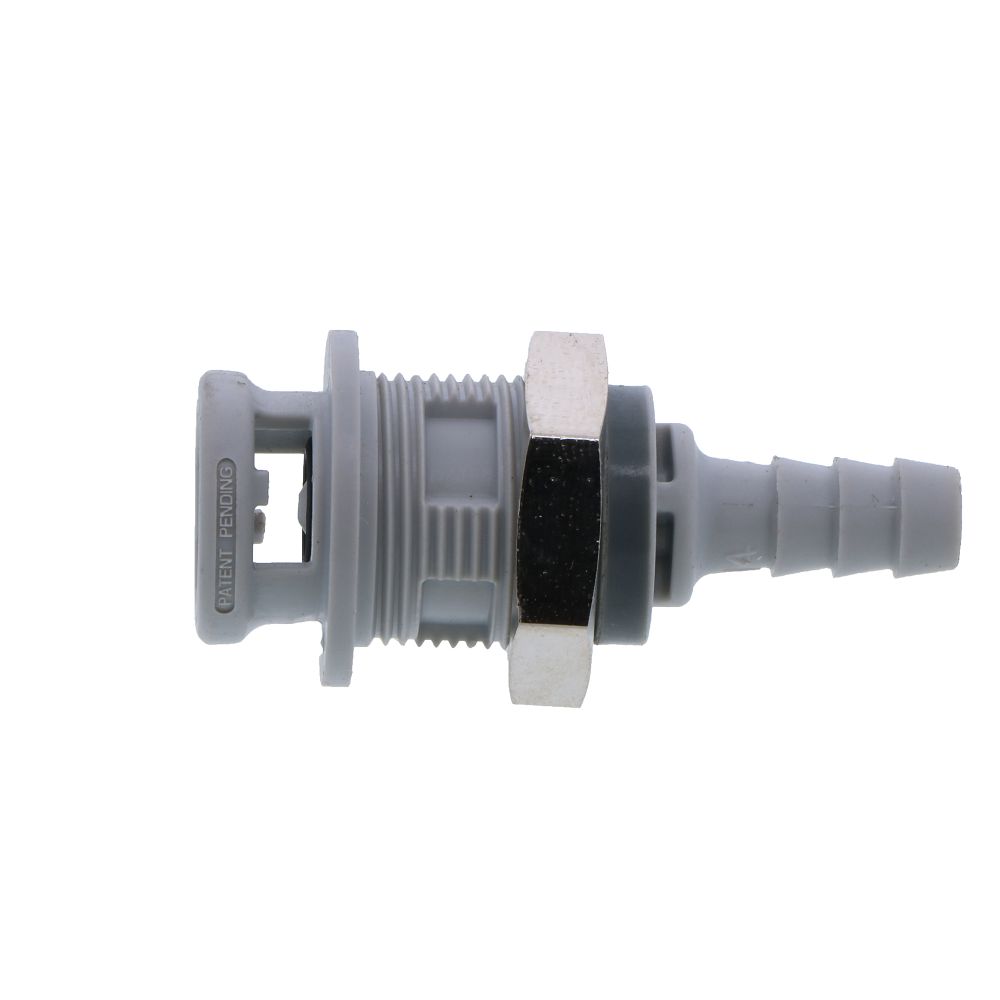

NS2D1604 Valved Panel Mount Hose Barb Coupling Body 1/4 ID Barb

Part Number: NS2D1604

In Stock

out of stock

In Stock

$8.26

NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.
Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: TPV (Thermoplastic Vulcinizate)
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Available in Bags of 25 units




Details

Series

NS2

Max Temp (°F)

120

Max Pressure (Psi)

45

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Barb Size

1/4" ID

Application

Water

Bag Quantity

25

Body Material

Glass-Filled Polypropylene

Color / Finish

Gray

Mounting Options

Panel Mount

Seal Material

TPV (Thermoplastic Vulcinizate)

Spring

316 Stainless Steel

Valve Type

Valved



NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.
Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: TPV (Thermoplastic Vulcinizate)
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Available in Bags of 25 units



Details

Series

NS2

Max Temp (°F)

120

Max Pressure (Psi)

45

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Barb Size

1/4" ID

Application

Water

Bag Quantity

25

Body Material

Glass-Filled Polypropylene

Color / Finish

Gray

Mounting Options

Panel Mount

Seal Material

TPV (Thermoplastic Vulcinizate)

Spring

316 Stainless Steel

Valve Type

Valved
