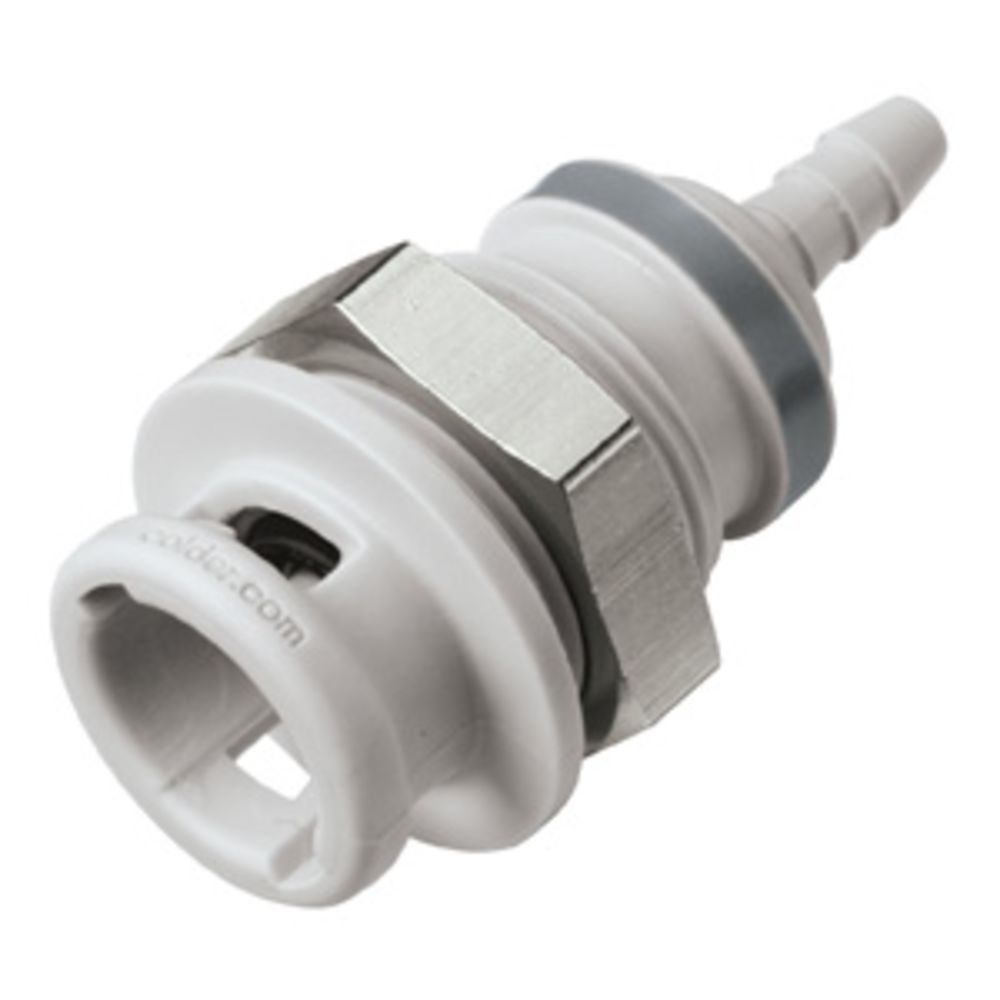

NS2D1602 Valved Panel Mount Hose Barb Coupling Body 1/8 ID Barb

Part Number: NS2D1602

In Stock

out of stock

In Stock

$8.30

NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: TPV (Thermoplastic Vulcinizate)
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Available in Bags of 25 units


Details

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Gray with dark gray overmold

Mounting Options

Panel Mount

O Rings

TPV Seal

Operating Pressure Range

Vacuum to 45 psi, 3.1 bar

Operating Temperature Range

32 to 120 Degrees Fahrenheit

Spring

316 Stainless Steel

Valve Type

Valved



NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: TPV (Thermoplastic Vulcinizate)
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Available in Bags of 25 units

Details

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Gray with dark gray overmold

Mounting Options

Panel Mount

O Rings

TPV Seal

Operating Pressure Range

Vacuum to 45 psi, 3.1 bar

Operating Temperature Range

32 to 120 Degrees Fahrenheit

Spring

316 Stainless Steel

Valve Type

Valved
