Colder Products

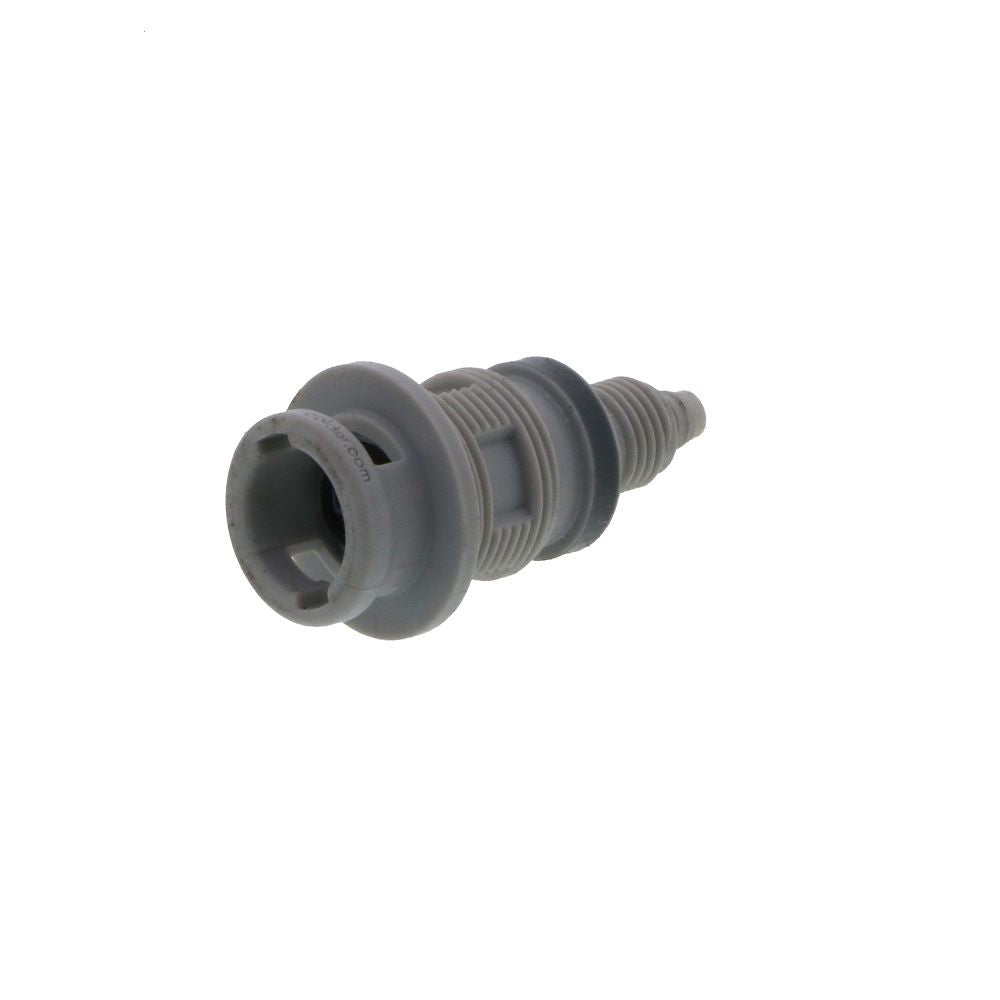

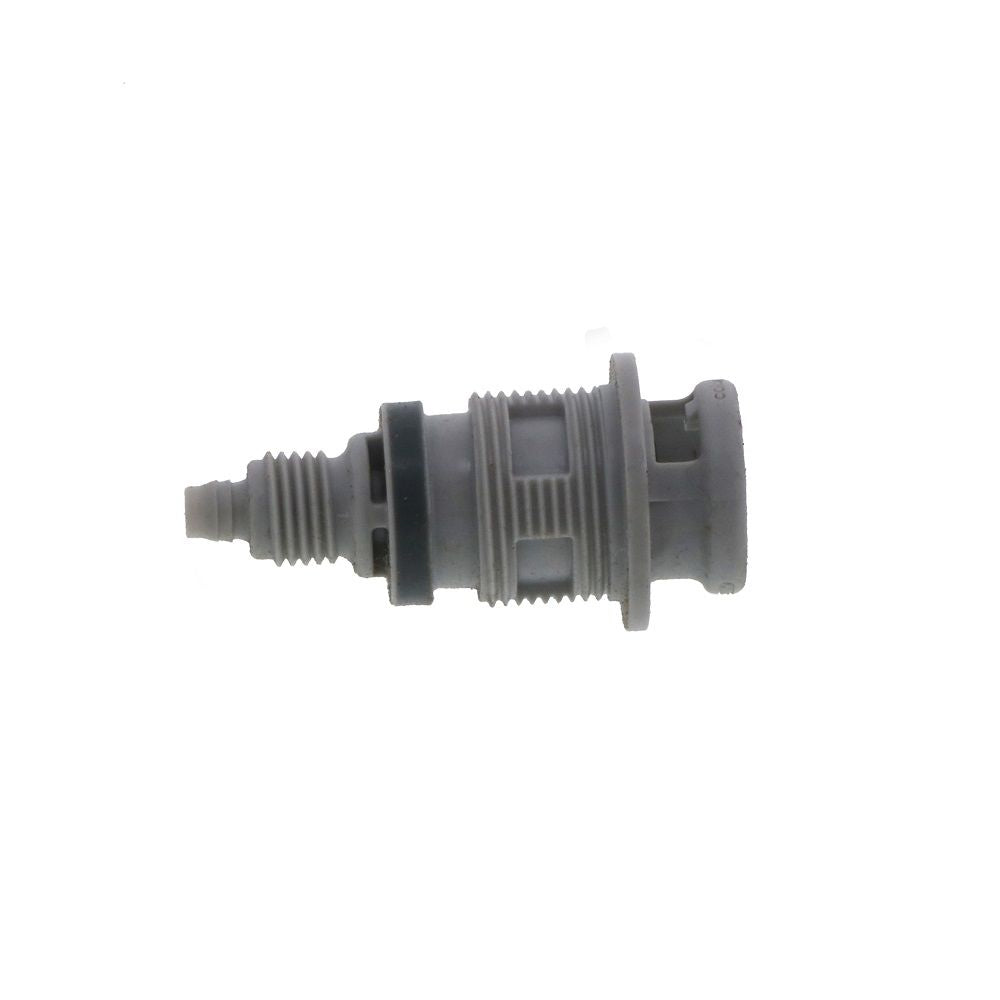

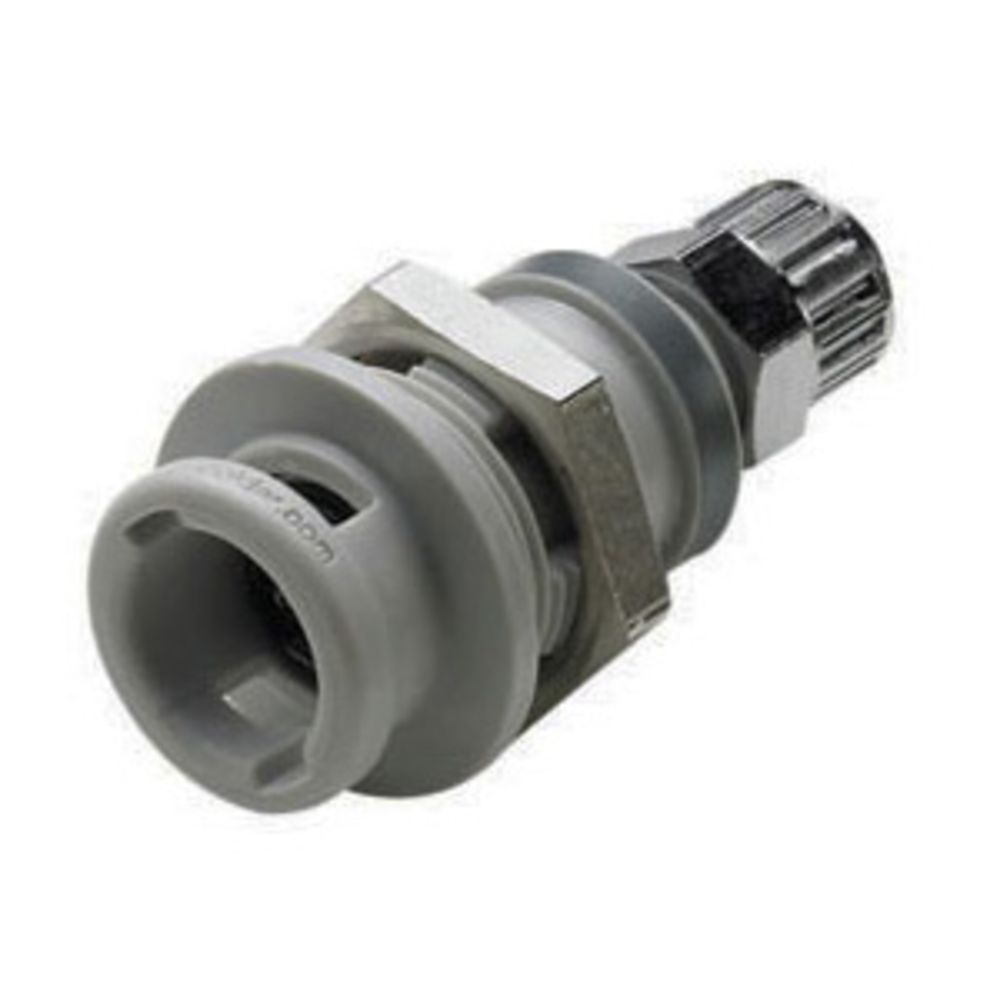

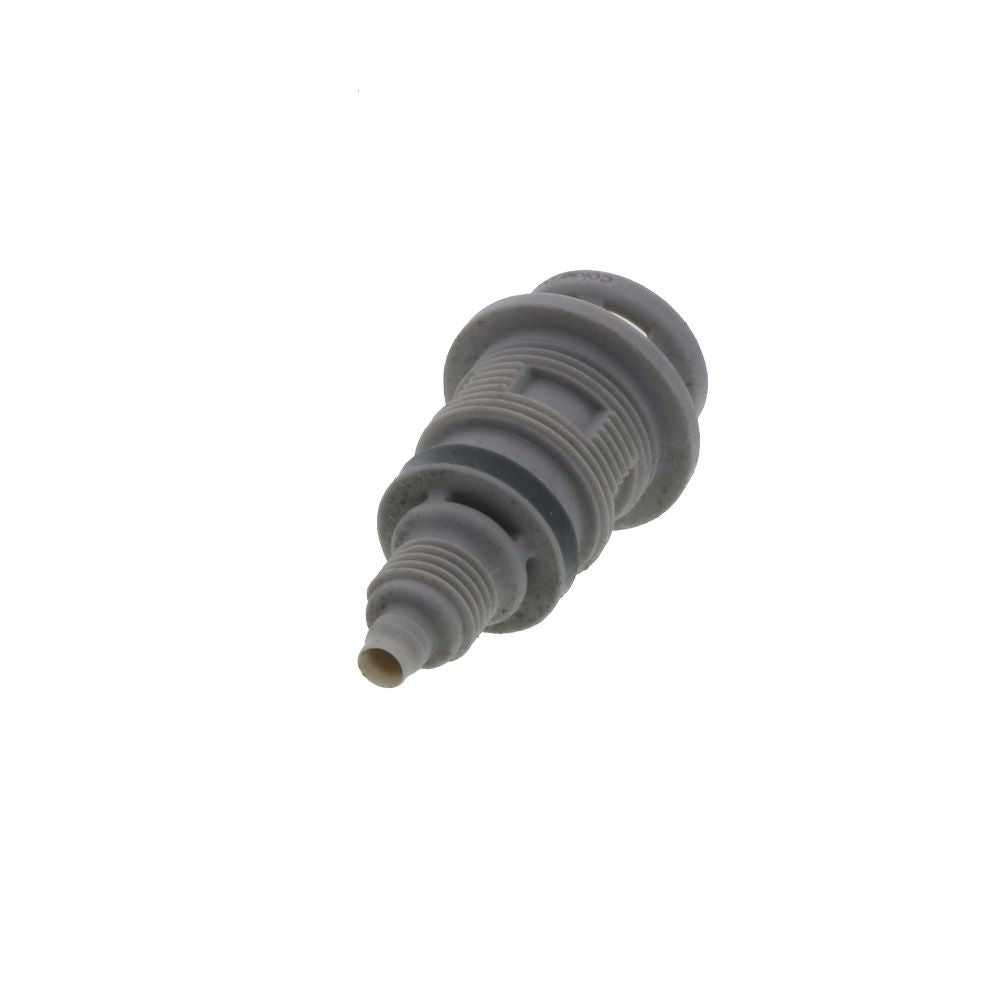

NS2D1204 Valved Panel Mount PTF Coupling Body 1/4 PTF

Part Number: NS2D1204

In Stock

out of stock

In Stock

$8.72


NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: TPV (Thermoplastic Vulcinizate)
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Tubing Size: .17" ID, 1/4" OD
  • Available in Bags of 25 units



Details

Application

Water

Bag Quantity

25

Body Material

Glass-Filled Polypropylene

Color / Finish

Molded Grey

Inlet/Outlet Connection

1/4" FPT

Max Operating Pressure

120

Max Operating Temperature

160

Mounting Options

Panel Mount

Push In Size

1/4" OD

Seal Material

EPDM

Series

NS4

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved




NS2 Series couplings were built on Colder's proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.

Specifications:
  • Material: Polypropylene
  • Color: Gray with dark gray overmold
  • Pressure Range: Vacuum to 45 psi, 3.1 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: TPV (Thermoplastic Vulcinizate)
  • Spillage: <0.025 cc per disconnect, 0.009cc per connect
  • Tubing Size: .17" ID, 1/4" OD
  • Available in Bags of 25 units


Details

Application

Water

Bag Quantity

25

Body Material

Glass-Filled Polypropylene

Color / Finish

Molded Grey

Inlet/Outlet Connection

1/4" FPT

Max Operating Pressure

120

Max Operating Temperature

160

Mounting Options

Panel Mount

Push In Size

1/4" OD

Seal Material

EPDM

Series

NS4

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved
