Home / Fittings / Quick-Disconnect Fittings / NS1D26042812 Valved In-Line Coupling Insert 1/4-28 Flat Bottom Port
Colder Products

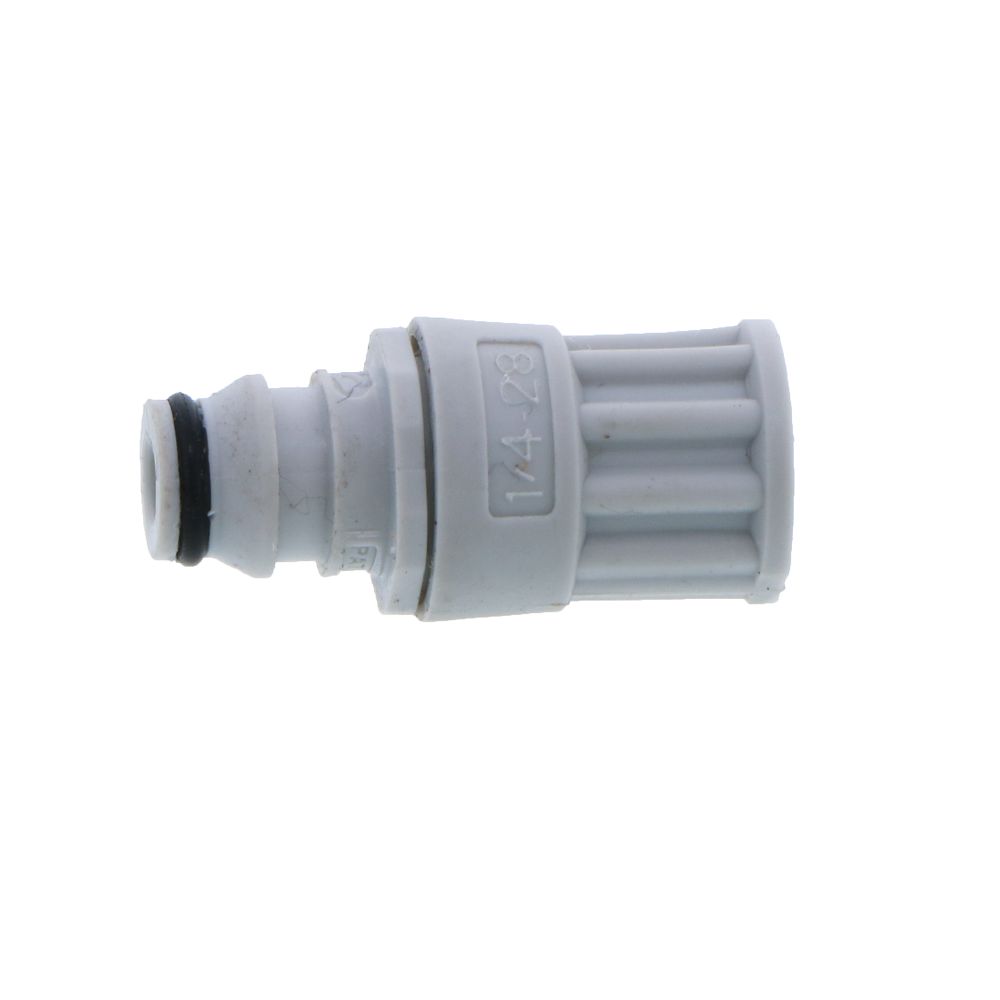

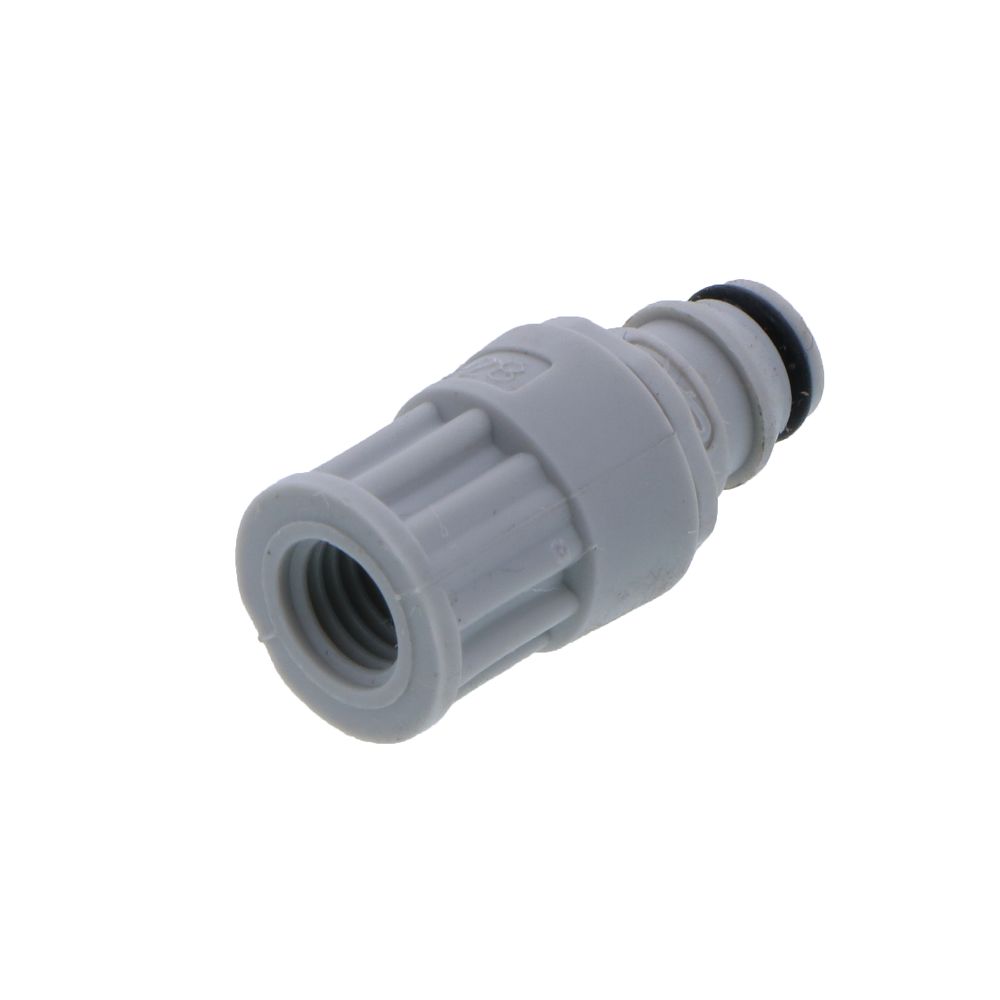

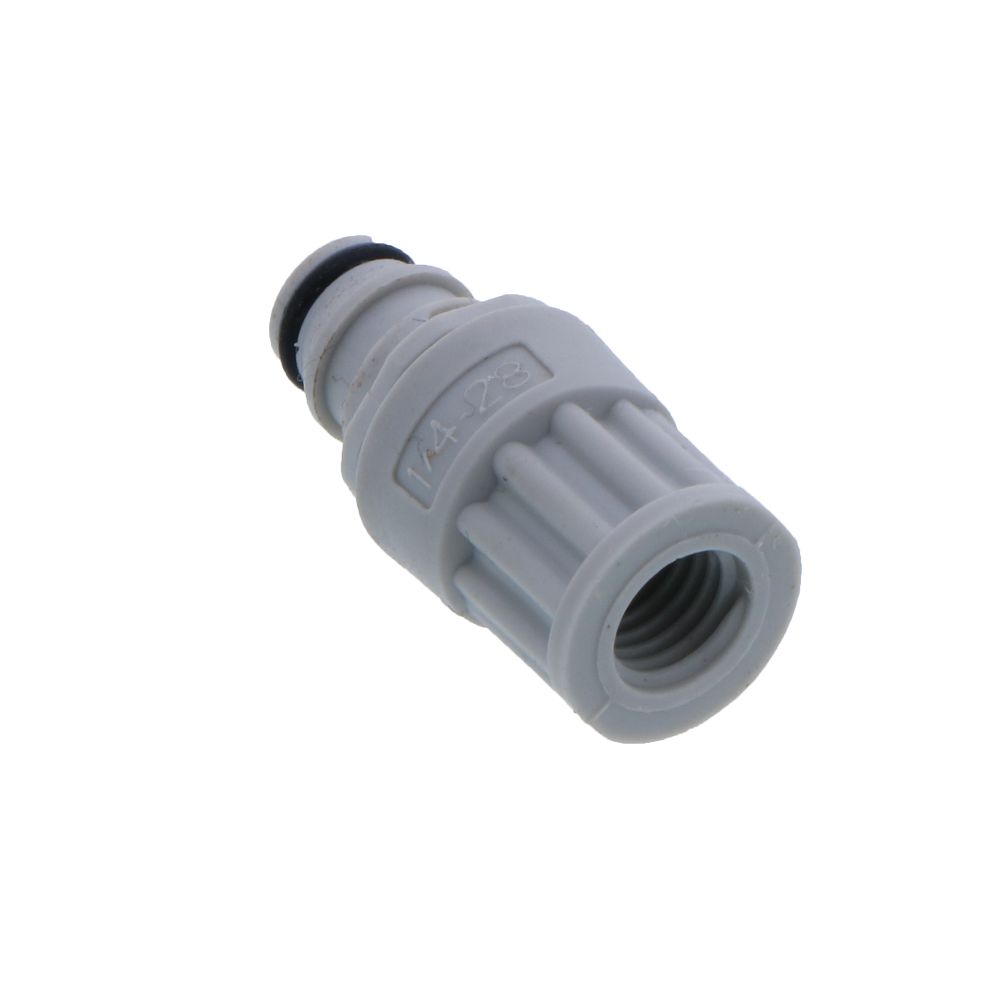

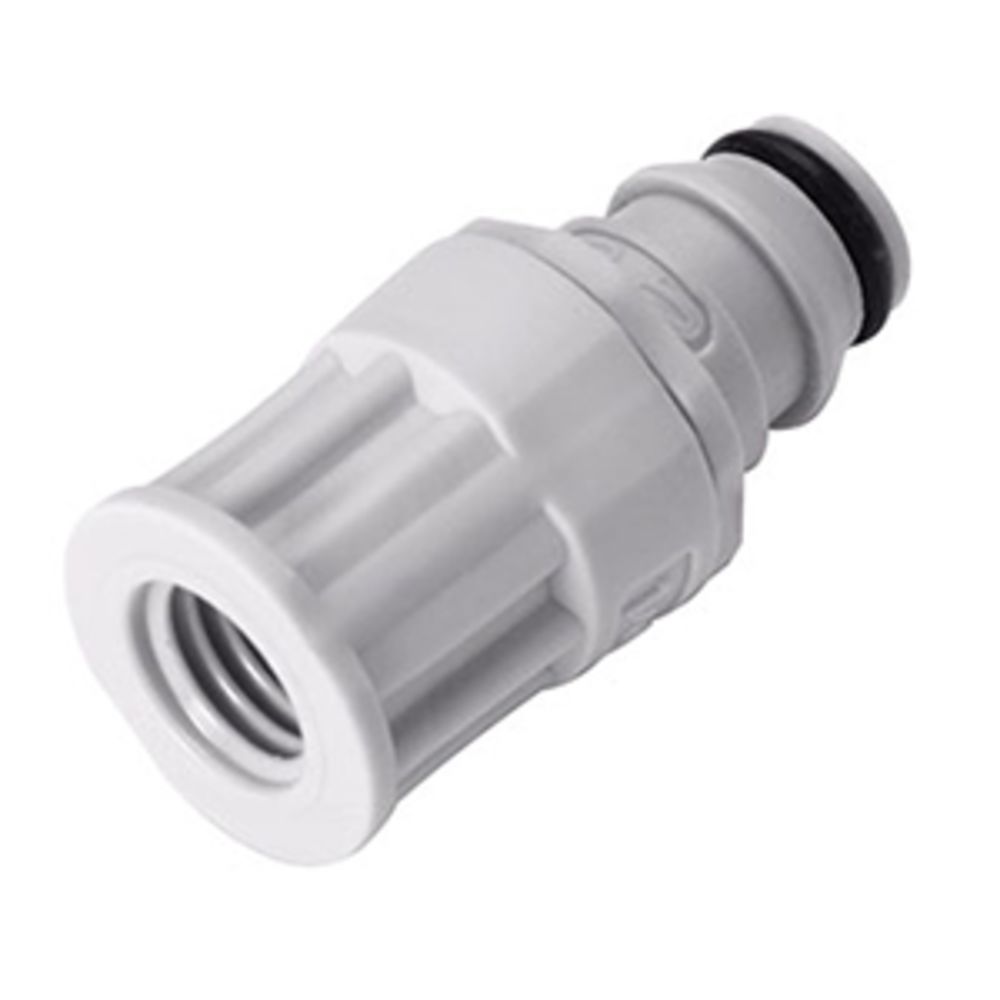

NS1D26042812 Valved In-Line Coupling Insert 1/4-28 Flat Bottom Port

Part Number: NS1D26042812
Alt. Part Number: NS1D48042812
Your price:
similar items
NS1 Series couplings are the smallest plastic non-spill couplings on the market. This compact, closed-system design is packed full of features which includes non-spill shutoff valves that ensure drip-free disconnects, and eliminate the need to purge air from the system. NS1 is perfect for applications using tubing from microbore up to 1/8-inch. Its rotating design allows tubing to move freely without kinks making it ideal for applications that need to be connected and disconnected often.

  • Main Components and valves: Glass-Filled Polypropylene, PEEK®, Polypropylene
  • Tubing: 1/8" OD or smaller
  • Color: Gray
  • Pressure Range: Vacuum to 15 psi, 1.0 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 120ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Option: EPDM
  • Spillage: <0.02 cc per disconnect, 0.01cc per connect
  • Available in Bags of 25 units
  • Replaces the discontinued NS1D48042812
