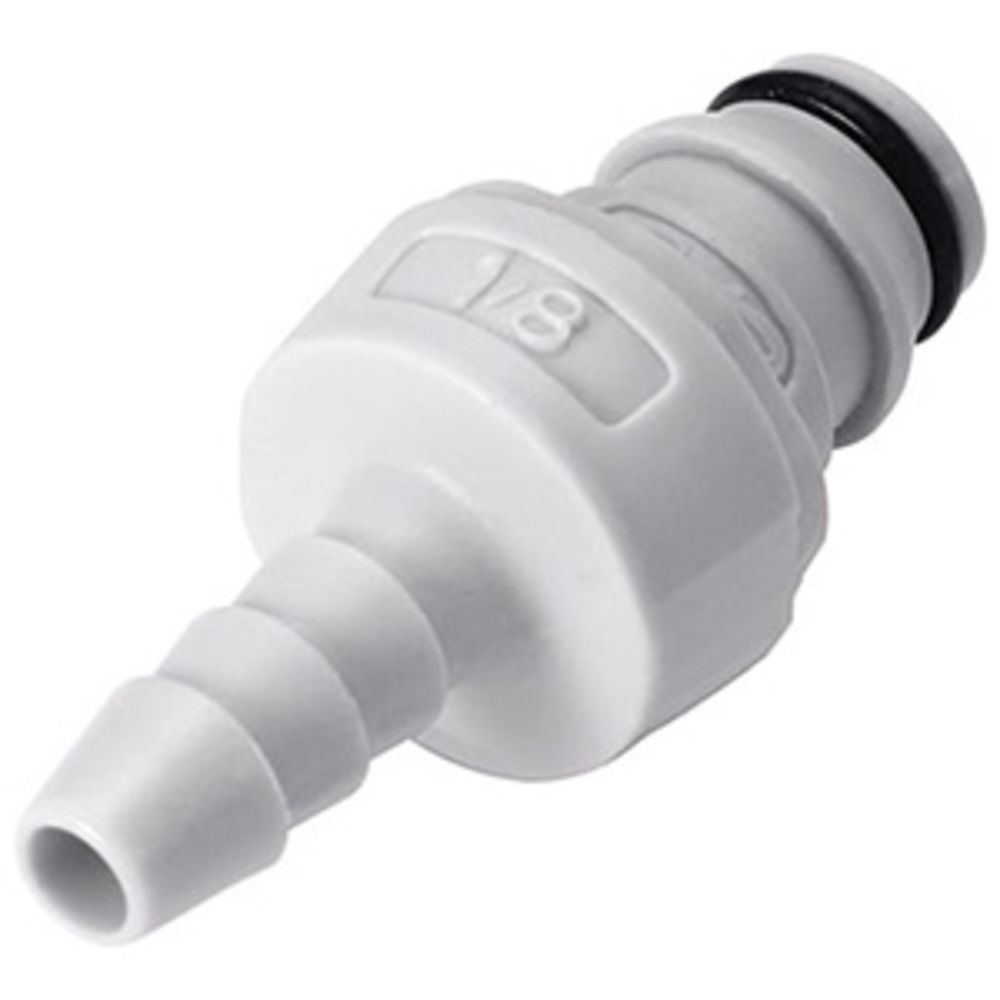

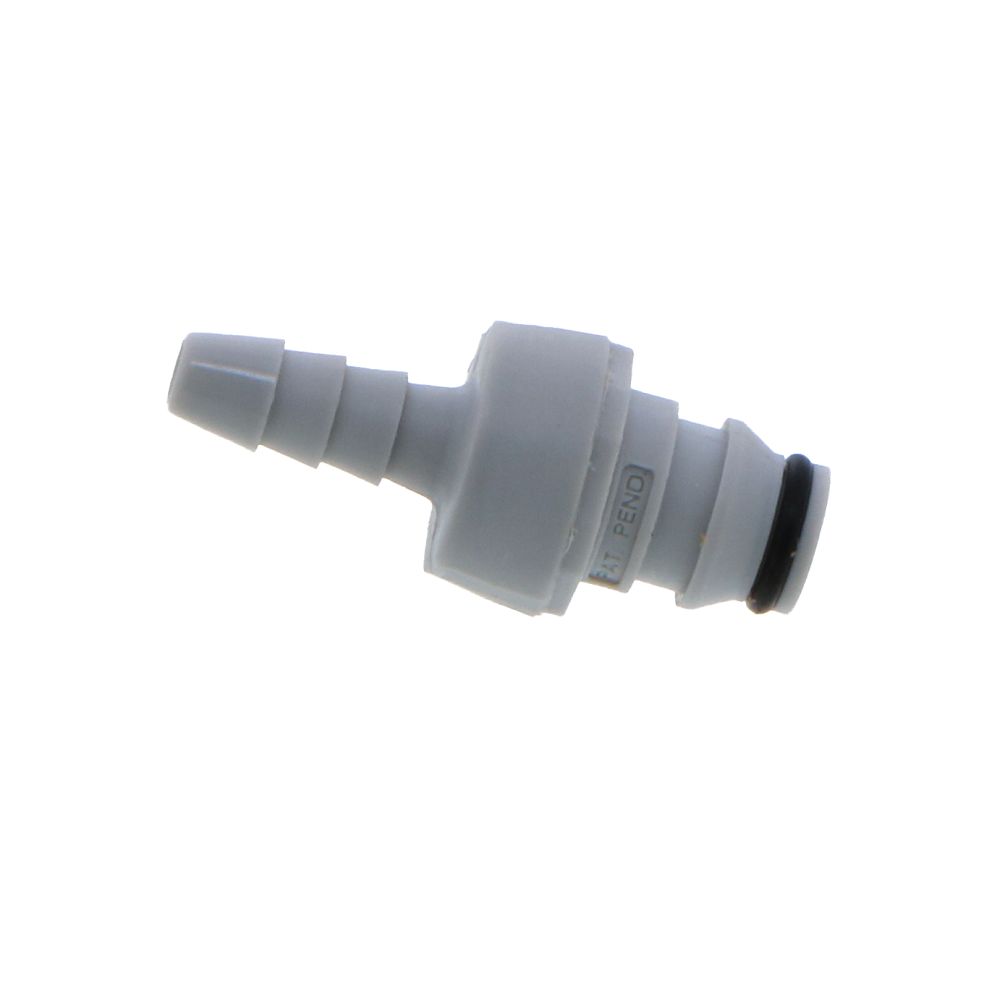

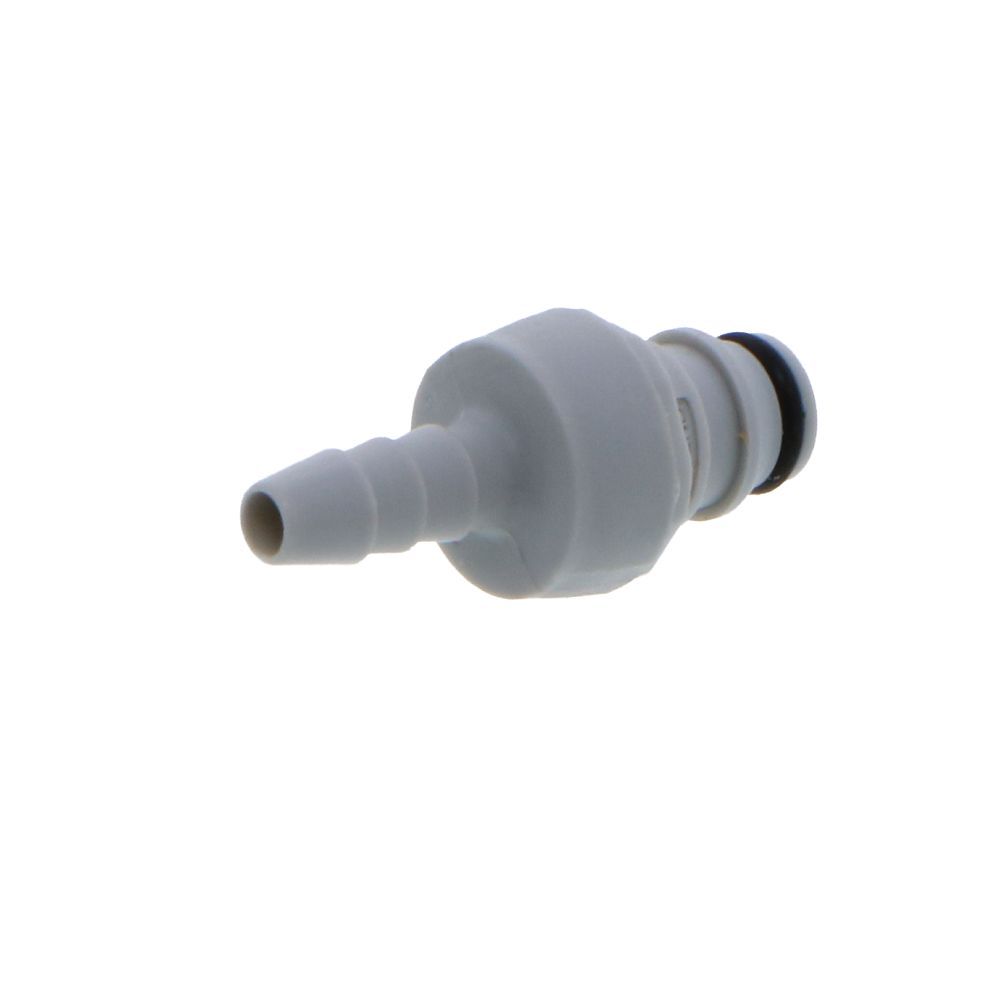

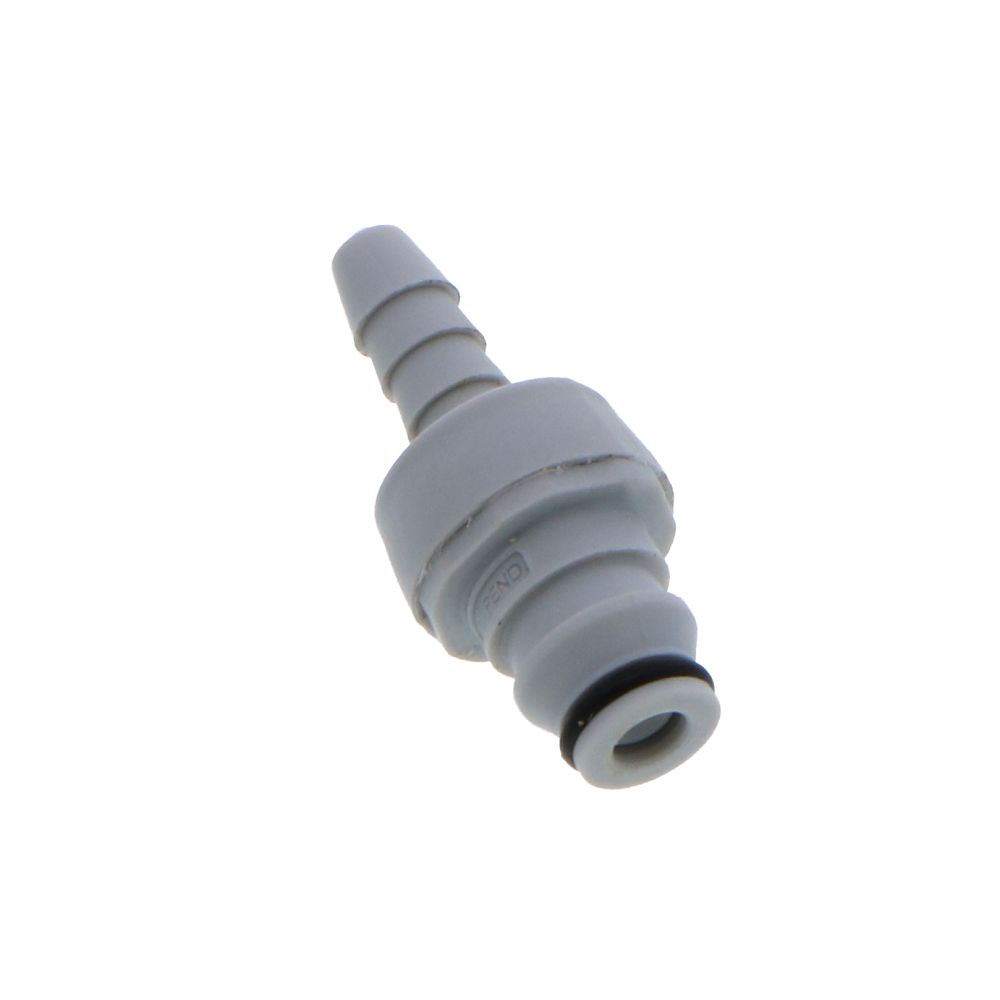

NS1 Series couplings are the smallest plastic non-spill couplings on the market. This compact, closed-system design is packed full of features which includes non-spill shutoff valves that ensure drip-free disconnects, and eliminate the need to purge air from the system. NS1 is perfect for applications using tubing from microbore up to 1/8-inch. Its rotating design allows tubing to move freely without kinks making it ideal for applications that need to be connected and disconnected often.
Specifications:
Specifications:
- Main Components and valves: Glass-Filled Polypropylene, PEEK®, Polypropylene
- Color: Gray
- Pressure Range: Vacuum to 15 psi, 1.0 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32ºF to 120ºF
- Valve Spring: 316 Stainless Steel
- Seal Option: EPDM
- Spillage: <0.02 cc per disconnect, 0.01cc per connect
- Available in Bags of 25 units
Weight & Dimensions
Height (inches) | 0.5 |
Length (inches) | 6.13 |
Weight (lbs) | 0.003125 |
Width (inches) | 1.5 |
Details
Application | Glass-Filled Polypropylene |
Barb Size | 1/8" ID |
Body Material | Glass-Filled Polypropylene |
Max Pressure (Psi) | 15 |
Max Temp (°F) | 120 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | NS1 |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Type | Coupling Insert |
NS1 Series couplings are the smallest plastic non-spill couplings on the market. This compact, closed-system design is packed full of features which includes non-spill shutoff valves that ensure drip-free disconnects, and eliminate the need to purge air from the system. NS1 is perfect for applications using tubing from microbore up to 1/8-inch. Its rotating design allows tubing to move freely without kinks making it ideal for applications that need to be connected and disconnected often.
Specifications:
- Main Components and valves: Glass-Filled Polypropylene, PEEK®, Polypropylene
- Color: Gray
- Pressure Range: Vacuum to 15 psi, 1.0 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32ºF to 120ºF
- Valve Spring: 316 Stainless Steel
- Seal Option: EPDM
- Spillage: <0.02 cc per disconnect, 0.01cc per connect
- Available in Bags of 25 units
Weight & Dimensions
Height (inches) | 0.5 |
Length (inches) | 6.13 |
Weight (lbs) | 0.003125 |
Width (inches) | 1.5 |
Details
Application | Glass-Filled Polypropylene |
Barb Size | 1/8" ID |
Body Material | Glass-Filled Polypropylene |
Max Pressure (Psi) | 15 |
Max Temp (°F) | 120 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | NS1 |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Gray |
Type | Coupling Insert |
