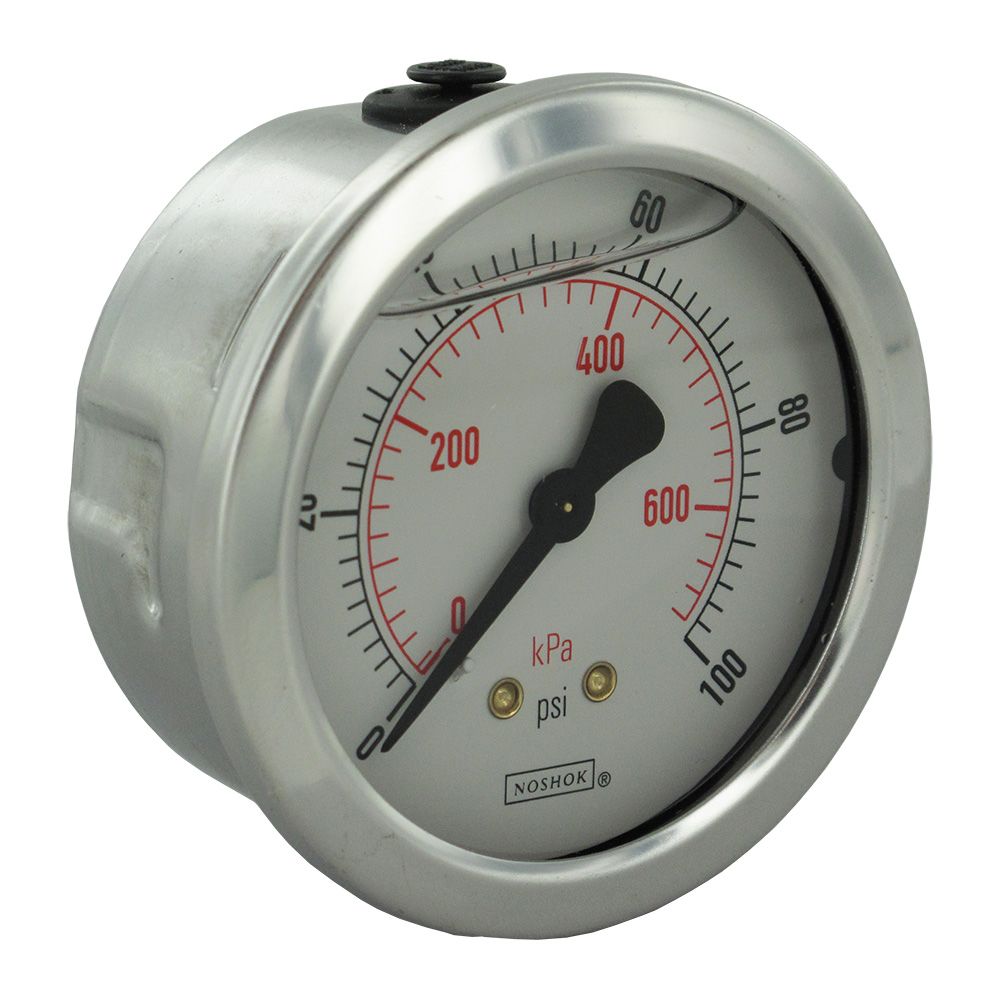

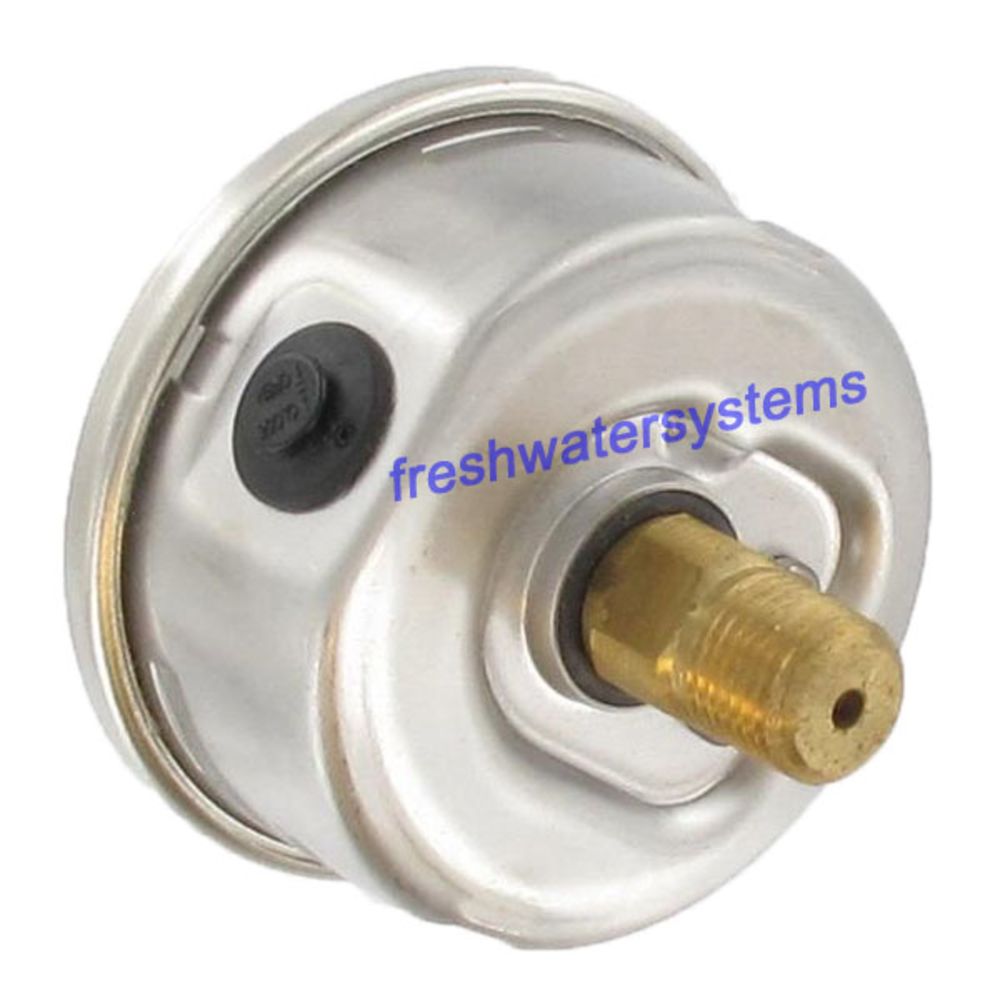

NOSHOK Center Mount 2.5" Water Pressure Gauge 0-100 PSI, SS, 1/4" NPT

Part Number: 25-911-100

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.


The NOSHOK 25-911-100 gauges are a high quality gauge that incorporates unique design features aimed at extended service life and reliability. The are used world wide where pulsation, vibration, and shock are present and the media is not corrosive to brass.

Features:
  • Three Year Warranty
  • Extremely high quality pressure gauges
  • Stainless Steel case with polycarbonate lens
  • Relief disc on top and back provides positive case relief
  • Liquid filled for extended service life and shock resistance
  • Glycerine fill dampens the effects of pulsation, vibration and shock loads
  • Unique o-ring case & connection seals for leak protection against shock & vibration
  • Applications:Chemical Plants, Petro Chemical Refineries, Pharmaceutical, Food & Beverage Processing, Fertilizer Plants, Off-Shore Oil Platforms, Paper Mills, Salt Mines, On Shipboard



Compatible with:
AXEON/RO Ultratec205099

Weight & Dimensions

Weight (lbs)

0.85

Details

Accuracy

A (2-1-2%)

Bezel

Stainless Steel

Dial Size

2-1/2" (63 mm)

Face

Molded Plastic with Black/Red Print

Fluid

Glycerine and water

Housing Material

304 Stainless Steel

Internal Component Material

Brass

Lens

Polycarbonate

Material Of Construction

Brass

Max Pressure (Psi)

100

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

0

Mounting Options

Center Mount

Pointer

Molded Plastic

Units Of Measure (Psi, Bars, Hgvac)

PSI/kPa

Wetted Materials

Brass, Copper Alloy


NOSHOK





The NOSHOK 25-911-100 gauges are a high quality gauge that incorporates unique design features aimed at extended service life and reliability. The are used world wide where pulsation, vibration, and shock are present and the media is not corrosive to brass.

Features:
  • Three Year Warranty
  • Extremely high quality pressure gauges
  • Stainless Steel case with polycarbonate lens
  • Relief disc on top and back provides positive case relief
  • Liquid filled for extended service life and shock resistance
  • Glycerine fill dampens the effects of pulsation, vibration and shock loads
  • Unique o-ring case & connection seals for leak protection against shock & vibration
  • Applications:Chemical Plants, Petro Chemical Refineries, Pharmaceutical, Food & Beverage Processing, Fertilizer Plants, Off-Shore Oil Platforms, Paper Mills, Salt Mines, On Shipboard



Compatible with:
AXEON/RO Ultratec205099

NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Weight (lbs)

0.85

Details

Accuracy

A (2-1-2%)

Bezel

Stainless Steel

Dial Size

2-1/2" (63 mm)

Face

Molded Plastic with Black/Red Print

Fluid

Glycerine and water

Housing Material

304 Stainless Steel

Internal Component Material

Brass

Lens

Polycarbonate

Material Of Construction

Brass

Max Pressure (Psi)

100

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

0

Mounting Options

Center Mount

Pointer

Molded Plastic

Units Of Measure (Psi, Bars, Hgvac)

PSI/kPa

Wetted Materials

Brass, Copper Alloy
