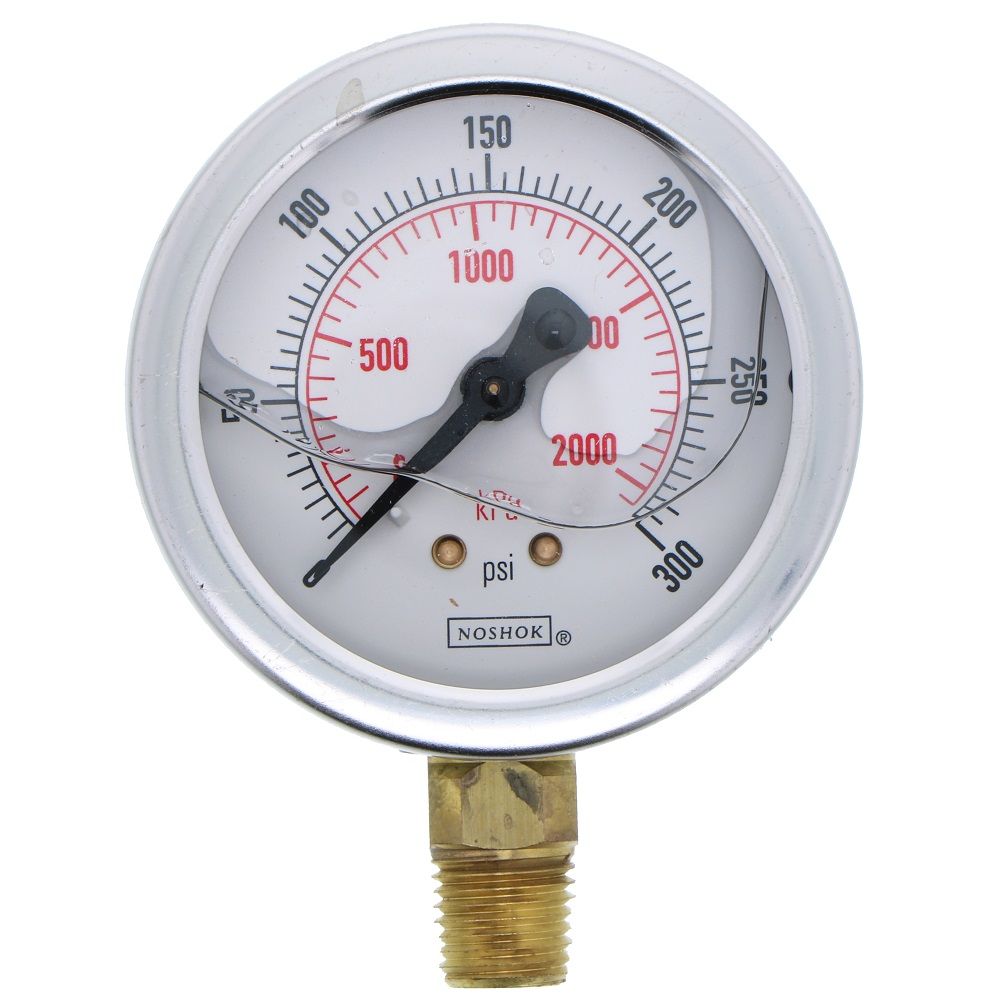

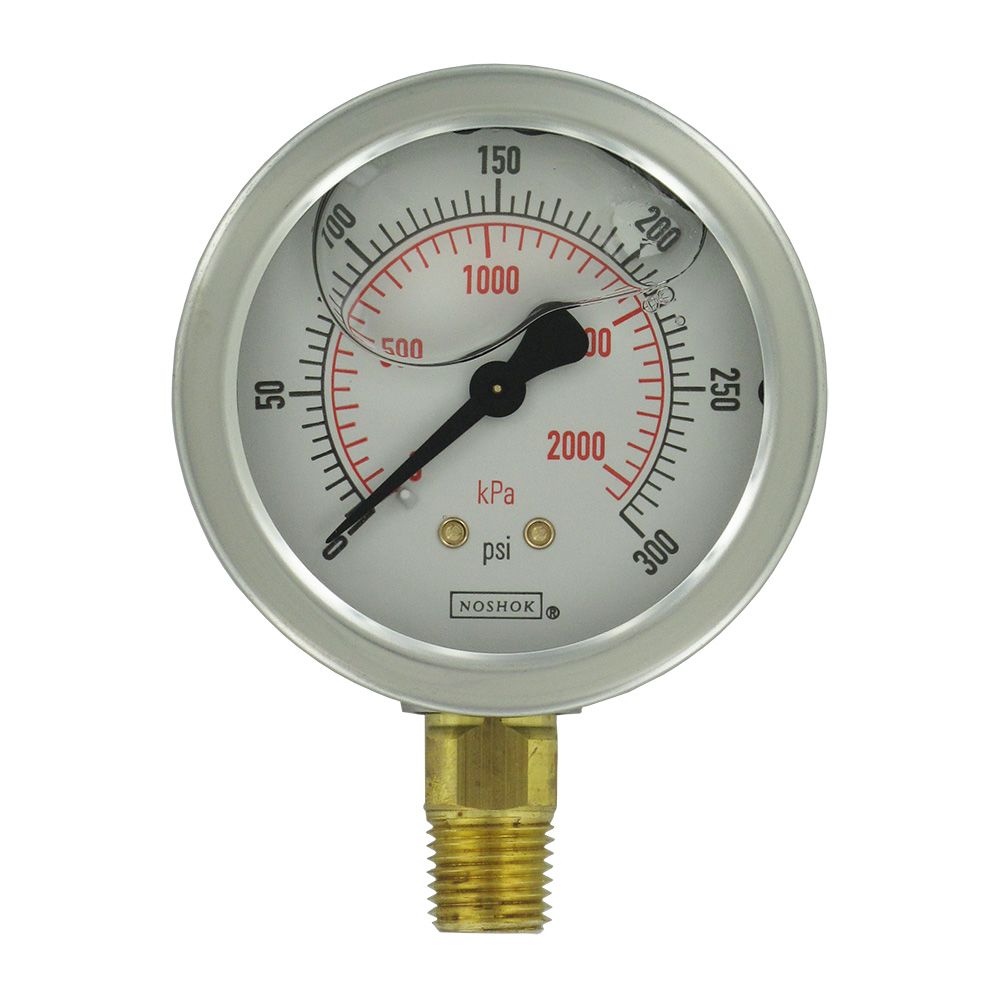

NOSHOK Bottom Mount 2.5" Water Pressure Gauge 0-300 PSI, SS, 1/4" NPT
Part Number: 25-901-300
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Extremely high quality pressure gauges
- Liquid filled for extended service life and shock resistance
- Stainless Steel case with polycarbonate lens
- Unique o-ring case and connection seals guard against leakage and protect against shock and vibration
- Relief disc on top and back provides positive case relief
- High grade glycerine fill dampens the effects of pulsation, vibration and shock loads, and provides lubrication of the movement
- Three Year Warranty
- Applications:Chemical Plants, Petro Chemical Refineries, Pharmaceutical, Food & Beverage Processing, Fertilizer Plants, Off-Shore Oil Platforms, Paper Mills, Salt Mines, On Shipboard
Product Details | |
---|---|
Accuracy | A (2-1-2%) |
Bezel | Stainless Steel |
Dial Size | 2-1/2" (63 mm) |
Face | Molded Plastic with Black/Red Print |
Fluid | Glycerine and water |
Housing Material | 304 Stainless Steel |
Internal Component Material | Brass |
Lens | Polycarbonate |
Material Of Construction | Brass |
Max Pressure (Psi) | 300 |
Min Pressure (Psi) | 0 |
Mounting Options | Lower Bottom |
Pointer | Molded Plastic |
Units Of Measure (Psi, Bars, Hgvac) | PSI/kPa |
Wetted Materials | Brass Copper Alloy |
Type | Bottom Mount |
Shipping Dimensions | |
Shipping Length | 6 in. |
Shipping Width | 6 in. |
Shipping Height | 4 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 0.75 |
Features:
- Extremely high quality pressure gauges
- Liquid filled for extended service life and shock resistance
- Stainless Steel case with polycarbonate lens
- Unique o-ring case and connection seals guard against leakage and protect against shock and vibration
- Relief disc on top and back provides positive case relief
- High grade glycerine fill dampens the effects of pulsation, vibration and shock loads, and provides lubrication of the movement
- Three Year Warranty
- Applications:Chemical Plants, Petro Chemical Refineries, Pharmaceutical, Food & Beverage Processing, Fertilizer Plants, Off-Shore Oil Platforms, Paper Mills, Salt Mines, On Shipboard
Product Details | |
---|---|
Accuracy | A (2-1-2%) |
Bezel | Stainless Steel |
Dial Size | 2-1/2" (63 mm) |
Face | Molded Plastic with Black/Red Print |
Fluid | Glycerine and water |
Housing Material | 304 Stainless Steel |
Internal Component Material | Brass |
Lens | Polycarbonate |
Material Of Construction | Brass |
Max Pressure (Psi) | 300 |
Min Pressure (Psi) | 0 |
Mounting Options | Lower Bottom |
Pointer | Molded Plastic |
Units Of Measure (Psi, Bars, Hgvac) | PSI/kPa |
Wetted Materials | Brass Copper Alloy |
Type | Bottom Mount |
Shipping Dimensions | |
Shipping Length | 6 in. |
Shipping Width | 6 in. |
Shipping Height | 4 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 0.75 |
