Norgren

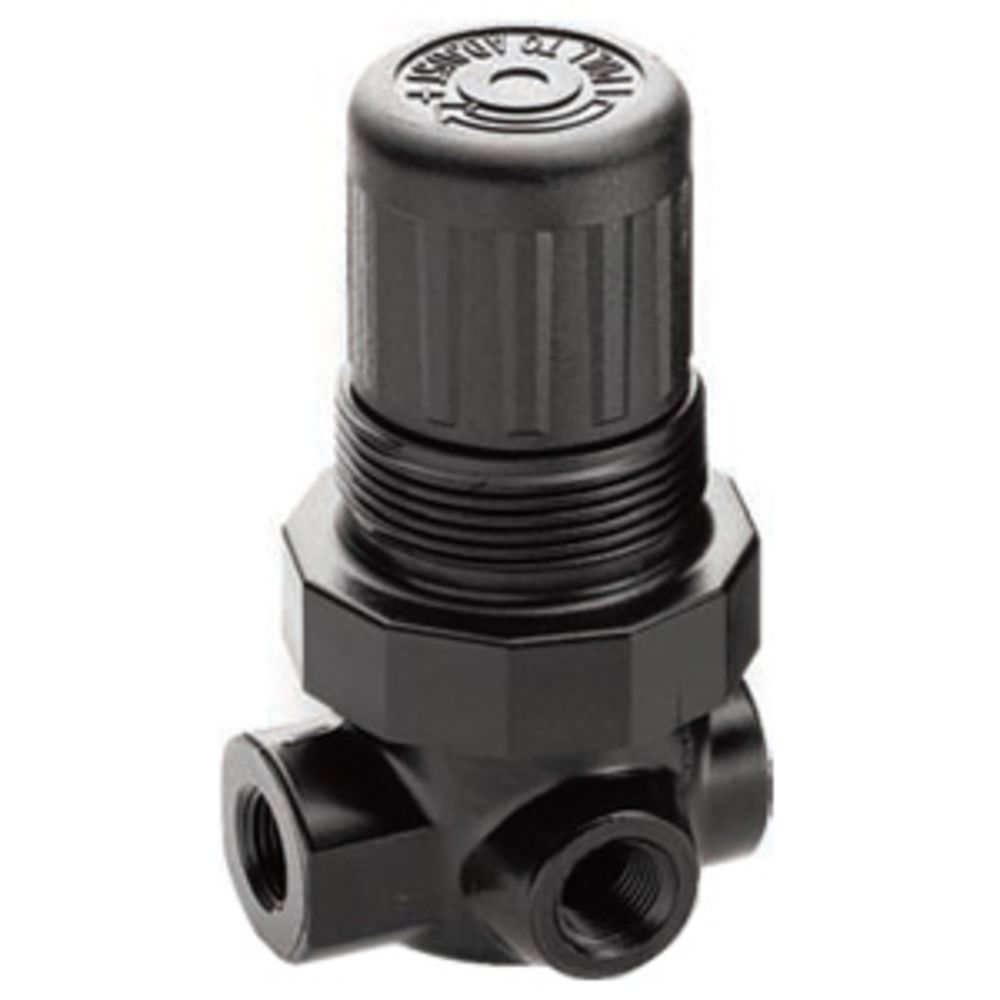

Norgren R91W-2AS-004 Water/Air Pressure Regulator 1/4 FPT

Part Number: R91W2AS004

Alt. Part Number: R07

In Stock

out of stock

In Stock

$36.99


The Norgren R91W-2AS-004 water/air pressure regulator features a compact corrosion resistant design.  The R91W-2AS-004  has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in.  This regulator is suitable for use on compressed air and water.

Features:
  • Compact design
  • Corrosion resistant construction
  • For industrial applications
  • Port size: 1/4" FPT
  • Max inlet pressure: 150 psig (10.3 Bar)
  • Max outlet pressure: 10 psig (.7 Bar)
  • Outlet pressure adjustable from 1-10 psig (0.07-.7 Bar)
  • Max flow rate (air): 24.0 scfm
  • Max flow rate (water): 1.75 gpm

Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)


Weight & Dimensions

Approx Height (Inches)

3.01 Inches

Approx Length (Inches)

1.5 Inches

Details

Flow Rate

Water: 1.75 gpm Air:24 scfm

Operating Temperature Range

Max 150 Degrees Fahrenheit

Port Size

1/8" FPT Inches; 1/4" FNPT

Max Inlet Pressure

150 psig (10.3 Bar) PSI

Max Outlet Pressure

10 psig (.7 Bar)

Outlet Pressure

1-10 psig (.07 - .7 Bar) PSI


Norgren

Norgren





The Norgren R91W-2AS-004 water/air pressure regulator features a compact corrosion resistant design.  The R91W-2AS-004  has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in.  This regulator is suitable for use on compressed air and water.

Features:
  • Compact design
  • Corrosion resistant construction
  • For industrial applications
  • Port size: 1/4" FPT
  • Max inlet pressure: 150 psig (10.3 Bar)
  • Max outlet pressure: 10 psig (.7 Bar)
  • Outlet pressure adjustable from 1-10 psig (0.07-.7 Bar)
  • Max flow rate (air): 24.0 scfm
  • Max flow rate (water): 1.75 gpm

Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)

Weight & Dimensions

Approx Height (Inches)

3.01 Inches

Approx Length (Inches)

1.5 Inches

Details

Flow Rate

Water: 1.75 gpm Air:24 scfm

Operating Temperature Range

Max 150 Degrees Fahrenheit

Port Size

1/8" FPT Inches; 1/4" FNPT

Max Inlet Pressure

150 psig (10.3 Bar) PSI

Max Outlet Pressure

10 psig (.7 Bar)

Outlet Pressure

1-10 psig (.07 - .7 Bar) PSI
