Norgren

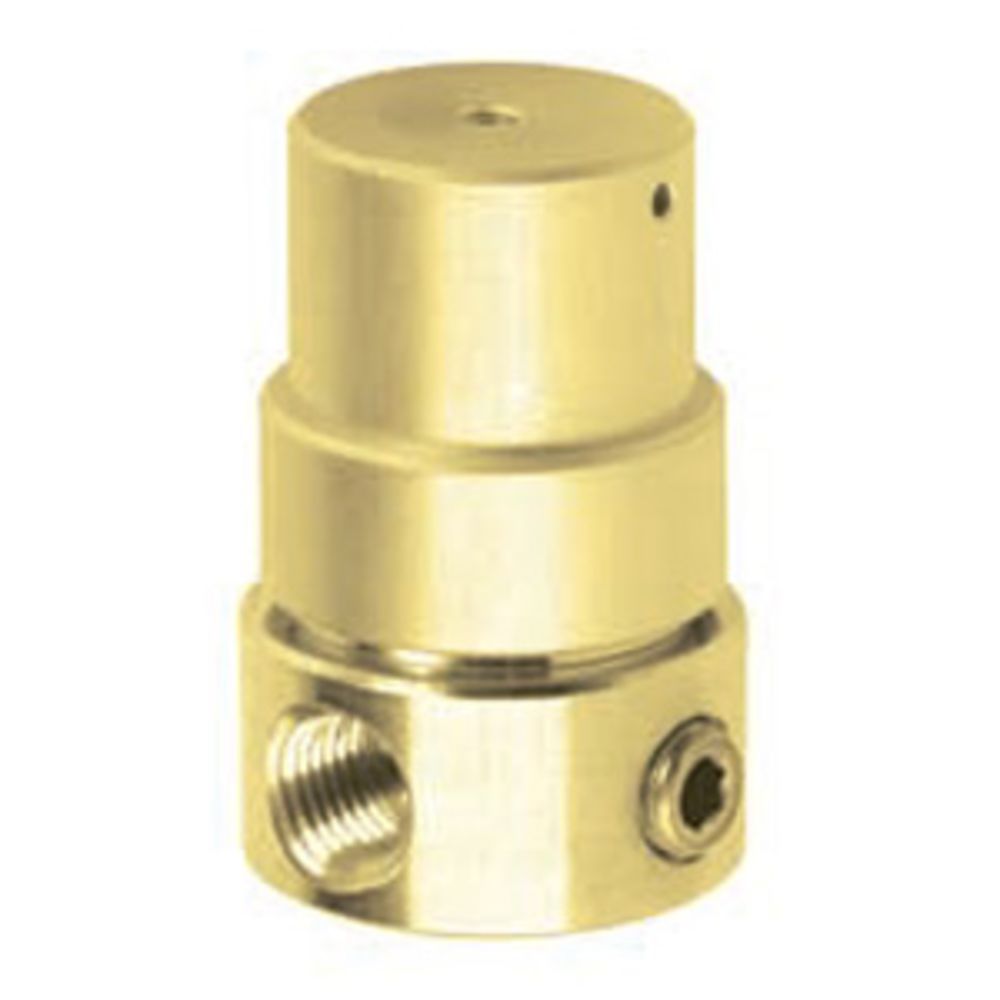

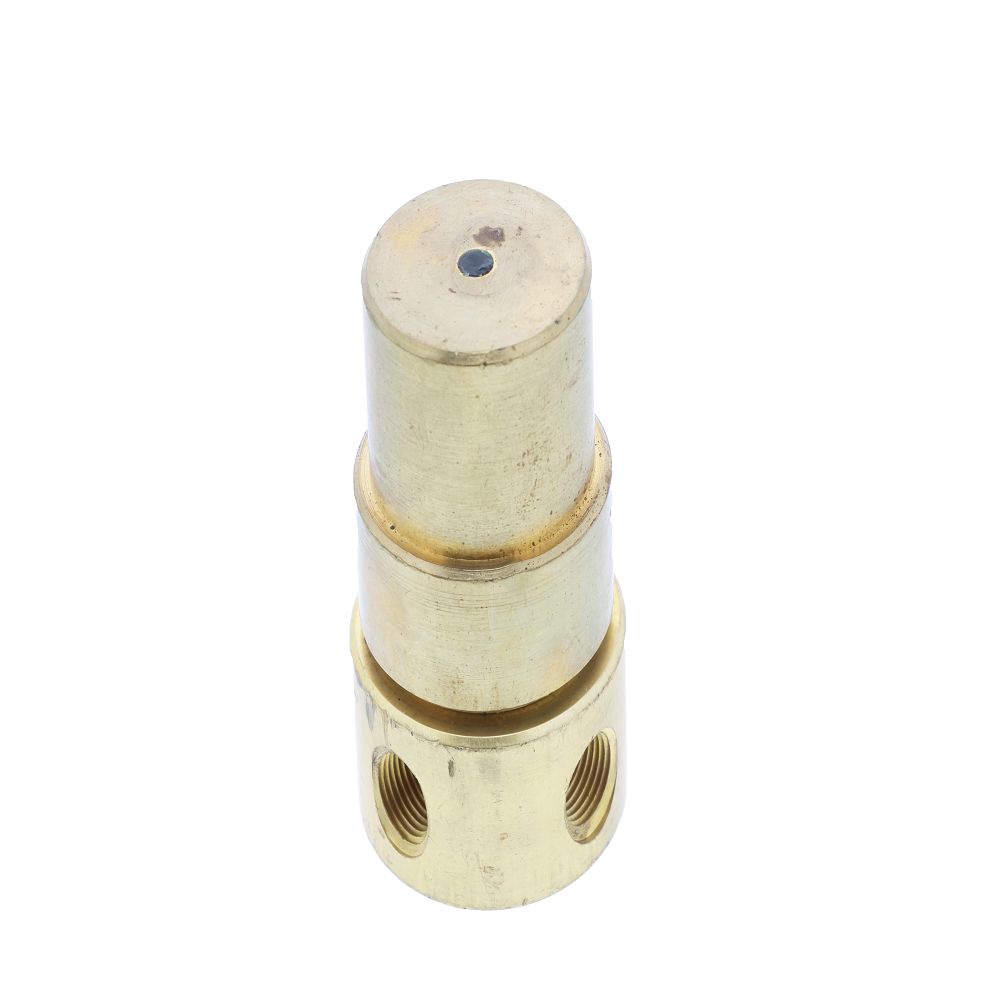

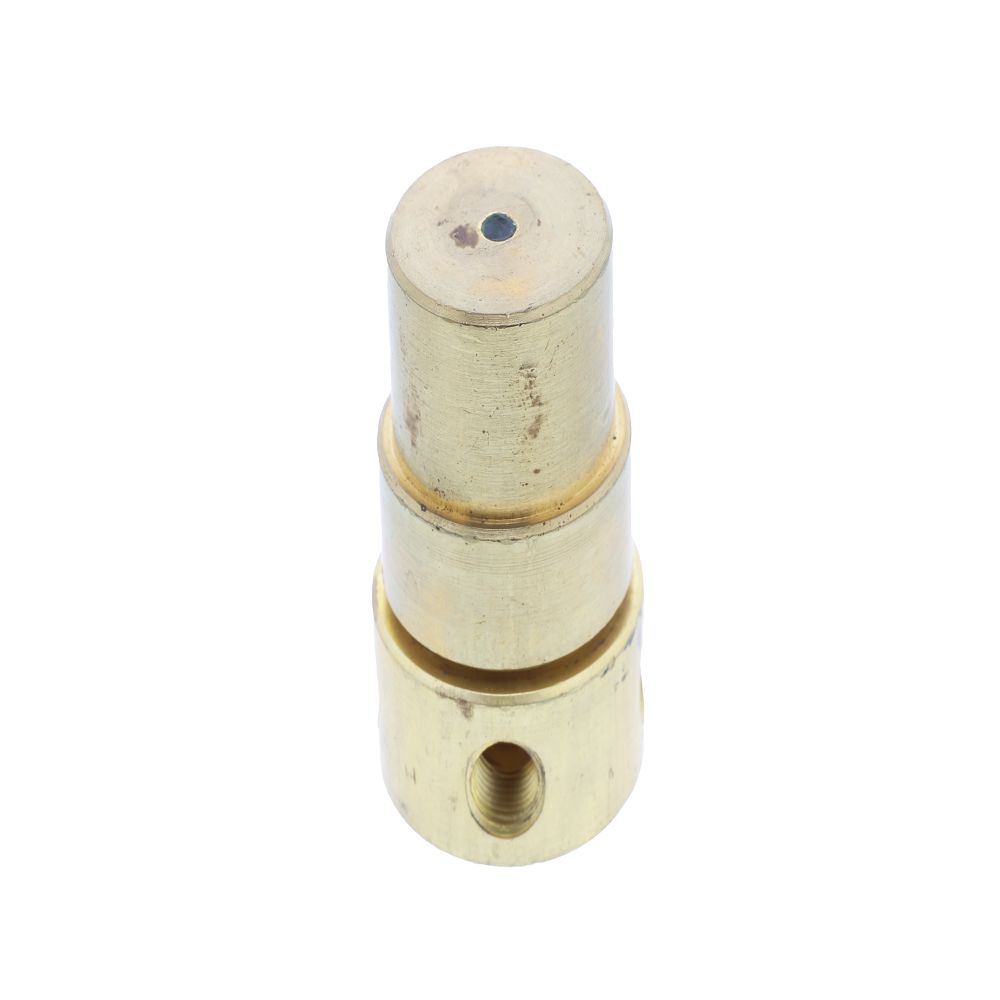

Norgren R16-151-RNKA Nonadjustable Relieving Water/Air Regulator 1/4 FPT

Part Number: R16151RNKA

Alt. Part Number: R16

In Stock

out of stock

In Stock

$66.29

The Norgren R16-151-RNKA water/air pressure regulator features a compact corrosion resistant design.  The R16-151-RNKA has a factory preset, tamper resistant pressure setting.  This regulator is suitable for use on compressed air and water service.

Specifications:
  • Compact design
  • Corrosion resistant construction
  • Brass body and bonnet
  • Relieving model; allows reduction of outlet pressure even when system is dead-ended
  • For industrial applications
  • Port size: 1/4" FPT
  • Max inlet pressure: 400 psig (28 Bar)
  • Outlet pressure (not adjustable): 110 psig (7.6 Bar)
  • Max flow rate (water): 1.3 gpm
  • Max flow rate (air): 12.0 scfm
Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)


Weight & Dimensions

Approx Height (Inches)

2.28 Inches

Approx Length (Inches)

1.48 Inches

Details

Bonnet

Brass

Body Material

Brass

Flow Rate

Water: 1.3 gpm Air:12 scfm

Operating Temperature Range

Water: 35-175 Air: -30-175 Degrees Fahrenheit

Port Size

1/8" FPT Inches, 1/4" FNPT

Max Inlet Pressure

400 psig (28 Bar) PSI

Max Outlet Pressure

110 psig (7.6 Bar)

Outlet Pressure

Not Adjustable PSI


Norgren




The Norgren R16-151-RNKA water/air pressure regulator features a compact corrosion resistant design.  The R16-151-RNKA has a factory preset, tamper resistant pressure setting.  This regulator is suitable for use on compressed air and water service.

Specifications:
  • Compact design
  • Corrosion resistant construction
  • Brass body and bonnet
  • Relieving model; allows reduction of outlet pressure even when system is dead-ended
  • For industrial applications
  • Port size: 1/4" FPT
  • Max inlet pressure: 400 psig (28 Bar)
  • Outlet pressure (not adjustable): 110 psig (7.6 Bar)
  • Max flow rate (water): 1.3 gpm
  • Max flow rate (air): 12.0 scfm
Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)

Weight & Dimensions

Approx Height (Inches)

2.28 Inches

Approx Length (Inches)

1.48 Inches

Details

Bonnet

Brass

Body Material

Brass

Flow Rate

Water: 1.3 gpm Air:12 scfm

Operating Temperature Range

Water: 35-175 Air: -30-175 Degrees Fahrenheit

Port Size

1/8" FPT Inches, 1/4" FNPT

Max Inlet Pressure

400 psig (28 Bar) PSI

Max Outlet Pressure

110 psig (7.6 Bar)

Outlet Pressure

Not Adjustable PSI
