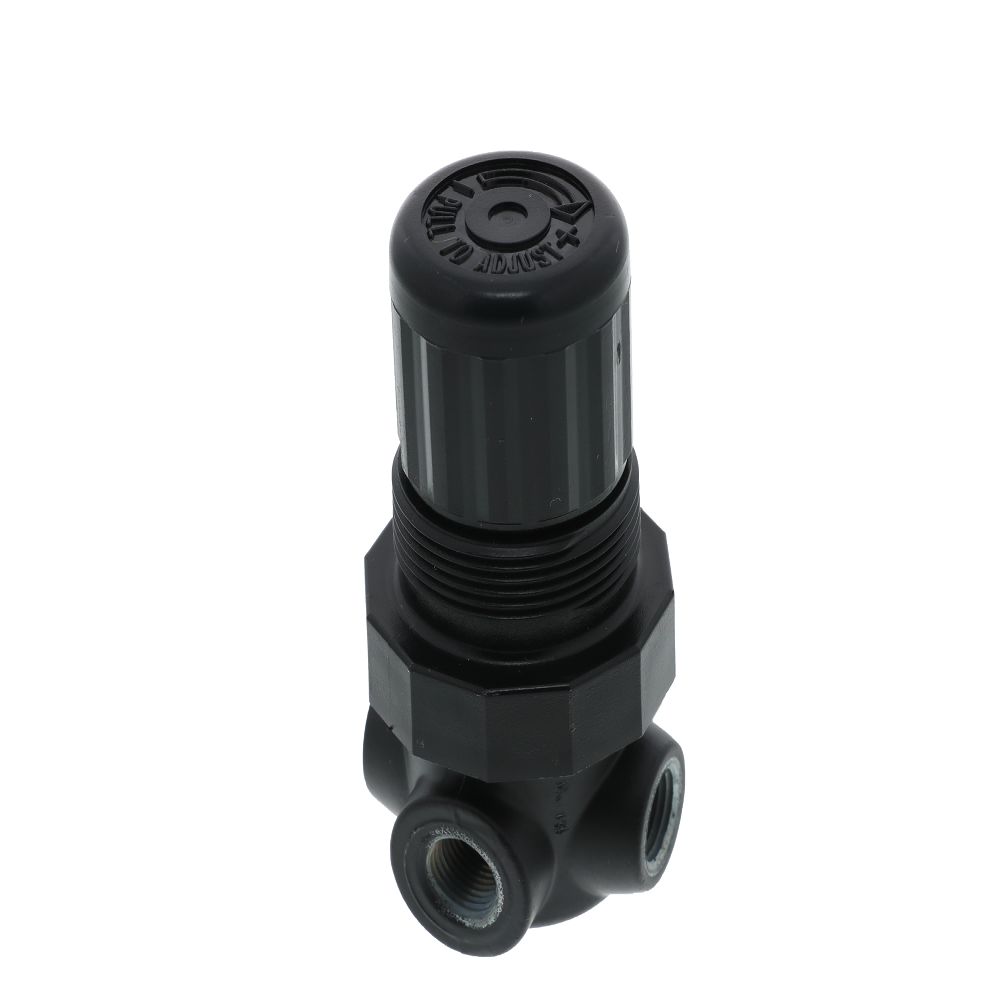

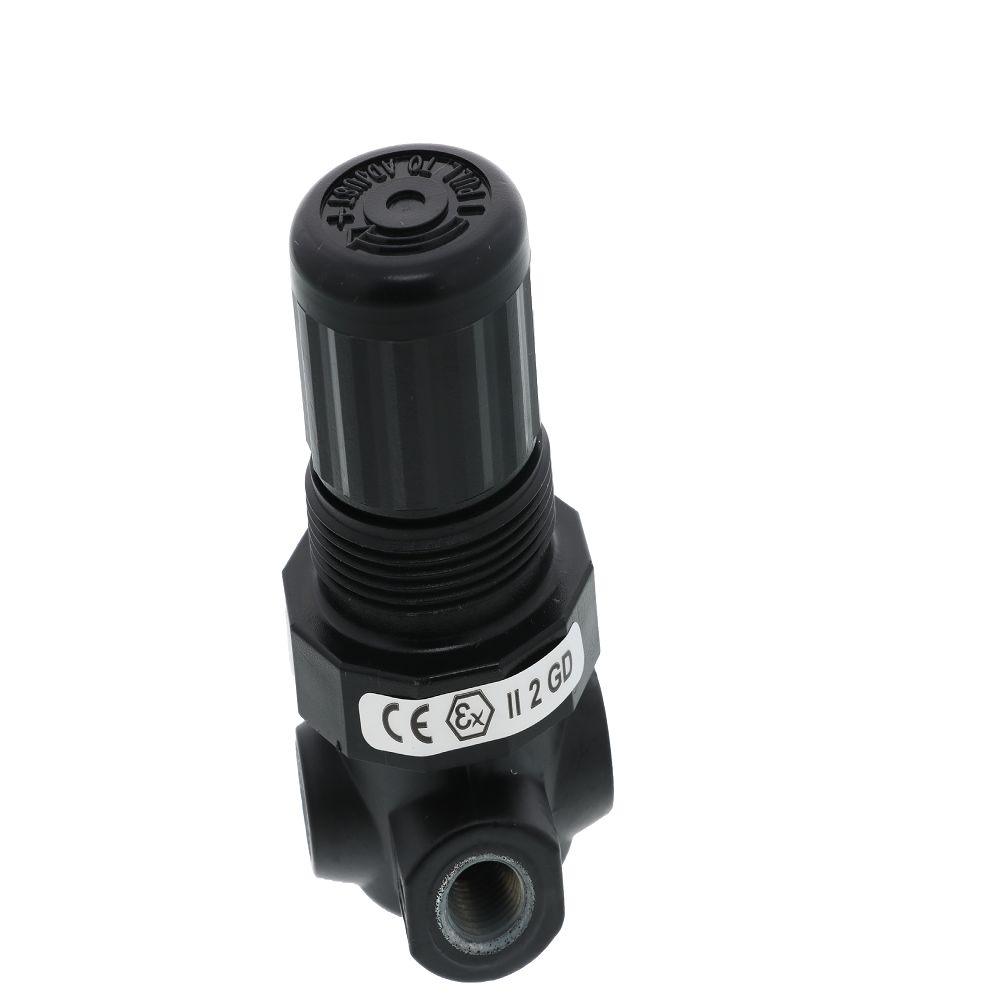

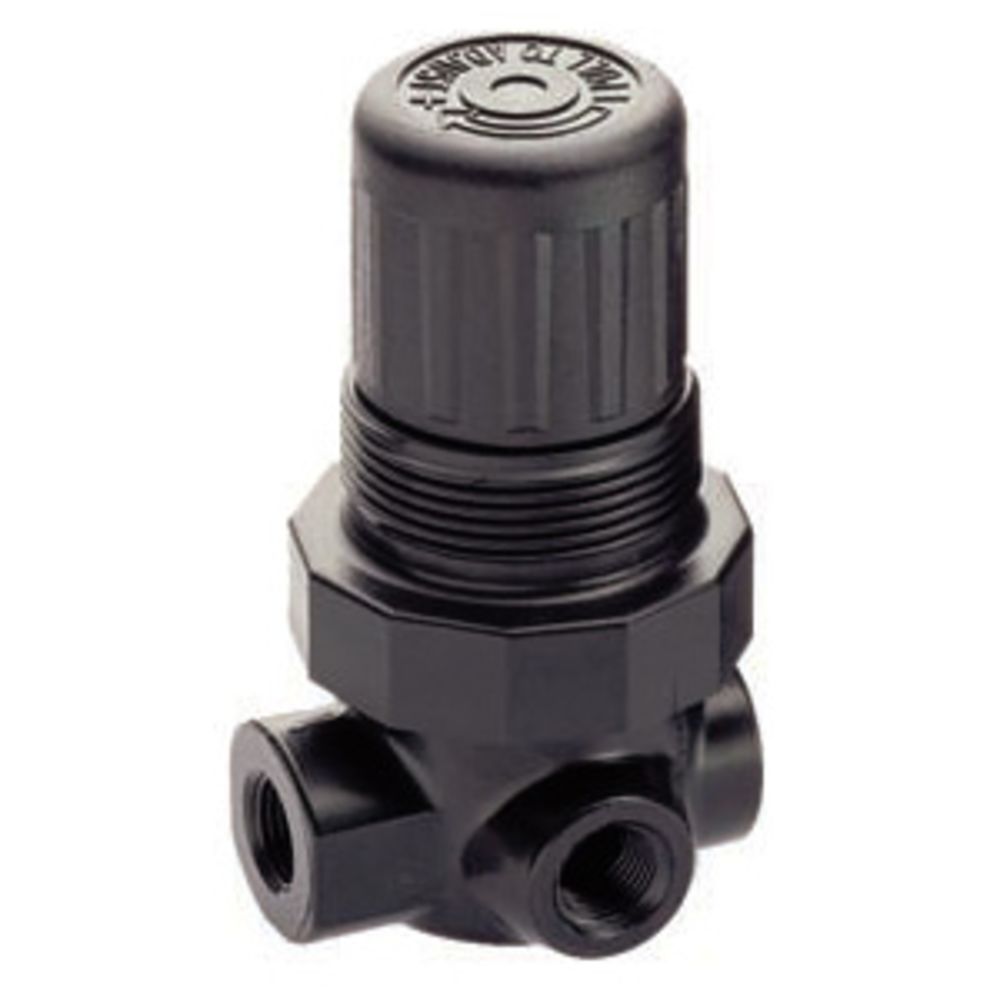

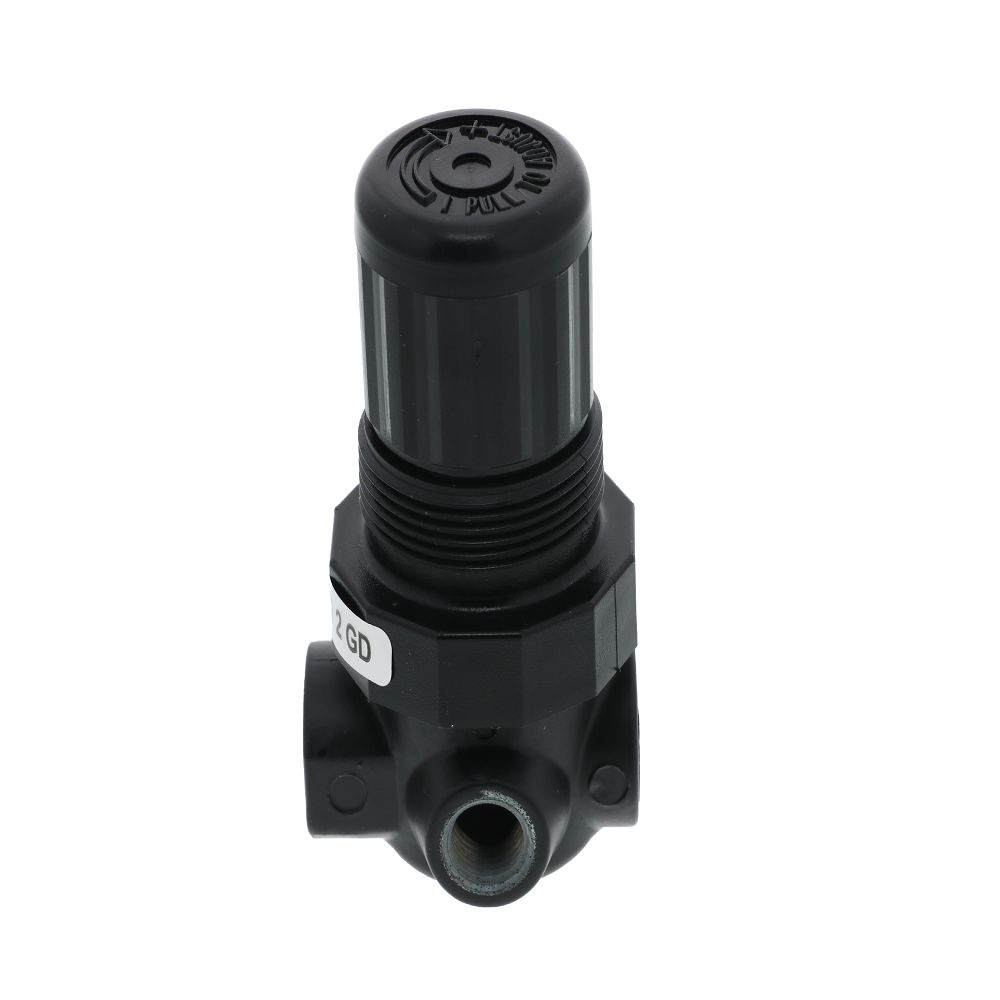

Norgren R07-100-RNKA Relieving Air Pressure Regulator 1/8 FPT

Part Number: R07100RNKA

Alt. Part Number: R07

In Stock

out of stock

In Stock

$32.76


The Norgren R07-100-RNKA air pressure regulator features a compact corrosion resistant design.  The R07-100-RNKA has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in.  This regulator is suitable for use on compressed air and neutral gases.

Features:
  • Compact design
  • Corrosion resistant construction
  • Zinc body with plastic bonnet
  • Relieving model; allows reduction of outlet pressure even when system is dead-ended
  • For industrial applications
  • Port size: 1/8" FPT
  • Max inlet pressure: 300 psig (28 Bar)
  • Max outlet pressure: 100 psig (7 Bar)
  • Outlet pressure adjustable from 5-100 psig (0.3-7 Bar)
  • Max flow rate (air): 14.0 scfm
Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)


Weight & Dimensions

Approx Height (Inches)

2.91 Inches

Approx Length (Inches)

1.57 Inches

Details

Bonnet

Acetal

Body Material

Zinc

Flow Rate

14 scfm

Operating Temperature Range

-34 - 150 Degrees Fahrenheit

Valve Type

Brass/Nitrile

Elastomer Type

Nitrile

Port Size

1/8" FPT Inches; 1/8" FNPT

Seat

Acetal

Max Inlet Pressure

300 psig (20 Bar) PSI

Max Outlet Pressure

100 psig (7 bar)

Outlet Pressure

5-100 psi (0.3-7 bar) PSI
