Norgren

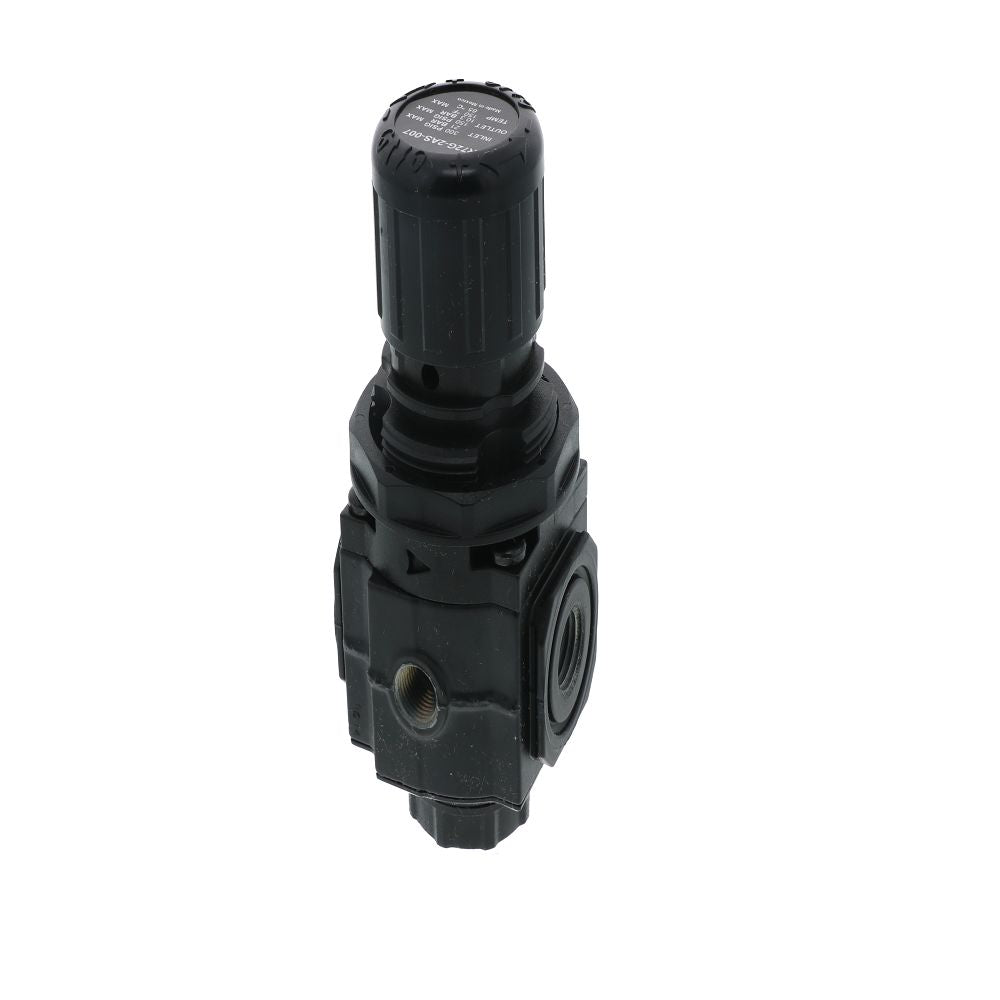

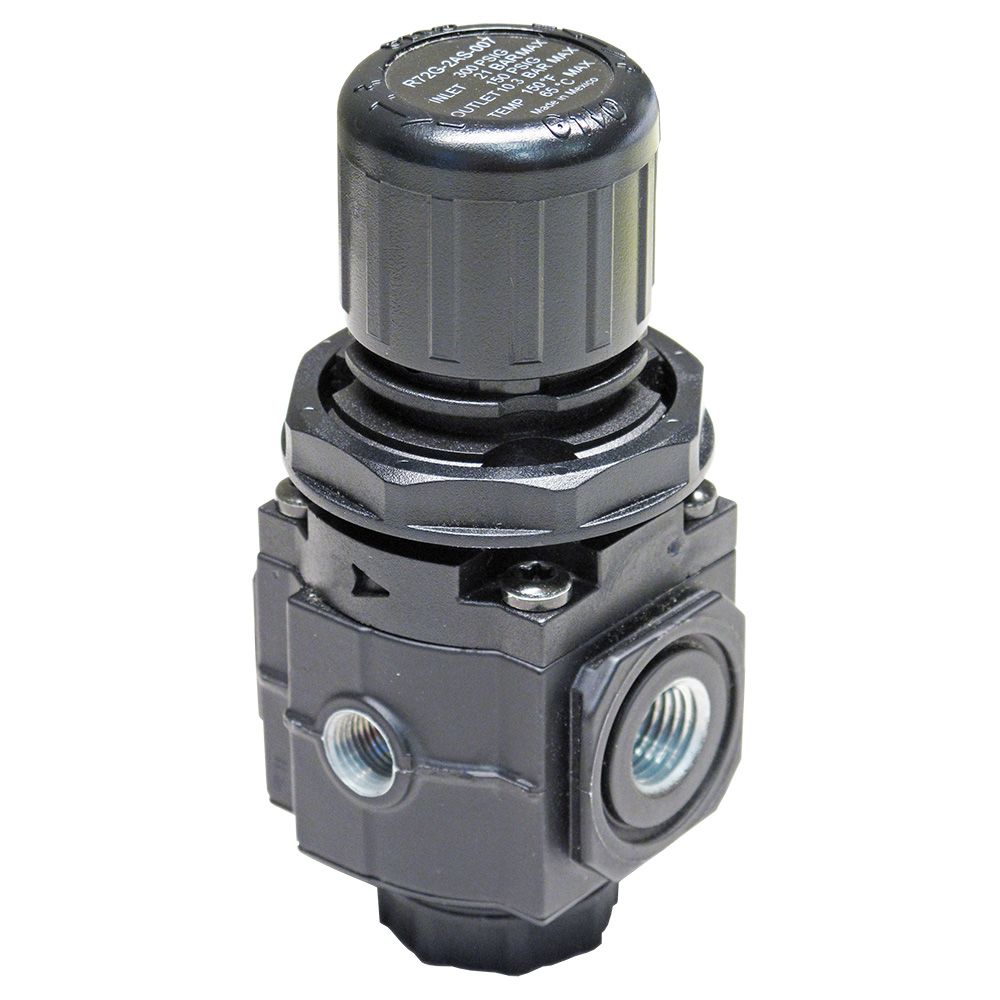

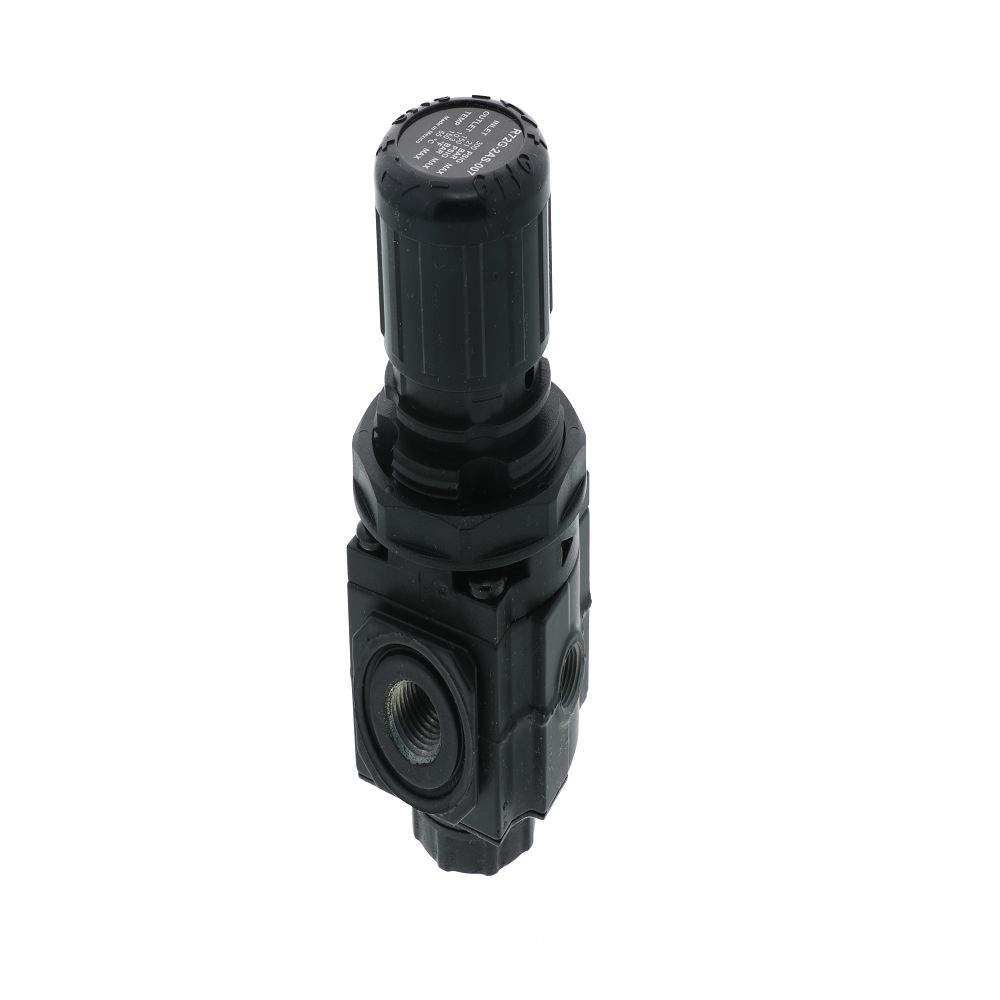

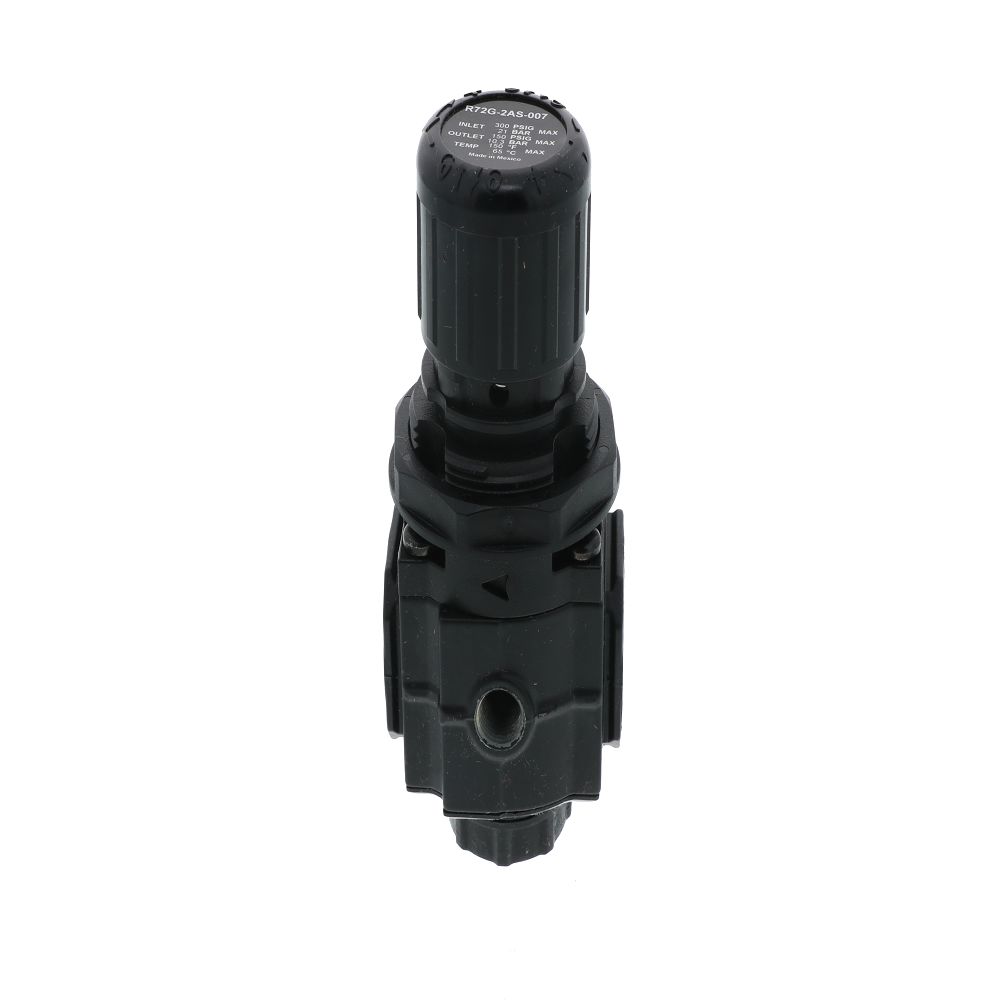

Norgren Excelon R72G-2AS-007 Relieving Air Pressure Regulator 1/4 FPT

Part Number: R72G-2AS-007

Alt. Part Number: R72G

In Stock

out of stock

In Stock

$62.99

The Norgren Excelon R72-2AS-007 air pressure regulator's design allows for in-line or modular installation. The R72-2AS-007 has a push to lock adjusting knob with tamper proof accessory and includes the panel mount nut (part number 4248-89). This regulator is suitable for use on compressed air.

Specification:
  • Compact design
  • Corrosion resistant construction
  • Includes panel mount nut (part # 4248-89)
  • Zinc body with Acetal bonnet
  • Relieving model; allows reduction of outlet pressure even when system is dead-ended
  • For industrial applications
  • Port size: 1/4" FPT
  • Max inlet pressure: 300 psig (21 Bar)
  • Max outlet pressure: 150 psig (10.3 Bar)
  • Outlet pressure adjustable from 5-150 psig (0.3-10.3 Bar)
  • Max flow rate (air): 70 scfm
Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)



Weight & Dimensions

Approx Height (Inches)

4.16"

Approx Length (Inches)

1.97"

Weight (lbs)

0.85

Details

Body Material

Zinc

Elastomer Type

Nitrile

Flow Rate

70 scfm

Max Inlet Pressure

300 psi (20 Bar)

Max Outlet Pressure

150 PSIg (10.3 Bar)

Max Temp (°F)

150

Min Temp (°F)

-30

Outlet Pressure

5-150 psi (0.3-10.3 Bar) PSI

Port Size

1/8" FPT"; 1/4" FNPT


Norgren




The Norgren Excelon R72-2AS-007 air pressure regulator's design allows for in-line or modular installation. The R72-2AS-007 has a push to lock adjusting knob with tamper proof accessory and includes the panel mount nut (part number 4248-89). This regulator is suitable for use on compressed air.

Specification:
  • Compact design
  • Corrosion resistant construction
  • Includes panel mount nut (part # 4248-89)
  • Zinc body with Acetal bonnet
  • Relieving model; allows reduction of outlet pressure even when system is dead-ended
  • For industrial applications
  • Port size: 1/4" FPT
  • Max inlet pressure: 300 psig (21 Bar)
  • Max outlet pressure: 150 psig (10.3 Bar)
  • Outlet pressure adjustable from 5-150 psig (0.3-10.3 Bar)
  • Max flow rate (air): 70 scfm
Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)


Weight & Dimensions

Approx Height (Inches)

4.16"

Approx Length (Inches)

1.97"

Weight (lbs)

0.85

Details

Body Material

Zinc

Elastomer Type

Nitrile

Flow Rate

70 scfm

Max Inlet Pressure

300 psi (20 Bar)

Max Outlet Pressure

150 PSIg (10.3 Bar)

Max Temp (°F)

150

Min Temp (°F)

-30

Outlet Pressure

5-150 psi (0.3-10.3 Bar) PSI

Port Size

1/8" FPT"; 1/4" FNPT
