Fresh Water Systems

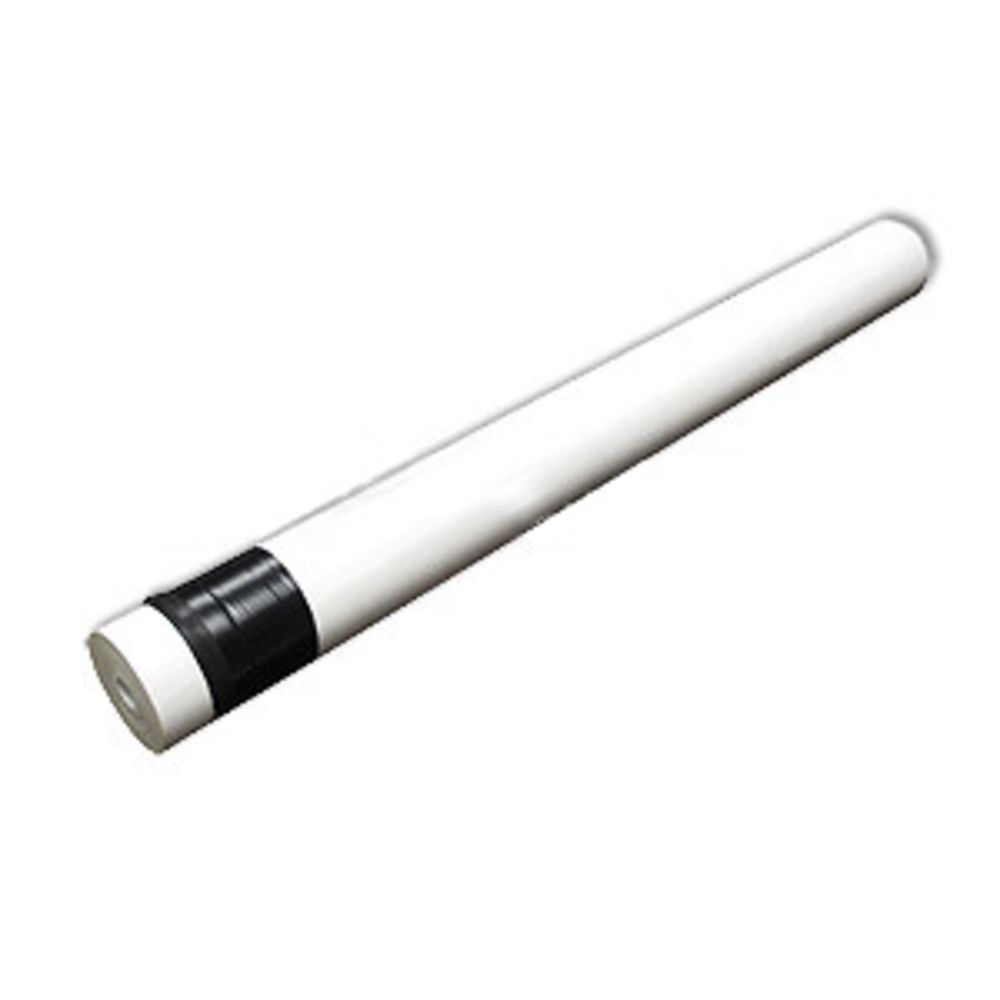

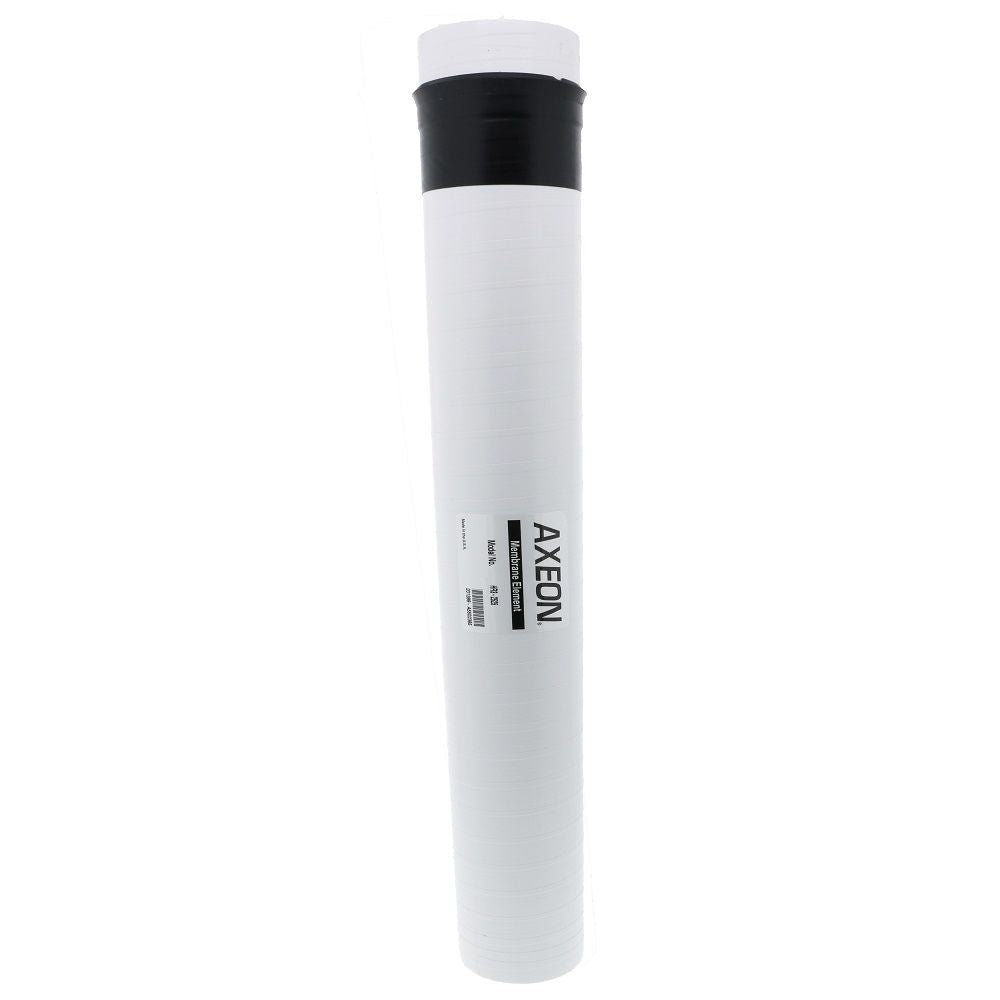

Nimbus Compatible 2.5" x 25" 400 GPD Flush Cut RO Membrane Element

Part Number: TF-2525F-400

Alt. Part Number: 100721, 100723, 100716

In Stock

out of stock

In Stock

$199.99

Nimbus Compatible 2.5" x 25" Flush Cut Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements.  The TF-2525F-400 RO membrane feature a protective ABS shell, and are 100% vacuum integrity tested.  The polyamide thin-film used in the TF-2525F-400 membrane is manufactured by a major US membrane film manufacturer.

Features:
  • Permeate Flow Rate: 400 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 225 psi
  • Dimensions: 2.5" x 25"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water

Compatible with: AXEON Membranes | HR3-2525, 201399, Nimbus | 100721, 100723, SG2525TH, 100716


Weight & Dimensions

Approx Length (Inches)

25 Inches

Details

Cartridge Style

Drop-in Element

Diameter

2.5 Inches

Flow Rate

400 Gallons per day

Inner/Outer Wraps

Tape

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Origin

USA

Average Nacl Rejection

99 Percent

Chlorine Tolerance

0 Parts per Million

Cleaning Ph Range

1 - 13

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Ph Range

2 - 11

Max Feed Water Turbidity

1 Nephelometric Turbidity Units



Nimbus Compatible 2.5" x 25" Flush Cut Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements.  The TF-2525F-400 RO membrane feature a protective ABS shell, and are 100% vacuum integrity tested.  The polyamide thin-film used in the TF-2525F-400 membrane is manufactured by a major US membrane film manufacturer.

Features:
  • Permeate Flow Rate: 400 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 225 psi
  • Dimensions: 2.5" x 25"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water

Compatible with: AXEON Membranes | HR3-2525, 201399, Nimbus | 100721, 100723, SG2525TH, 100716

Weight & Dimensions

Approx Length (Inches)

25 Inches

Details

Cartridge Style

Drop-in Element

Diameter

2.5 Inches

Flow Rate

400 Gallons per day

Inner/Outer Wraps

Tape

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Origin

USA

Average Nacl Rejection

99 Percent

Chlorine Tolerance

0 Parts per Million

Cleaning Ph Range

1 - 13

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Ph Range

2 - 11

Max Feed Water Turbidity

1 Nephelometric Turbidity Units
