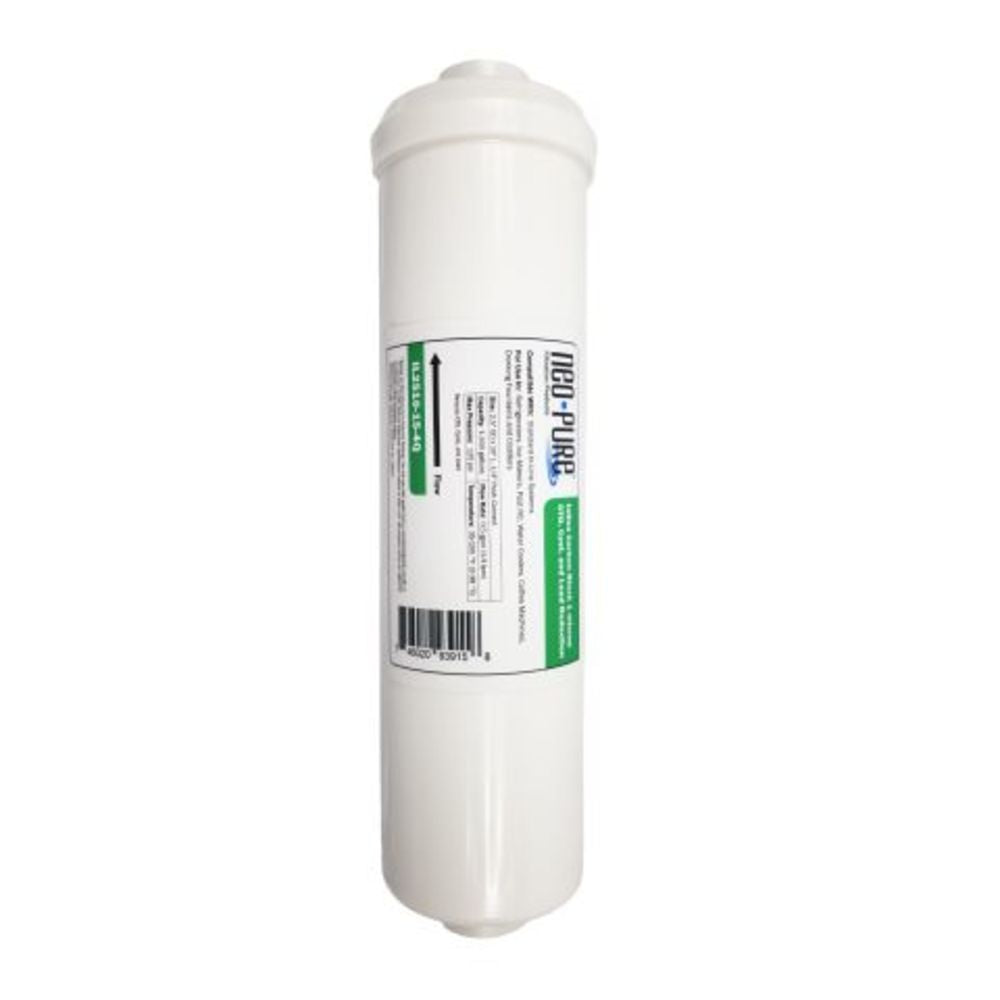

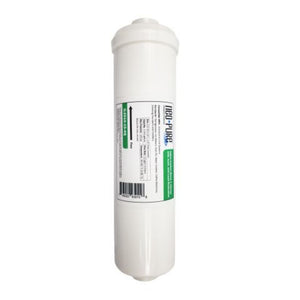

NeoPure Inline Carbon Block 1m CTO/Lead/Cysts - 10" x 2.5", 1/4 Push Connect
Part Number: IL2510-CTOCL-4Q
Alt. Part Number: K5515-JJ
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Quality Assurance The Neo-Pure IL2510-CTOCL-4Q is warranted to be free from defects in material and workmanship for a period of one year from date of installation. Warranty is limited to repair or replacement of defective component.
Installation Instructions:
- Install in cold water applications only
- Shut off water supply
- Note the flow direction on the filter

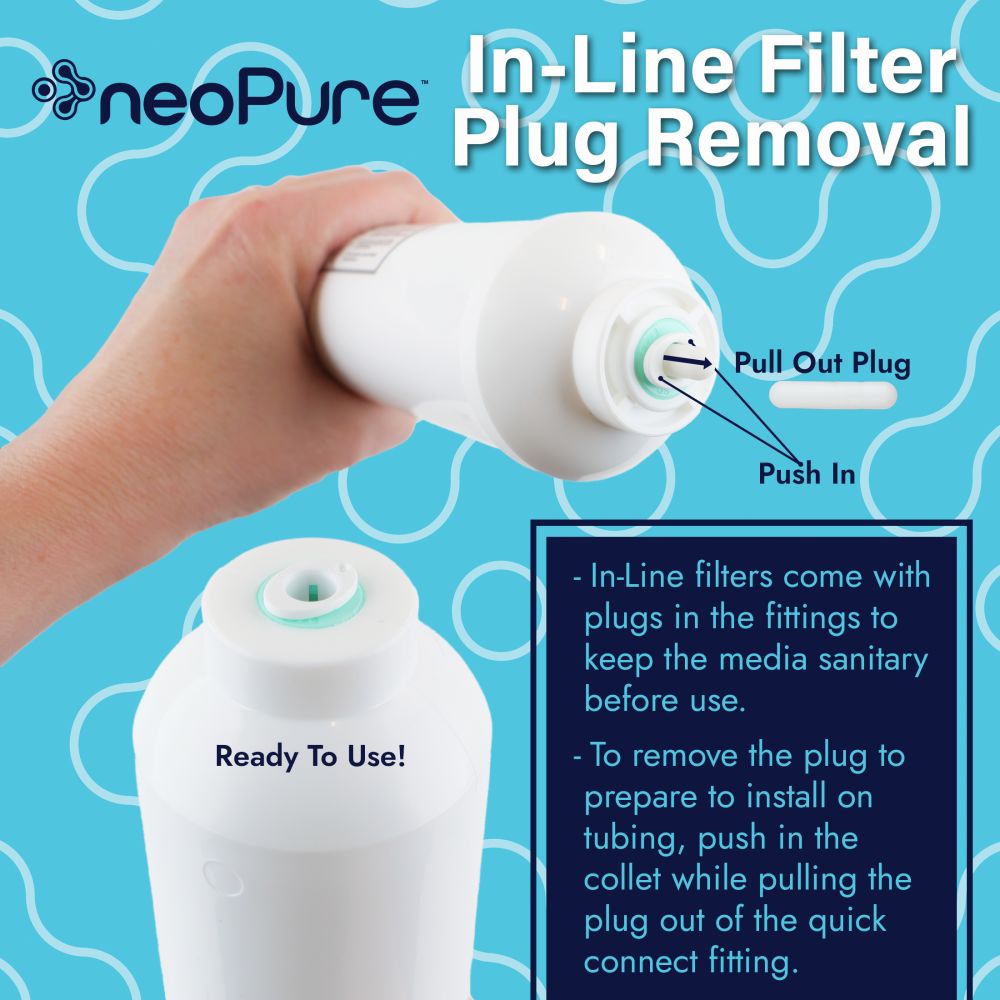

- For Quick Connect® fittings push scratch free tube end into the fitting until it feels tight. Pull back on the tubing to confirm that is it tight.bottom.
- After installing new filter, open water supply valve and check for leaks.
- Reconnect electrical power supply.
- Flush system sufficiently (approximately 3 minutes) to effectively remove small residue of carbon fines
- Size: 2-1/2" OD x 10" L
- Water Inlet Connection: 1/4" QC OD tube
- Water Outlet Connection: 1/4" QC OD tube
- Filter Capacity: 1250 gallons/annually
- Maximum Flow Rate: 0.50 GPM
- Water Temperature: 35 - 100°F
- Maximum Line Pressure: 125 PSI
- Change Frequency: 12 months
- Filter Media: Activated Carbon
- One year limited warranty
- Tested according to NSF Standard 42 for aesthetic effects and Standard 53 for health effects
Product Details | |
---|---|
Capacity | 1,250 Gallons |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 °F |
Micron Rating (Nominal) | 1 µm |
Min Temp (°F) | 35 °F |
Cartridge Style | Inline |
Change Frequency | 6-12 Months |
Connection Type | 1/4" Quick Connect |
Contaminants Reduced | VOCs Chlorine/Taste/Odor Lead Cysts |
Diameter | 2-1/2" |
Filter Type | Carbon Block |
Flow Rate | 0.5 GPM |
Media Type | Carbon Block |
Shipping Dimensions | |
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
Product Weight & Dimensions | |
Product Length | 10" |
Product Weight (lbs) | 2 |
Product Details | |
---|---|
Capacity | 1,250 Gallons |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 °F |
Micron Rating (Nominal) | 1 µm |
Min Temp (°F) | 35 °F |
Cartridge Style | Inline |
Change Frequency | 6-12 Months |
Connection Type | 1/4" Quick Connect |
Contaminants Reduced | VOCs Chlorine/Taste/Odor Lead Cysts |
Diameter | 2-1/2" |
Filter Type | Carbon Block |
Flow Rate | 0.5 GPM |
Media Type | Carbon Block |
Product Weight & Dimensions | |
Product Length | 10" |
Product Weight (lbs) | 50 |
Quality Assurance The Neo-Pure IL2510-CTOCL-4Q is warranted to be free from defects in material and workmanship for a period of one year from date of installation. Warranty is limited to repair or replacement of defective component.
Installation Instructions:
- Install in cold water applications only
- Shut off water supply
- Note the flow direction on the filter
- For Quick Connect® fittings push scratch free tube end into the fitting until it feels tight. Pull back on the tubing to confirm that is it tight.bottom.
- After installing new filter, open water supply valve and check for leaks.
- Reconnect electrical power supply.
- Flush system sufficiently (approximately 3 minutes) to effectively remove small residue of carbon fines
- Size: 2-1/2" OD x 10" L
- Water Inlet Connection: 1/4" QC OD tube
- Water Outlet Connection: 1/4" QC OD tube
- Filter Capacity: 1250 gallons/annually
- Maximum Flow Rate: 0.50 GPM
- Water Temperature: 35 - 100°F
- Maximum Line Pressure: 125 PSI
- Change Frequency: 12 months
- Filter Media: Activated Carbon
- One year limited warranty
- Tested according to NSF Standard 42 for aesthetic effects and Standard 53 for health effects
Product Details | |
---|---|
Capacity | 1,250 Gallons |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 °F |
Micron Rating (Nominal) | 1 µm |
Min Temp (°F) | 35 °F |
Cartridge Style | Inline |
Change Frequency | 6-12 Months |
Connection Type | 1/4" Quick Connect |
Contaminants Reduced | VOCs Chlorine/Taste/Odor Lead Cysts |
Diameter | 2-1/2" |
Filter Type | Carbon Block |
Flow Rate | 0.5 GPM |
Media Type | Carbon Block |
Shipping Dimensions | |
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
Product Weight & Dimensions | |
Product Length | 10" |
Product Weight (lbs) | 2 |
Product Details | |
---|---|
Capacity | 1,250 Gallons |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 °F |
Micron Rating (Nominal) | 1 µm |
Min Temp (°F) | 35 °F |
Cartridge Style | Inline |
Change Frequency | 6-12 Months |
Connection Type | 1/4" Quick Connect |
Contaminants Reduced | VOCs Chlorine/Taste/Odor Lead Cysts |
Diameter | 2-1/2" |
Filter Type | Carbon Block |
Flow Rate | 0.5 GPM |
Media Type | Carbon Block |
Product Weight & Dimensions | |
Product Length | 10" |
Product Weight (lbs) | 50 |
