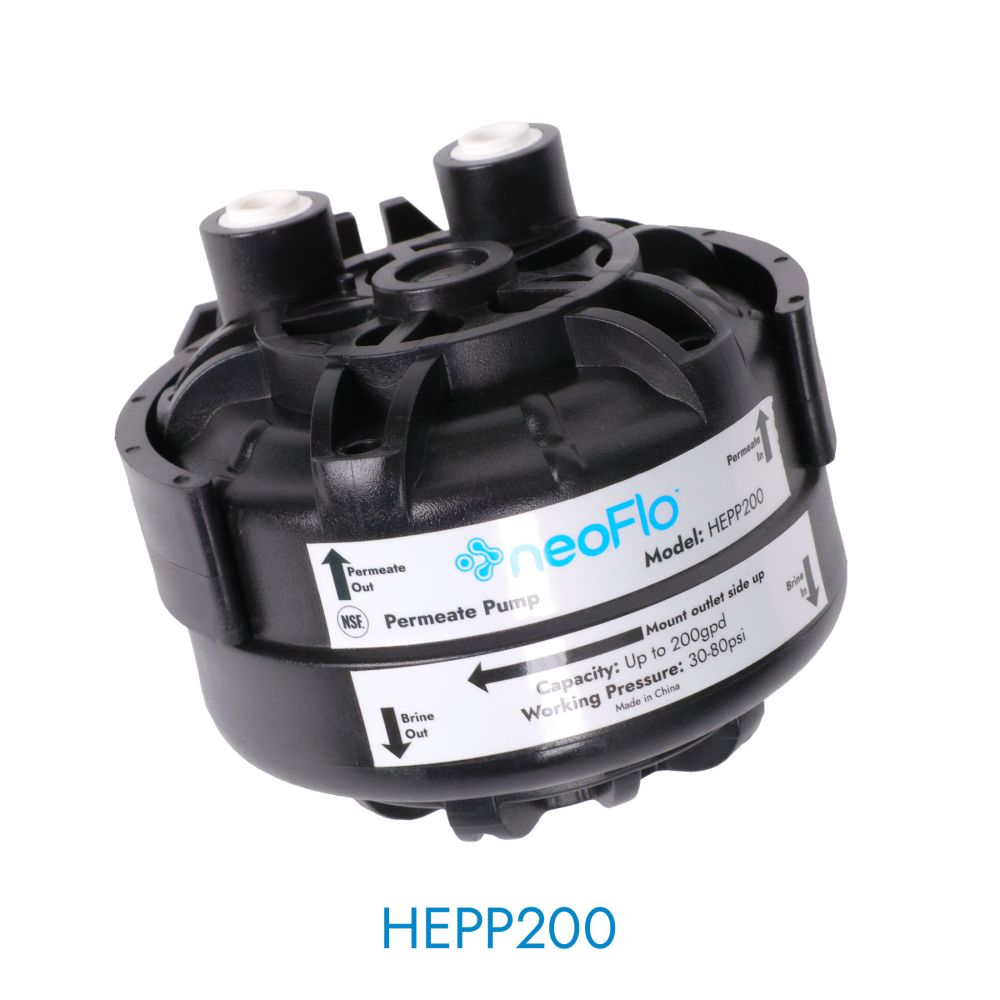

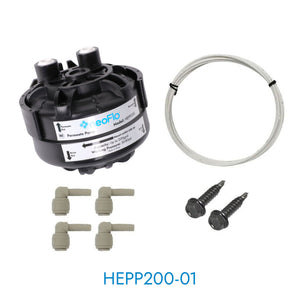

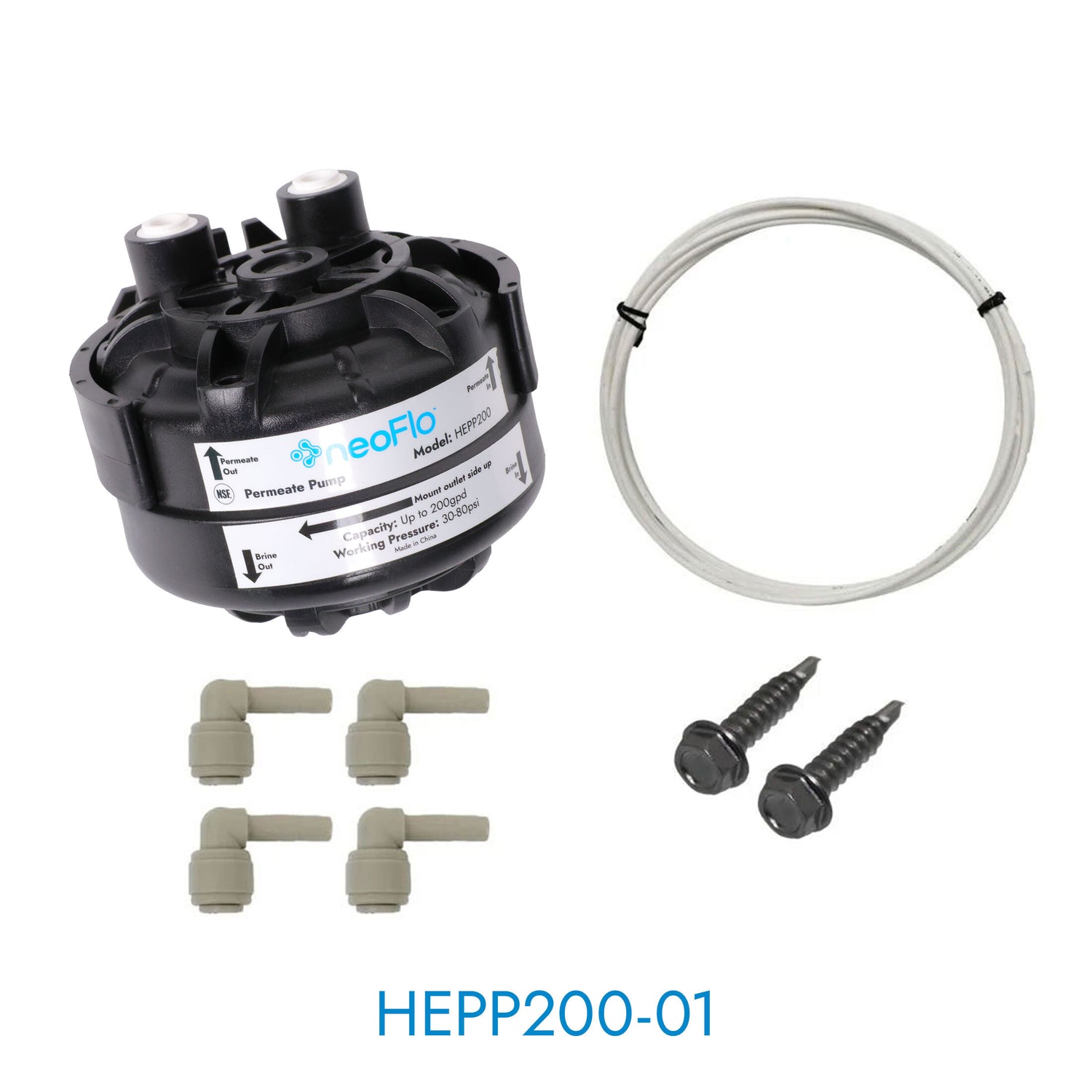

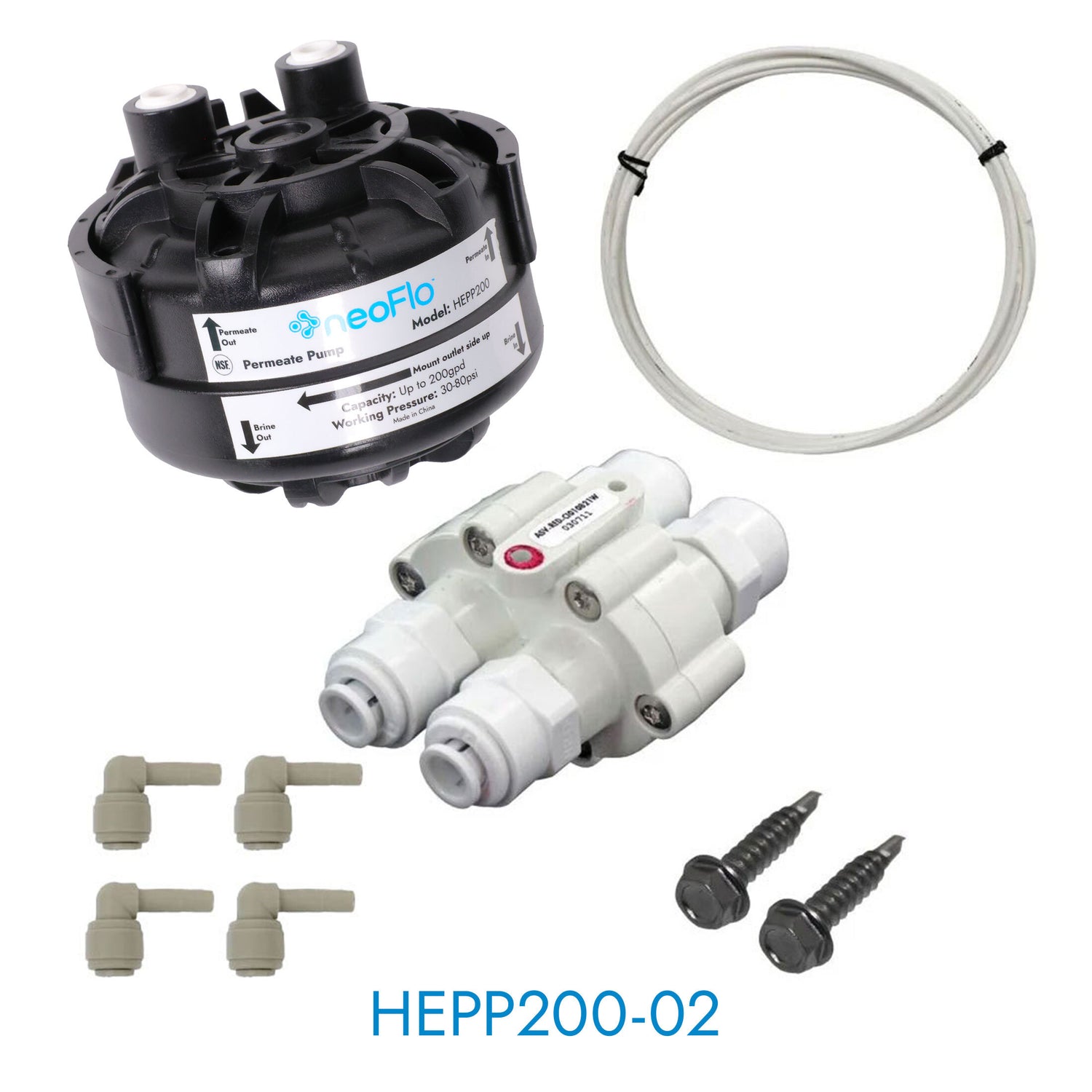

The neoFlo HEPP200 High Efficiency Permeate Pump Kit improves reverse osmosis (RO) system efficiency by increasing water production, reducing wastewater, and boosting storage tank pressure. The pump operates without electricity using the RO system’s brine discharge flow, while the included components support a convenient installation.

Features:

• Reduces RO wastewater by up to 85%
• Increases RO water production and overall efficiency
• Helps boost storage tank pressure
• Helps minimize TDS creep for improved water quality
• Reduces membrane back pressure to support longer membrane life
• Operates without electricity using brine discharge flow

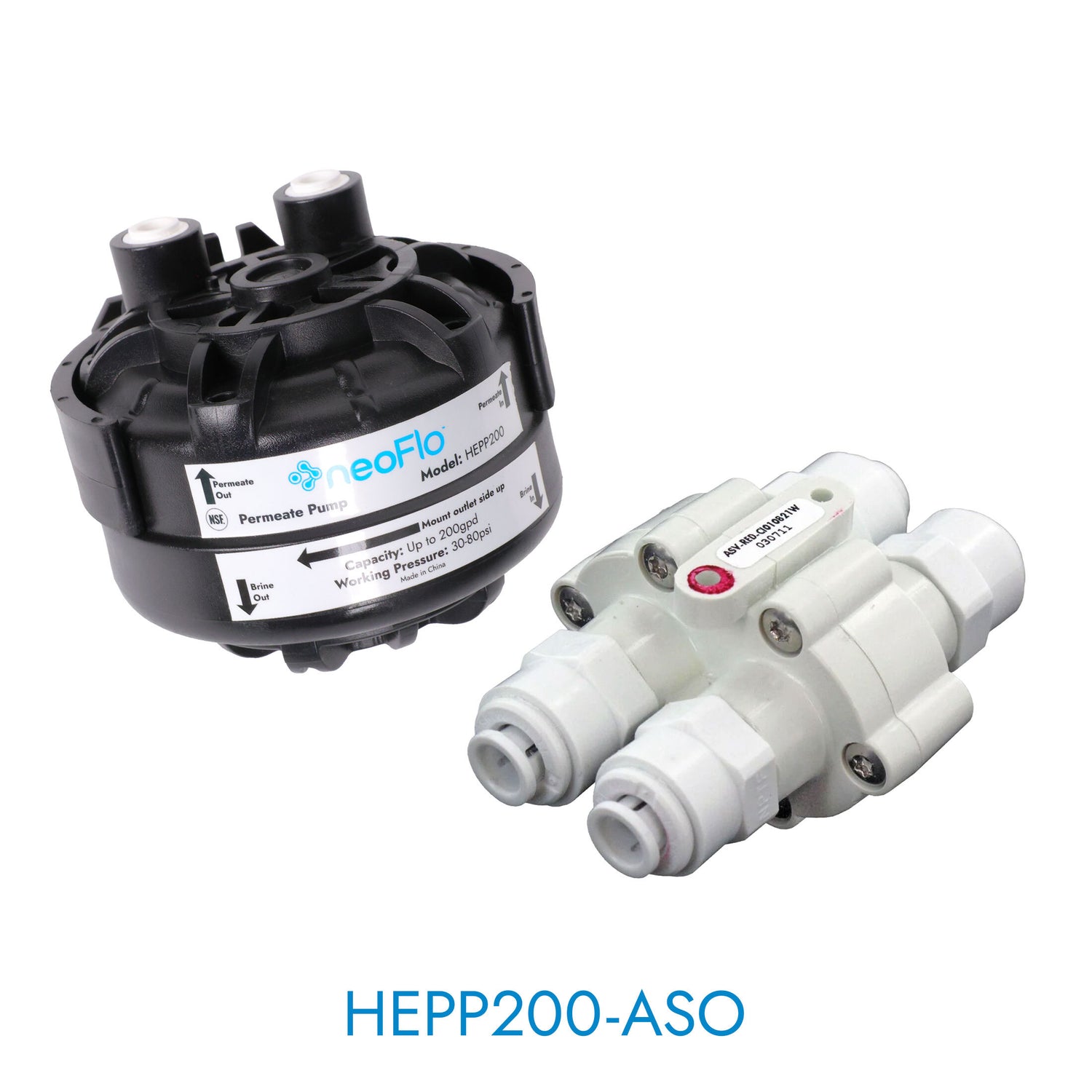

• ASV-ERP automatic shutoff valve supports low-pressure applications
• Compact, quiet design for easy installation
• NSF® certified pump components meet NSF/ANSI 18 and 372
• NSF 51-certified LLDPE tubing meets FDA requirements for potable water
• Black acetal fittings with Buna-N O-rings
• Suitable for RO systems up to 200 GPD

Specifications:

• RO System Capacity: Up to 200 GPD
• Pump Diameter: 3.5”
• Pump Depth: 3.34”
• Pump Height with Clip: 3.75”
• ASV-ERP Shutoff Range: Approximately 80–90% of incoming feed pressure
