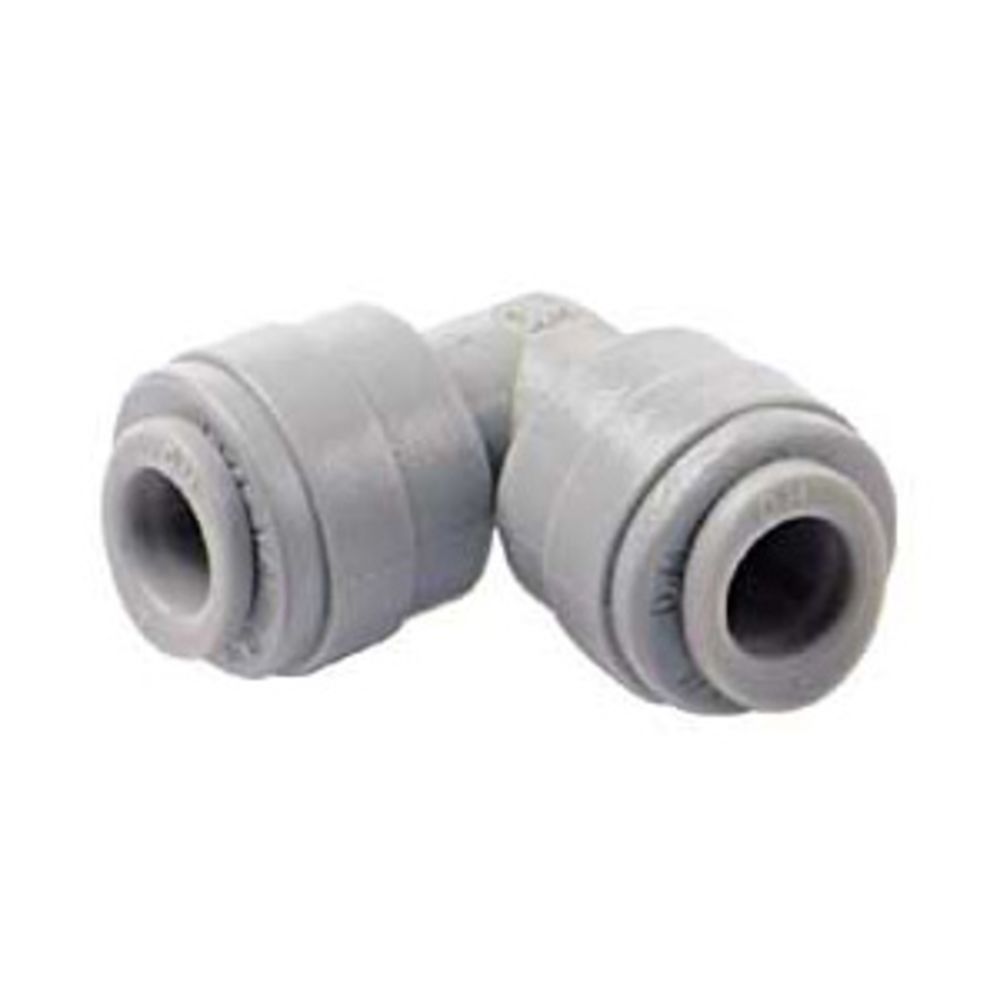

NeoFit - Polypropylene Natural White Union Elbow- 3/8"tube OD x 3/8"tube OD

Part Number: PEU66-W

NeoFit - Polypropylene Natural White Union Elbow- 3/8"tube OD x 3/8"tube OD

Part Number: PEU66-W
MSRP: $6.02
Regular price $2.33
Quantity
Unit Price
Price
Savings

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The NeoFit union elbows are used to connect OD tubing sizes. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

  • Used to change tubing direction 90 degrees
  • Compatible with plastic or copper OD sized tubing
  • Connect, disconnect, and reconnect quickly
  • Food Quality and suitable for potable liquids and pure water applications
  • Can be used for air/pneumatic & vacuum applications
  • Acetal body with food grade EPDM O-Ring
  • NSF 51 & 61 Certified
Fittings Comparison
Size NEO: Working PSI @ Tempv JG: Working PSI @ Temp DM Fit: Working PSI@ Temp Mur-Lok: Working PSI@ Temp
1/4" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
3/8" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
1/2" 150psi @ 68F/ 60psi @ 150F 150psi @ 70F/ 60psi at 140 150psi @ 70F/ 60psi @ 150F 150psi @ 70F/ 60psi @ 140F
Certifications NEO: NSF 51 & 61 Certified JG: NSF 51 & 61 Certified DM Fit: NSF 51 & 61 Certified Mur-Lok: NSF 58 & 372 Certified
Size NEO: Max Torque JG: Max Torque DM Fit: Max Torque Mur-Lok: Max Torque
1/4" 1ft/lb (1.5nm) 1ft/lb (1.5nm) 1ft/lb (1.5nm) 1ft/lb (1.5nm)
3/8" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)
1/2" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)

Specifications

  • Product Details
  • Shipping Dimensions
