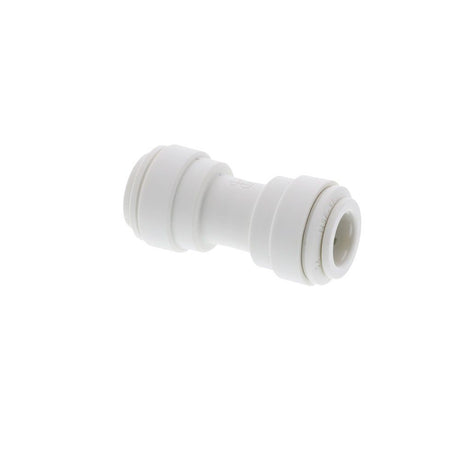

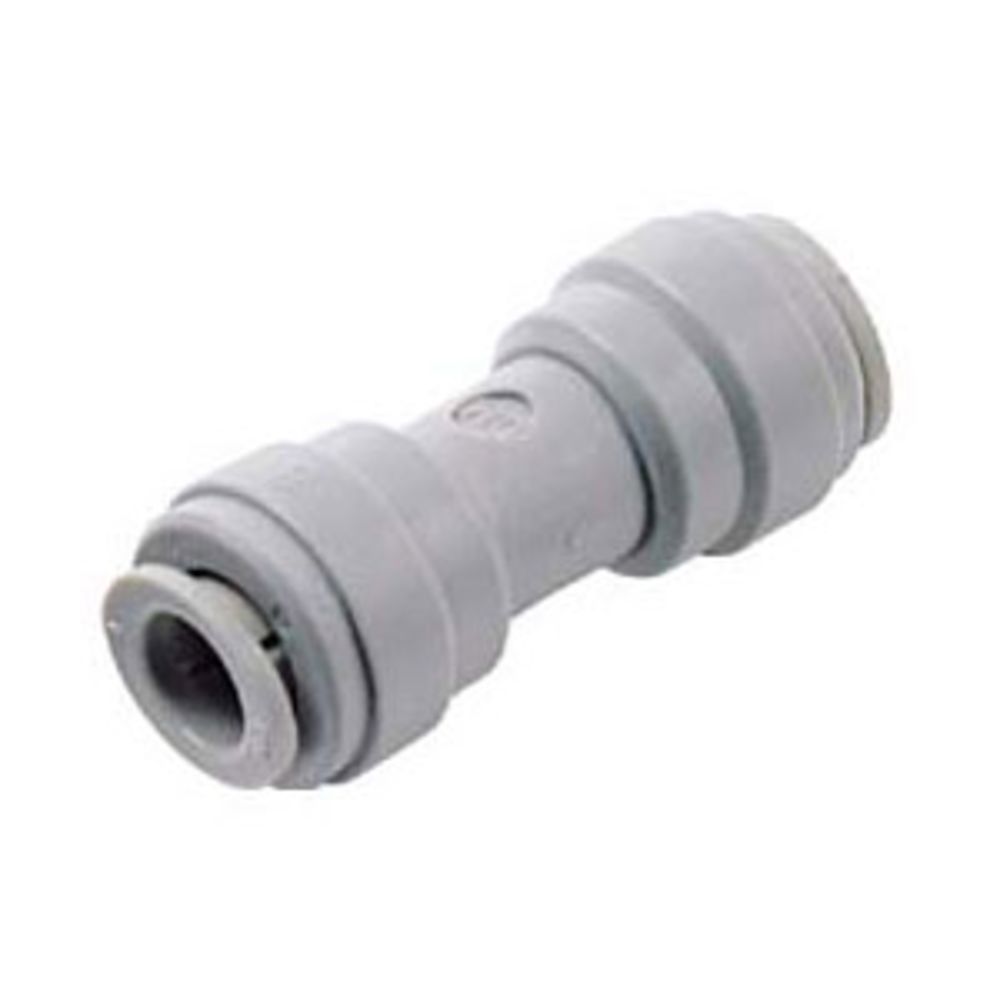

NeoFit - Polypropylene Natural White Union Connector- 3/8"tube OD x 3/8"tube OD

Part Number: PUC66-W Alt. Part Number: 4102 100-0204100

1 3

neoFit

NeoFit - Polypropylene Natural White Union Connector- 3/8"tube OD x 3/8"tube OD

Part Number: PUC66-W Alt. Part Number: 4102 100-0204100

MSRP: $2.79

$1.81

Quantity

Unit Price

Price

Savings

$1.81

—

$1.73

$17.30

200

$1.64

$328.00

Product variants

You May Also Need

Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
Tubing Clamps (Nylon Loop Clamps) - C-Style For 1/4 OD Tubing

Regular price From $0.15
Optional Accessory

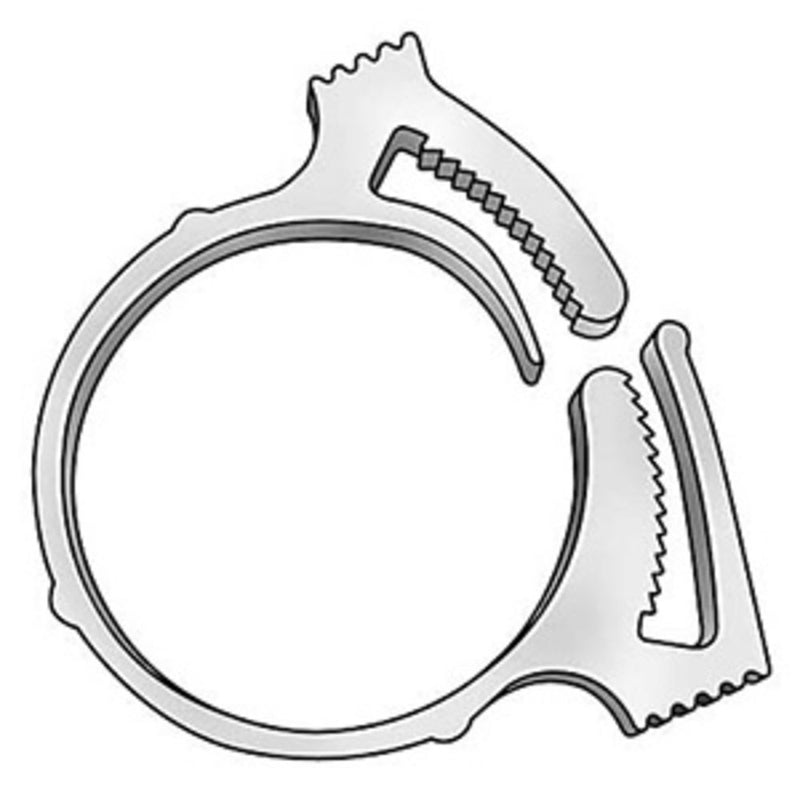

Hose Clamp Nylon w/ Snap Grip 1/4" (for 0.235" to 0.260" OD)

Regular price From $1.20
Optional Accessory

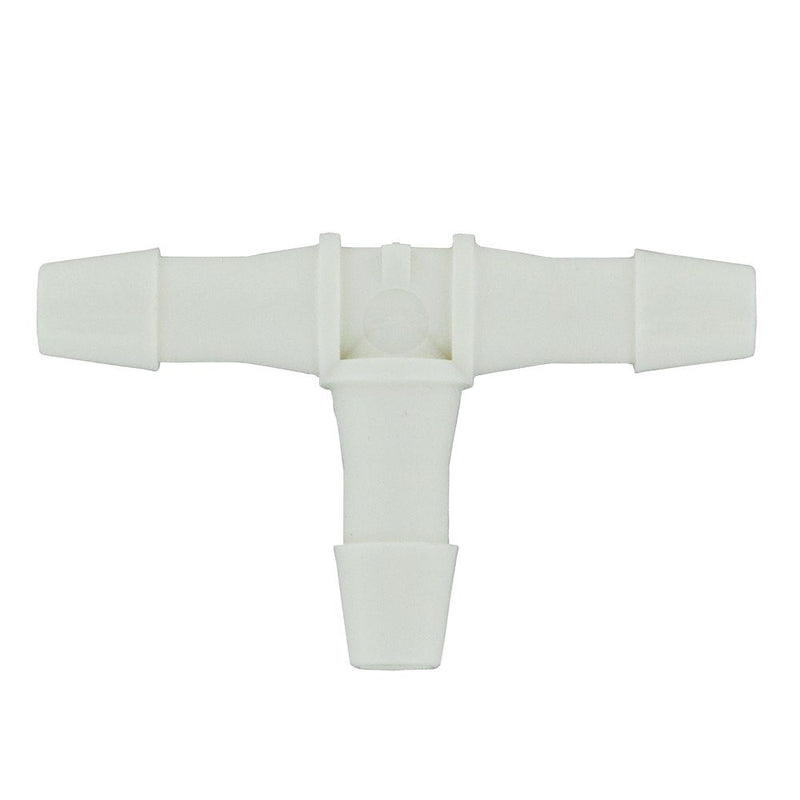

FitQuik Nylon Union Tee Barb Fitting - 1/8 ID x 1/8 ID x 1/8 ID

Regular price From $0.42
Optional Accessory

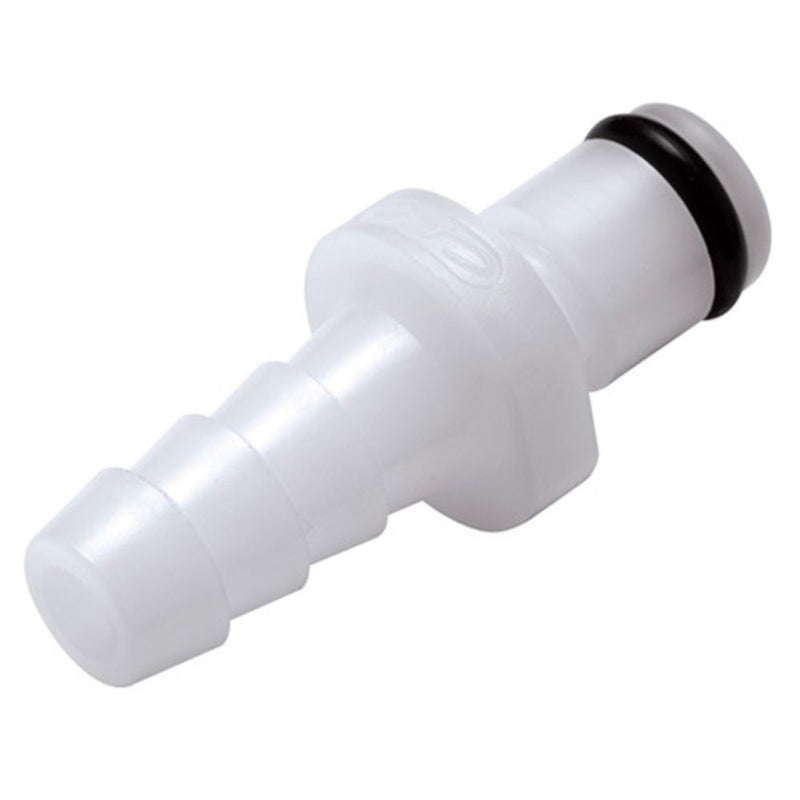

PMC2202 In-Line Hose Barb Coupling Insert 1/8 ID Barb

Regular price From $1.31
Optional Accessory
FitQuik Polypropylene Tube to Tube Straight Fitting - 1/8 ID x 1/8 ID

Regular price From $0.35
Optional Accessory

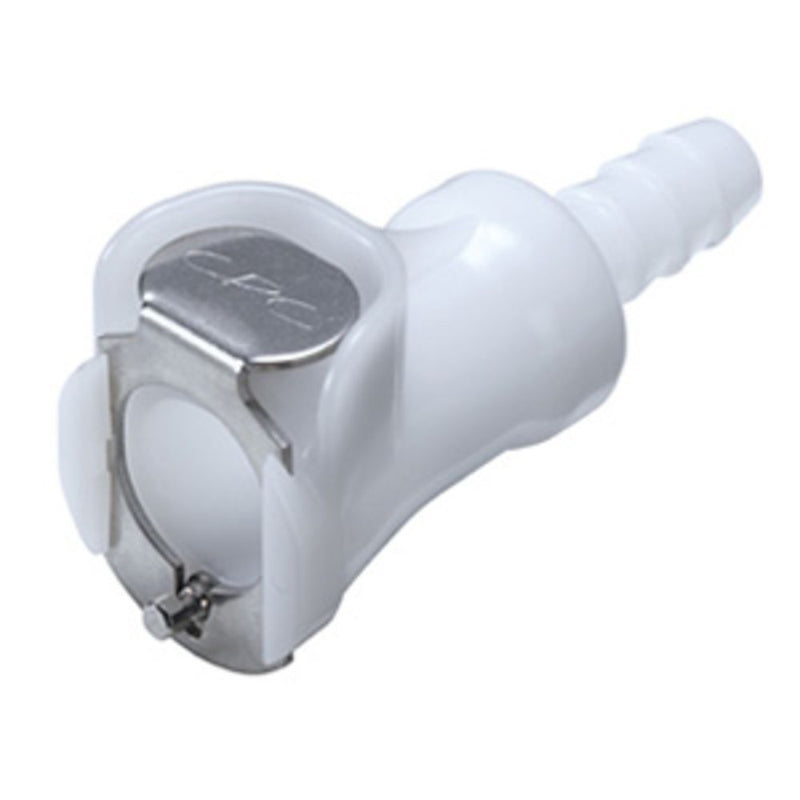

PMC1702 In-Line Hose Barb Coupling Body 1/8 ID Barb

Regular price From $4.34

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The NeoFit union connectors are used to connect OD tubing sizes. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Used to connect OD tubing sizes
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect quickly
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with food grade EPDM O-Ring
NSF 51 & 61 Certified

Fittings Comparison: Polypropylene White

Size	NEO: Working PSI @ Temp	JG: Working PSI @ Temp	DM Fit: Working PSI@ Temp	Mur-Lok: Working PSI@ Temp
1/4"	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60psi at 140F	150psi @ 70F/ 60psi @ 150F	150psi @ 70F/ 60psi @ 140F
3/8"	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60psi at 140F	150psi @ 70F/ 60psi @ 150F	150psi @ 70F/ 60psi @ 140F
1/2"	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60psi at 140F	150psi @ 70F/ 60psi @ 150F	150psi @ 70F/ 60psi @ 140F
Certifications	NEO: NSF 51 & 61 Certified	JG: NSF 51 & 61 Certified	DM Fit: NSF 51 & 61 Certified	Mur-Lok: NSF 58 & 372 Certified

Size	NEO: Max Torque	JG: Max Torque	DM Fit: Max Torque	Mur-Lok: Max Torque
1/4"	1ft/lb (1.5nm)	1ft/lb (1.5nm)	1ft/lb (1.5nm)	1ft/lb (1.5nm)
3/8"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)
1/2"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)

Specifications

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	3/8" OD
Seal / O-Ring Material	EPDM
Shape	Straight
Color / Finish	Natural White
Sub-Type	Union Coupling
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.045

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	3/8" OD
Seal / O-Ring Material	EPDM
Shape	Straight
Color / Finish	Natural White
Sub-Type	Union Coupling
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.45

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	3/8" OD
Seal / O-Ring Material	EPDM
Shape	Straight
Color / Finish	Natural White
Sub-Type	Union Coupling
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	9
