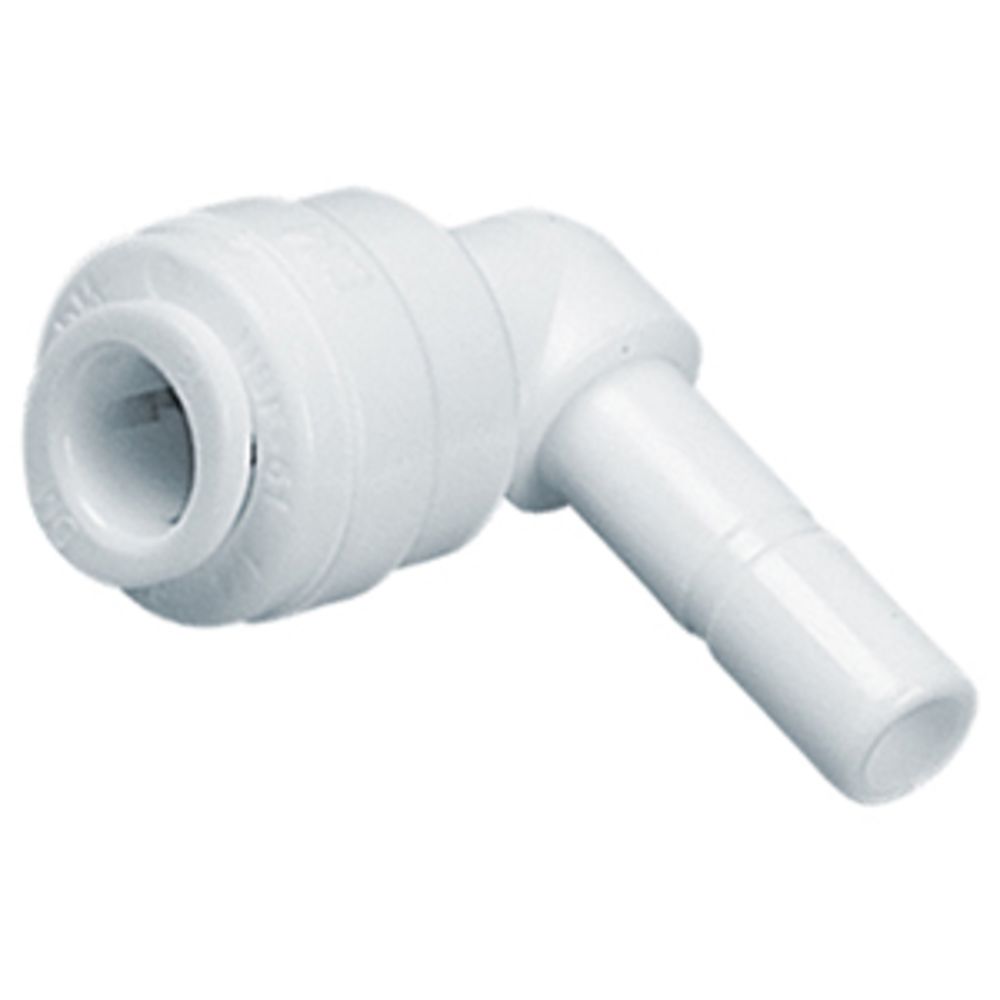

NeoFit - Polypropylene Natural White Stem Elbow- 5/16"tube OD x 5/16"stem

Part Number: PTEU55-W Alt. Part Number: PI221616S

1 3

neoFit

NeoFit - Polypropylene Natural White Stem Elbow- 5/16"tube OD x 5/16"stem

Part Number: PTEU55-W Alt. Part Number: PI221616S

MSRP: $3.78

$1.85

Quantity

Unit Price

Price

Savings

$1.85

—

$1.84

$18.44

—

400

$1.69

$679.73

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

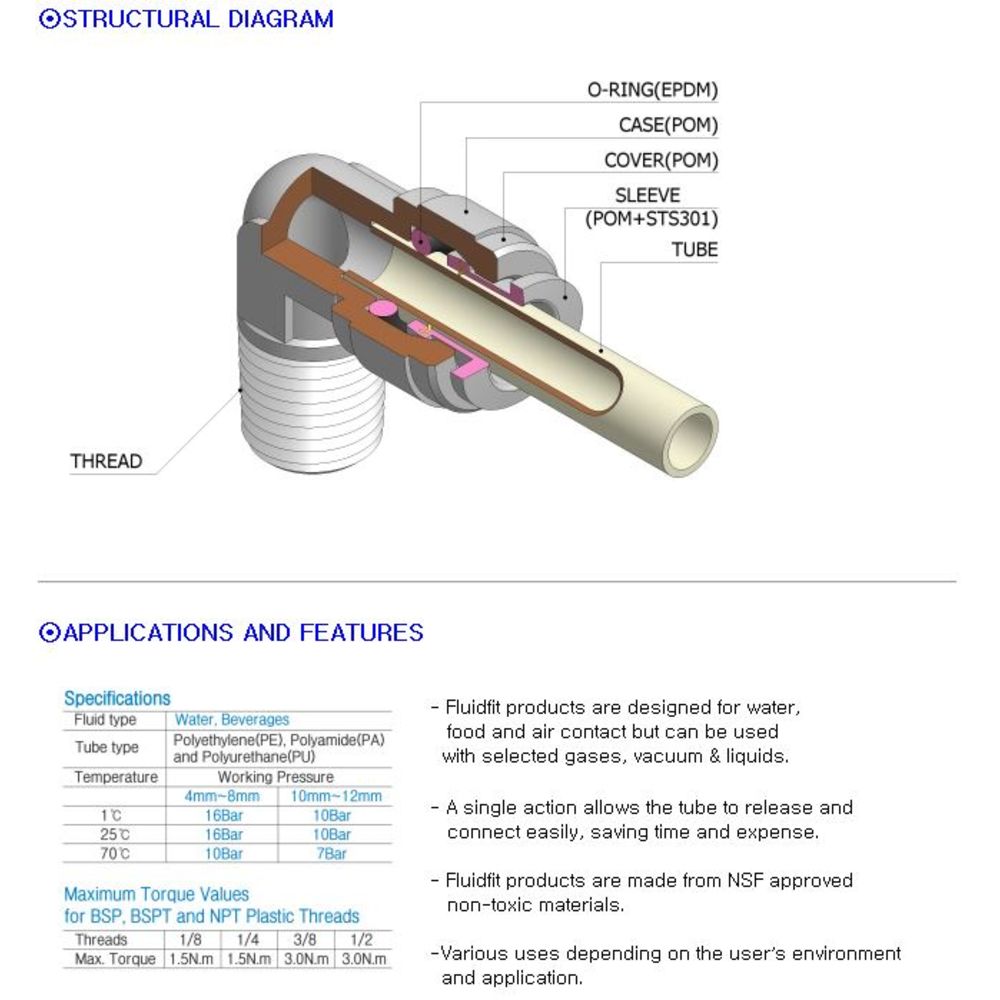

The NeoFit stem elbow connectors are used to connect OD tubing sizes. The stem inserts into push to fit fittings to change tubing direction 90 degrees. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Used to change tubing direction 90 degrees
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect quickly
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with food grade EPDM O-Ring
NSF 51 & 61 Certified

Fittings Comparison

Size	NEO: Working PSI @ Tempv	JG: Working PSI @ Temp	DM Fit: Working PSI@ Temp	Mur-Lok: Working PSI@ Temp
1/4"	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60psi at 140	150psi @ 70F/ 60psi @ 150F	150psi @ 70F/ 60psi @ 140F
3/8"	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60psi at 140	150psi @ 70F/ 60psi @ 150F	150psi @ 70F/ 60psi @ 140F
1/2"	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60psi at 140	150psi @ 70F/ 60psi @ 150F	150psi @ 70F/ 60psi @ 140F
Certifications	NEO: NSF 51 & 61 Certified	JG: NSF 51 & 61 Certified	DM Fit: NSF 51 & 61 Certified	Mur-Lok: NSF 58 & 372 Certified
Size	NEO: Max Torque	JG: Max Torque	DM Fit: Max Torque	Mur-Lok: Max Torque
1/4"	1ft/lb (1.5nm)	1ft/lb (1.5nm)	1ft/lb (1.5nm)	1ft/lb (1.5nm)
3/8"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)
1/2"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)

Specifications

Product Details
Push-In Size

1/2" OD
Shape

Elbow
Stem Size

1/2" OD
Shipping Dimensions

Downloads

NeoFit - Polypropylene Natural White Stem Elbow- 5/16

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products
Facet	neoFit NeoFit - Polypropylene Natural White Stem Elbow- 5/16"tube OD x 5/16"stem Regular price From $1.85 Part #: PTEU55-W Save up to 8% with bulk pricing Current Product	neoFit NeoFit - Acetal Natural White Stem Elbow- 1/2"tube OD x 1/2"stem Regular price From $2.97 Part #: ATEU88-W Save up to 8% with bulk pricing View details	John Guest John Guest Stem Elbow Connector - 1/2 Stem x 1/2 5.0 Regular price From $3.72 Part #: PI221616S Save up to 12% with bulk pricing View details	John Guest John Guest Stem Elbow Connector Polypro - 1/2 Stem x 1/2 Regular price From $3.51 Part #: PP221616W Save up to 12% with bulk pricing View details
Price
Price	Regular price From $1.85	Regular price From $2.97	Regular price From $3.72	Regular price From $3.51
Part #
Part #	PTEU55-W	ATEU88-W	PI221616S	PP221616W
Description
Description	The NeoFit stem elbow connectors are used to connect OD tubing sizes. The stem inserts into push to fit fittings to change tubing direction 90...	The NeoFit stem elbow connectors are used to connect OD tubing sizes. The stem inserts into push to fit fittings to change tubing direction 90...	The John Guest stem elbow makes connecting OD tubing sizes quick and easy. The stem inserts into John Guest Push-fit fittings to change tubing direction...	The John Guest stem elbows make connecting OD tubing sizes quick and easy. The stem inserts into John Guest Push-fit fittings to change tubing direction...
