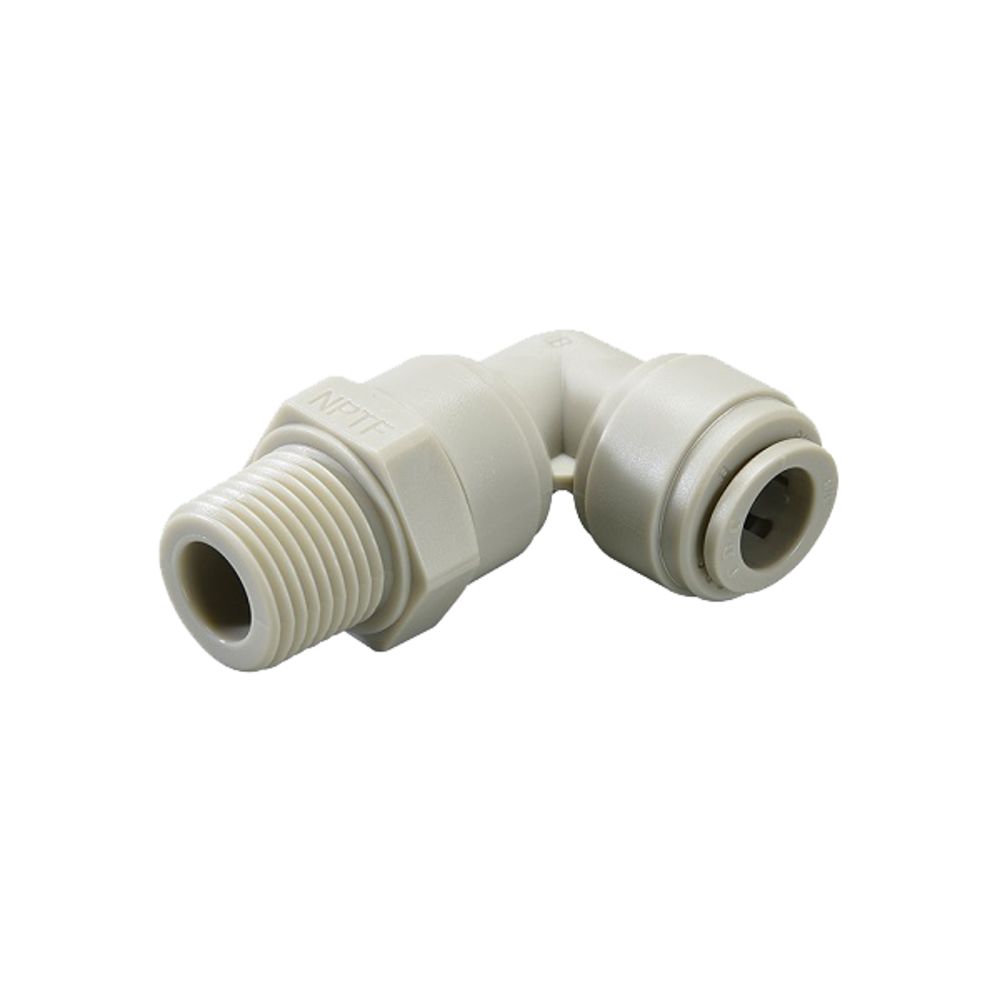

NeoFit - Gray Male Elbow Swivel- 3/8" tube OD x 3/8" BSPT(PT)

Part Number: AMES6-R3-G Alt. Part Number: PI091203S

1 4

NeoFit

NeoFit - Gray Male Elbow Swivel- 3/8" tube OD x 3/8" BSPT(PT)

Part Number: AMES6-R3-G Alt. Part Number: PI091203S

MSRP: $7.88

$4.81

Quantity

Unit Price

Price

Savings

$4.81

—

$4.64

$46.48

100

$4.49

$449.07

Product variants

Note: These swivel fittings are designed for DIY assembly and are not supplied preassembled.

You May Also Need

Optional Accessory
DMfit Collet Cover - 3/8"

Regular price From $0.35
Optional Accessory
John Guest Collet Cover - 4mm, 5/32 OD Blue

Regular price From $0.21
Optional Accessory
DMfit Locking Clip Red - 3/8"

Regular price From $0.18
Optional Accessory
John Guest Release Tools Set - 3/16, 1/4, 5/16, 8mm, 3/8, 1/2

Regular price From $13.07
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88
Optional Accessory
PTFE Teflon® Thread Seal Tape - 0.4 Density 1/2" x 60"

Regular price From $0.39

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Note: These fittings possess the capability to orient the fitting connection in any direction autonomously, separate from the threaded segment of the fitting.

The NeoFit male swivel elbows are used to connect OD tubing sizes to female BSPT threads. Manufactured in acetal with food grade EPDM O-ring, these fittings were designed for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Used to connect OD tubing sizes
Swivel elbows allow you to position the tubing in the desired direction
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect quickly
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with food grade EPDM O-Ring
NSF 51 & 61 Certified

Specifications

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	3/8" OD
Shape	Elbow
Color / Finish	Gray
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.05

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	3/8" OD
Shape	Elbow
Color / Finish	Gray
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.5

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	3/8" OD
Shape	Elbow
Color / Finish	Gray
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	5

Downloads

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

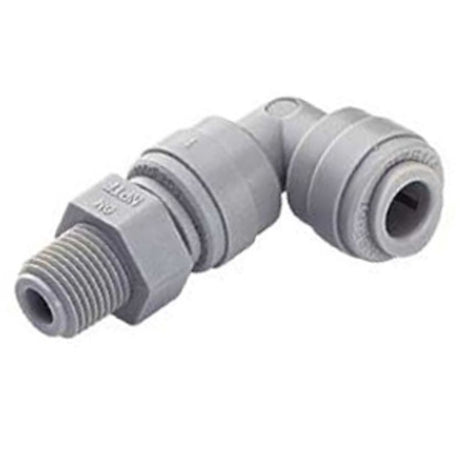

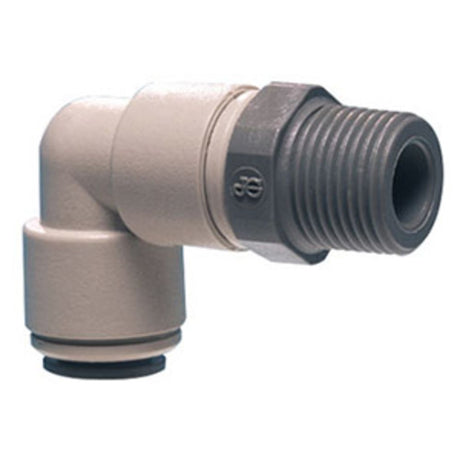

Facet	NeoFit NeoFit - Gray Male Elbow Swivel- 3/8" tube OD x 3/8" BSPT(PT) Regular price From $4.81 Part #: AMES6-R3-G Save up to 6% with bulk pricing Current Product	John Guest John Guest Swivel Elbow BSPT - 3/8 x 3/8 BSPT Regular price From $5.63 Part #: PI091203S Save up to 7% with bulk pricing View details	DMFit DMfit Male BSPT Swivel Elbow - 3/8" Push-in x 3/8" BSPT Regular price From $4.95 Part #: AMESBT0606 Save up to 18% with bulk pricing View details
Price
Price	Regular price From $4.81	Regular price From $5.63	Regular price From $4.95
Part #
Part #	AMES6-R3-G	PI091203S	AMESBT0606
Description
Description	Note: These fittings possess the capability to orient the fitting connection in any direction autonomously, separate from the threaded segment of the fitting.The NeoFit male...	The John Guest swivel elbow makes connecting OD tubing sizes to female BSPT threads quick and easy. Manufactured in gray acetal with food grade nitrile...	Features: Acetal copolymer construction O-rings are NBR (Buna-N) Unique oval collet design FDA approved materials For water, air, gasses, vacuum & liquids NSF Certified 51...
