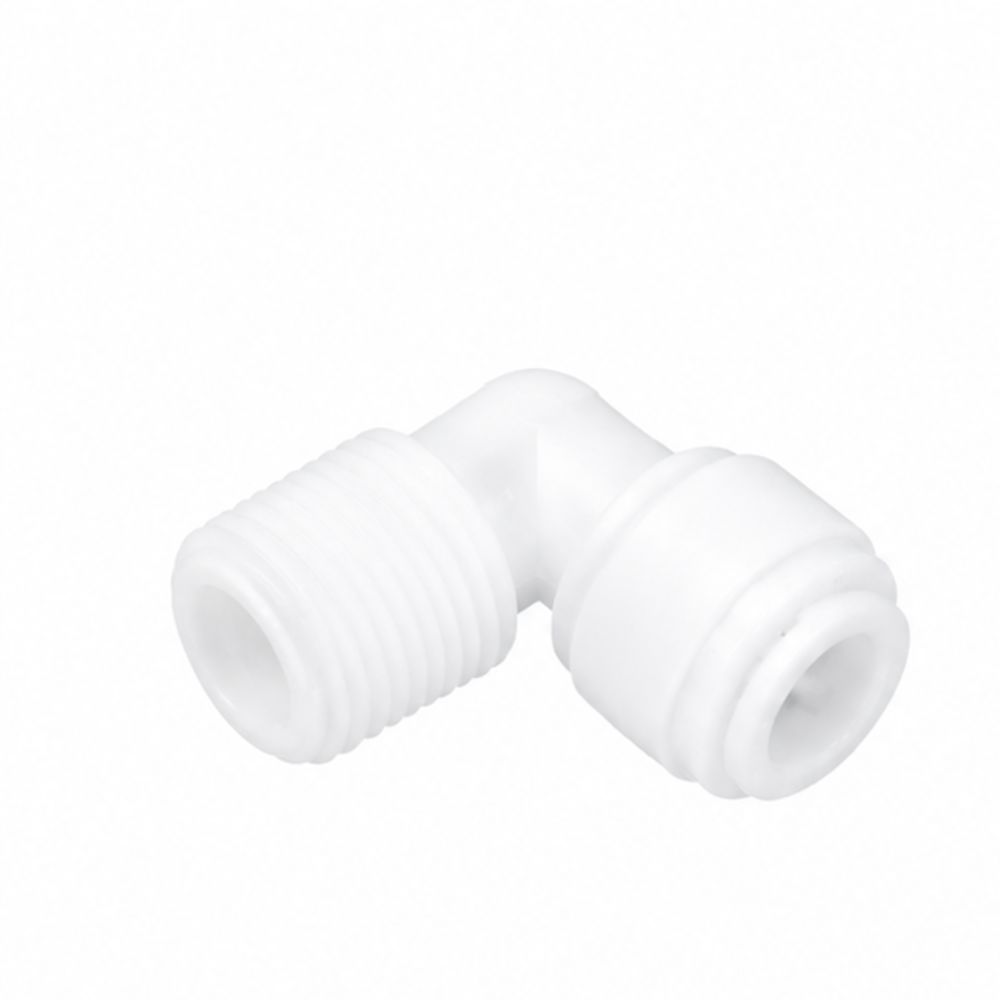

NeoFit - Acetal Natural White Male Elbow- 1/4"tube OD x 1/4"NPTF

The NeoFit male elbows are used to connect OD tubing sizes to female NPTF threads. Manufactured in acetal with food grade EPDM O-ring, these fittings were designed for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Used to connect OD tubing sizes
Compatible with plastic or copper OD sized tubing

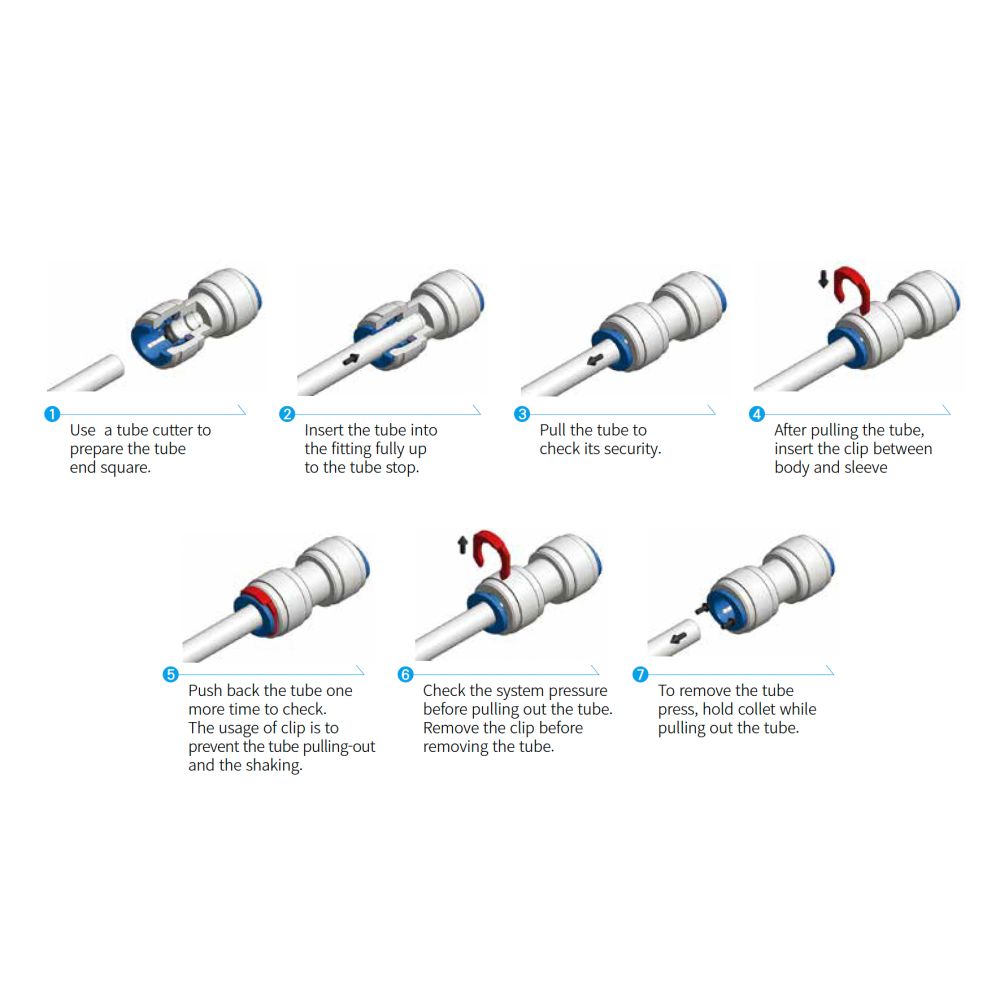

Connect, disconnect, and reconnect quickly
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with food grade EPDM O-Ring
NSF 51 & 61 Certified

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	Acetal Copolymer
Max Pressure (Psi)	Max 230 psi at 33° F Max. 230 psi at 68° F Max. 150 psi at 150° F
O-Rings	EPDM
Push-In Size	1/4" OD
Color / Finish	Natural White
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Certifications	NSF 51 & 61, FDA Approved Materials, NSF 51
