Sold Out

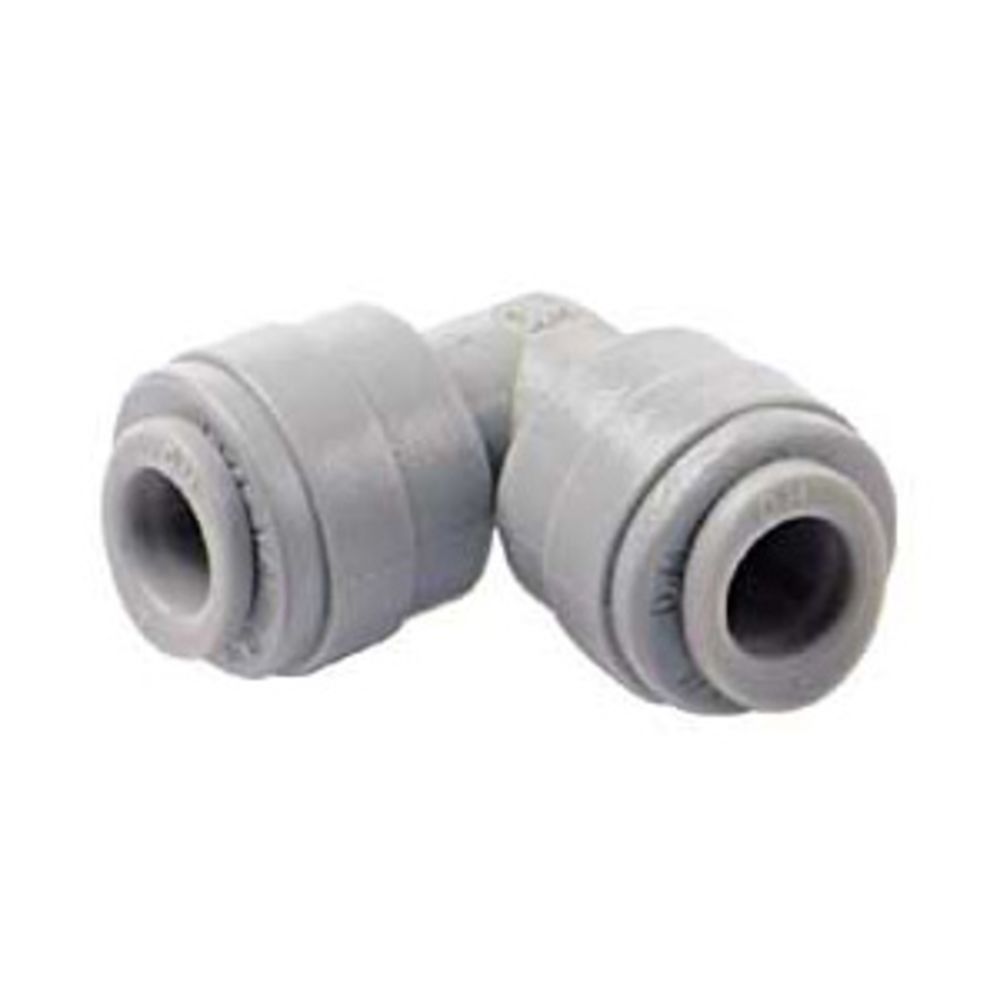

NeoFit - Acetal Gray Union Elbow 3/8" tube x 8mm (5/16") tube

Part Number: AEU8M6-G Alt. Part Number: PI211210S, AEU65-G

1 4

Sold Out

neoFit

NeoFit - Acetal Gray Union Elbow 3/8" tube x 8mm (5/16") tube

Part Number: AEU8M6-G Alt. Part Number: PI211210S, AEU65-G

MSRP: $4.58

$2.69

Quantity

Unit Price

Price

Savings

$2.69

—

$2.69

$26.92

—

200

$2.48

$496.35

Product variants

You May Also Need

Optional Accessory

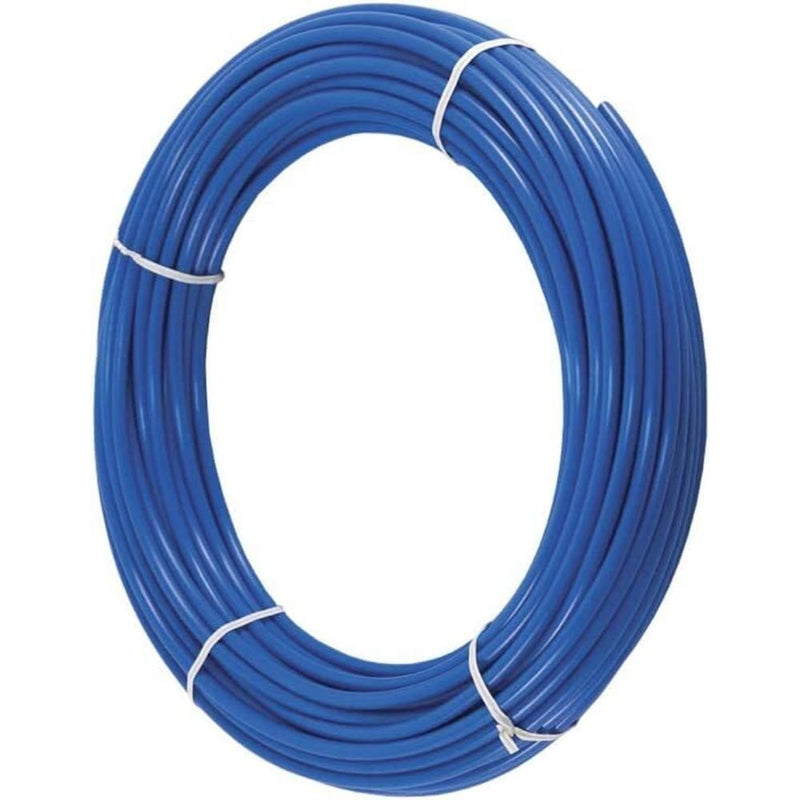

Blue 3/8" OD LLDPE Polyethylene Tubing

Regular price From $1.35
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Note: For reference purposes, please note that part number AEU65-G is equivalent to AEU8M6-G

The NeoFit reducing union elbow connectors are used to connect OD tubing sizes. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Used to change tubing direction 90 degrees
Compatible with plastic or copper OD sized tubing

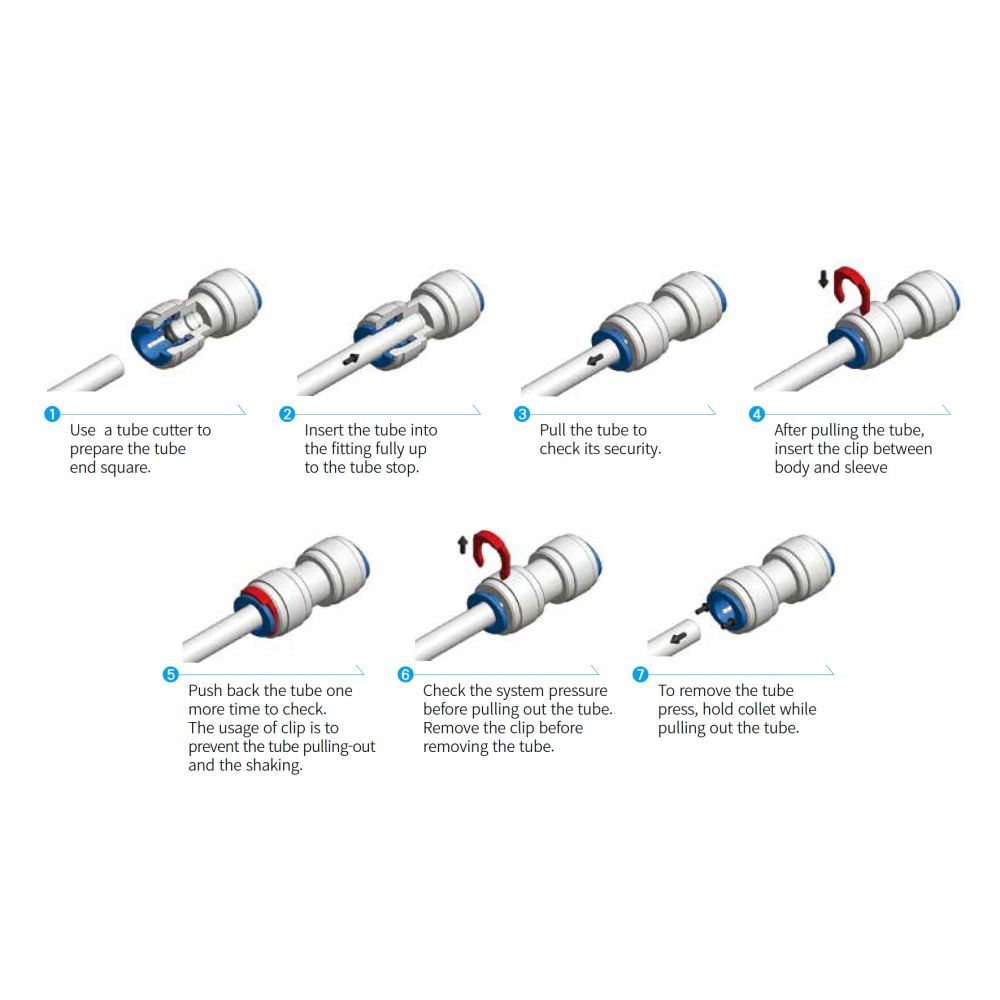

Connect, disconnect, and reconnect quickly
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with food grade EPDM O-Ring
NSF 51 & 61 Certified

Fittings Comparison:

Size	NEO: Working PSI @ Temp	JG: Working PSI @ Temp	JG: Working PSI @ Temp
1/4"	290psi @ 68F/ 232psi @ 150F	230psi @ 68F/ 150 psi at 150F	230psi @ 68F/ 100 psi at 150F
3/8"	232psi @ 68F/ 203psi @ 150F	150psi @ 68F/ 100 psi at 150F	170psi @ 68F/ 100 psi at 150F
1/2"	203psi @ 68F/ 116psi @ 150F	150psi @ 68F/ 100 psi at 150F	170psi @ 68F/ 100 psi at 150F
Certifications	NEO: NSF 51 & 61 Certified JG: NSF 51 &	JG: NSF 51 & 61 Certified	DM Fit: NSF 51 & 61 Certified
Size	NEO: Max Torque	JG: Max Torque	DM Fit: Max Torque
1/4"	1ft/lb (1.5nm)	1ft/lb (1.5nm)	1ft/lb (1.5nm)
3/8"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)
1/2"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)

Specifications

Product Details
Fitting Connection Size

3/8" Tube OD
Push-In Size

3/8" OD
Seal / O-Ring Material

EPDM
Series

Inch Elbow Union Tube
Shape

Elbow
Shipping Dimensions

Downloads

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products
Facet	Sold Out neoFit NeoFit - Acetal Gray Union Elbow 3/8" tube x 8mm (5/16") tube Regular price From $2.69 Sold out Part #: AEU8M6-G Save up to 7% with bulk pricing Current Product	DMFit DMfit Elbow Union - 3/8 x 5/16 Push-in Regular price From $3.56 Very low stock Part #: AEU0605 Save up to 18% with bulk pricing View details	John Guest John Guest Reducing Elbow - 3/8 x 5/16 5.0 Regular price From $3.38 Part #: PI211210S Save up to 13% with bulk pricing View details
Price
Price	Regular price From $2.69	Regular price From $3.56	Regular price From $3.38
Part #
Part #	-	AEU0605	PI211210S
Description
Description	Note: For reference purposes, please note that part number AEU65-G is equivalent to AEU8M6-GThe NeoFit reducing union elbow connectors are used to connect OD tubing...	Features: Acetal copolymer construction O-rings are NBR (Buna-N) Unique oval collet design FDA approved materials For water, air, gasses, vacuum & liquids NSF Certified 51...	The John Guest reducing elbow makes connecting OD tubing sizes quick and easy. Manufactured in gray acetal with food grade nitrile O-ring, these fittings are...
