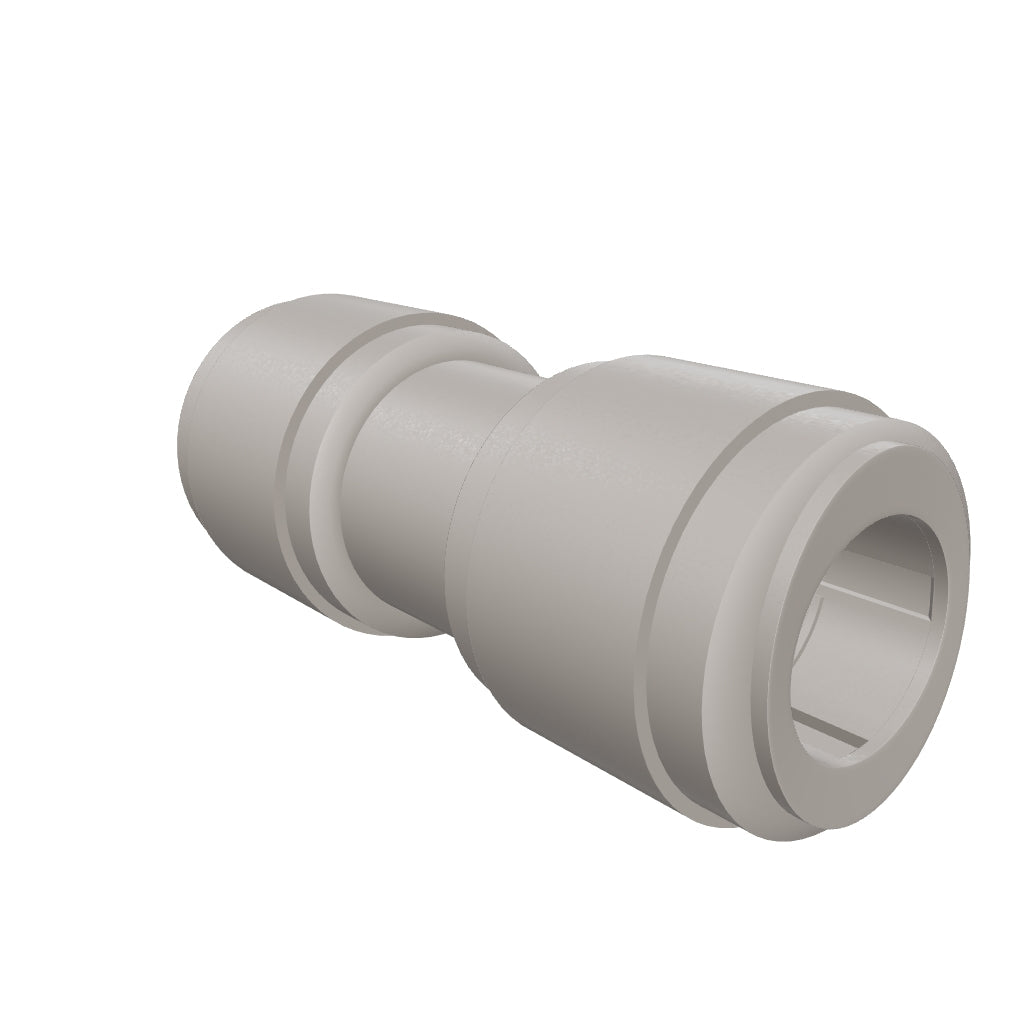

NeoFit - Acetal Gray Union Connector 8mm (5/16") tube x 8mm (5/16") tube

Part Number: AUC88M-G Alt. Part Number: PM0408S, AUC55-G

1 3

NeoFit

NeoFit - Acetal Gray Union Connector 8mm (5/16") tube x 8mm (5/16") tube

Part Number: AUC88M-G Alt. Part Number: PM0408S, AUC55-G

MSRP: $2.38

$1.53

Quantity

Unit Price

Price

Savings

$1.53

—

$1.51

$15.19

300

$1.40

$420.02

Product variants

You May Also Need

Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Note: For reference purposes, please note that part number AUC55-G is equivalent to AUC88M-G

The NeoFit union connectors are used to connect OD tubing sizes. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Used to connect OD tubing sizes
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect quickly
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with food grade EPDM O-Ring
NSF 51 & 61 Certified

Fittings Comparison: Acetal Gray

Size	NEO: Working PSI @ Temp	JG: Working PSI @ Temp	DM Fit: Working PSI @ Temp
1/4"	290psi @ 68F/ 232psi @ 150F	230psi @ 68F/ 150 psi at 150F	230psi @ 68F/ 100 psi at 150F
3/8"	232psi @ 68F/ 203psi @ 150F	150psi @ 68F/ 100 psi at 150F	170psi @ 68F/ 100 psi at 150F
1/2"	203psi @ 68F/ 116psi @ 150F	150psi @ 68F/ 100 psi at 150F	170psi @ 68F/ 100 psi at 150F
Certifications	NEO: NSF 51 & 61 Certified	JG: NSF 51 & 61 Certified	DM Fit: NSF 51 & 61 Certified

Size	NEO: Max Torque	JG: Max Torque	DM Fit: Max Torque
1/4"	1ft/lb (1.5nm)	1ft/lb (1.5nm)	1ft/lb (1.5nm)
3/8"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)
1/2"	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)

Specifications

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	8mm (5/16") OD
Shape	Straight
Color / Finish	Gray
Sub-Type	Union Coupling
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.045

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	8mm (5/16") OD
Shape	Straight
Color / Finish	Gray
Sub-Type	Union Coupling
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	7 in.
Shipping Width	5 in.
Shipping Height	1.4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.44999999999999996

Product Details
Max Pressure (Psi)	Max. 170 psi at 33° F Max. 170 psi at 68° F Max. 100 psi at 150° F
Push-In Size	8mm (5/16") OD
Shape	Straight
Color / Finish	Gray
Sub-Type	Union Coupling
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	10.5 in.
Shipping Width	11 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	13.5

Downloads

NeoFit - Acetal Gray Union Connector 8mm (5/16

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

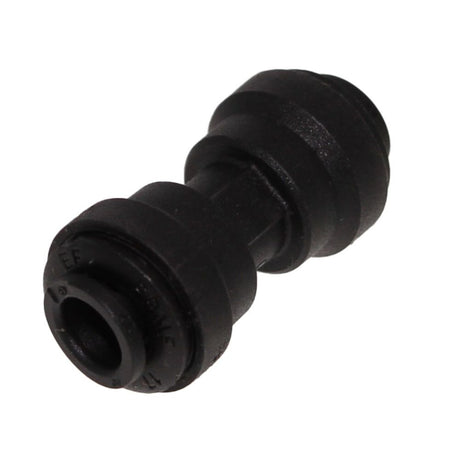

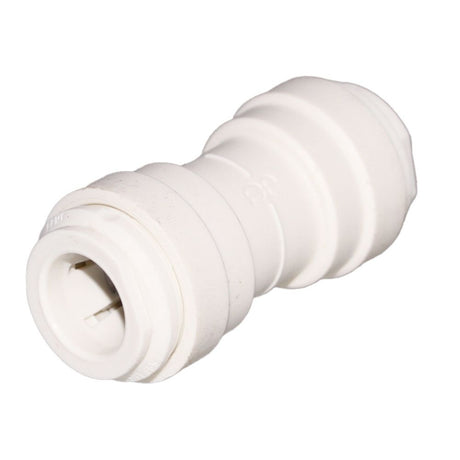

Facet	NeoFit NeoFit - Acetal Gray Union Connector 8mm (5/16") tube x 8mm (5/16") tube Regular price From $1.53 Part #: AUC88M-G Save up to 8% with bulk pricing Current Product	John Guest John Guest Union Connector - 5/16 5.0 Regular price From $1.90 Part #: PM0408S Save up to 15% with bulk pricing View details	John Guest John Guest Union Connector Polypro - 5/16 4.0 Regular price From $1.80 Part #: PPM0408W Save up to 12% with bulk pricing View details	John Guest John Guest Union Connector Black Polypropylene - 5/16 Regular price From $1.61 Part #: PPM0408E Save up to 8% with bulk pricing View details
Price
Price	Regular price From $1.53	Regular price From $1.90	Regular price From $1.80	Regular price From $1.61
Part #
Part #	AUC88M-G	PM0408S	PPM0408W	PPM0408E
Description
Description	Note: For reference purposes, please note that part number AUC55-G is equivalent to AUC88M-GThe NeoFit union connectors are used to connect OD tubing sizes. Manufactured...	The John Guest push-fit Union connects makes connecting OD tubing sizes quick and easy. The unique collet locking design firmly and securely holds the pipe...	The John Guest union makes connecting OD tubing sizes to female NPT threads quick and easy. Manufactured in polypropylene with food grade EDPM O-ring, these...	The John Guest union make connecting OD tubing sizes quick and easy. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for...
