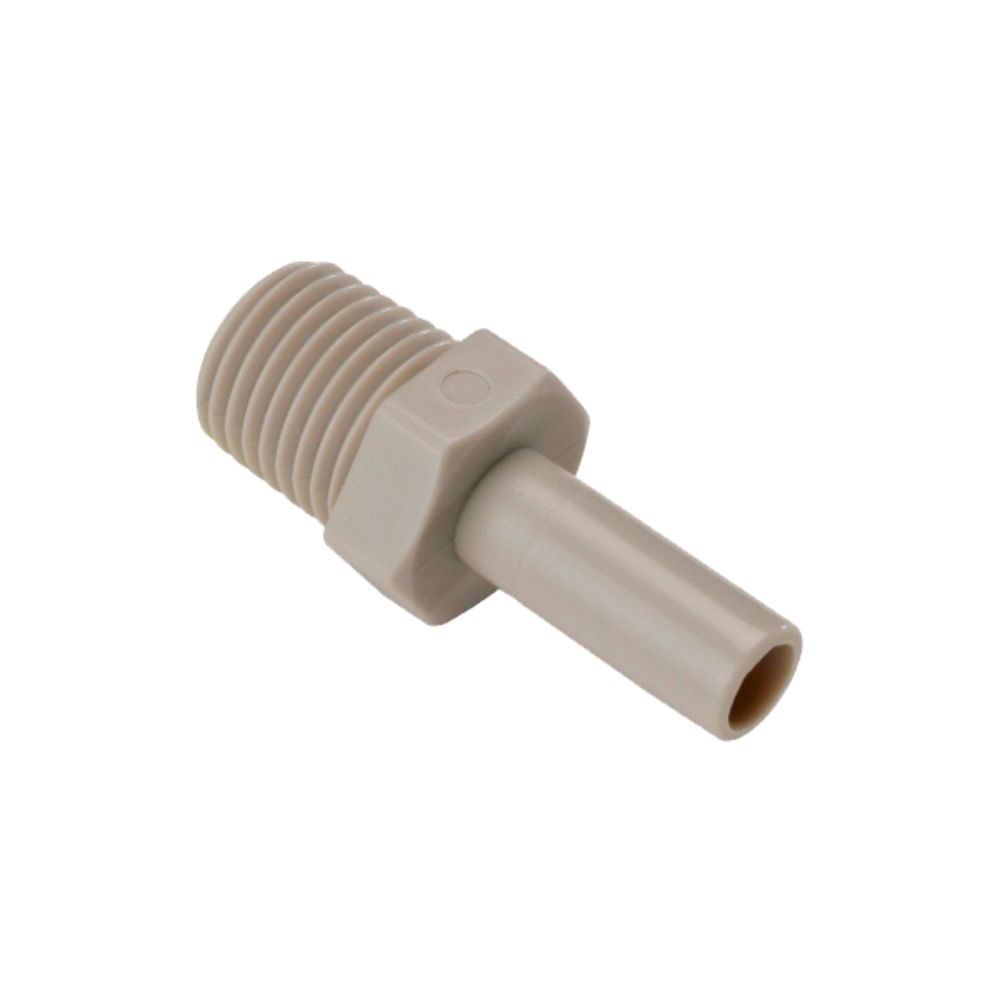

The stem adapter makes connecting OD tubing sizes easy. Manufactured in acetal, these adapters are suitable for foodstuff and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
- Used to connect OD tubing sizes
- Compatible with plastic or copper OD sized tubing
- Food Quality and suitable for potable liquids and pure water applications
- Also suitable for air & gas
- Made of FDA-approved material
Fittings Comparison: Acetal Gray
|
Size |
NEO: Working PSI @ Temp |
JG: Working PSI @ Temp |
DM Fit: Working PSI @ Temp |
|---|---|---|---|
|
1/4" |
290psi @ 68F/ 232psi @ 150F |
230psi @ 68F/ 150 psi at 150F |
230psi @ 68F/ 100 psi at 150F |
|
3/8" |
232psi @ 68F/ 203psi @ 150F |
150psi @ 68F/ 100 psi at 150F |
170psi @ 68F/ 100 psi at 150F |
|
1/2" |
203psi @ 68F/ 116psi @ 150F |
150psi @ 68F/ 100 psi at 150F |
170psi @ 68F/ 100 psi at 150F |
|
Certifications |
NEO: NSF 51 & 61 Certified |
JG: NSF 51 & 61 Certified |
DM Fit: NSF 51 & 61 Certified |
|
Size |
NEO: Max Torque |
JG: Max Torque |
DM Fit: Max Torque |
|---|---|---|---|
|
1/4" |
1ft/lb (1.5nm) |
1ft/lb (1.5nm) |
1ft/lb (1.5nm) |
|
3/8" |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
|
1/2" |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
WARNING!
