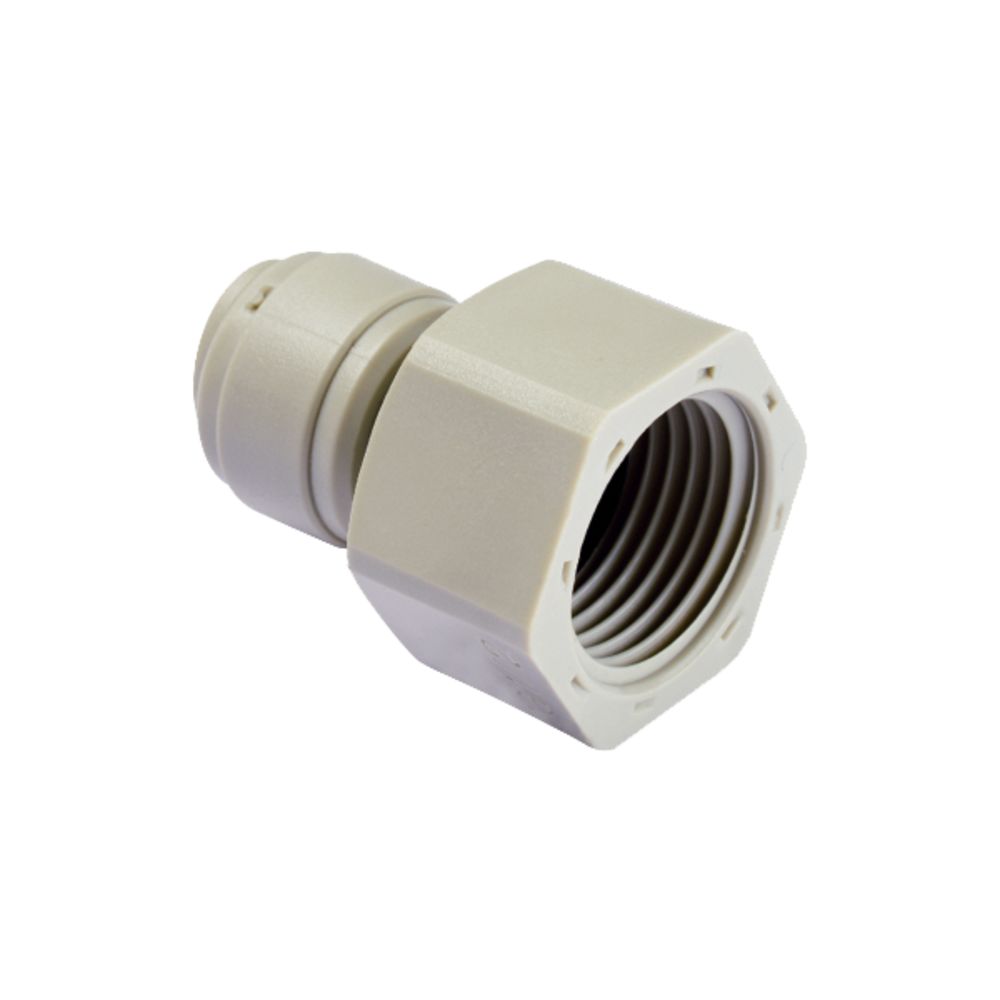

NeoFit - Acetal Gray Female Adapter 1/4" tube x 1/4"NPTF - Flat Type

Part Number: AFA4-N2-G
Alt. Part Number: PI450822S
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Your price:
Choose
Single
Bag of 10
Box of 400
similar items

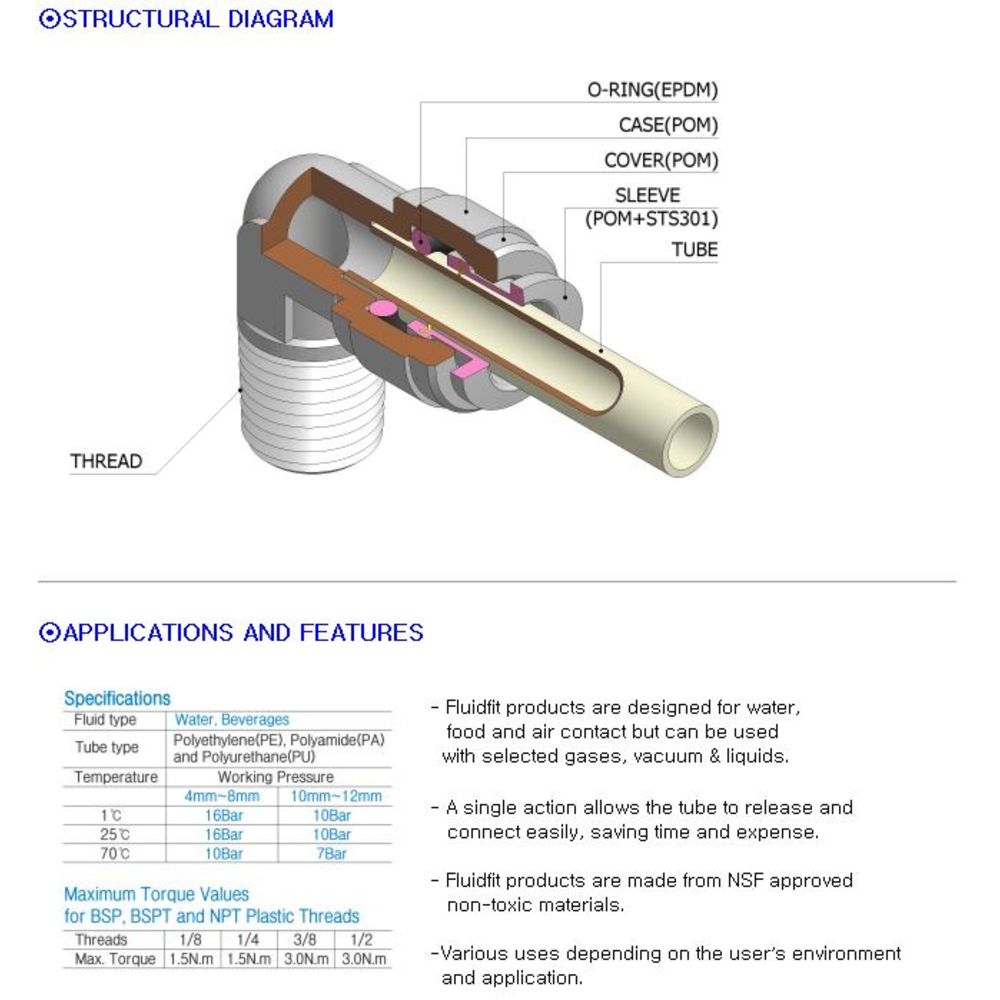

The female connector makes connecting tubing to male threads quick and easy. Manufactured in acetal copolymer with food grade EPDM O-ring, these fittings are suitable for pure water, potable liquids, air & gas.

Features:

  • Used to connect OD tubing sizes to male threads
  • Compatible with plastic or copper OD sized tubing
  • Food Quality and suitable for potable liquids and pure water applications
  • Also suitable for air & gas
  • Acetal body with food grade EDPM O-Ring


Fittings Comparison: Acetal Gray


Size

NEO: Working PSI @ Temp

JG: Working PSI @ Temp

 DM Fit: Working PSI @ Temp

1/4"

290psi @ 68F/ 232psi @ 150F

230psi @ 68F/ 150 psi at 150F

 230psi @ 68F/ 100 psi at 150F

3/8"

232psi @ 68F/ 203psi @ 150F

150psi @ 68F/ 100 psi at 150F

 170psi @ 68F/ 100 psi at 150F

1/2"

203psi @ 68F/ 116psi @ 150F

150psi @ 68F/ 100 psi at 150F

 170psi @ 68F/ 100 psi at 150F

Certifications

NEO: NSF 51 & 61 Certified

JG: NSF 51 & 61 Certified

 DM Fit: NSF 51 & 61 Certified




Size

NEO: Max Torque

JG: Max Torque

DM Fit: Max Torque

1/4"

1ft/lb  (1.5nm)

1ft/lb  (1.5nm)

1ft/lb  (1.5nm)

3/8"

2ft/lb  (3 nm)

2ft/lb  (3 nm)

2ft/lb  (3 nm)

1/2"

2ft/lb  (3 nm)

2ft/lb  (3 nm)

2ft/lb  (3 nm)



California residents Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
