neoFit

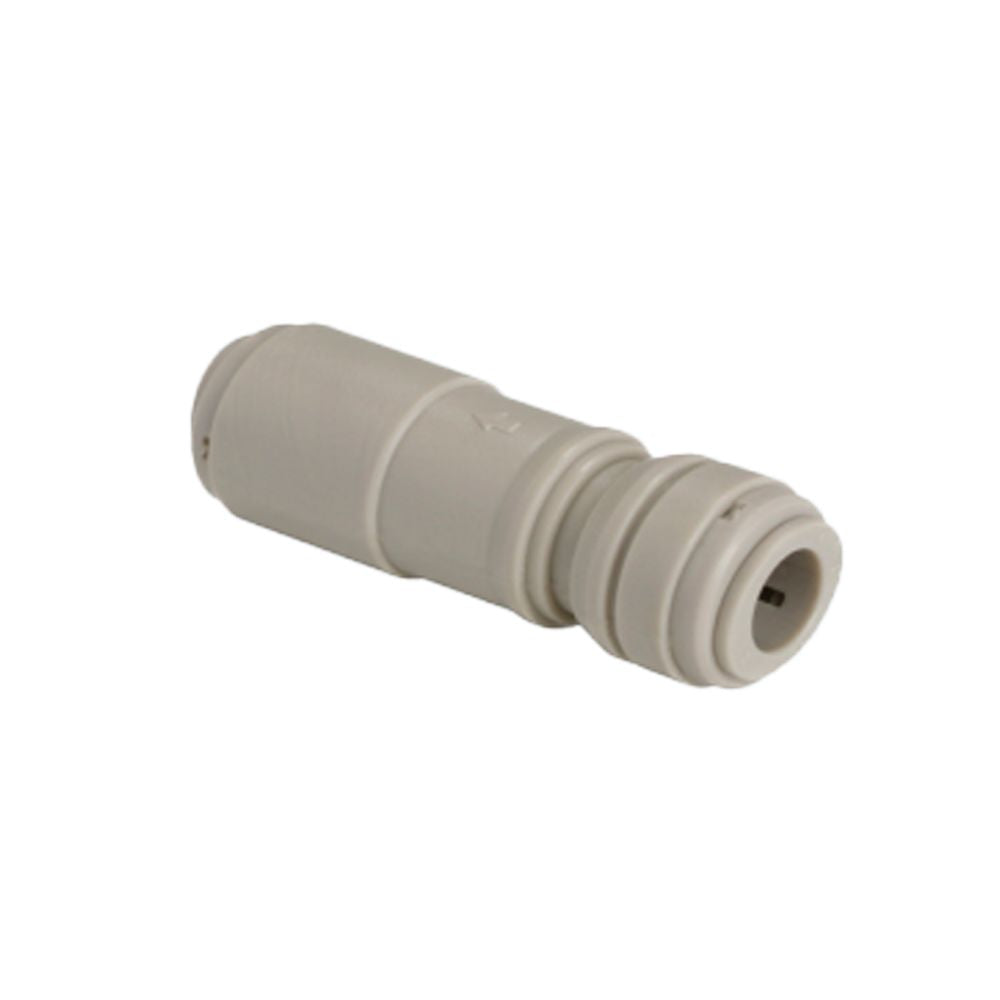

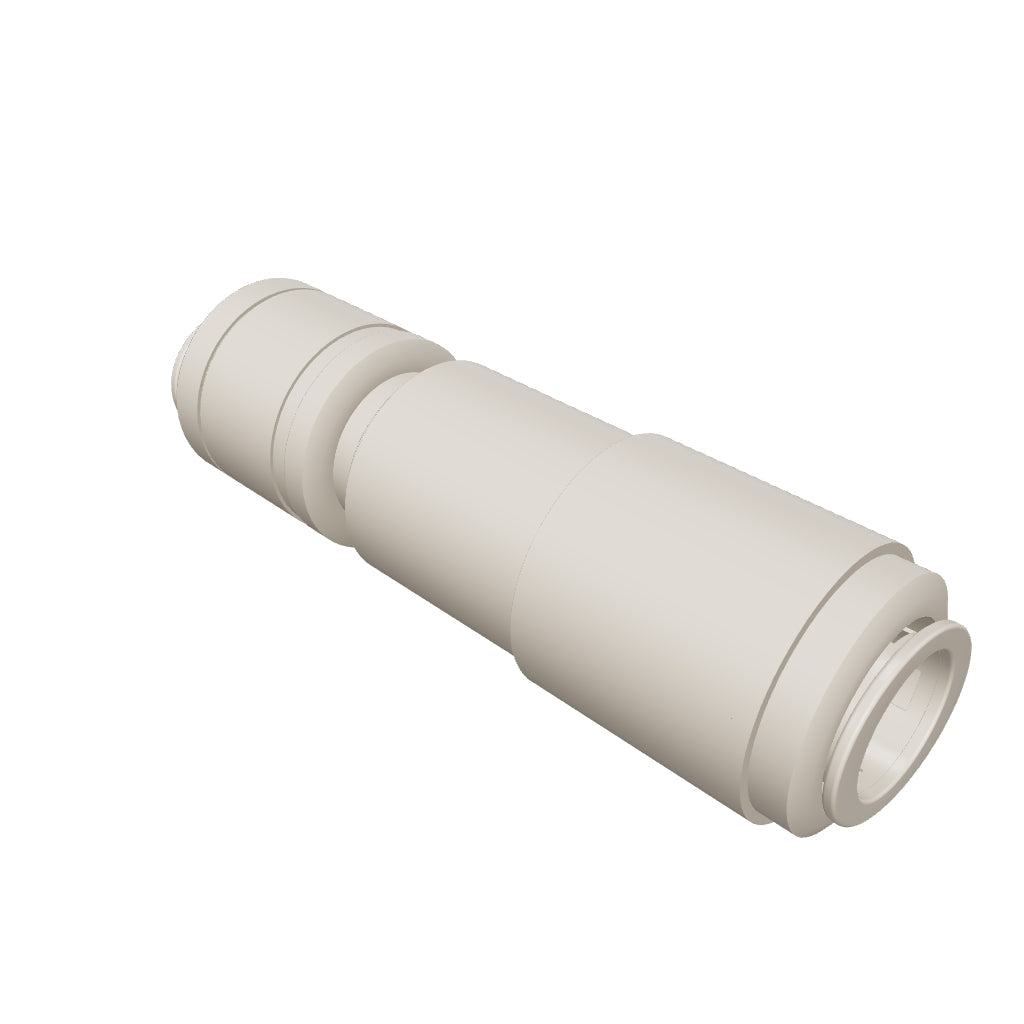

NeoFit - Acetal Gray Check Valves 1/4" tube

Part Number: ACHV44-G
1 2
neoFit

NeoFit - Acetal Gray Check Valves 1/4" tube

Part Number: ACHV44-G
MSRP: $13.57
$8.98
Quantity
Unit Price
Price
Savings

You May Also Need

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description
Features:
  • Gray acetal copolymer construction
  • EPDM O-rings
  • FDA approved materials
  • NSF 51 Certified and NSF 61 Certified
  • Suitable for water, beverages, vacuum, compressed air, and gases
  • Fittings offered in Black, Gray, and Gray
Fittings Comparison:
Size NEO: Working PSI @ Temp JG: Working PSI @ Temp JG: Working PSI @ Temp
1/4" 290psi @ 68F/ 232psi @ 150F 230psi @ 68F/ 150 psi at 150F 230psi @ 68F/ 100 psi at 150F
3/8" 232psi @ 68F/ 203psi @ 150F 150psi @ 68F/ 100 psi at 150F 170psi @ 68F/ 100 psi at 150F
1/2" 203psi @ 68F/ 116psi @ 150F 150psi @ 68F/ 100 psi at 150F 170psi @ 68F/ 100 psi at 150F
Certifications NEO: NSF 51 & 61 Certified JG: NSF 51 & JG: NSF 51 & 61 Certified DM Fit: NSF 51 & 61 Certified
Size NEO: Max Torque JG: Max Torque DM Fit: Max Torque
1/4" 1ft/lb (1.5nm) 1ft/lb (1.5nm) 1ft/lb (1.5nm)
3/8" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)
1/2" 2ft/lb (3 nm) 2ft/lb (3 nm) 2ft/lb (3 nm)

Specifications
  • Product Details
  • Application
    Water
  • Color / Finish
    Gray
  • Crack Pressure
    0.3
  • Fitting Body Material
    Plastic
  • Fitting Connection 1
    Push-to-Connect
  • Fitting Connection Type
    Push-to-Connect
  • Fitting Type
    Quick-Connect Fittings
  • Max Pressure (PSI)
    290
  • Min Temp (F)
    -4°F
  • Max Temp (F)
    208°F
  • Mounting Style
    Free Floating
  • Push-In Size
    1/4" OD
  • Seal / O-Ring Material
    EPDM
  • Series
    Inch
  • Shipping Dimensions
  • Shipping Length
    1.8125
  • Shipping Width
    1.8125
  • Shipping Height
    1.8125

Downloads
NeoFit - Acetal Gray Check Valves 1/4
