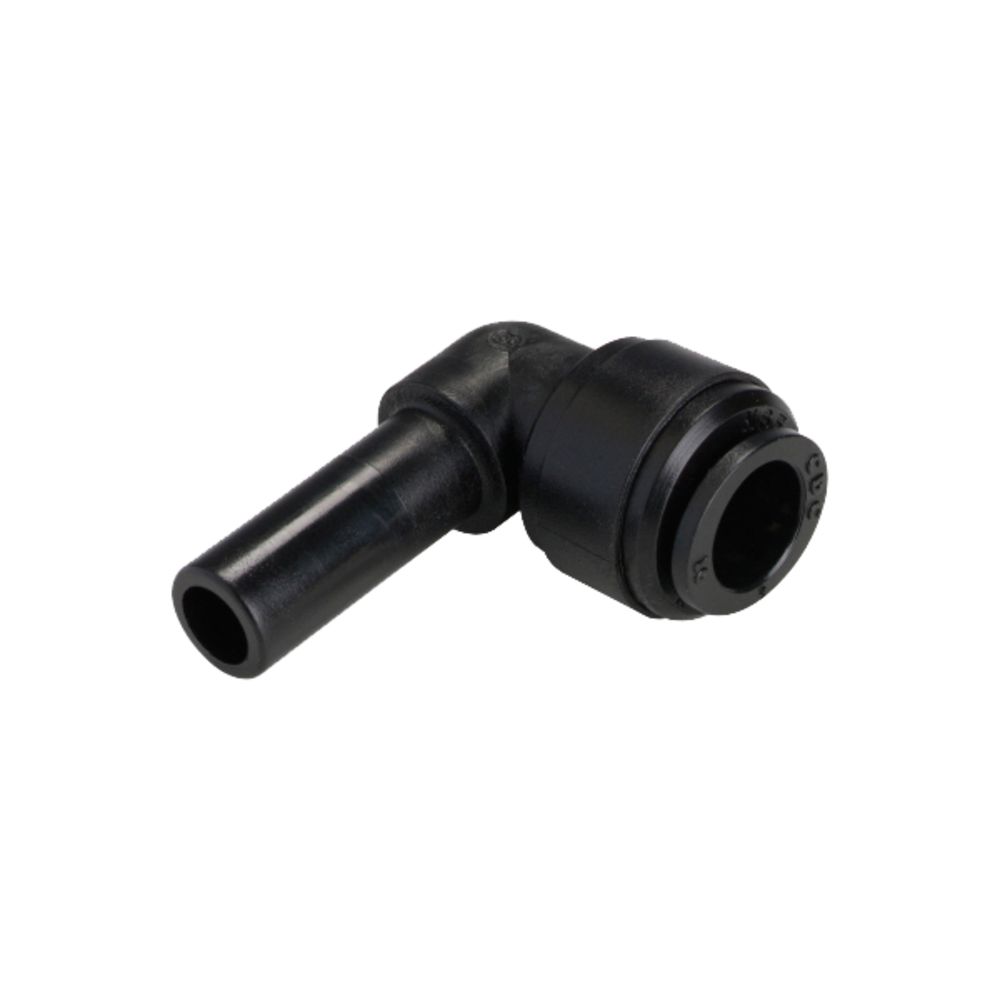

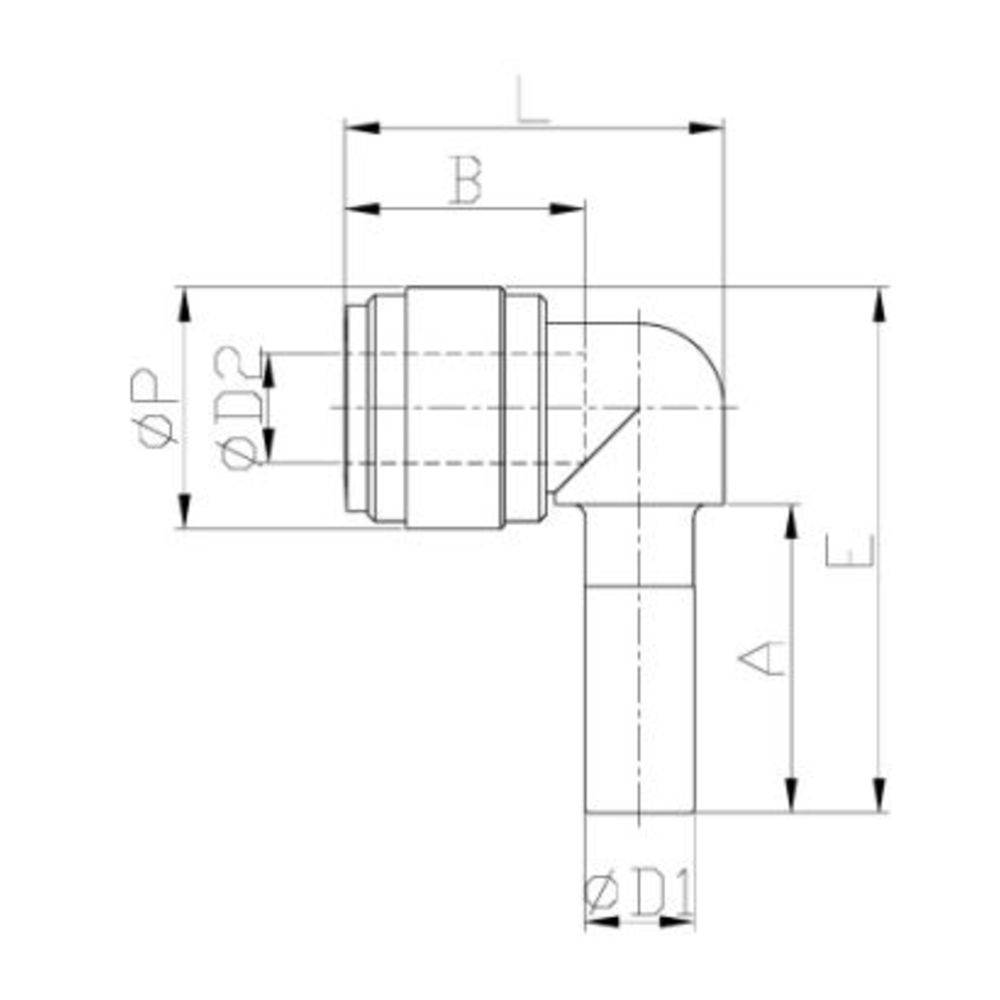

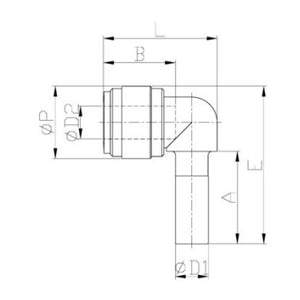

NeoFit - Acetal Black Stem Elbow 8mm tube x 8mm stem
Part Number: ATEU88M-E
Alt. Part Number: PPM220808W
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
- Black acetal copolymer construction
- Nitrile Buna-N (NBR) O-rings
- FDA approved materials
- NSF 51 Certified
- Suitable for water, beverages, vacuum, compressed air, and gases
- Fittings offered in Black, White, and Gray
WARNING!
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 290 |
Max Temp (°F) | 208 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -4 |
Mounting Options | Free Floating |
Push-In Size | 8mm OD |
Seal Material | Buna-N |
Series | Metric |
Stem Size | 8mm OD |
Color / Finish | Black |
Origin | Korea |
Sub-Type | Tube to Stem Elbow |
Type | Elbow |
| Warranty & Certifications | |
Certifications | NSF 51, FDA Approved |
Product Certification Standard | NSF/ANSI 51 |
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
