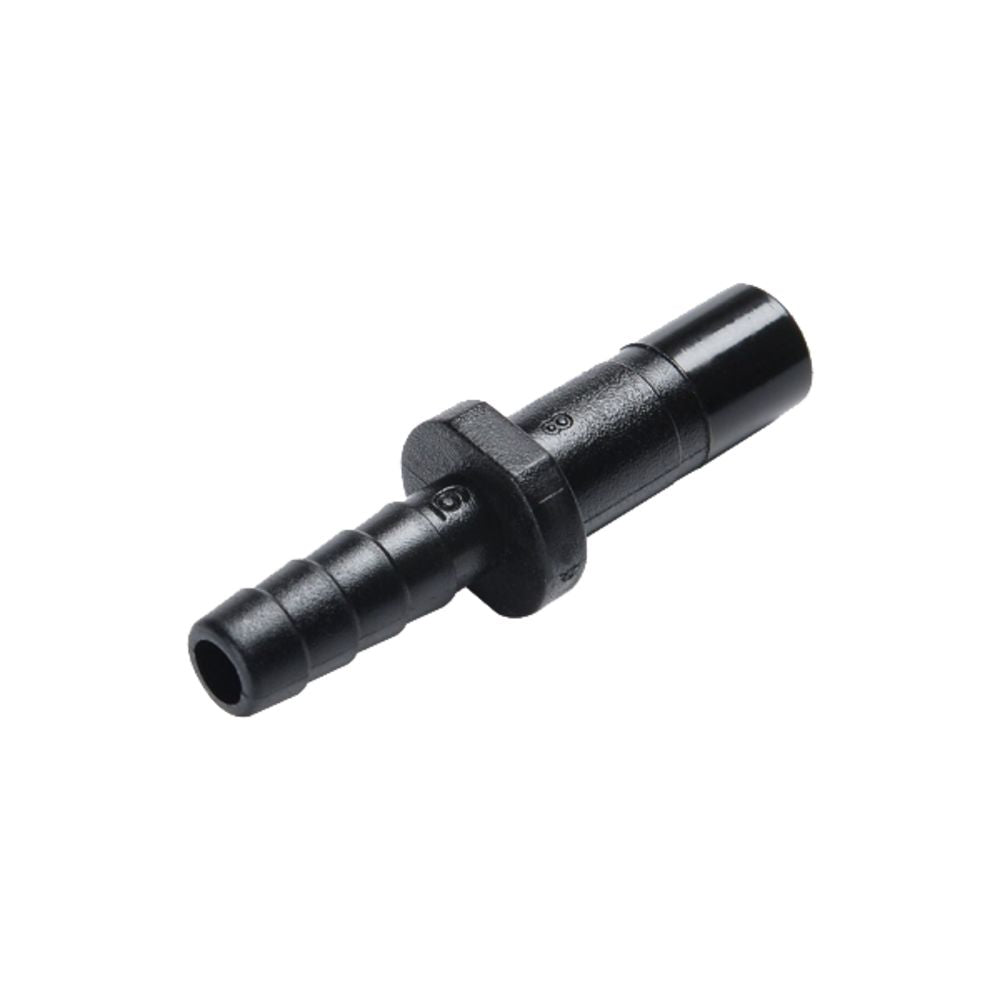

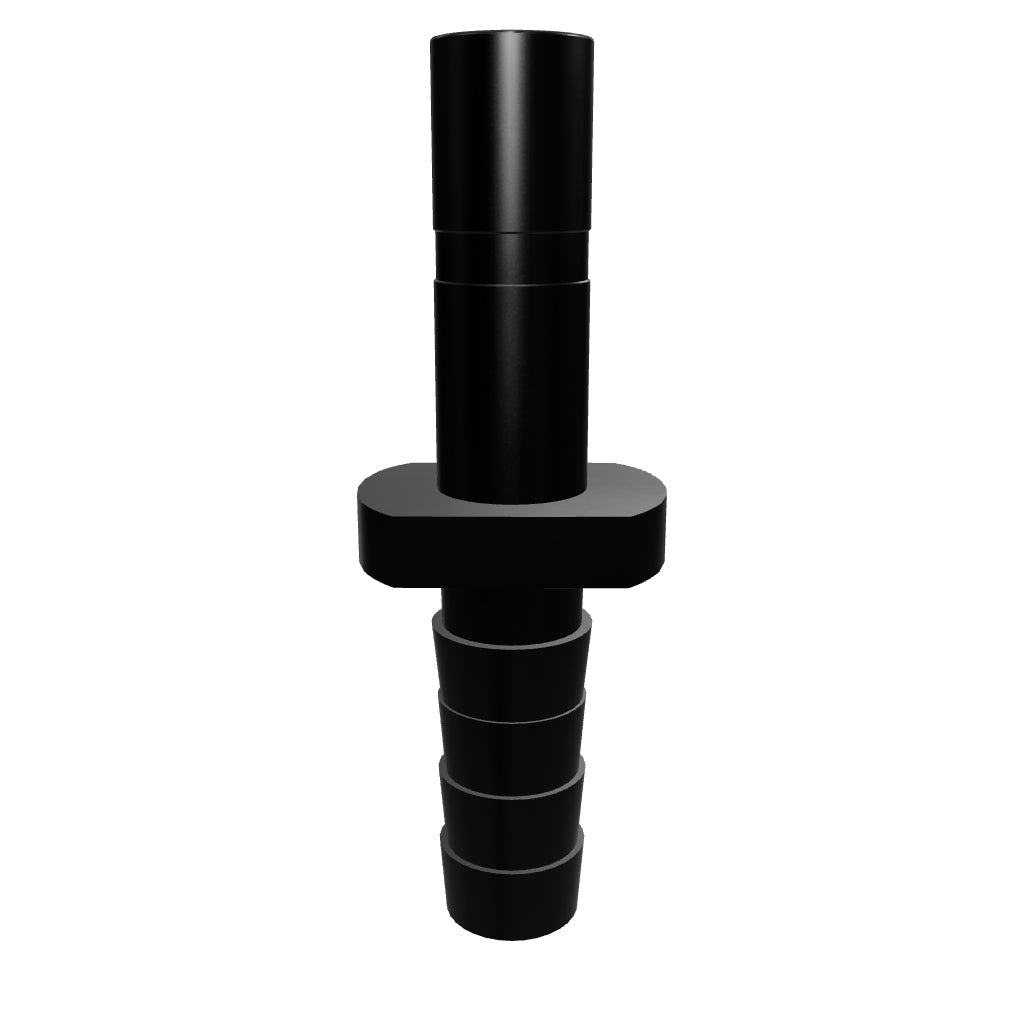

NeoFit - Acetal Black Stem Barb Connector 1/4" stem x 3/16" barb
Part Number: ATBC43-E
Alt. Part Number: PI250806S
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
- Black acetal copolymer construction
- Nitrile Buna-N (NBR) O-rings
- FDA approved materials
- NSF 51 Certified
- Suitable for water, beverages, vacuum, compressed air, and gases
- Fittings offered in Black, White, and Gray
WARNING!
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
Barb Size | 3/16" ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 290 |
Max Temp (°F) | 208 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -4 |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Series | Inch |
Stem Size | 1/4" OD |
Color / Finish | Black |
Origin | Korea |
Sub-Type | Stem Barb |
Type | Barb |
| Warranty & Certifications | |
Certifications | NSF 51, FDA Approved |
Product Certification Standard | NSF/ANSI 51 |
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
