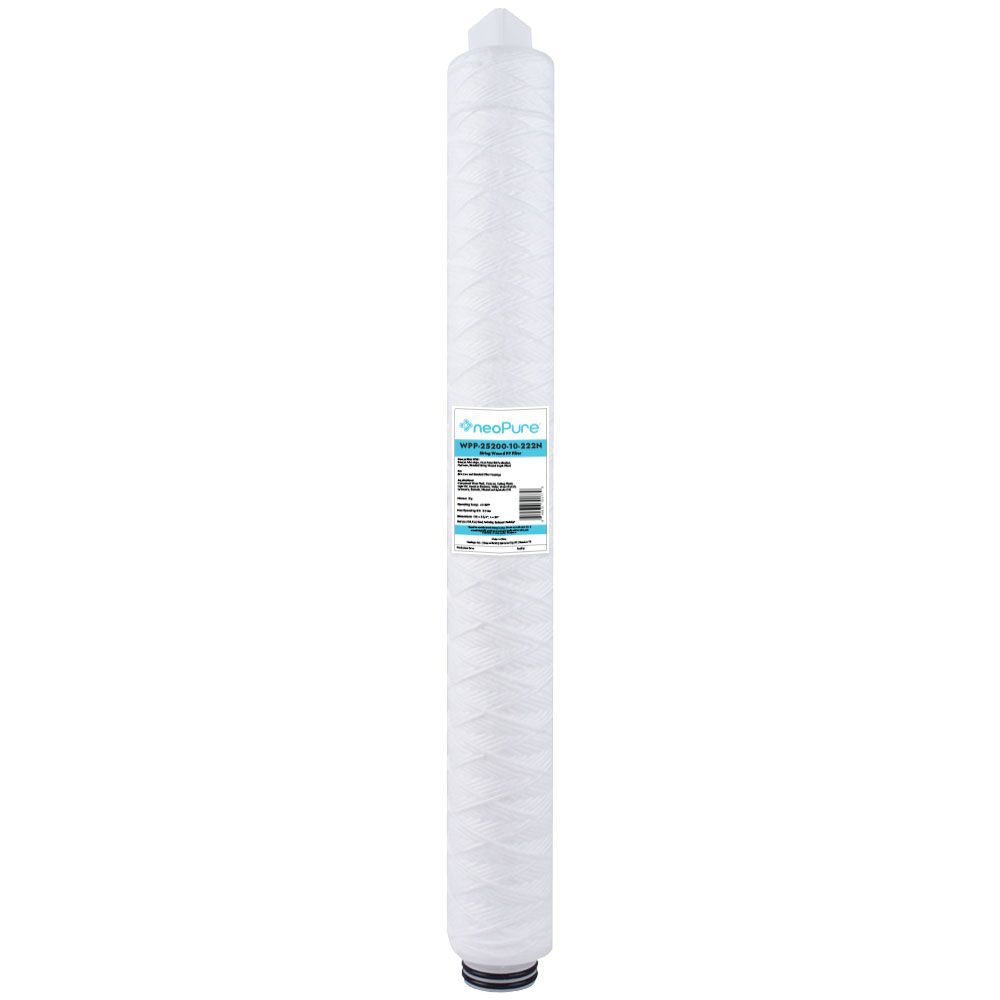

Neo-Pure WPP-25200-10-222N 20" Surfactant Free String Wound Filter 10 Micron, 222 End Cap with FIN

Part Number: WPP-25200-10-222N

Alt. Part Number: SW-25-2010

In Stock

out of stock

In Stock

$10.92

The Neo-Pure WPP-25200-10-222N Surfactant Free Polypropylene String Wound Filter is a cost-effective alternative to other FCPX style filters. This filter not only meets USP Class VI Biological Tests for Plastics, but also is made in the USA. The Neo-Pure Surfactant Free Polypropylene String Wound Filters ensure reduction of sand, silt, rust, dirt, and scale particles. This NSF filter delivers high quality filtration for many applications such as SDI, Reverse Osmosis, and CDI.

Specifications:
  • High dirt holding capacity
  • Reduces sand, silt, rust and scale particles
  • Filter Media: Polypropylene Fiber Cord
  • Core: Polypropylene
  • End Caps: 222N (Dual O-rings)
  • FDA CFR Title 21 Approved Material
  • Certified by WQA to NSF/ANSI Standard 61
  • Certified by WQA to NSF/ANSI Standard 42
Applications:
  • Air and Gas
  • Chemicals
  • Food & Beverage
  • Magnetic Coatings
  • Solvents, Paints, and Inks
  • Prefiltration
  • Process Water
  • Photo Solutions
  • Oil and Petrochemicals
  • Water and Wastewater



Compatible with:
Evoqua AdvantageFCPXF2010

Weight & Dimensions

Weight (lbs)

1.2

Approx Length (Inches)

20" (50.8 cm)

Details

Capacity

As Needed

Core Material

Polypropylene

Max Temp (°F)

180

Micron Rating (Nominal)

10 µm

Psid@Flow Rate

Change out pressure: 20 psid (1.4 bar)

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

SOE 222 O-ring & Fin

Filter Construction

String Wound

Filter Type

Sediment Depth

Inner Diameter

1"

Media Type

Polypropylene

Micron Rating

10 µm

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

FDA CFR-21
