Neo-Pure

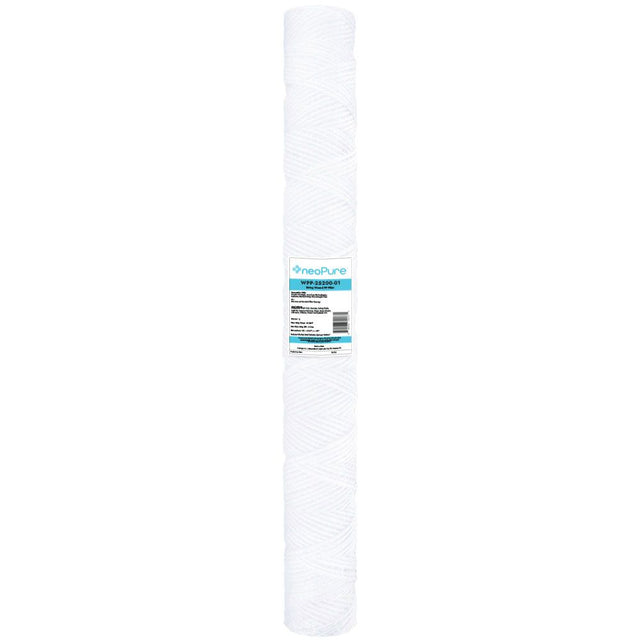

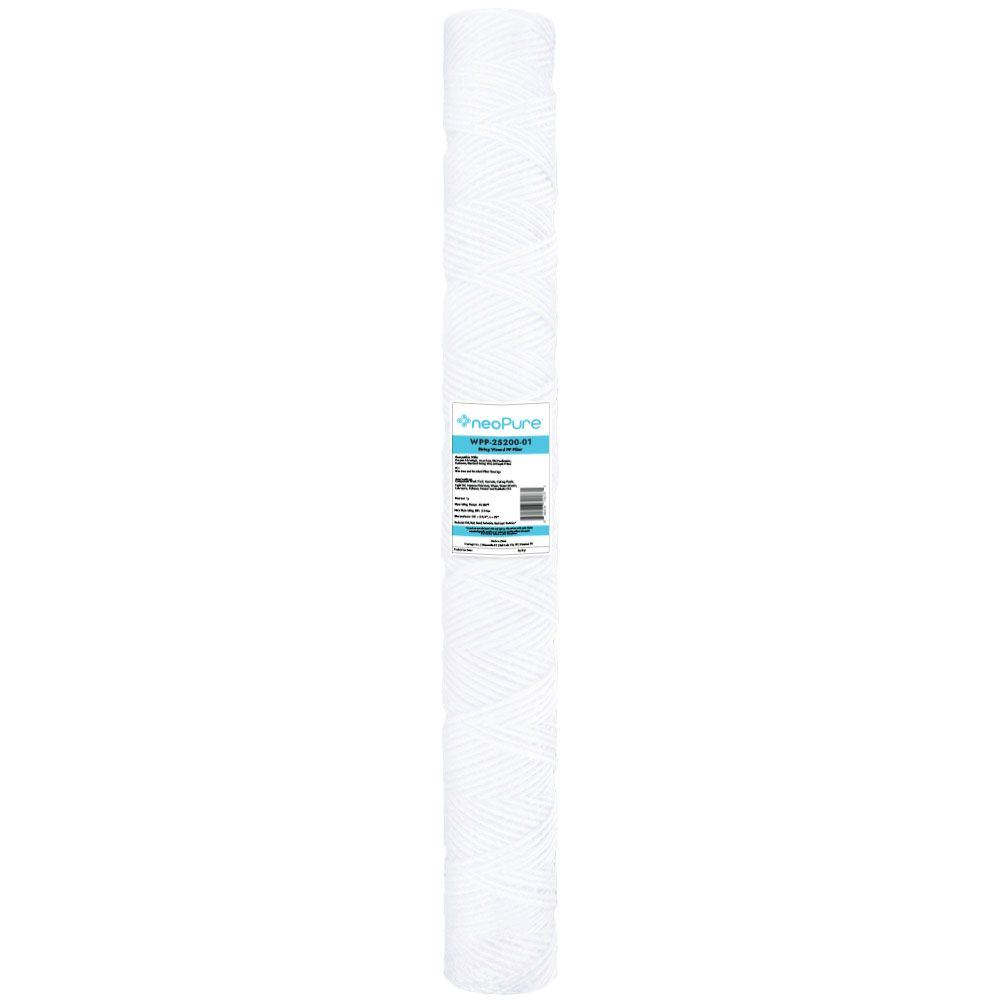

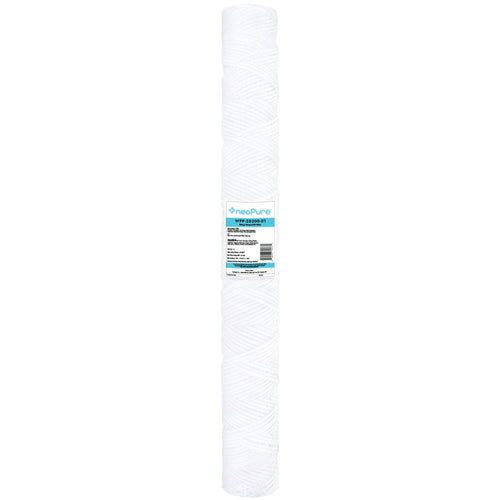

Neo-Pure WPP-25200-01 20" Surfactant Free String Wound Filter 1 Micron

Part Number: WPP-25200-01

Alt. Part Number: SW-25-2001

In Stock

out of stock

In Stock

$6.58

The Neo-Pure WPP-25200-01 Surfactant Free Polypropylene String Wound Filter is a cost-effective alternative to other FCPX style filters. This filter not only meets USP Class VI Biological Tests for Plastics, but also is made in the USA. The Neo-Pure Surfactant Free Polypropylene String Wound Filters ensure reduction of sand, silt, rust, dirt, and scale particles. This NSF filter delivers high quality filtration for many applications such as SDI, Reverse Osmosis, and CDI.

Applications
  • Air and Gas
  • Chemicals
  • Food & Beverage
  • Magnetic Coatings
  • Solvents, Paints, and Inks
  • Prefiltration
  • Process Water
  • Photo Solutions
  • Oil and Petrochemicals
  • Water and Wastewater
Features
  • High dirt holding capacity
  • Reduces sand, silt, rust and scale particles
  • Filter Media: Polypropylene Fiber Cord
  • Core: Polypropylene
  • FDA CFR Title 21 Approved Material
  • Certified by WQA to NSF/ANSI Standard 61
  • Certified by WQA to NSF/ANSI Standard 42



Compatible with:
Evoqua AdvantageFCPXF2001
HydronixSWC-25-2001
LiquatecSWF-25-2001

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

25

Height (inches)

19.88

Length (inches)

19.88

Weight (lbs)

1.203125

Width (inches)

2.5

Details

Core Material

Polypropylene

Max Temp (°F)

180

Micron Rating (Nominal)

1 µm

Psid@Flow Rate

Change out pressure: 20 psid (1.4 bar)

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

String Wound

Filter Type

Sediment Depth

Inner Diameter

1"

Media Type

Polypropylene

Micron Rating

1 µm

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

FDA CFR-21


Neo-Pure




The Neo-Pure WPP-25200-01 Surfactant Free Polypropylene String Wound Filter is a cost-effective alternative to other FCPX style filters. This filter not only meets USP Class VI Biological Tests for Plastics, but also is made in the USA. The Neo-Pure Surfactant Free Polypropylene String Wound Filters ensure reduction of sand, silt, rust, dirt, and scale particles. This NSF filter delivers high quality filtration for many applications such as SDI, Reverse Osmosis, and CDI.

Applications
  • Air and Gas
  • Chemicals
  • Food & Beverage
  • Magnetic Coatings
  • Solvents, Paints, and Inks
  • Prefiltration
  • Process Water
  • Photo Solutions
  • Oil and Petrochemicals
  • Water and Wastewater
Features
  • High dirt holding capacity
  • Reduces sand, silt, rust and scale particles
  • Filter Media: Polypropylene Fiber Cord
  • Core: Polypropylene
  • FDA CFR Title 21 Approved Material
  • Certified by WQA to NSF/ANSI Standard 61
  • Certified by WQA to NSF/ANSI Standard 42



Compatible with:
Evoqua AdvantageFCPXF2001
HydronixSWC-25-2001
LiquatecSWF-25-2001

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

25

Height (inches)

19.88

Length (inches)

19.88

Weight (lbs)

1.203125

Width (inches)

2.5

Details

Core Material

Polypropylene

Max Temp (°F)

180

Micron Rating (Nominal)

1 µm

Psid@Flow Rate

Change out pressure: 20 psid (1.4 bar)

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

As Needed

Contaminants Reduced

Sediment/Dirt/Rust

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE) - No Cap

Filter Construction

String Wound

Filter Type

Sediment Depth

Inner Diameter

1"

Media Type

Polypropylene

Micron Rating

1 µm

Origin

USA

Product Length

20"

Warranty & Certifications

Certifications

FDA CFR-21
