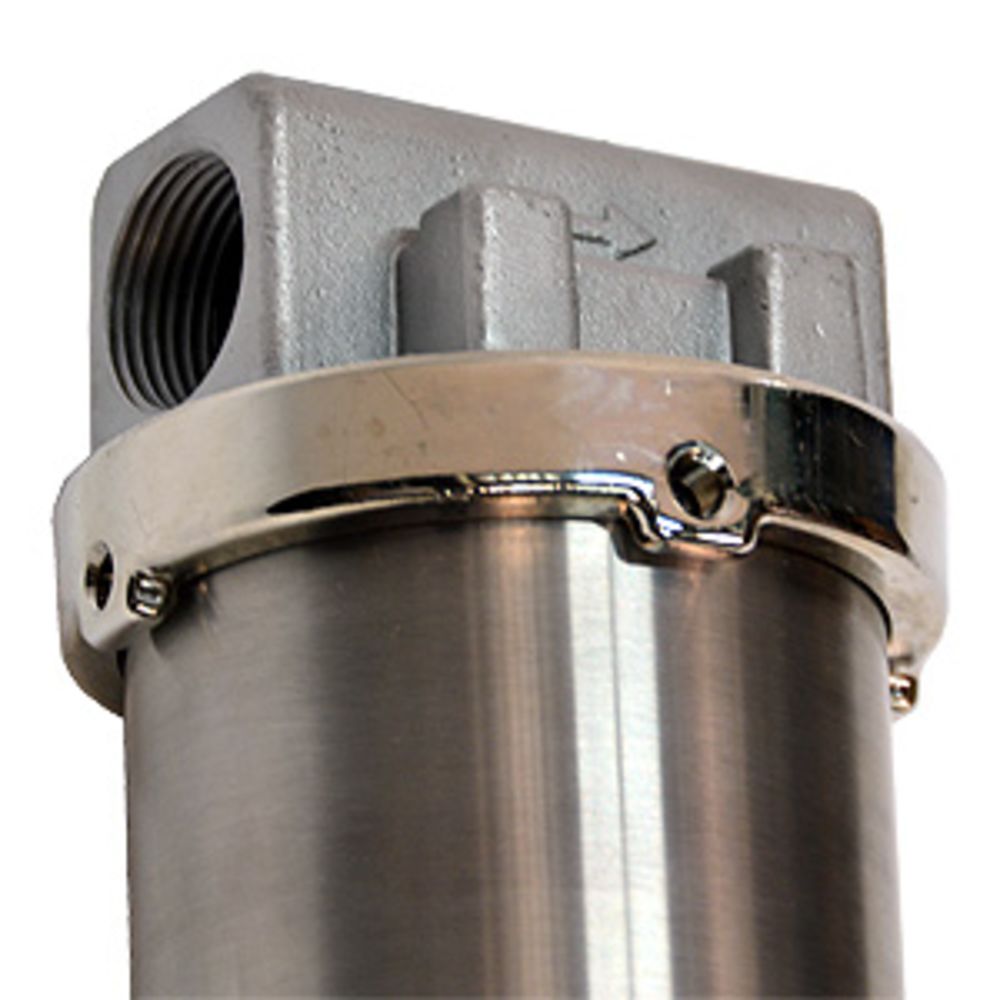

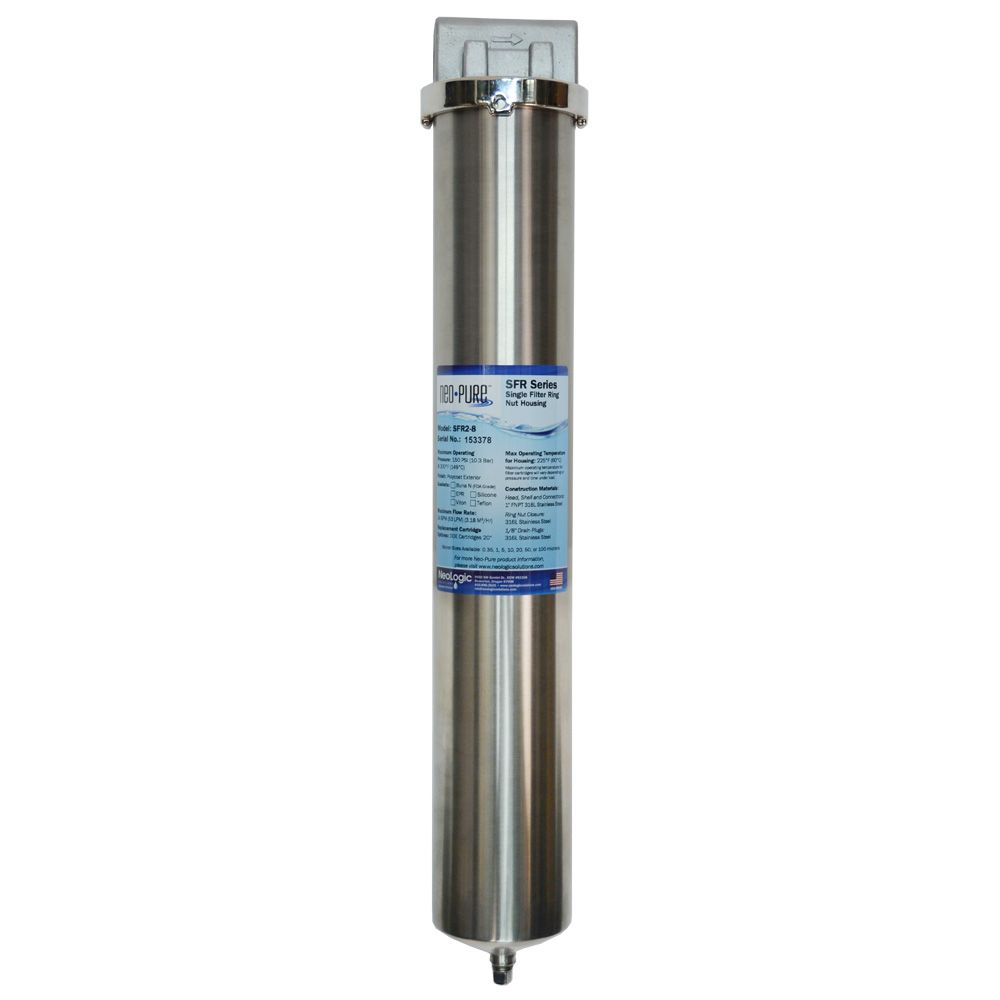

Neo-Pure SFR2 Series Filter Housing with Ring Nut Closure

Part Number: SFR2-6

1 4

Up to 20% OFF

Neo-Pure

Neo-Pure SFR2 Series Filter Housing with Ring Nut Closure

Part Number: SFR2-6

$265.85

Choose:

1/2" Inlet/Outlet 3/4" Inlet/Outlet 1" Inlet/Outlet

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Neo-Pure Stainless Steel SFR2 Single Filter Housing for cartridge lengths 19-1/2" to 20", provides exceptional filtration with a single filter cartridge for flow rates up to 14 gpm. The Ring Nut closure also allows quick change-outs and secure sealing.

Specifications:

Both cartridge ends have knife-edge seals to help eliminate potential bypass
Heavy-duty 316L stainless steel construction from maximum durability
Ring Nut closure for quick, easy change-outs and secure sealing
Protective poly-coat finish
Flow rates up to 14 gallons per minute
Inlet/Outlet: 3/4" FNPT or 1" FNPT
All stainless steel internals
Standard version comes with mounting bracket and screws

Standard option SFR series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.
Applications:

Coolants
Chemicals
Electronics
Paper and Pulp
Food and Beverage
Paints, Inks, and Coatings
Oil and Gas
Water

Compatible with:

Graver Technologies	SCR20316L050DOE-B
Harmsco® Compatible	FSSS-2
Shelco	RHS-804A-B, RHS-806A-B, RHS-808A-B

Specifications

Product Details
Body Material	316L Stainless Steel
Closure Type	Ring Nut
Drain Size	1/8" FPT
Housing Material	316 Stainless Steel
Inlet Connection	1/2" FPT 3/4" FPT 1" FPT
Material Of Construction	316 Stainless Steel
Max Flow Rate	14 GPM
Max Pressure (Psi)	300
Max Temp (°F)	200°F
O-Rings	Buna-N
Outlet Connection	1/2" FPT 3/4" FPT 1" FPT
Size	1/2" 3/4" 1"
Cap Material	316 Stainless Steel
Color / Finish	Stainless Steel
Connection Type	Female (FPT)
Origin	U.S.A.
Shipping Dimensions
Shipping Length	4 in.
Shipping Width	4 in.
Shipping Height	25 in.
Product Weight & Dimensions
Product Height	23-9/16"
Product Length	19-1/2 - 20"
Product Weight (lbs)	9.55

Product Details
Body Material	316L Stainless Steel
Closure Type	Ring Nut
Drain Size	1/8" FPT
Housing Material	316 Stainless Steel
Inlet Connection	1/2" FPT 3/4" FPT 1" FPT
Material Of Construction	316 Stainless Steel
Max Flow Rate	14 GPM
Max Pressure (Psi)	300
Max Temp (°F)	200
O-Rings	Buna-N
Outlet Connection	1/2" FPT 3/4" FPT 1" FPT
Size	1/2" 3/4" 1"
Cap Material	316 Stainless Steel
Color / Finish	Stainless Steel
Connection Type	Female (FPT)
Origin	U.S.A.
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	23-9/16"
Product Length	19-1/2 - 20"
Product Weight (lbs)	9.5625

Product Details
Body Material	316L Stainless Steel
Closure Type	Ring Nut
Drain Size	1/8" FPT
Housing Material	316 Stainless Steel
Inlet Connection	1/2" FPT 3/4" FPT 1" FPT
Material Of Construction	316 Stainless Steel
Max Flow Rate	14 GPM
Max Pressure (Psi)	300
Max Temp (°F)	200
O-Rings	Buna-N
Outlet Connection	1/2" FPT 3/4" FPT 1" FPT
Size	1/2" 3/4" 1"
Cap Material	316 Stainless Steel
Color / Finish	Stainless Steel
Connection Type	Female (FPT)
Origin	U.S.A.
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	23-9/16"
Product Length	19-1/2 - 20"
Product Weight (lbs)	9.3125

Downloads

Neo-Pure SFR2 Series Filter Housing with Ring Nut Closure Manual
