Neo-Pure

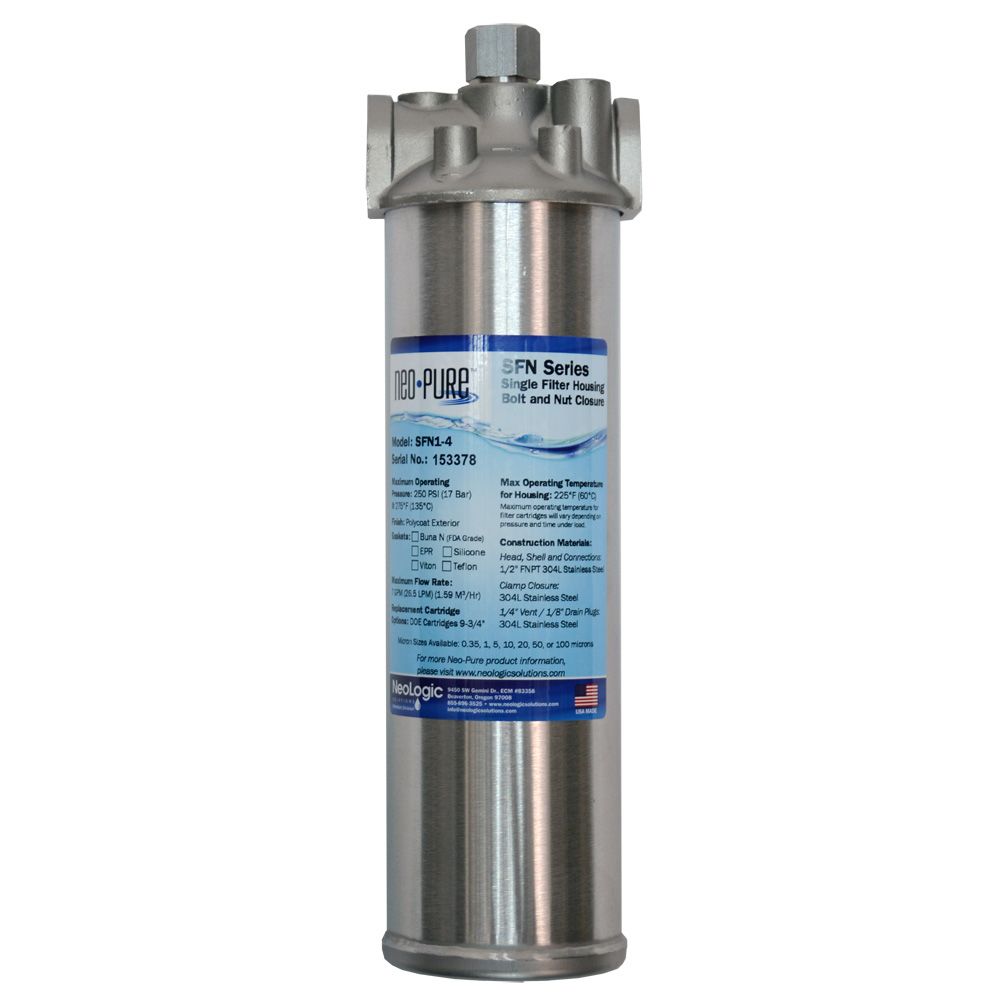

Neo-Pure SFBH1-6 Single Filter Housing with Bolt and Nut Closure - 3/4" FPT

Part Number: SFBH1-6

In Stock

out of stock

In Stock

$134.80


Neo-Pure Stainless Steel Single Filter Housings provide superior filtration with either a string-wound, carbon block or meltblown filter cartridge. The bolt and nut closure offers quick access to the interior for easy filter change-outs.

Features:
  • Uses double open-ended cartridges (DOE)

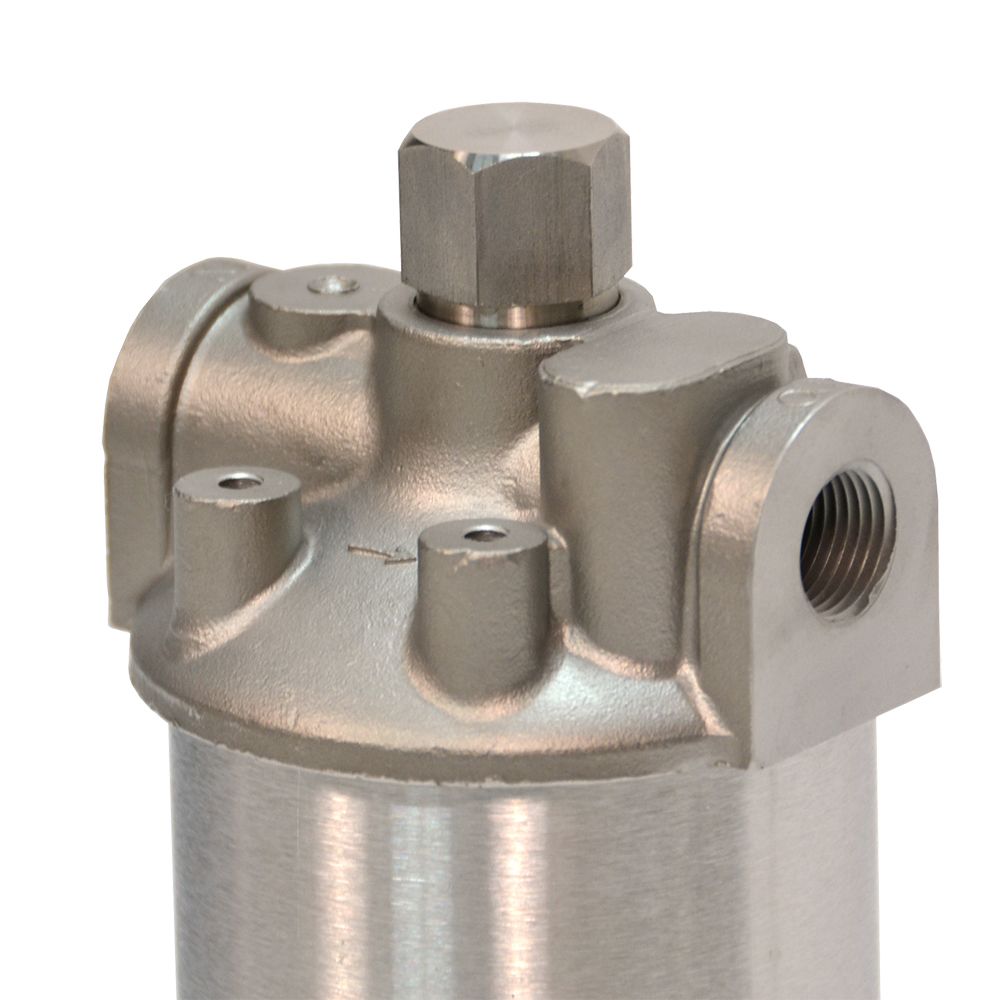

  • Brass nickel plated head
  • Heavy-duty 304L stainless steel construction for maximum durability
  • Bolt and nut closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 7 gallons per minute
  • Inlet/Outlet: 3/4" FPT
  • All stainless steel internals
  • FDA Grade Buna-N Gaskets
  • Mounting bracket and screws not included
Applications
  • Chemicals
  • Cooling Tower Filtration
  • Desalination Prefiltration
  • Electronics
  • Food and Beverage
  • Oil and Gas
  • Paper and Pulp
  • Paints, Inks, and Coatings
  • Water

Compatible with: Graver Technologies | SCB09304L075DOE-B


Weight & Dimensions

Approx Height (Inches)

13-3/4 Inches

Approx Length (Inches)

9-3/4"

Details

Body Material

304L Stainless Steel

Cap Color

Stainless Steel

Cap Material

304 Stainless Steel

Closure Type

Ring Nut Closure - Stainless Steel

Color / Finish

Stainless Steel

Drain Size

1/8"

Gaskets

Buna N (FDA grade)

Housing Material

304 Stainless Steel

Inlet/Outlet Size

3/4"

Material Of Construction

304 Stainless Steel

Max Flow Rate

7 Gallons Per Minute

Max Operating Pressure

250 psig @ 275°F PSI

Number Of Cartridges

1

Origin

USA
