neo-pure

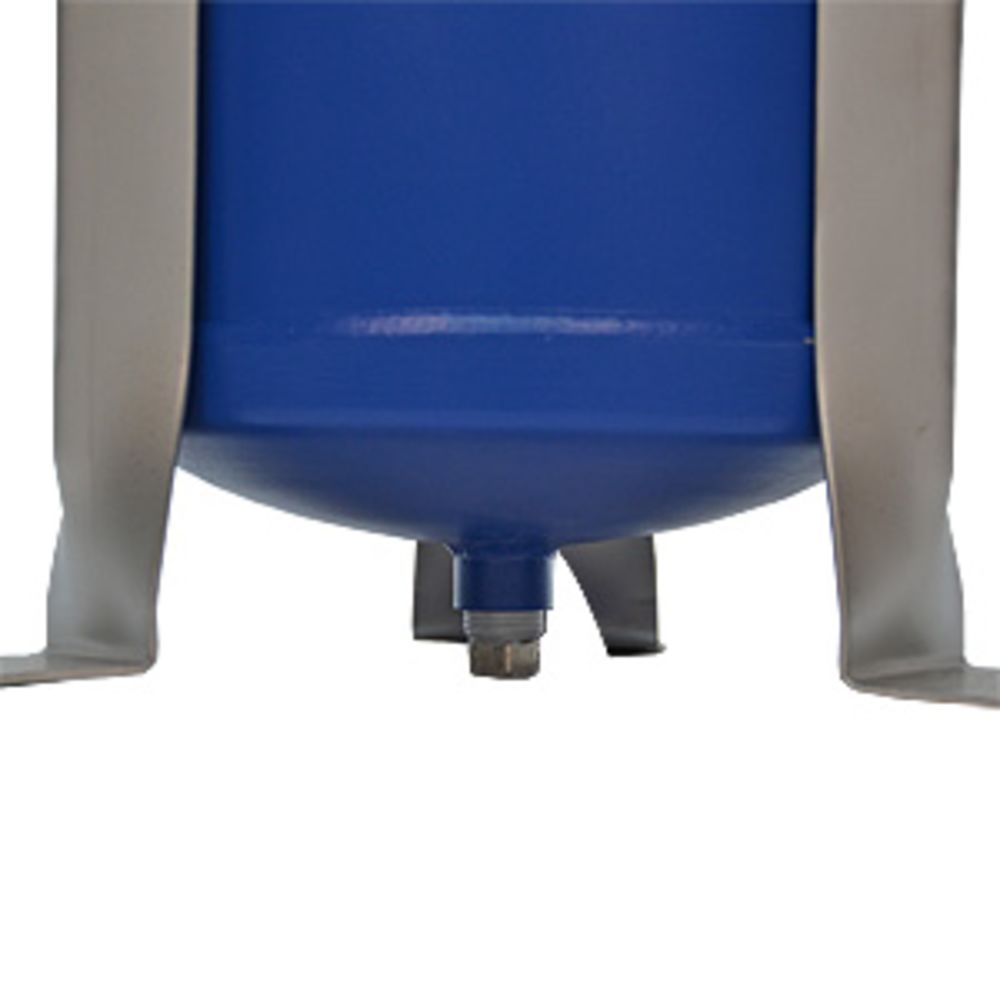

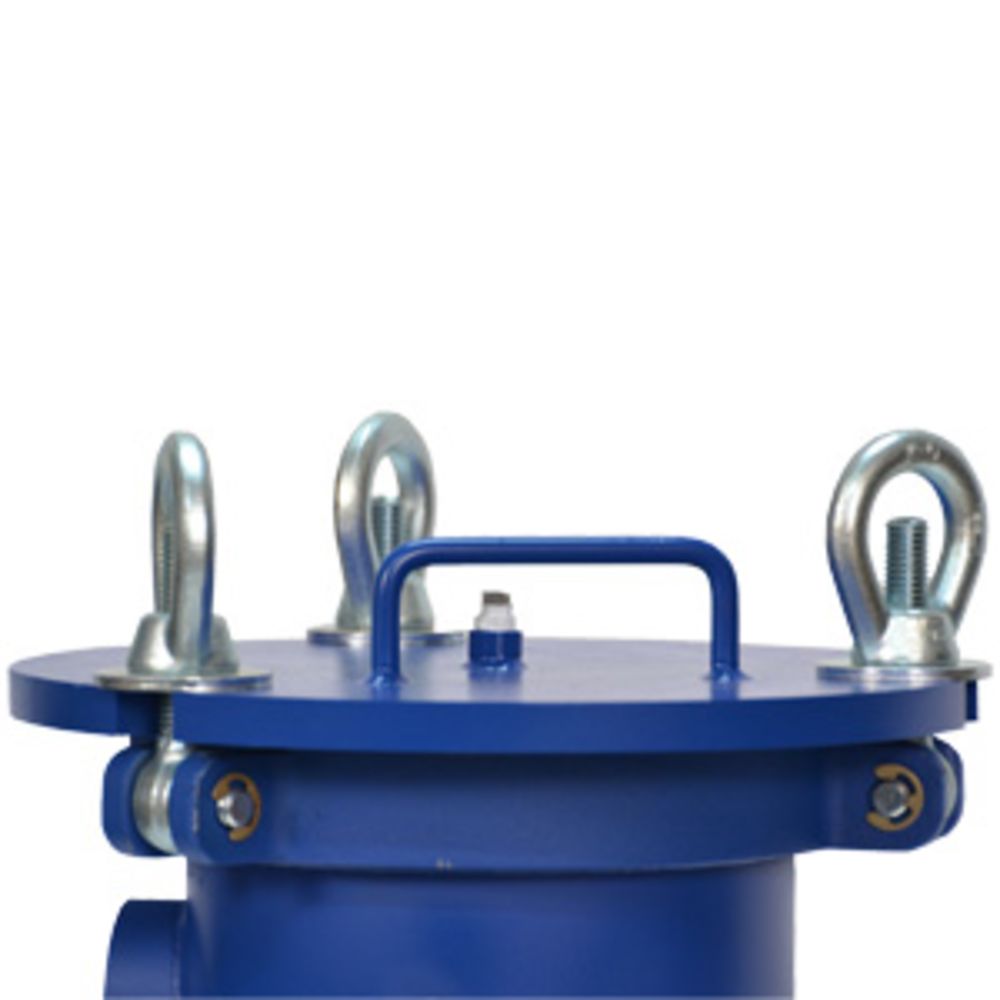

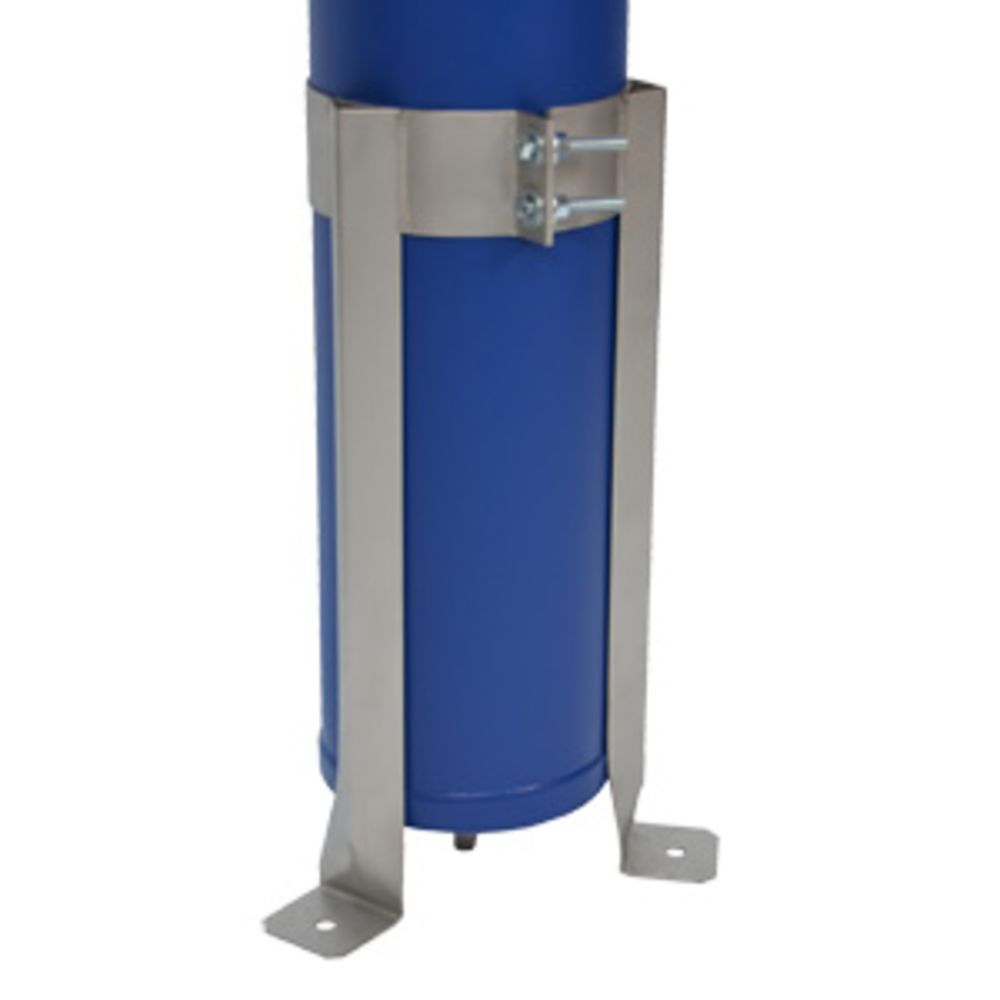

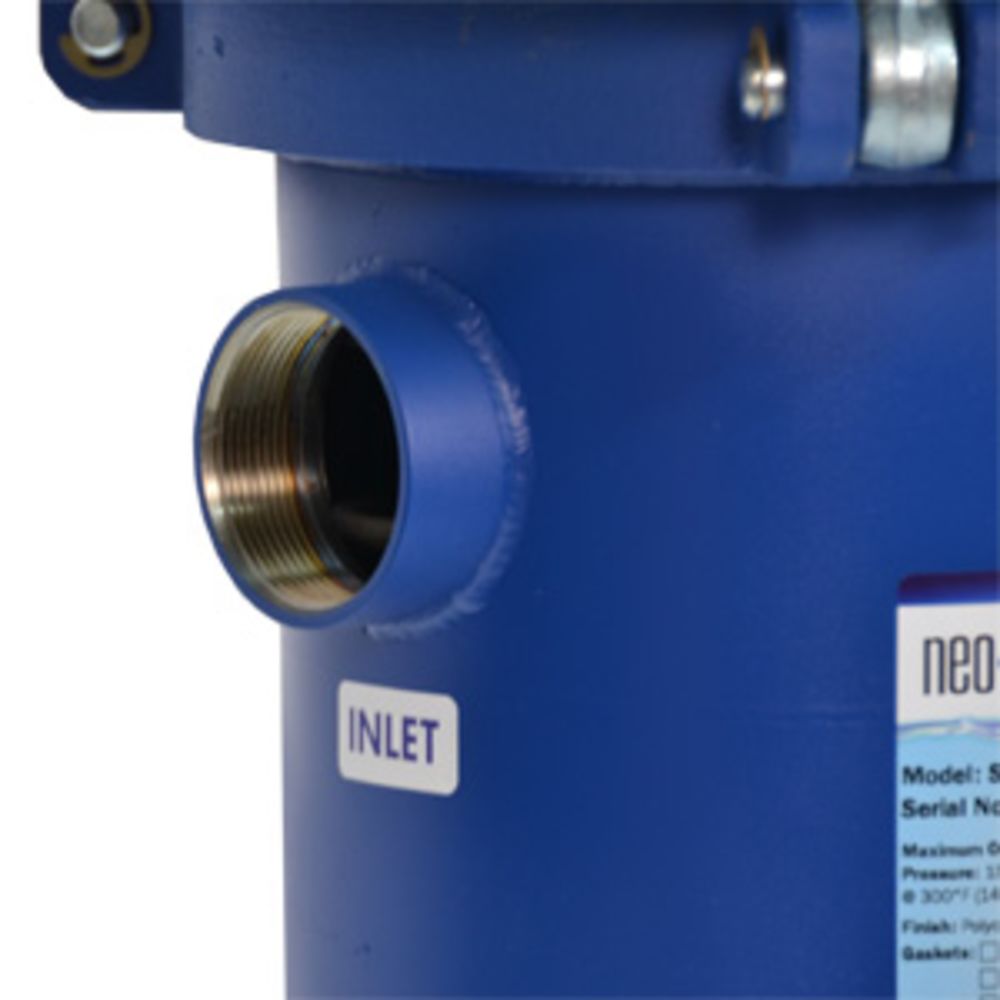

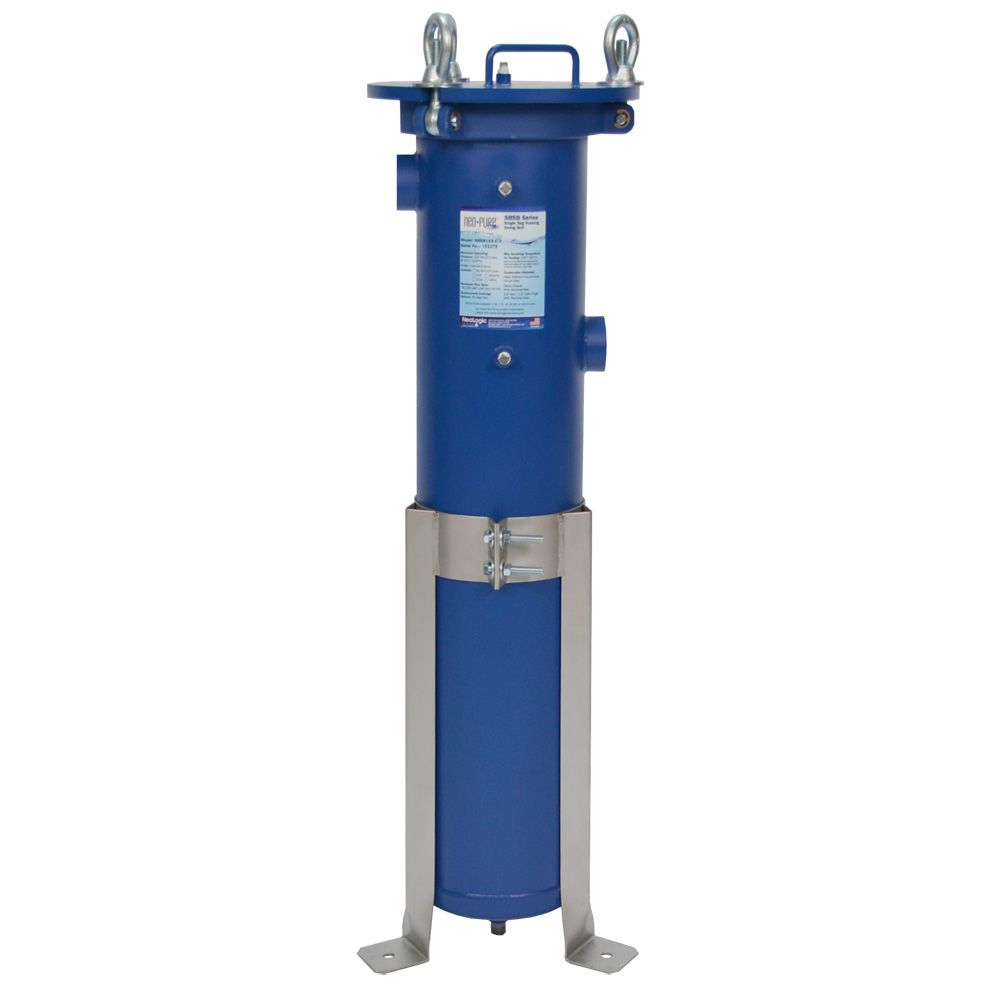

Neo-Pure SBSB Standard Bag #2 Carbon Steel Swing Bolt Filter Housing - Standard 2" FNPT

Part Number: SBSB2-C-2

In Stock

out of stock

In Stock

$915.42


Neo-Pure Carbon Steel SBSB1 #2 Bag Housing provides excellent filtration with a single standard bag filter for flow rates up to 150 gpm. The swing bolt clamp allows quick filter bag change-outs and secure sealing.

Specifications:
  • Accepts standard bag #2 filters for easy replacement and excellent filtration
  • Heavy-duty carbon steel construction for maximum durability
  • Swing bolt clamp closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 150 gallons per minute
  • Inlet/Outlet: 2" FNPT
  • All stainless steel internals
  • Standard version comes with adjustable mounting legs
Applications:
  • Chemicals
  • Coolants
  • Food and Beverage
  • Electronics
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Water

NOTE: Standard option SBSB series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.


Weight & Dimensions

Approx Height (Inches)

39.48 Inches

Details

Body Material

Carbon Steel

Cap Color

Blue

Closure Type

Swing Bolts - Zinc Plated Steel

Color / Finish

Blue

Drain Size

1/2"

Gaskets

Buna N (FDA grade)

Inlet/Outlet Size

2" FNPT

Material Of Construction

Carbon Steel

Max Flow Rate

150 Gallons Per Minute

Max Operating Pressure

150 PSI

Max Operating Temperature

225 Degrees Fahrenheit

Origin

USA

Type

Bag Vessel

Vent Size

1/4" NPT


Neo-Pure





Neo-Pure Carbon Steel SBSB1 #2 Bag Housing provides excellent filtration with a single standard bag filter for flow rates up to 150 gpm. The swing bolt clamp allows quick filter bag change-outs and secure sealing.

Specifications:
  • Accepts standard bag #2 filters for easy replacement and excellent filtration
  • Heavy-duty carbon steel construction for maximum durability
  • Swing bolt clamp closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 150 gallons per minute
  • Inlet/Outlet: 2" FNPT
  • All stainless steel internals
  • Standard version comes with adjustable mounting legs
Applications:
  • Chemicals
  • Coolants
  • Food and Beverage
  • Electronics
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Water

NOTE: Standard option SBSB series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy.

Weight & Dimensions

Approx Height (Inches)

39.48 Inches

Details

Body Material

Carbon Steel

Cap Color

Blue

Closure Type

Swing Bolts - Zinc Plated Steel

Color / Finish

Blue

Drain Size

1/2"

Gaskets

Buna N (FDA grade)

Inlet/Outlet Size

2" FNPT

Material Of Construction

Carbon Steel

Max Flow Rate

150 Gallons Per Minute

Max Operating Pressure

150 PSI

Max Operating Temperature

225 Degrees Fahrenheit

Origin

USA

Type

Bag Vessel

Vent Size

1/4" NPT
