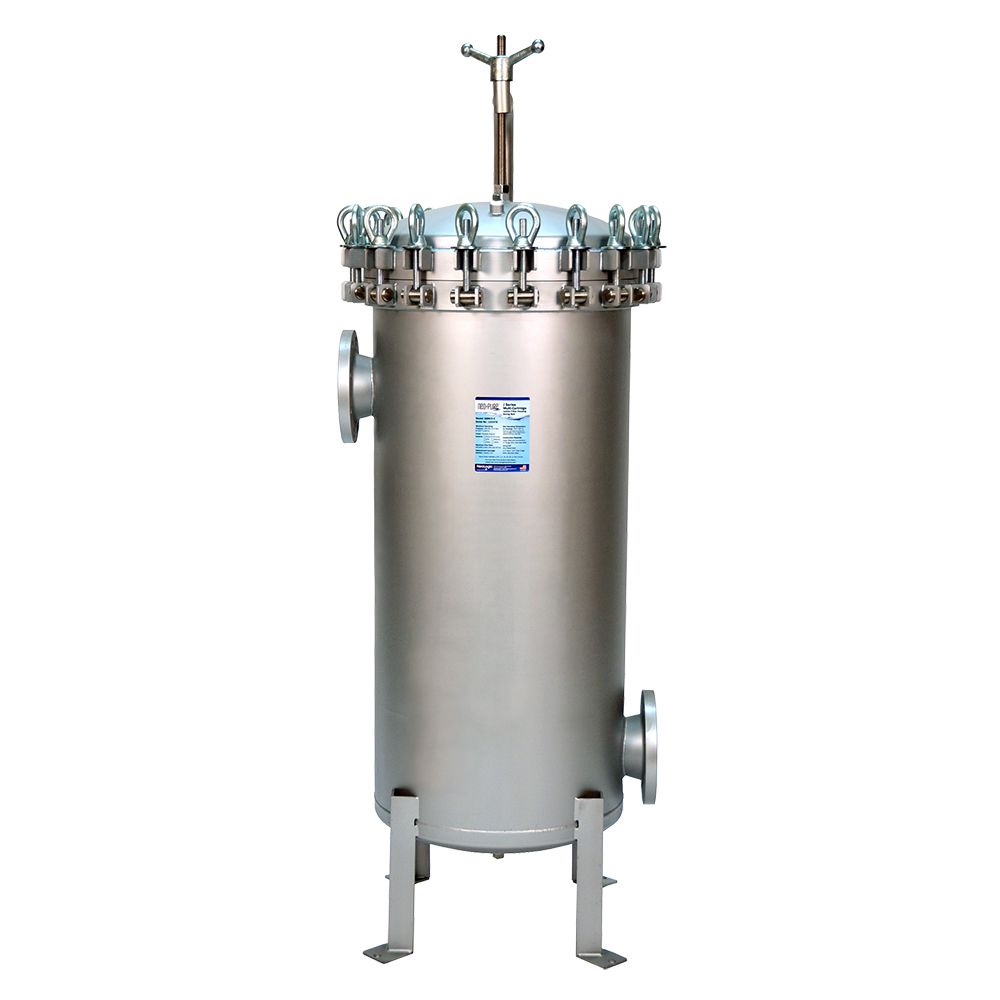

Neo-Pure Stainless Steel SBMB6X2 Housings provides excellent filtration with six #2 bag filters for flow rates up to 1050 gpm. The swing bolt closure is ideal for large flow systems.
Features:
- Neo-Pure SB Single Bag Filter Housing Replacement Filters
- Designed for high flow commercial and industrial filter applications
- Accepts six #2 bag filters for easy replacement and excellent filtration
- Heavy-duty 304L or 316L stainless steel construction for maximum durability
- Swing bolt closure is ideal for large flow systems
- Poly-coat exterior finish
- Flow rates up to 1050 gallons per minute
- Inlet/Outlet: 6" Flange
- Manufactured in the USA
- Chemicals
- Coolants
- Food and Beverage
- Electronics
- Oil and Gas
- Paints, Inks, and Coatings
- Paper and Pulp
- Water
NOTE: Standard option MB series housings are in-stock and ready to ship. Customized versions will require a 2-3 week time for customization and manufacturing. For more information on returning customized items, see our Returns Policy .
Weight & Dimensions
Approx Height (Inches) | 63-1/2 Inches |
Approx Length (Inches) | #2 Filter Bags |
Details
Cap Color | Stainless Steel |
Closure Type | Swing Bolts - Zinc Plated Steel |
Color / Finish | Stainless Steel |
Drain Size | 3/4" |
Gaskets | Buna N (FDA grade) |
Material Of Construction | 304 Stainless Steel, 316 Stainless Steel |
Max Flow Rate | 1050 Gallons Per Minute |
Max Operating Pressure | 150 psig @ 300°F PSI |
Number Of Cartridges | 6 |
Origin | USA |
Size | 6" |
Inlet/Outlet Connection | 6" | Flange |
